Extract from the online
catalog
EMCV 1,5/11-G-3,5
Order No.: 1911101
The figure shows a 10-position version of the product
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1911101
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm,
Number of positions: 11, Color: green, Assembly: Press-in
Product notes
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
4017918175856
50 pcs.
85366990
0.00295 KG
Page 173 (CC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
01/01/2003
Technical data
Dimensions / positions
Length
Pitch
Dimension a
Number of positions
Pin dimensions
7.25 mm
3.5 mm
35 mm
11
0,8 x 0,8 mm
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 1 / 4
Jul 12, 2009
EMCV 1,5/11-G-3,5
Order No.: 1911101
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1911101
Hole diameter
Technical data
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Maximum load current
Insulating material
Inflammability class acc. to UL 94
Accessories
Item
Assembly
1877258
1877274
EMC 1,5-SH
EMCV 1,5-SS 1
Designation
1.45 mm
IIIa
2.5 kV
2.5 kV
2.5 kV
160 V
250 V
EN-VDE
8A
160 V
8A
PBT
V0
Description
Stamp holder, for upper and lower stamp
Stamp set, consisting of upper and lower stamp for 3.81 mm pitch,
2 to 16-pos.
Marking
0804073
SK 3,5/2,8:FORTL.ZAHLEN
Marker card, printed horizontally, self-adhesive, 10-section marker
strip, 14 identical decades marked 1-10, 11-20 etc. up to 91-100,
sufficient for 140 terminal blocks
Plug/Adapter
1734634
CP-MSTB
Keying profile, is inserted into the slot on the plug or inverted
header, red insulating material
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 2 / 4
Jul 12, 2009
EMCV 1,5/11-G-3,5
Order No.: 1911101
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1911101

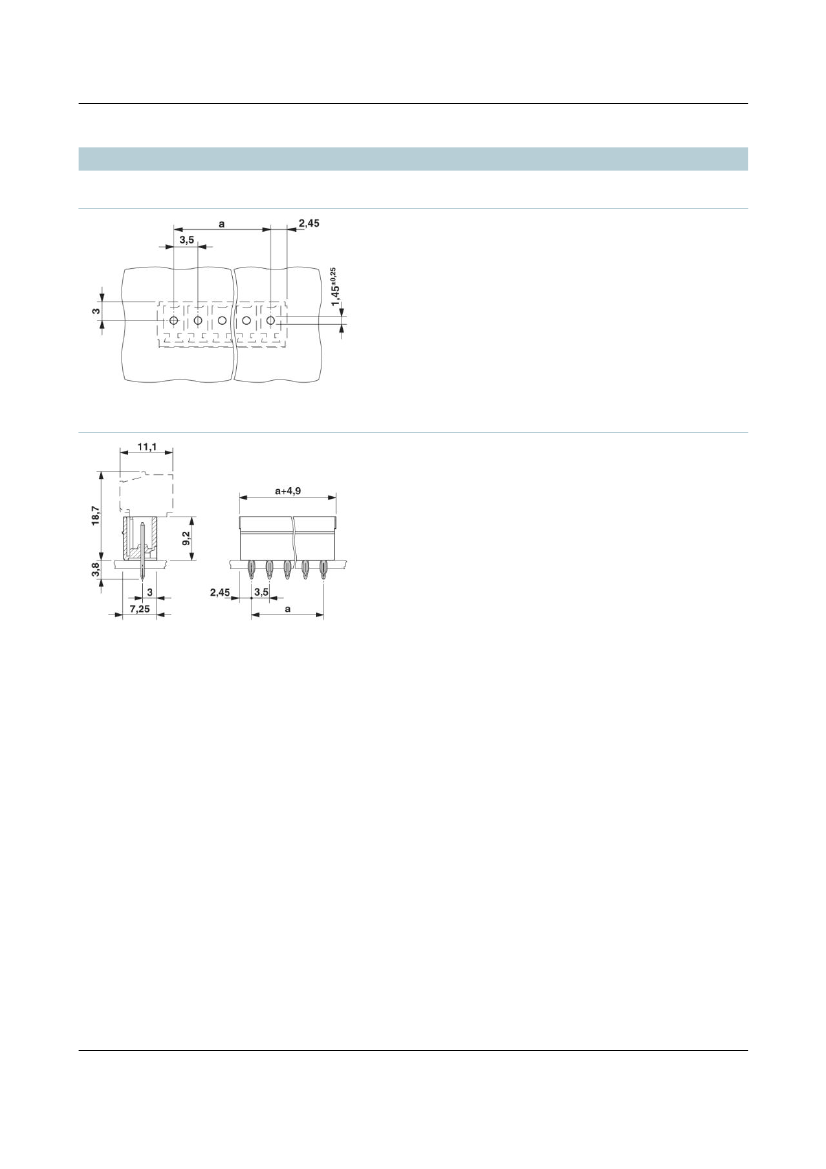

Drawings
Drilling diagram
Dimensioned drawing
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 3 / 4
Jul 12, 2009
EMCV 1,5/11-G-3,5
Order No.: 1911101
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1911101
Address
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 00
Fax +49 5235 3 41200
http://www.phoenixcontact.com
© 2009 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 4 / 4
Jul 12, 2009
