Part Number

Search

55932-1317

Description
Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Plug
CategoryThe connector    The connector
File Size146KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

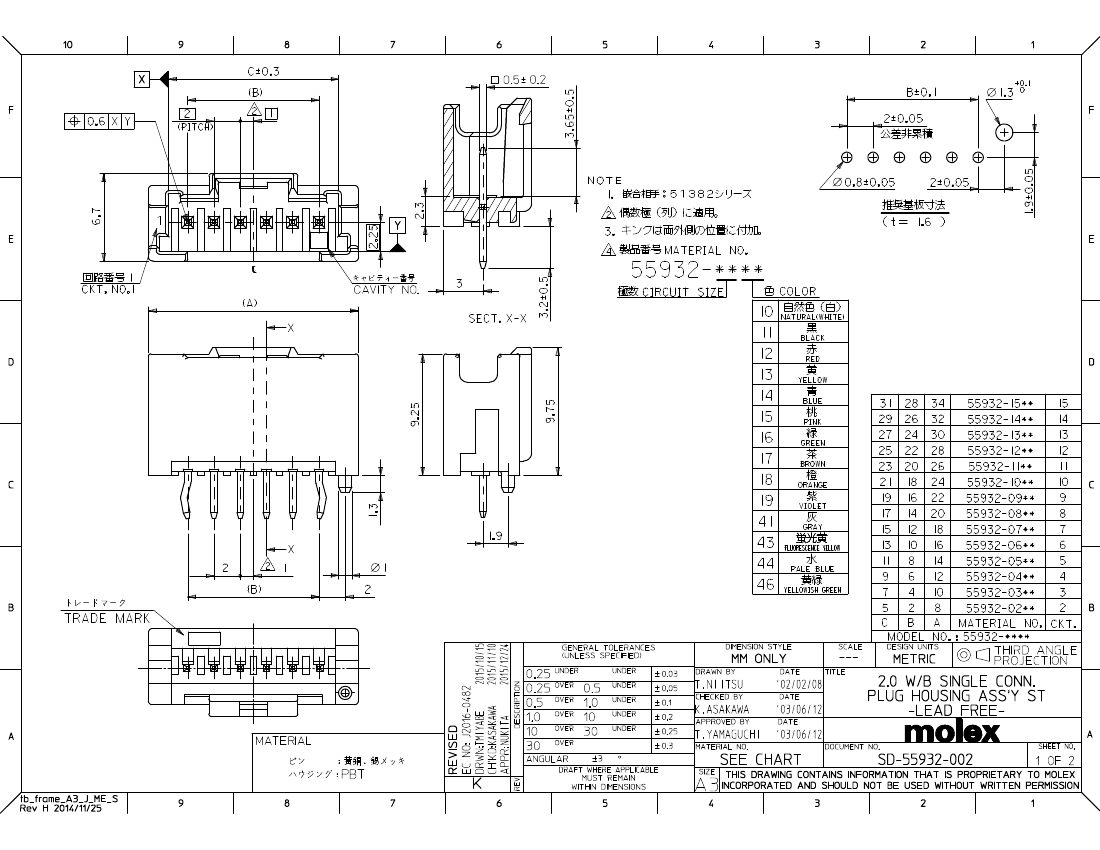

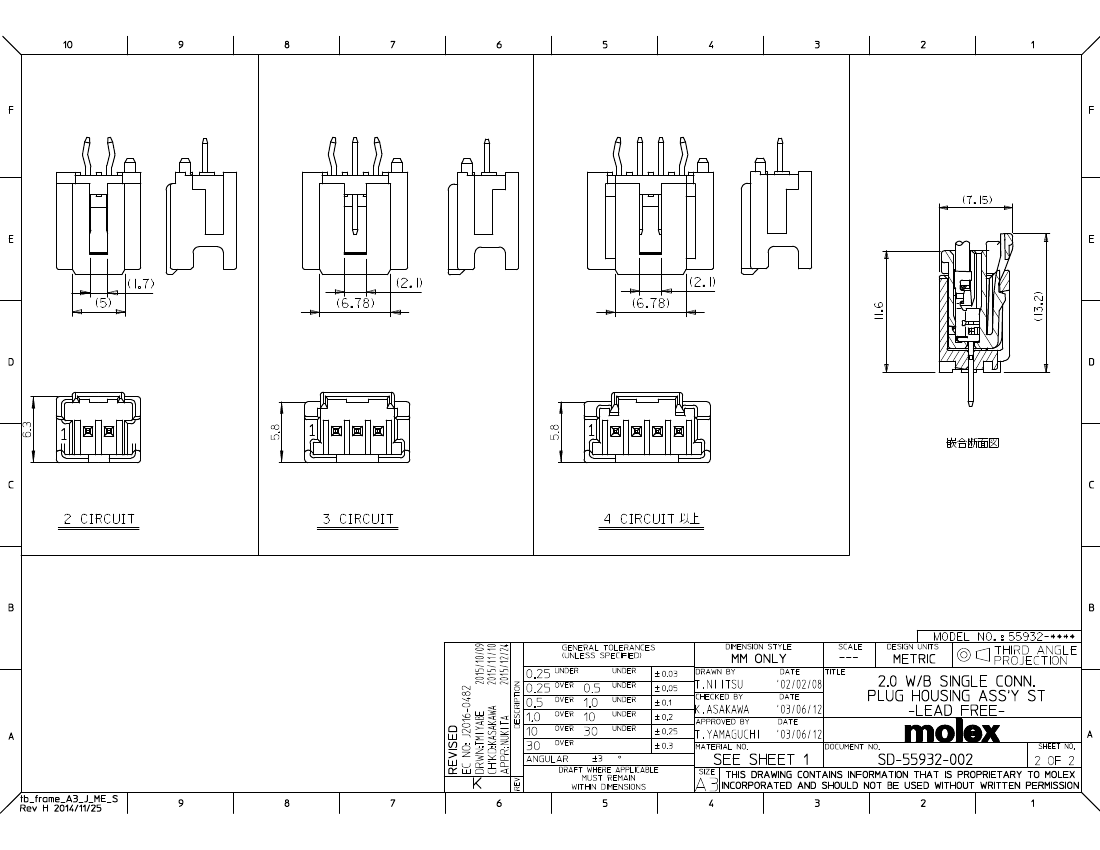

55932-1317 Overview

Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Plug

55932-1317 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
Board mount optionsPEG
body width0.264 inch
subject depth0.384 inch
body length1.181 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact point genderMALE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Insulation resistance1000000000 Ω
insulator materialPOLYBUTYLENE TEREPHTHALATE
Plug contact pitch0.079 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
PCB contact patternRECTANGULAR
reliabilityCOMMERCIAL
Terminal length0.126 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts13
