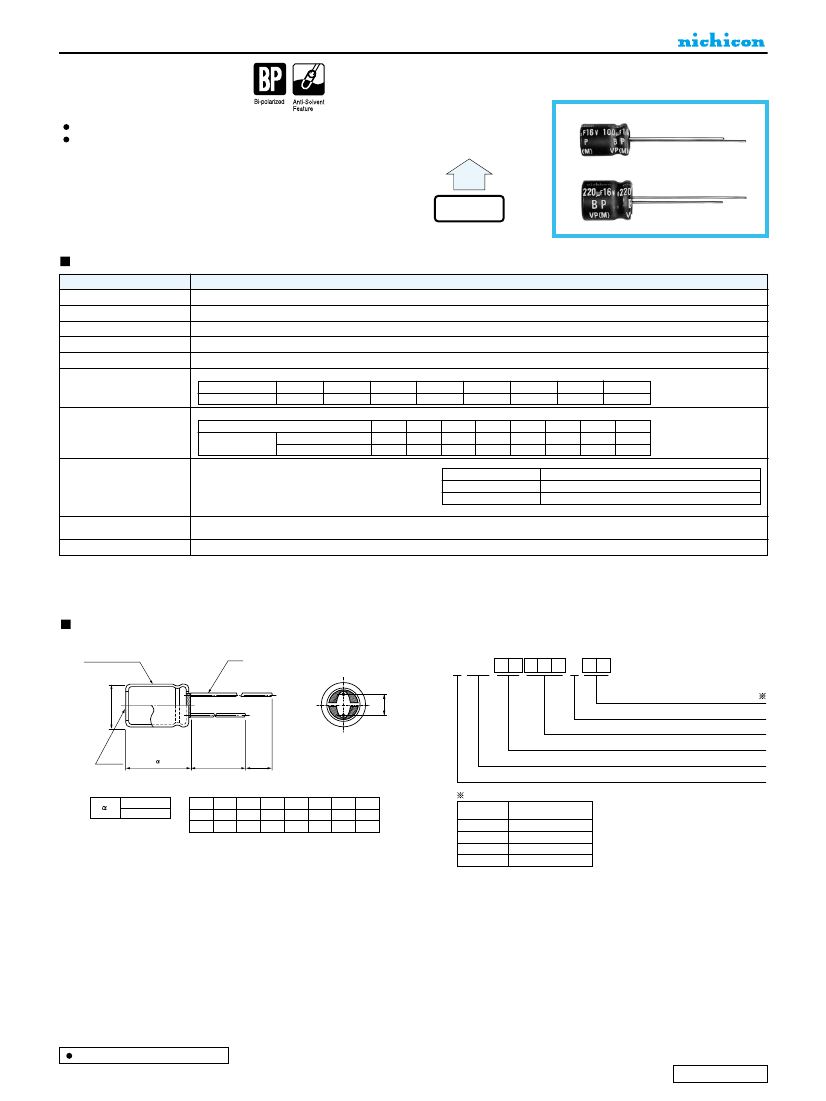

ALUMINUM ELECTROLYTIC CAPACITORS
VP
Bi-Polarized
series
Standard bi-polarized series for entertainment electronics.
Compliant to the RoHS directive (2002/95/EC).
EP
Wide
Temperature
VP
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
Tangent of loss angle (tan
δ)
Performance Characteristics
– 40 to +85°C
6.3 to 100V
0.47 to 6800µF
± 20% at 120Hz, 20°C
After 5 minutes' application of rated voltage, leakage current is not more than 0.03CV or 3 (µA), whichever is greater.
For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.
Rated voltage (V)
tan
δ
(MAX.)
Measurement frequency : 120Hz at 20°C
6.3
0.26
10
0.24
16
0.22
6.3
4
10
10
3
8
25
0.20
16
2
6
35
0.16
25
2
5
50
0.14
35
2
4
50
2
4
63
0.12
63
2
3
100
0.10
100
2
3
Measurement frequency : 120Hz
Stability at Low Temperature
Rated voltage (V)
Z– 25°C / Z+20°C
Impedance ratio
ZT / Z20 (
MAX.
)
Z– 40°C / Z+20°C
Endurance
The specifications listed at right shall be met when
the capacitors are restored to 20°C after the rated
voltage is applied for 2000 hours at 85°C with the
polarity inverted every 250 hours.
Capacitance change
tan
δ
Leakage current
Within ± 20% of the initial capacitance value
200% or less than the initial specified value
Less than or equal to the initial specified value
Shelf Life
Marking
After storing the capacitors under no load at 85°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4
clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.
Printed with white color letter on black sleeve.
Radial Lead Type
Sleeve (P.E.T.)
Type numbering system (Example : 10V 47
µ
F)
φ
d
1
2
3
4
5
6
7
8
9 10 11
UV P 1 A 4 7 0 M DD
P
±
0.5
φD
+
0.5
MAX
Configuration
Capacitance tolerance (± 20%)
Rated capacitance (47µF)
Rated voltage (10V)
Pressure
relief vent
(φ6.3up)
L
+
MAX
15
MIN
4
MIN
Series name
Type
(mm)
(L < 20) 1.5
(L > 20) 2.0
=
φD
P
φd
Configuration
φ
D
5
6.3
8 · 10
12.5 to 18
Pb-free leadwire
Pb-free PET sleeve
5
2.0
0.5
6.3
2.5
0.5
8
3.5
0.6
10
5.0
0.6
12.5
5.0
0.6
16
7.5
0.8
18
7.5
0.8
DD
ED
PD
HD
•
Please refer to page 20 about the end seal configulation.
Please refer to page 20, 21, 22 about the formed or taped product spec.
Please refer to page 4 for the minimum order quantity.
Dimension table in next page.
