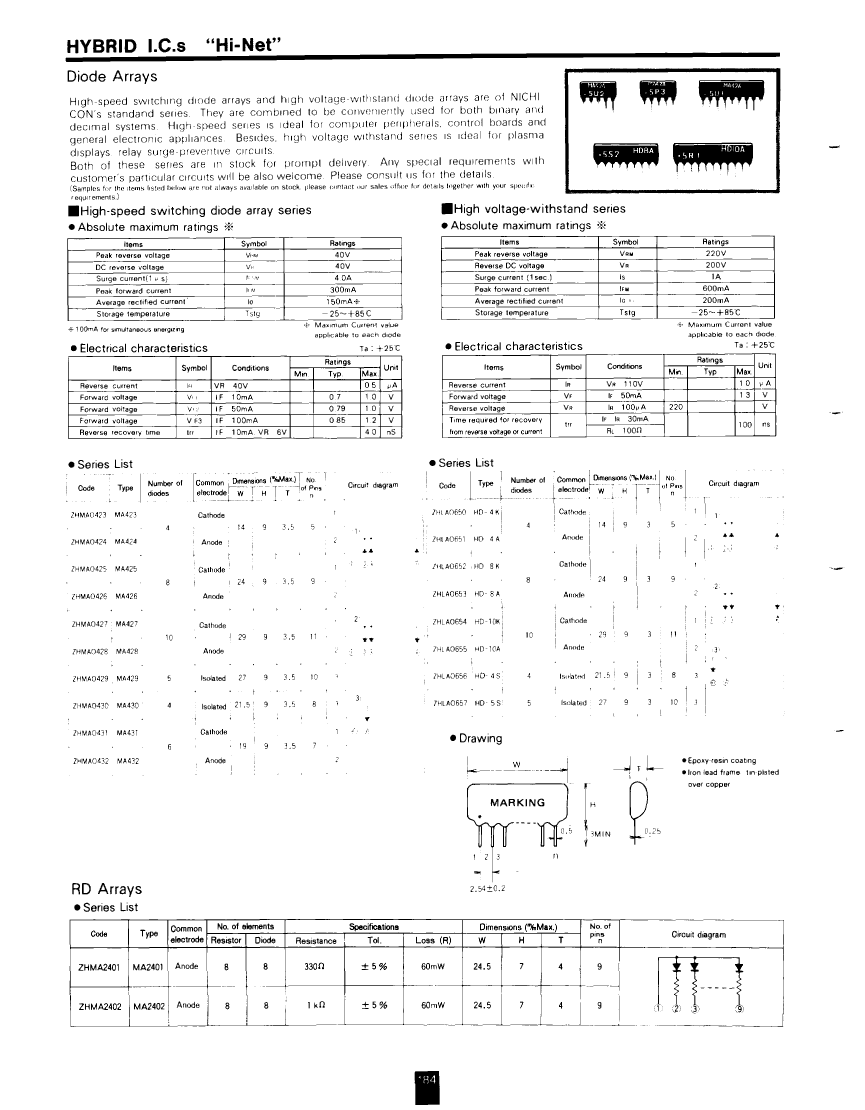

ZHMAO423: DescriptionRectifier Diode, 4 Element, 0.15A, Silicon; CategoryDiscrete semiconductor diode; File Size54KB，1 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric Compare View All

ZHMAO423 Overview

Rectifier Diode, 4 Element, 0.15A, Silicon

ZHMAO423 Parametric

Parameter Name	Attribute value
package instruction	R-PSIP-T5
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	COMMON CATHODE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PSIP-T5
Number of components	4
Number of terminals	5
Maximum output current	0.15 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum reverse recovery time	0.004 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

ZHMAO423 Related Products

	ZHMAO423	MA2402	ZHLAO652	ZHMAO426	MA2401	ZHLAO651	ZHMAO429
Description	Rectifier Diode, 4 Element, 0.15A, Silicon	Rectifier Diode, 8 Element, Silicon	Rectifier Diode, 8 Element, 0.2A, Silicon	Rectifier Diode, 8 Element, 0.15A, Silicon	Rectifier Diode, 8 Element, Silicon	Rectifier Diode, 4 Element, 0.2A, Silicon	Rectifier Diode, 5 Element, 0.15A, Silicon
package instruction	R-PSIP-T5	R-PSIP-T9	R-PSIP-T9	R-PSIP-T9	R-PSIP-T5	R-PSIP-T5	R-PSIP-T10
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	COMMON CATHODE, 4 ELEMENTS	COMMON ANODE, 8 ELEMENTS	COMMON CATHODE, 8 ELEMENTS	COMMON ANODE, 8 ELEMENTS	COMMON ANODE, 8 ELEMENTS	COMMON ANODE, 4 ELEMENTS	SEPARATE, 5 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PSIP-T5	R-PSIP-T9	R-PSIP-T9	R-PSIP-T9	R-PSIP-T5	R-PSIP-T5	R-PSIP-T10
Number of components	4	8	8	8	8	4	5
Number of terminals	5	9	9	9	5	5	10
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum output current	0.15 A	-	0.2 A	0.15 A	-	0.2 A	0.15 A
Maximum reverse recovery time	0.004 µs	-	0.1 µs	0.004 µs	-	0.1 µs	0.004 µs
Maker	-	Nichicon	Nichicon	Nichicon	Nichicon	Nichicon	-
