DTSL-60Y-V-T/R: DescriptionKeypad Switch, SPST, 0.05A, 12VDC, Solder Terminal, Surface Mount-straight; CategoryMechanical and electronic products switch; File Size1MB，1 Pages; ManufacturerAPEM

Download Datasheet Parametric View All

DTSL-60Y-V-T/R Overview

Keypad Switch, SPST, 0.05A, 12VDC, Solder Terminal, Surface Mount-straight

DTSL-60Y-V-T/R Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator type	PUSHBUTTON
body width	6.4008 mm
body height	2.0066 mm
Body length or diameter	6.1976 mm
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	0.05A@12VDC
Maximum contact voltage (DC)	12 V
Electrical life	300000 Cycle(s)
Manufacturer's serial number	DTSL-6
Installation features	SURFACE MOUNT-STRAIGHT
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
surface mount	NO
switch function	SPST
Switch type	KEYPAD SWITCH
Termination type	SOLDER

Preview

Download Datasheet

View All

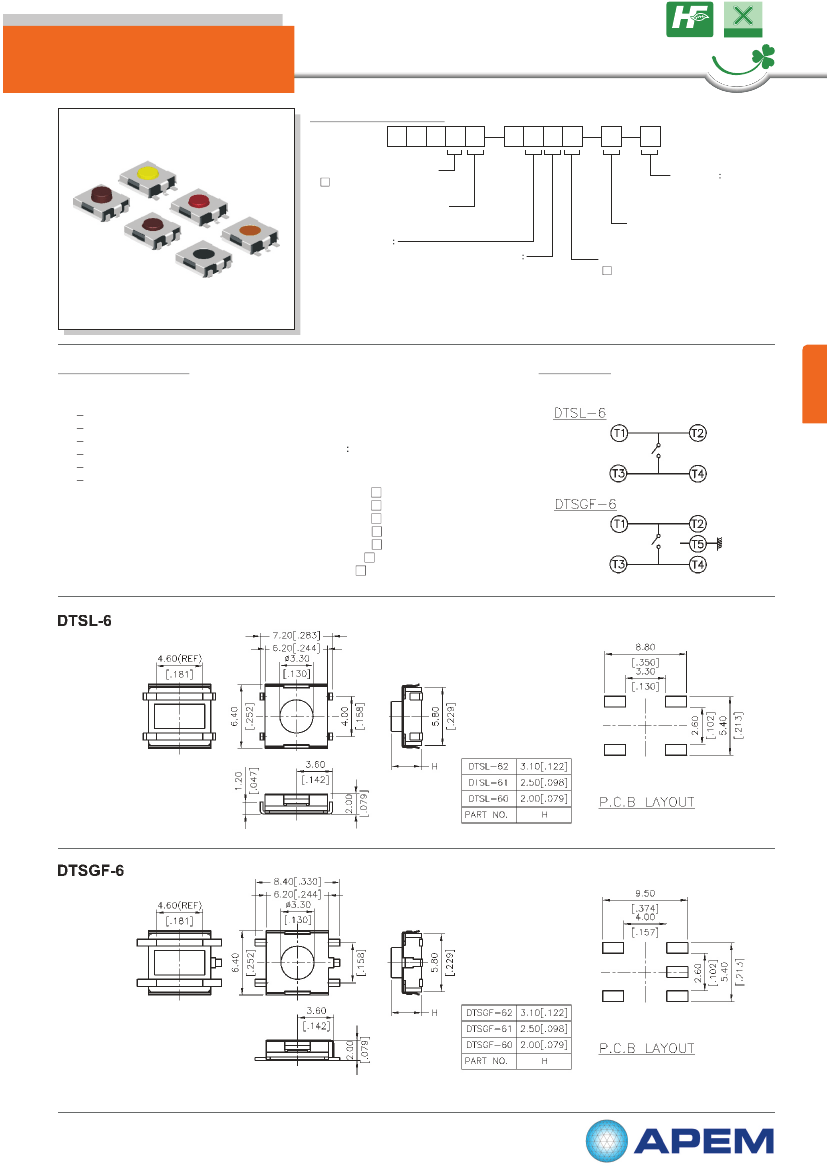

DTS(G)L-6 &

DTS(G)F-6 SERIES

6x6 Thinner Type With Ground Terminal

(Pitch 4.0mm)

HOW TO ORDER

D

T

S

6

Halogen Free

LEAD FREE

Pb

RoHS

Compliant

G=With Ground Terminal

=Without Ground Terminal

L=With L S.M.T Terminal

F=With F S.M.T Terminal

Total Height

0=2.0mm

1=2.5mm

2=3.1mm

Package

B=Tube

T/R=Tape & Reel

V=RoHS & Lead Free Solderable

Q=Halogen Free

Actuator Type<62

=Soft

P=Hard

Only>:

Operating Force

K=Black,100g

N=Brown,160g

R=Red,260g

S=White,320g

Y=Yellow,520g

N=Brown,200g <Soft actuator

62 Only>

SPECIFICATION

MECHANICAL

Operation Force:

520+130gf Yellow(Y)

320+80gf White(S)

260+50gf Red(R)

200+50gf Brown(N), 62 Only

160+50gf Brown(N)

100+50gf Black(K)

Stroke: 0.25+0.2/-0.1mm

ENVIRONMENTAL

o

Operation Temperature Range : -25C to +70C

o

Storage Temperature Range : -30C to +80C

ELECTRICAL

Electrical Life:

300,000 cycles for 320gf,520gf

500,000 cycles for 260gf,200gf

1,000,000 cycles for 100gf,160gf

Rating 50mA, 12VDC

PACKAGE

Tube: 75 pcs/tube

DTS(G)L-60 -T/R: 2700 pcs/reel

DTS(G)L-61 -T/R: 2700 pcs/reel

DTS(G)L-62 -T/R: 2500 pcs/reel

DTS(G)F-60 -T/R: 3000 pcs/reel

DTS(G)F-62 -T/R: 2500 pcs/reel

DTSGF-61 -T/R: 2500 pcs/reel

DTSF-61 -T/R: 3000 pcs/reel

CIRCUIT

TACT SWITCH
