50RX301MKC8X11.5: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 1uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size207KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric Compare View All

50RX301MKC8X11.5 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 1uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

50RX301MKC8X11.5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	1 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	8 mm
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.003 mA
length	11.5 mm
Manufacturer's serial number	RX30
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	14.7 mA
series	RX30
surface mount	NO
Delta tangent	0.1
Terminal surface	Tin (Sn)
Terminal pitch	5 mm
Terminal shape	WIRE

Preview

Download Datasheet

View All

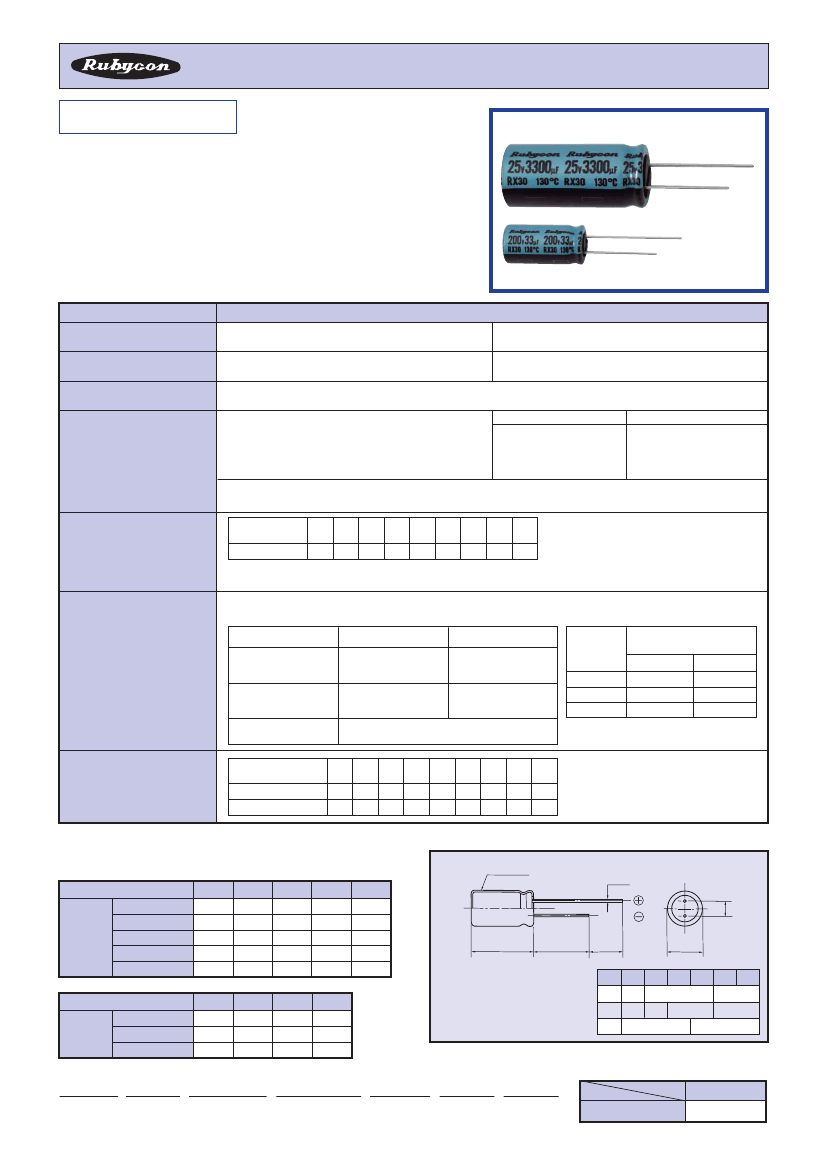

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

RX30

SERIES

Load Life : 130℃ 1000∼4000 hours.

◆FEATURES

・

Electronic Ballast of CFL, For Power Supply.

For

・

RoHs compliance

◆SPECIFICATIONS

Items

Category Temperature Range

Rated Voltage Range

Capacitance Tolerance

Characteristics

−40∼＋130℃

10∼100V.DC

±20％

（20℃，

120Hz）

−25∼＋130℃

200,400V.DC

CV≦1000

Leakage Current(MAX)

I＝0.01CV

or 3μA whichever is greater.

(After 2 minutes application of rated voltage)

CV＞1000

I=0.1CV+40μA

(1 minute)

I=0.04CV+100μA

(1 minute)

I=0.03CV+15μA

(5 minutes)

I=0.02CV+25μA

(5 minutes)

I＝(μA)

Leakage Current

Rated Voltage

10

16

25

35

C＝(μF)

Rated Capacitance

50

V＝(V)

Rated Voltage

120Hz）

63 100 200 400

（20℃，

(tanδ)

Dissipation Factor(MAX)

tanδ

0.20 0.16 0.14 0.12 0.10 0.09 0.08 0.15 0.20

When rated capacitance is over 1000μF, tanδ shall be added 0.02 to the listed value with increase of every 1000μF.

After life test with rated ripple current at conditions stated in the table below,

the capacitors shall meet the following requirements.

10∼100WV

Endurance

Capacitance Change

Within ±30％ of the

initial value.

200,400WV

Within ±20％ of the

initial value.

Case

Size

φD=6.3

φD=8, 10

φD≧12.5

（hrs）

Life Time

10∼100WV 200,400WV

−

2000

4000

1000

2000

−

Dissipation Factor

Leakage Current

Not more than 300％ Not more than 200％

of the speciﬁed value. of the speciﬁed value.

Not more than the speciﬁed value.

Low Temperature Stability

Impedance Ratio(MAX)

Rated Voltage

10

16

2

4

25

2

3

35

2

3

50

2

3

63 100 200 400

2

3

2

3

−

6

−

（120Hz）

Z

（−25℃）（20℃） 3

/Z

Z

（−40℃）（20℃） 6

/Z

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency Coeﬃcient

10WV∼100WV

（Hz）

Frequency

60 50） 120

（

1∼4.7μF

0.35 0.42

10∼33μF

0.45 0.55

Coeﬃcient

47∼330μF

0.60 0.70

470∼1500μF 0.65 0.75

2200∼4700μF 0.75 0.80

200WV,400WV

（Hz）

Frequency

120

1k

1∼5.6μF

0.20 0.40

Coeﬃcient

6.8∼15μF 0.30 0.60

22∼33μF 0.50 0.80

◆DIMENSIONS

SLEEVE(PET)

（mm）

φd

1k

0.60

0.75

0.85

0.90

0.95

10k 100k≦

0.80 1.00

0.90 1.00

0.95 1.00

0.98 1.00

1.00 1.00

L＋2MAX

15MIN

4MIN

φD＋ MAX

β

F

±0.5

φD

φd

F

β

6.3

0.5

2.5

8

10 12.5 16

0.6

18

10k 100k≦

0.80 1.00

0.90 1.00

M

Capacitance Tolerance

0.8

7.5

1.0

3.5

0.5

5.0

◆PART NUMBER

□□□

Rated Voltage

◆OPTION

□□□□□

Rated Capacitance

RX30

Series

□□□

Option

□□

Lead Forming

D×L

Case Size

PET Sleeve

Code

Blank

50RX301MKC8X11.5 Related Products

	50RX301MKC8X11.5	100RX304.7MKC8X11.5	100RX304.7MFA8X11.5	50RX301MFA8X11.5
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 1uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 4.7uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 4.7uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 1uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
capacitance	1 µF	4.7 µF	4.7 µF	1 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
JESD-609 code	e3	e3	e3	e3
leakage current	0.003 mA	0.0047 mA	0.0047 mA	0.003 mA
Manufacturer's serial number	RX30	RX30	RX30	RX30
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%
Number of terminals	2	2	2	2
Maximum operating temperature	130 °C	130 °C	130 °C	130 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%
Rated (DC) voltage (URdc)	50 V	100 V	100 V	50 V
ripple current	14.7 mA	42 mA	42 mA	14.7 mA
surface mount	NO	NO	NO	NO
Delta tangent	0.1	0.08	0.08	0.1
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal shape	WIRE	WIRE	WIRE	WIRE
