63MXR2200MST22X35 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 63MXR2200MST22X35

63MXR2200MST22X35: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 2200uF, Through Hole Mount, CAN; CategoryPassive components capacitor; File Size532KB，4 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/

Download Datasheet Parametric Compare View All

63MXR2200MST22X35 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 2200uF, Through Hole Mount, CAN

63MXR2200MST22X35 Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	2200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	1.1168 mA
Manufacturer's serial number	MXR
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	63 V
ripple current	1820 mA
surface mount	NO
Delta tangent	0.3
Terminal shape	SNAP-IN

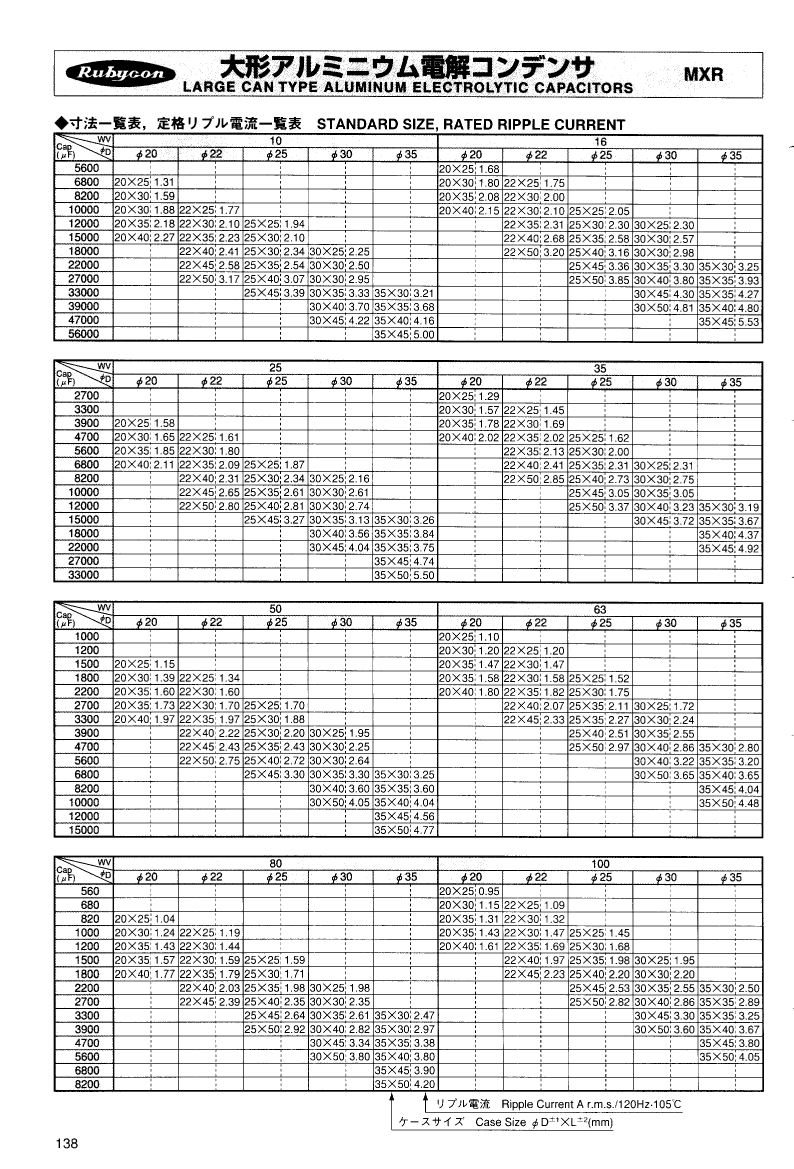

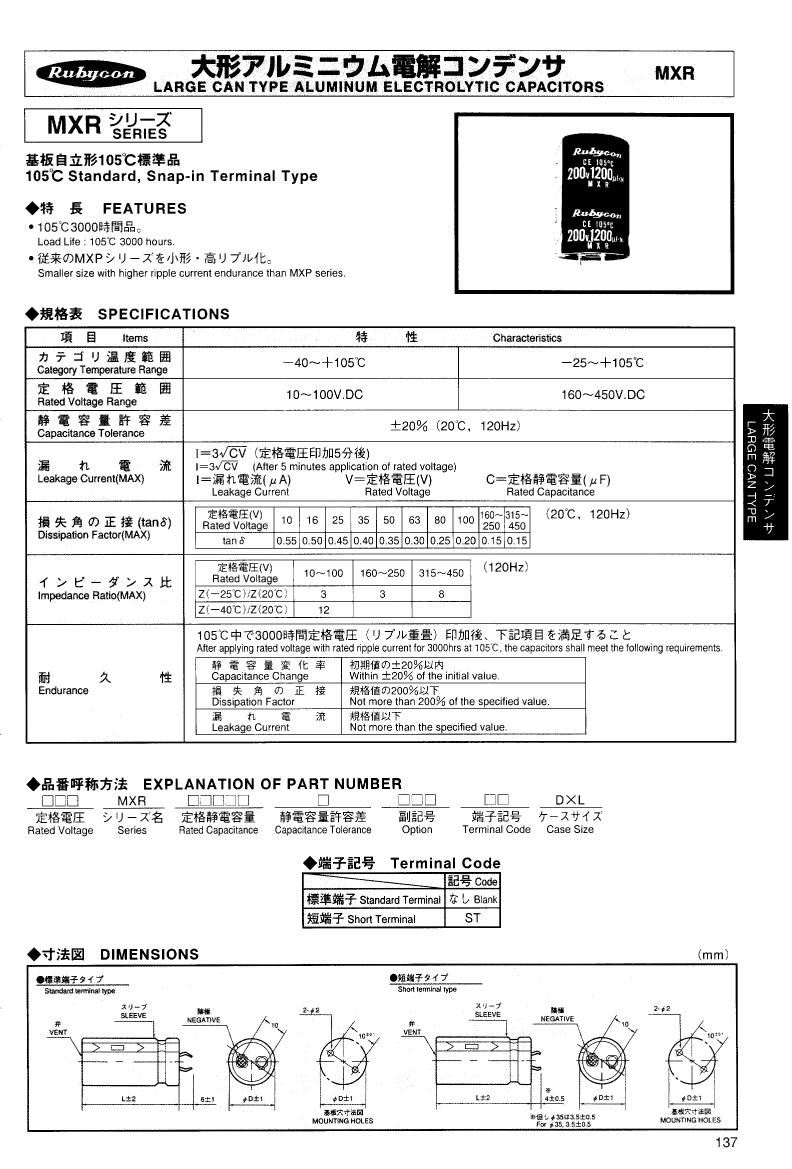

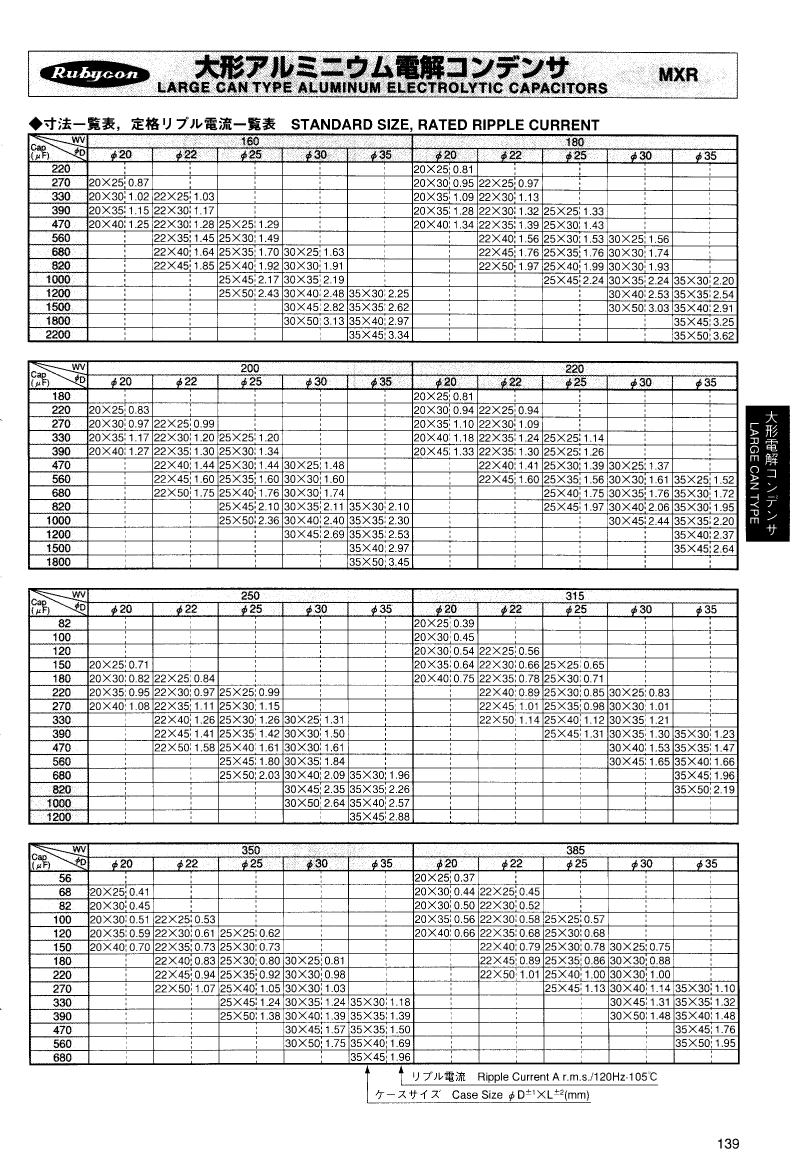

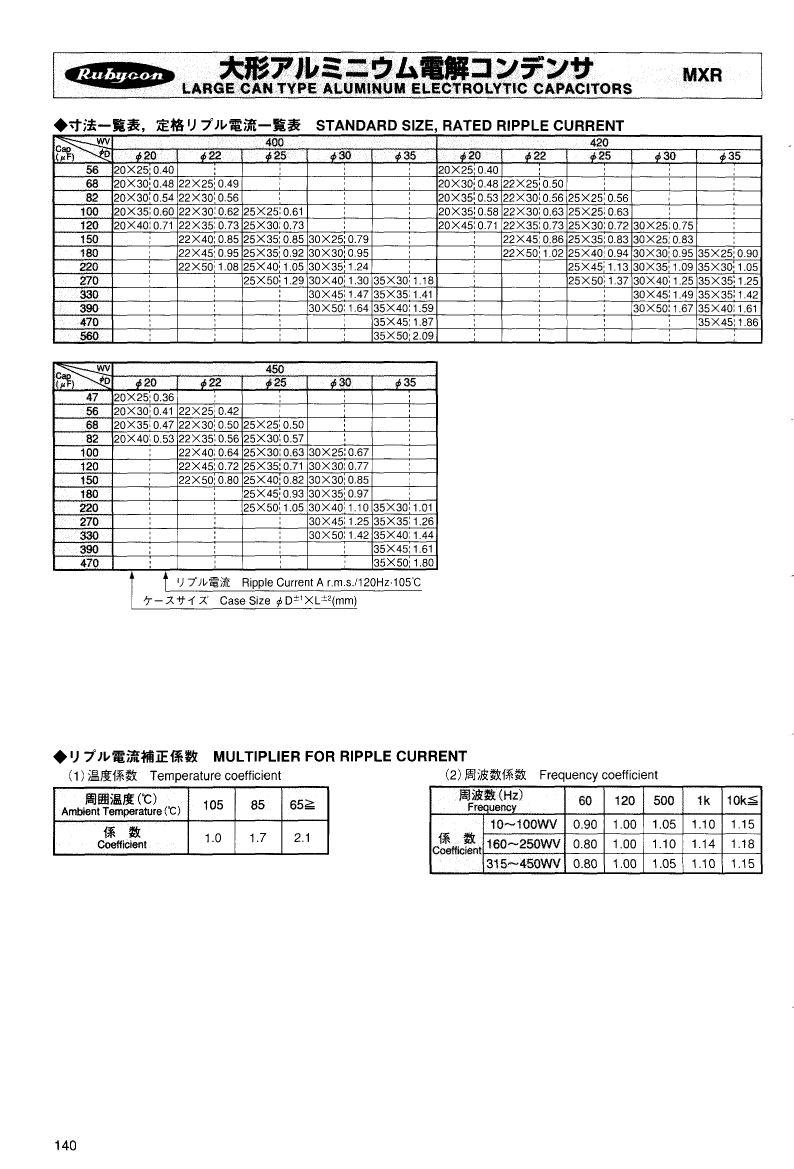

Preview

Download Datasheet

View All

63MXR2200MST22X35 Related Products

	63MXR2200MST22X35	200MXR680MST25X40	200MXR680MST30X30	200MXR820MST25X45	200MXR820MST30X35	200MXR1000MST25X50	180MXR390MST20X40	63MXR2700MST25X35	180MXR390M20X40	63MXR1800MST22X30
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 2200uF, Through Hole Mount, CAN	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 680uF, Through Hole Mount, CAN	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 680uF, Through Hole Mount, CAN	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 820uF, Through Hole Mount, CAN	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 820uF, Through Hole Mount, CAN	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 1000uF, Through Hole Mount, CAN	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 180V, 20% +Tol, 20% -Tol, 390uF, Through Hole Mount, CAN	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 2700uF, Through Hole Mount, CAN	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 180V, 20% +Tol, 20% -Tol, 390uF, Through Hole Mount, CAN	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 1800uF, Through Hole Mount, CAN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	2200 µF	680 µF	680 µF	820 µF	820 µF	1000 µF	390 µF	2700 µF	390 µF	1800 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
leakage current	1.1168 mA	1.1063 mA	1.1063 mA	1.2149 mA	1.2149 mA	1.3416 mA	0.79485 mA	1.2372 mA	0.79485 mA	1.0102 mA
Manufacturer's serial number	MXR	MXR	MXR	MXR	MXR	MXR	MXR	MXR	MXR	MXR
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-40 °C	-25 °C	-40 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	63 V	200 V	200 V	200 V	200 V	200 V	180 V	63 V	180 V	63 V
ripple current	1820 mA	1760 mA	1740 mA	2100 mA	2110 mA	2360 mA	1280 mA	2110 mA	1280 mA	1580 mA
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Delta tangent	0.3	0.15	0.15	0.15	0.15	0.15	0.15	0.3	0.15	0.3
Terminal shape	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN
