SIT5347AEFQ325IEA220.000000T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> SIT5347AEFQ325IEA220.000000T

SIT5347AEFQ325IEA220.000000T: DescriptionLVCMOS Output Clock Oscillator, 220MHz Nom,; CategoryPassive components oscillator; File Size2MB，35 Pages; ManufacturerSiTime; Environmental Compliance

Download Datasheet Parametric View All

SIT5347AEFQ325IEA220.000000T Overview

LVCMOS Output Clock Oscillator, 220MHz Nom,

SIT5347AEFQ325IEA220.000000T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	LCC10,.13X.2,58/52/48
Reach Compliance Code	unknown
Other features	ENABLE/DISABLE FUNCTION
Ageing	0.3 PPM/YEAR
maximum descent time	1.9 ns
Frequency Adjustment - Mechanical	NO
frequency stability	0.1%
Installation features	SURFACE MOUNT
Number of terminals	10
Nominal operating frequency	220 MHz
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Oscillator type	LVCMOS
Output load	15 pF
Package body material	CERAMIC
Encapsulate equivalent code	LCC10,.13X.2,58/52/48
physical size	5.15mm x 3.35mm x 1.06mm
longest rise time	1.9 ns
Maximum slew rate	62 mA
Maximum supply voltage	2.75 V
Minimum supply voltage	2.25 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	55/42 %

Preview

Download Datasheet

View All

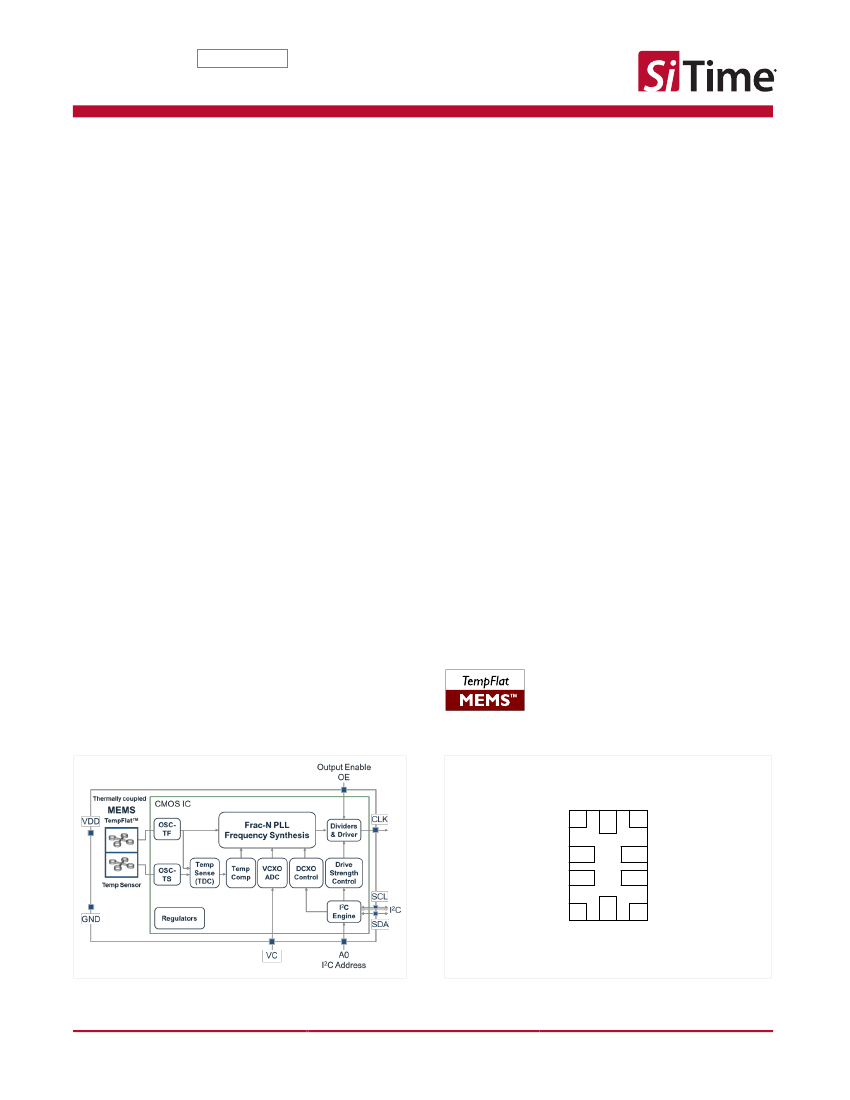

SiT5347

PRELIMINARY

60–220 MHz, ±0.1 to ±0.25 ppm, Endura™ Series Precision Super-TCXO

Description

The

SiT5347

is a ruggedized ±100 ppb precision MEMS

Features



Super-TCXO with a maximum acceleration sensitivity of

0.009 ppb/g or 0.1 ppb/g. Fully compliant to Telcordia GR-

1244-CORE Stratum 3 oscillator specifications, and

engineered for best dynamic performance, the SiT5347 is

ideal for high reliability defense, space, avionics, guidance,

precision GNSS and communications applications.

Leveraging SiTime’s unique DualMEMS™ temperature

sensing and TurboCompensation™ technologies, the

SiT5347 delivers the best dynamic performance for timing

stability in the presence of environmental stressors due to

air flow, temperature perturbation, vibration, shock, and

electromagnetic interference. This device also integrates

multiple on-chip regulators to filter power supply noise,

eliminating the need for a dedicated external LDO.

The SiT5347 offers three device configurations that can be

ordered using

Ordering Codes

for:

1) TCXO with non-pullable output frequency,

2) VCTCXO allowing voltage control of output

frequency, and

3) DCTCXO, enabling digital control of output frequency

using an I

C interface, pullable to 5 ppt (parts per

trillion) resolution.

The SiT5347 can be factory programmed for any

combination of frequency, stability, voltage, and pull range.

Programmability enables designers to optimize clock

configurations while eliminating long lead times and

customization costs associated with quartz devices where

each frequency is custom built.

Refer to

Manufacturing Guideline

for proper reflow profile

and PCB cleaning recommendations for best performance.



Output 60–189 MHz, and 200–220 MHz, in 1 Hz steps

Factory programmable options for low lead time

Best dynamic stability under airflow, thermal shock



0.009 ppb/g or 0.1 ppb/g acceleration sensitivity



±100 ppb stability across temperature



±1 ppb/C typical frequency slope (ΔF/ΔT)



3e-11 ADEV at 10 second averaging time

-40°C to +105°C operating temperature

No activity dips or micro jumps

Resistant to shock, vibration and board bending

On-chip regulators eliminate the need for external LDOs

2.5V, 2.8V, 3.0V and 3.3V supply voltage

LVCMOS output

Digital frequency pulling (DCTCXO) via I



Digital control of output frequency and pull range



Up to

±3200

ppm pull range



Frequency pull resolution down to 5 ppt

2.5V, 2.8V, 3.0V and 3.3V supply voltage

LVCMOS output

RoHS and REACH compliant

Pb-free, Halogen-free, Antimony-free

Applications



Ballistics, missiles, munitions

Military portable radios

Ruggedized communications networks

Precision GNSS systems

SATCOM

Transponders

Military, defense, space, avionics systems

Block Diagram

5.0 x 3.2 mm

Package Pinout

SDA / NC

OE / VC / NC

SCL / NC

GND

VDD

CLK

A0 / NC

Figure 1. SiT5347 Block Diagram

Figure 2. Pin Assignments (Top view)

(Refer to

Table 11

for Pin Descriptions)

July 22, 2019

www.sitime.com

Rev 0.5

SiT5347

60–220 MHz, ±0.1 to ±0.25 ppm, Endura™ Series Precision Super-TCXO

TABLE OF CONTENTS

PRELIMINARY

Description ................................................................................................................................................................................... 1

Features....................................................................................................................................................................................... 1

Applications ................................................................................................................................................................................. 1

Block Diagram ............................................................................................................................................................................. 1

5.0 x 3.2 mm

Package Pinout ..................................................................................................................................................... 1

Ordering Information .................................................................................................................................................................... 2

Electrical Characteristics.............................................................................................................................................................. 4

Device Configurations and Pin-outs ............................................................................................................................................. 9

Pin-out Top Views................................................................................................................................................................. 9

Test Circuit Diagrams for LVCMOS Outputs.............................................................................................................................. 10

Waveforms................................................................................................................................................................................. 11

Timing Diagrams ........................................................................................................................................................................ 11

Typical Performance Plots ......................................................................................................................................................... 12

Architecture Overview ................................................................................................................................................................ 15

Frequency Stability ............................................................................................................................................................. 15

Output Frequency and Format ............................................................................................................................................ 15

Output Frequency Tuning ................................................................................................................................................... 15

Pin 1 Configuration (OE, VC, or NC) .................................................................................................................................. 16

Device Configurations ................................................................................................................................................................ 16

TCXO Configuration ........................................................................................................................................................... 16

VCTCXO Configuration ...................................................................................................................................................... 17

DCTCXO Configuration ...................................................................................................................................................... 18

VCXO-Specific Design Considerations ...................................................................................................................................... 19

Linearity .............................................................................................................................................................................. 19

Control Voltage Bandwidth ................................................................................................................................................. 19

FV Characteristic Slope K

................................................................................................................................................. 19

Pull Range, Absolute Pull Range ........................................................................................................................................ 20

DCTCXO-Specific Design Considerations ................................................................................................................................. 21

Pull Range and Absolute Pull Range .................................................................................................................................. 21

Output Frequency ............................................................................................................................................................... 22

C Control Registers .......................................................................................................................................................... 24

Register Descriptions.......................................................................................................................................................... 24

Register Address: 0x00. Digital Frequency Control Least Significant Word (LSW) ............................................................ 24

Register Address: 0x01. OE Control, Digital Frequency Control Most Significant Word (MSW) ......................................... 25

[14]

........................................................................................ 26

Serial Interface Configuration Description .......................................................................................................................... 27

Serial Signal Format ........................................................................................................................................................... 27

Parallel Signal Format ........................................................................................................................................................ 28

Parallel Data Format ........................................................................................................................................................... 28

C Timing Specification ...................................................................................................................................................... 30

C Device Address Modes ................................................................................................................................................. 31

Schematic Example ............................................................................................................................................................ 32

Dimensions and Patterns ........................................................................................................................................................... 33

Layout Guidelines ...................................................................................................................................................................... 34

Manufacturing Guidelines .......................................................................................................................................................... 34

Rev 0.5

Page 3 of 35

www.sitime.com
