8D113W35BA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8D113W35BA

8D113W35BA: DescriptionMIL Series Connector,; CategoryThe connector The connector; File Size316KB，2 Pages; ManufacturerSOURIAU

Download Datasheet Parametric View All

8D113W35BA Overview

MIL Series Connector,

8D113W35BA Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99

Preview

Download Datasheet

View All

J10

LAYOUT SHOWN AS EXAMPLE

Keying Shown as example

CHARACTERISTICS

-Standard : Based on MIL-DTL-38999 Series III

-Shell Material

-Shell Plating

-Insulator

-Contacts

-Seals & Grommet

-Contact Plating

-Durability

: Aluminium

: Olive drab Cadmium

: Thermoplastic

: Copper Alloy

: Silicon Elastomer

: Gold over copper Alloy 0.8µm minimum

: 500 Mating cycles

Connector dimension

Dim

Nominal

22.25 Max

31.5 Max

VV THREAD

M18x1-6g

SOURIAU shall not be liable for any non-conformity or damage

due to a use of the Products which does not comply with

the Specifications issued by either of the Parties or by a third party

(professional recommendation, technical notice.)

Country

Jurisdiction & Control List

Not Listed

-Delivered with Souriau contacts and Accessories

-Temperature Range

-Salt Spray

: -65°C to +175°C

: 500 hours

PN: 8D113W35BA

ISS

27-09-2016 First Release

DATE

Latest modification - by

Date:

MOD N°

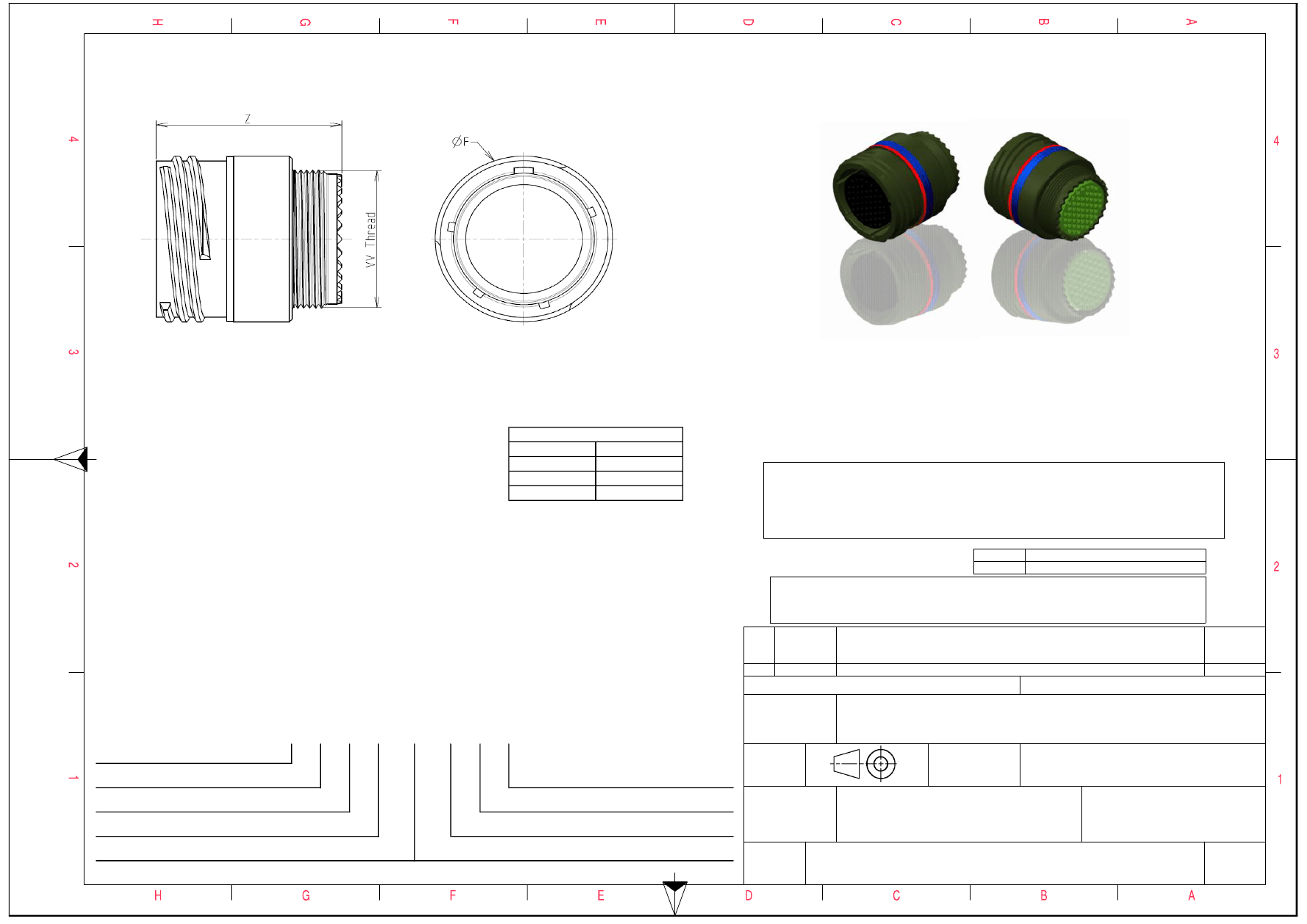

CUSTOMER DRAWING

TITLE

BASIC SERIES:

SHELL TYPE : In line Receptacle

CONTACT TYPE

SHELL SIZE : 13

PLATING

: W =

Olive drab Cadmium

: Standard Crimp Contact

ORIENTATION : A

CONTACT TYPE : SOCKET(500 Matings)

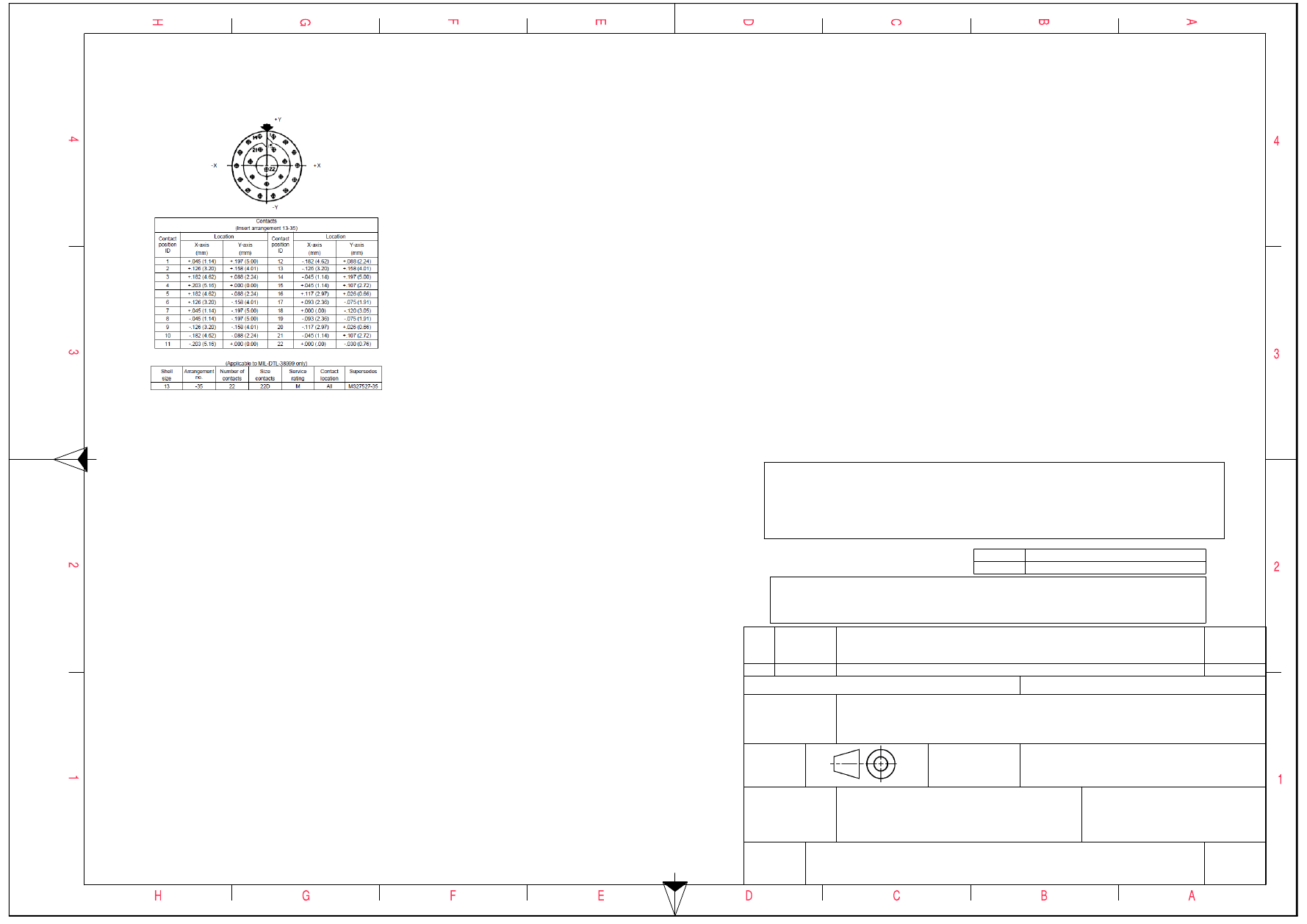

CONTACT LAYOUT : 13-35

FORMAT

Aluminium Inline plug 8D series

General linear

Tolerances:

±--

SCALE

NPRDS / PROJECT

859

This document is the property of

SOURIAU

it must not be reproduced or

communicated without permission

SOURIAU

WWW.SOURIAU.COM

SOURIAU DRG N°

8D113W35BA-C

SHEET

1/2
