DZF37MDAI

Description
D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug
CategoryThe connector    The connector
File Size223KB,2 Pages
ManufacturerSullins Connector Solutions
Download Datasheet Parametric View All

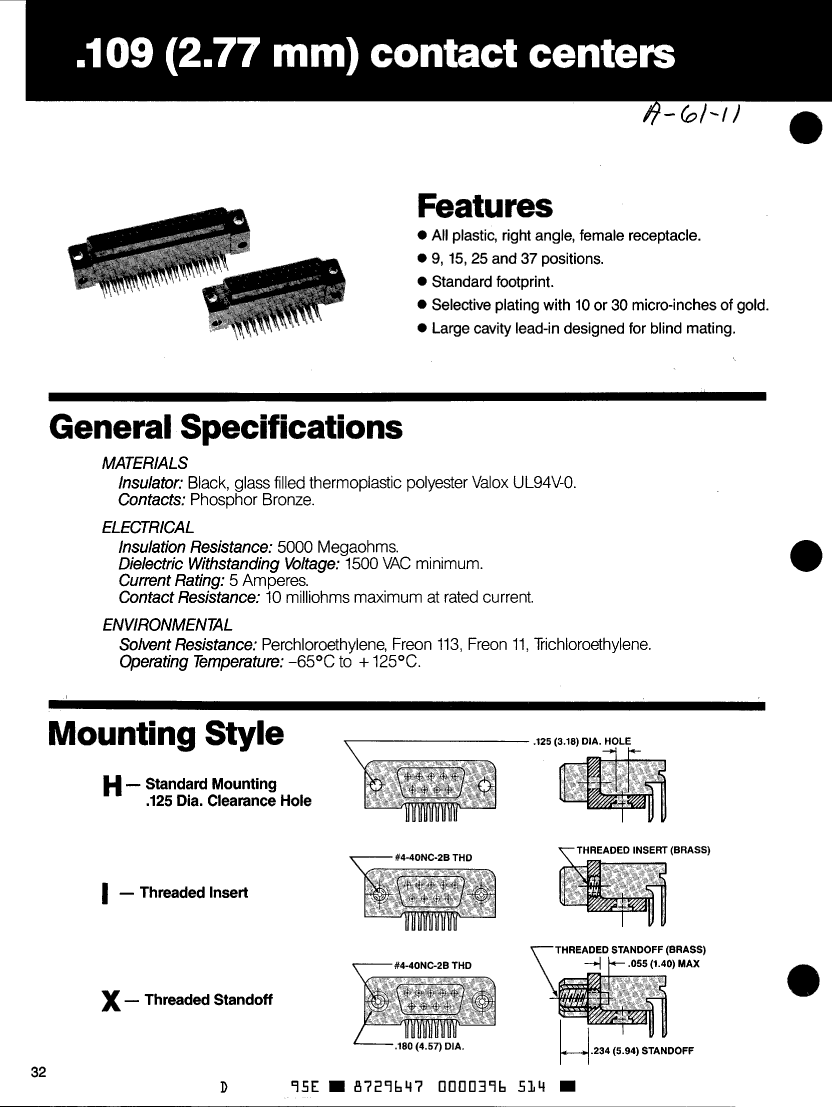

DZF37MDAI Overview

D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

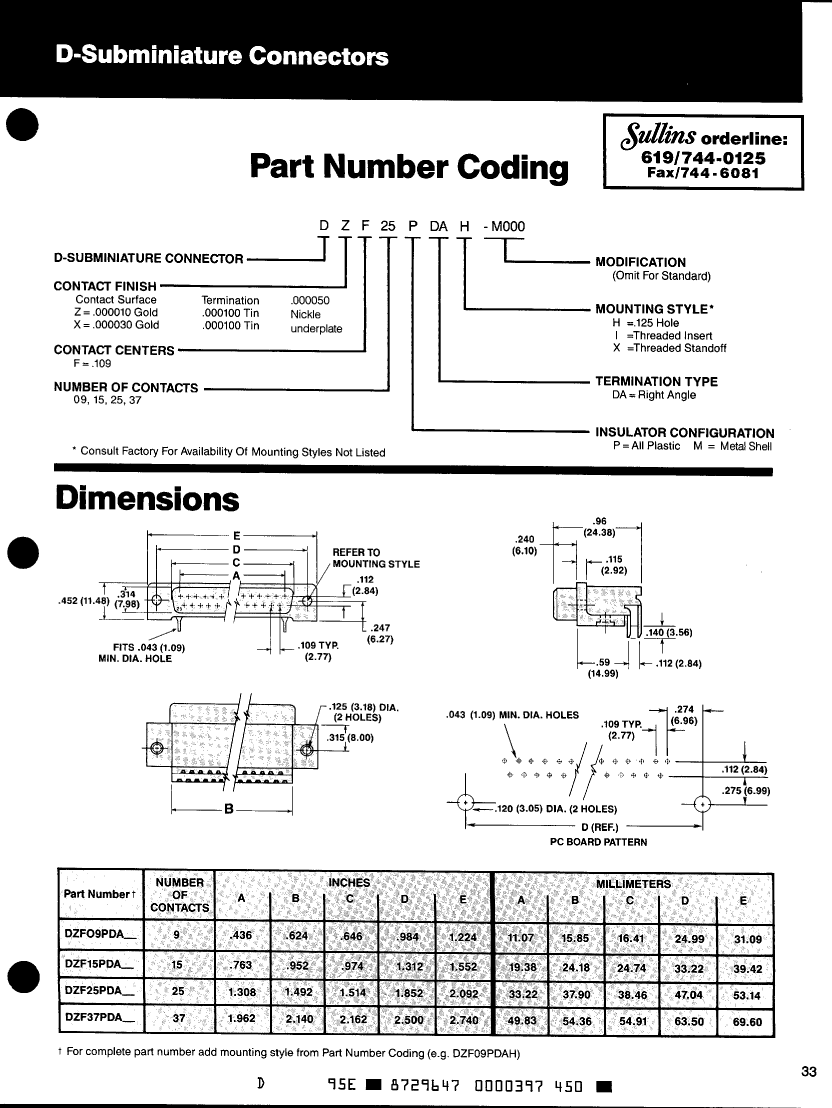

DZF37MDAI Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.495 inch
subject depth0.704 inch
body length2.74 inch
Body/casing typePLUG
Contact to complete cooperationAU ON NI
Contact completed and terminatedGOLD
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeSTAGGERED
Contact resistance10 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage1500VAC V
maximum insertion force4.448 N
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
Manufacturer's serial numberDZF
Plug contact pitch0.109 inch
Match contact row spacing0.112 inch
Installation option 1#4-40
Installation option 2THREADED
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternSTAGGERED
PCB contact row spacing2.8448 mm
Plating thickness10u inch
Rated current (signal)3 A
reliabilityCOMMERCIAL
Shell materialTHERMOPLASTIC
Terminal length0.14 inch
Terminal pitch2.7686 mm
Termination typeSOLDER
Total number of contacts37
Evacuation force-minimum value.278 N
