070212FR015G400ZU datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 070212FR015G400ZU

Preview

070212FR015G400ZU: DescriptionD Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size142KB，1 Pages; ManufacturerSUYIN-USA; Websitehttp://www.suyinusa.com

Download Datasheet Parametric View All

070212FR015G400ZU Overview

D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

070212FR015G400ZU Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TUBE PACKAGING
body width	0.492 inch
subject depth	0.244 inch
body length	1.541 inch
Body/casing type	PLUG
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
Insulator color	BLACK
Manufacturer's serial number	070212FR
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	SCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	15u inch
Rated current (signal)	2.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	METAL
Terminal length	0.079 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	15

Preview

Download Datasheet

View All

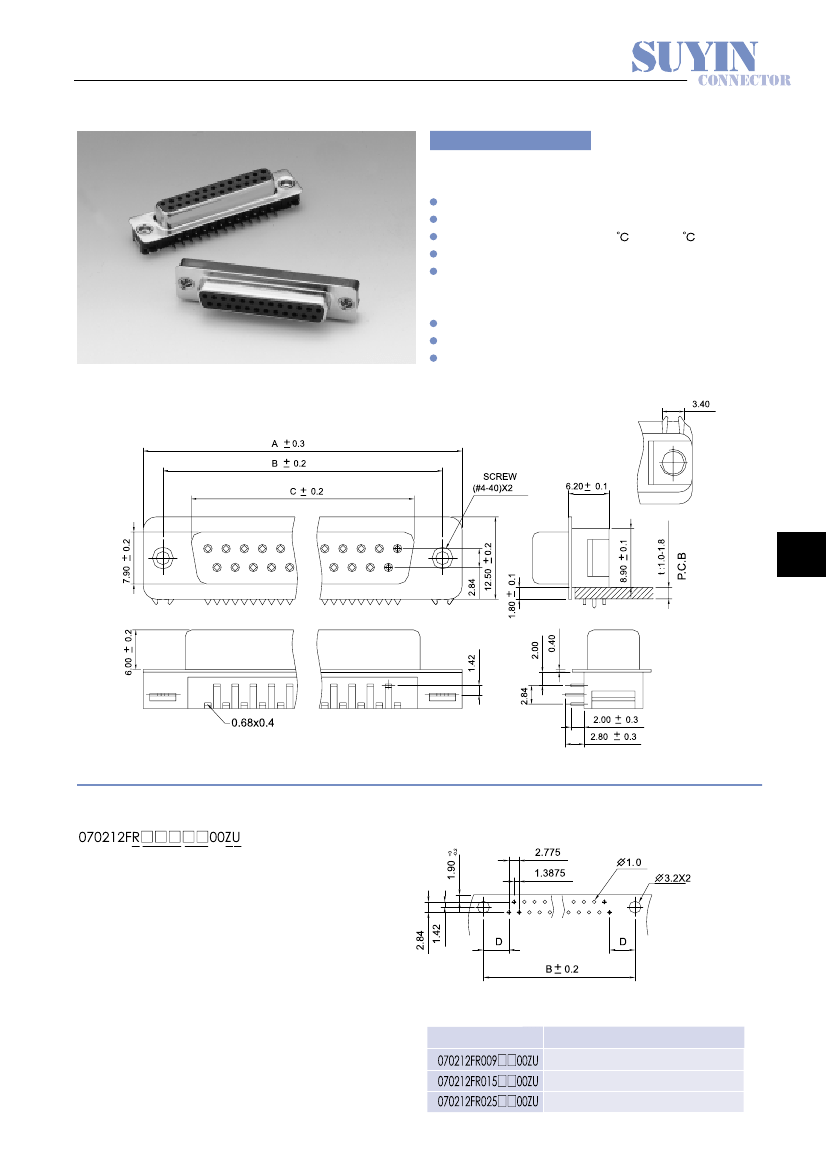

SLIM D-SUB RIGHT ANGLE P.C.B. MOUNT

(MALE TYPE FOOT PRINT 2.0mm)

070212FR Series

Mates with SUYIN 070800M,070900M,070200M Series

Specifications:

9, 15, 25Circuits

Insulator Material

Operating Temp.Range

Terminal Material

Plating

:

Black High Temp. Plastic

-40 to +105

Phosphor Bronze

Contact-Gold Plated

Metal shell-Nickel Plated

Soldering clip-Tin Plated

2.5A

250V AC

500V (Min. 60 Seconds)

Max. Current Rating

Voltage Rating

Dielectric Strength

I/O

Order Information

1

2

3

45

Recommended P.C.B Layout

1. 'R' : Right Angle Dip Type

2. No. of Pins

3. Plating

4. Color 'Z' : Black

5. Package

'U' : Tube Packge Without Cap

Reference Page 11

Dimensional Information

SUYIN P/NO.

DIM.A

30.81

39.14

53.04

DIM.B

24.99

33.32

47.04

DIM.C

16.33

25.66

38.38

DIM.D

6.94

6.87

229
