1-87229-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1-87229-3

1-87229-3: Description26 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size116KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

1-87229-3 Overview

26 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

1-87229-3 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.323 inch
subject depth	0.307 inch
body length	1.884 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	GOLD FLASH OVER NICKEL (50)
Contact point gender	MALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	87229
Plug contact pitch	0.15 inch
Match contact row spacing	0.15 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.81 mm
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	3.81 mm
Termination type	SOLDER
Total number of contacts	26

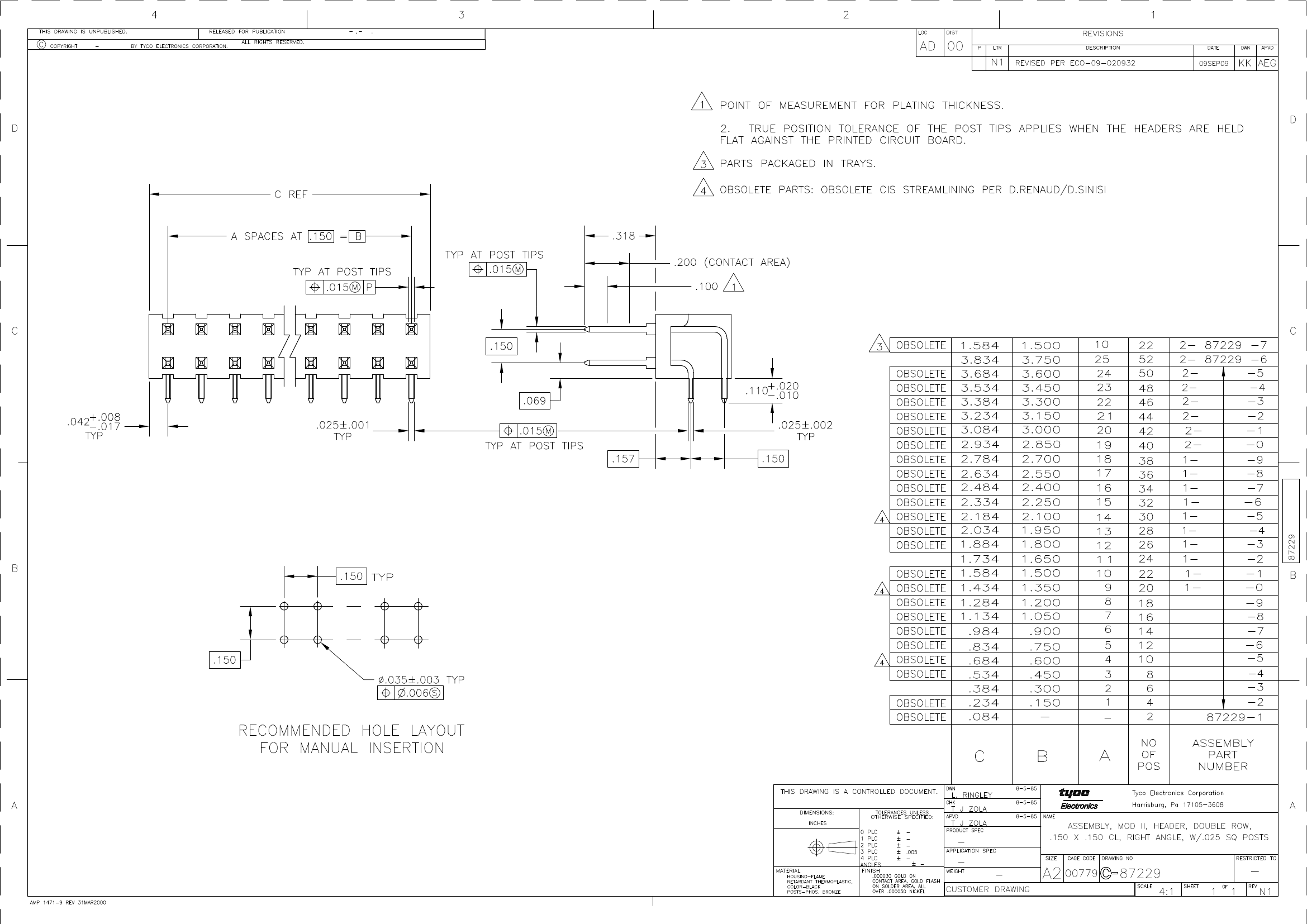

Preview

Download Datasheet

View All

1-87229-3 Related Products

	1-87229-3	87229-3	2-87229-3	87229-4	87229-1	1-87229-6	1-87229-8	2-87229-7
Description	26 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	06 MODII HDR DRRA UNSHRD .150	46 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	8 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	2 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	32 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	36 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	22 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
Connector type	BOARD CONNECTOR	without hood	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Reach Compliance Code	unknown	-	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	-	EAR99	EAR99	EAR99	-	EAR99	EAR99
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)	-	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	GOLD FLASH OVER NICKEL (50)	-	GOLD FLASH OVER NICKEL (50)	GOLD FLASH OVER NICKEL (50)	GOLD FLASH OVER NICKEL (50)	GOLD FLASH OVER NICKEL (50)	GOLD FLASH OVER NICKEL (50)	GOLD FLASH OVER NICKEL (50)
Contact point gender	MALE	-	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	-	NO	NO	NO	NO	NO	NO
Filter function	NO	-	NO	NO	NO	NO	NO	NO
IEC compliance	NO	-	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	-	e4	e4	e4	e4	e4	e4
MIL compliance	NO	-	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	87229	-	87229	87229	87229	87229	87229	87229
Mixed contacts	NO	-	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	-	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	-	2	2	2	2	2	2
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	3.81 mm	-	3.81 mm	3.81 mm	-	3.81 mm	3.81 mm	3.81 mm
Termination type	SOLDER	-	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	26	-	46	8	2	32	36	22
Objectid	-	-	-	1479151367	1479151364	1479151352	1479151354	1479151363
