DG212BDY datasheet, PDF - EEWORLD Datasheet

DG212BDY: DescriptionSPST, 4 Func, 1 Channel, CMOS, PDSO16,; CategoryAnalog mixed-signal IC The signal circuit; File Size253KB，7 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

DG212BDY Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DG212BDY	-	-	View	Buy Now

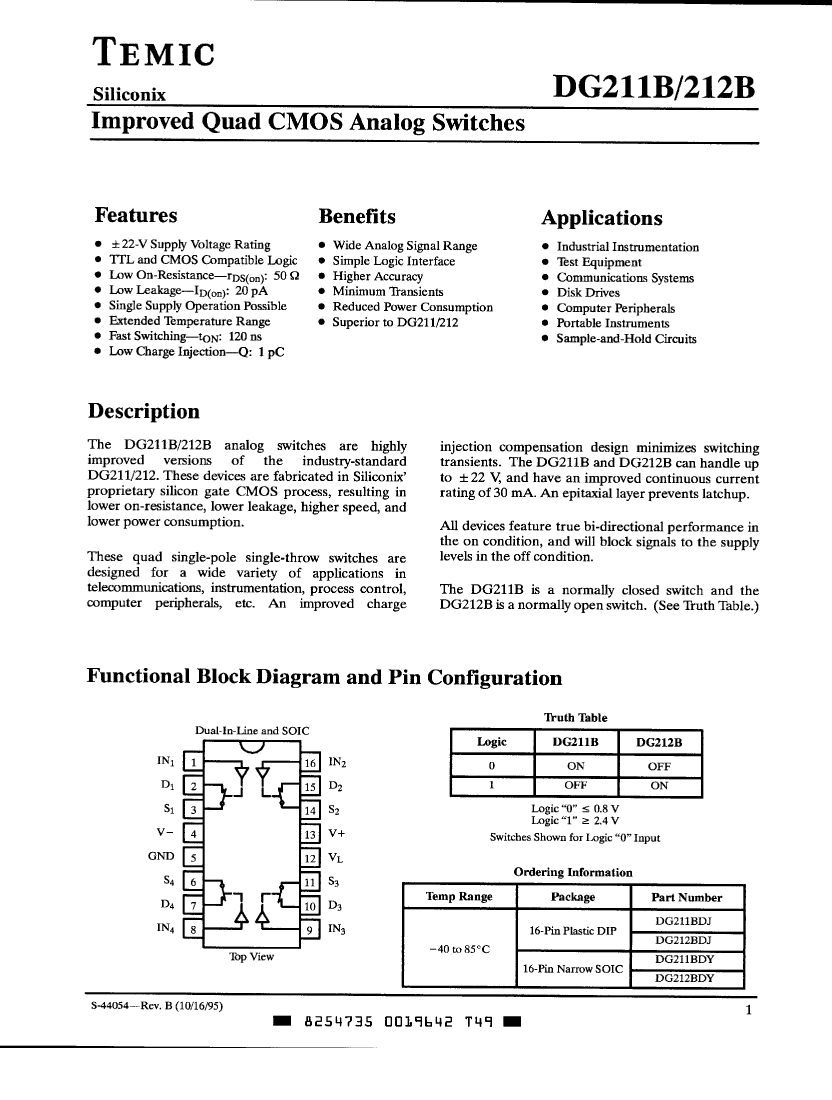

SPST, 4 Func, 1 Channel, CMOS, PDSO16,

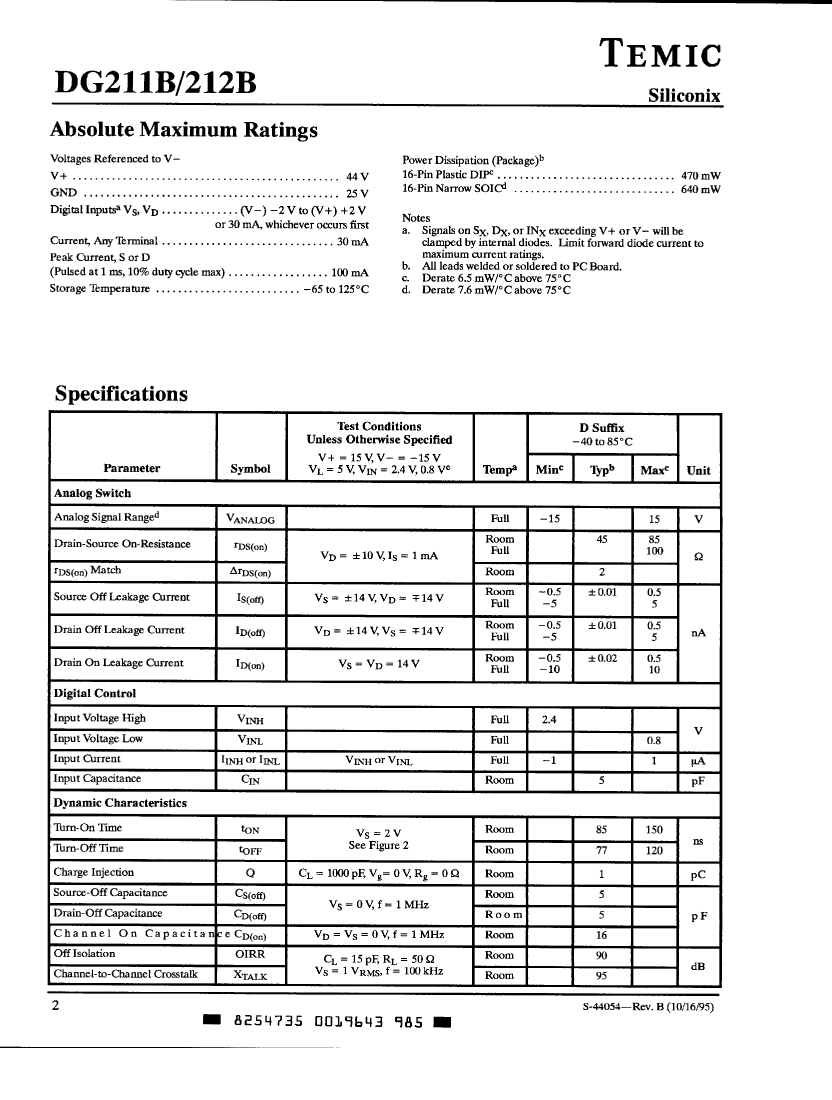

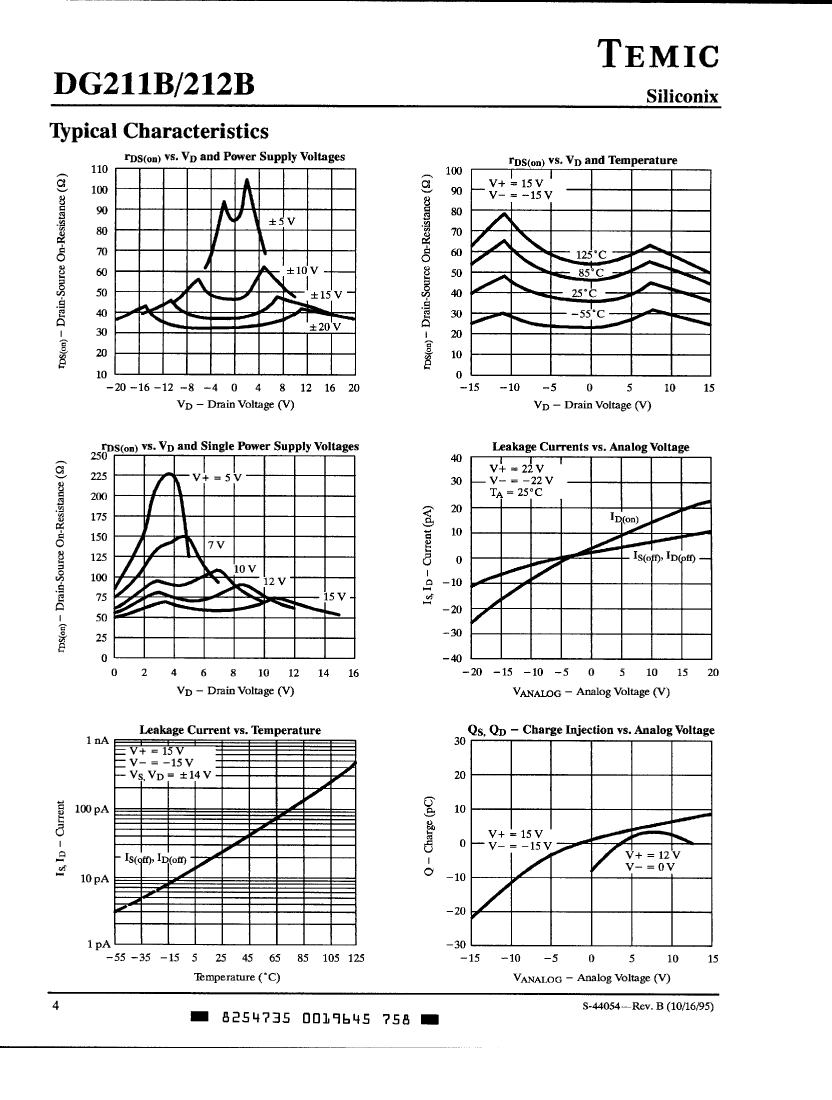

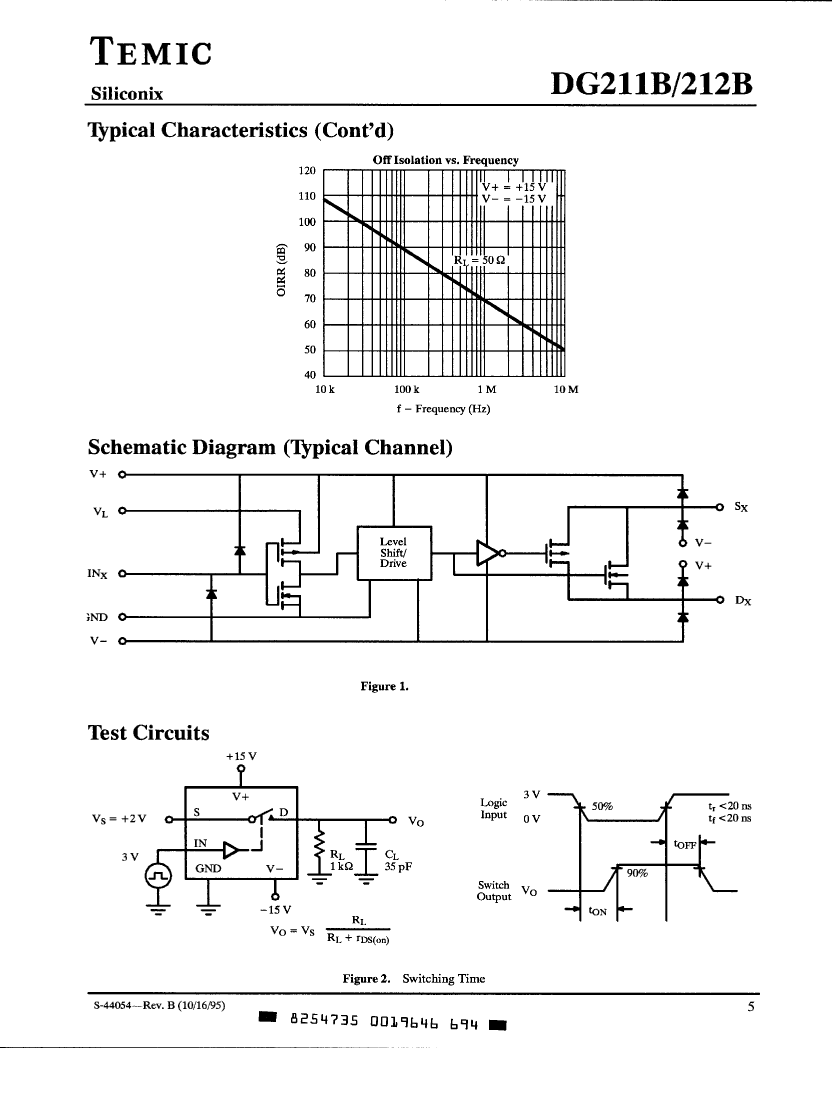

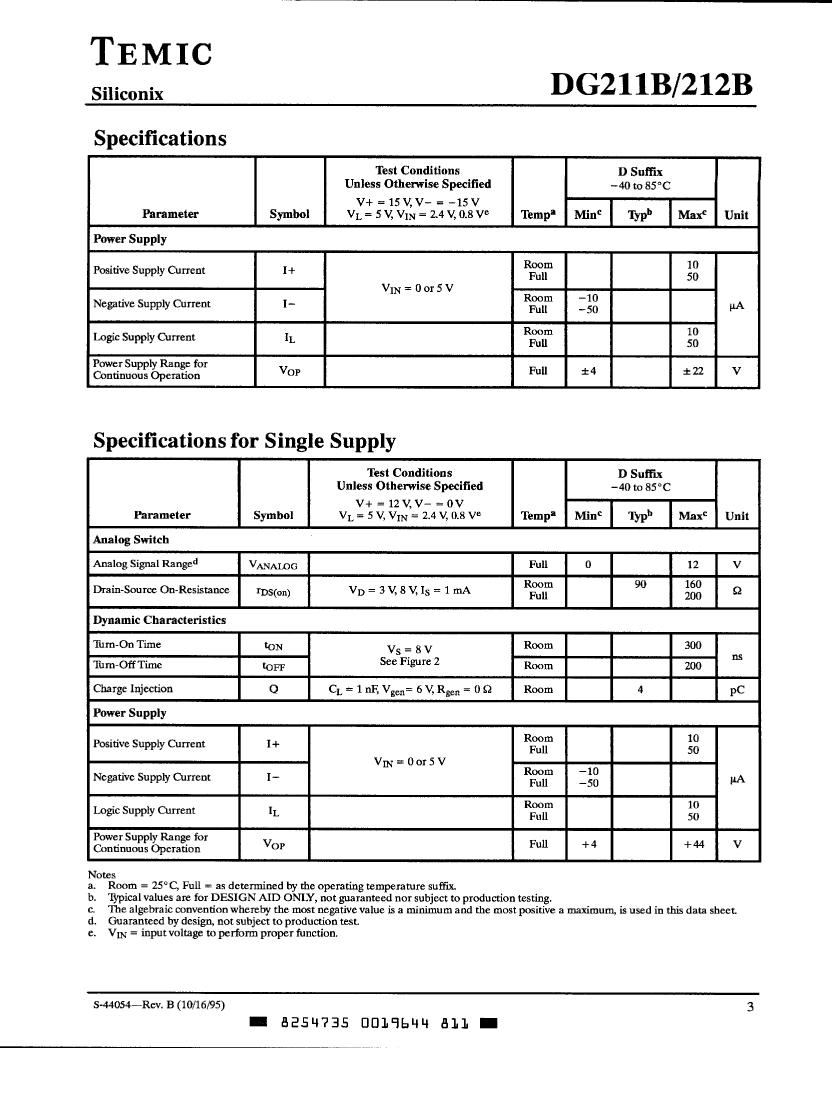

Parameter Name	Attribute value
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDSO-G16
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	4
Number of terminals	16
Nominal off-state isolation	90 dB
On-state resistance matching specifications	2 Ω
Maximum on-state resistance (Ron)	85 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum supply current (Isup)	0.05 mA
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum connection time	1000 ns
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL

This Material Copyrighted By Its Respective Manufacturer

	DG212BDY	DG211BDY	DG212BDJ	DG211BDJ
Description	SPST, 4 Func, 1 Channel, CMOS, PDSO16,	SPST, 4 Func, 1 Channel, CMOS, PDSO16,	SPST, 4 Func, 1 Channel, CMOS, PDIP16,	SPST, 4 Func, 1 Channel, CMOS, PDIP16,
Reach Compliance Code	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SPST	SPST	SPST	SPST
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16	R-PDIP-T16
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of channels	1	1	1	1
Number of functions	4	4	4	4
Number of terminals	16	16	16	16
Nominal off-state isolation	90 dB	90 dB	90 dB	90 dB
On-state resistance matching specifications	2 Ω	2 Ω	2 Ω	2 Ω
Maximum on-state resistance (Ron)	85 Ω	85 Ω	85 Ω	85 Ω
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	0.05 mA	0.05 mA	0.05 mA	0.05 mA
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	YES	YES	NO	NO
Maximum connection time	1000 ns	1000 ns	1000 ns	1000 ns
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL
Maker	-	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)
