RVQ103YN
Series
TOCOS
PA N E L C O N T R O L S
®

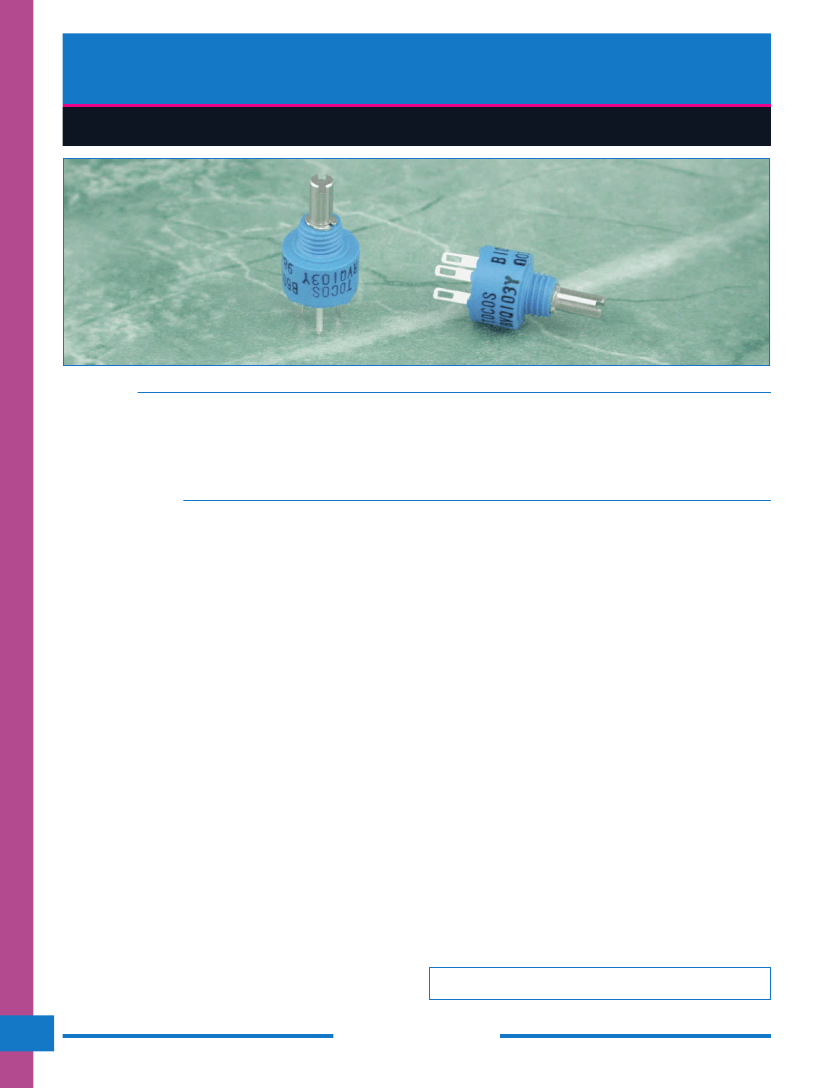

Long Life 10mm Diameter, Single-Turn, Carbon Panel Controls
RVQ103YP
RVQ103YN
Features
Long life 10mm diameter, single-turn industrial panel controls
Carbon film element
200,000 cycle rotational life
Single unit, single shaft
Linear taper
Molded plastic construction for housing and bushing
Lightweight
3mm diameter metal shafts in slot, flat or round end styles
Standard 10mm or 15mm shaft length
Panel mount style
Rear exit vertical lug terminals
PCB mounting style available as special order
Specifications
Electrical
Standard Resistance Range
. . . . . . . . . . . . 5kΩ and 10kΩ
Resistance Tolerance
. . . . . . . . . . . . . . . . .
20% standard
End Resistance
. . . . . . . . . . . . . . . . . . . . . . . Not applicable
Resistance Taper
. . . . . . . . . . . . . . . . . . . . . . . . . . B = linear
Independent Linearity
. . . . . . . . . . . . . . . . . . . .
Power Rating
. . . . . . . 0.125 watt at
3% max.
85 C
Peak Noise (C.R.V.)
. . . . . . . 1% or 2Ω, whichever is greater
40 C, 0 watt at
Maximum Input Voltage
. . . . . . . . . 35VDC or power rating,
whichever is smaller
Insulation Resistance
. . . . . . . 100MΩ minimum at 500VDC
Dielectric Strength
. . . . . . . . . . . . . . . . . . 500VAC, 1 minute
Adjustment Travel
. . . . . . . . . . . . . . . . . . . . . . 320 nominal
Environmental
Temperature Range
. . . . . . . . . . . . . . . . . .
Temperature Characteristics
. . . . . . . . . . .
10 C to
85 C
85 C, 5 hours
∆T/R
)
10%
Temperature Cycle
. . . . . . . . . . . . . . . . . . . . 10 C , 85 C,
30 minutes each, 5 cycles
∆T/R
)
10%
Load Life
. . . . . . . . . . . . . . . .
40 C, 0.125 watt, 1,000 hours
∆T/R
)
10%
Moisture and Load Life
. . . . . . . . . . . . 40 C, 90-95%RH,
0.125 watt, 500 hours
∆T/R
)
10%
Vibration
. . . . . . . . .10-55Hz, 1.5mm amplitude, 3 directions
∆T/R
)
5%
Soldering Heat Resistance
. . . . . . . 350 C 5 C, 3 seconds
∆T/R
)
2%
Rotational Life
. . . . . . . . . . . . . 200,000 cycles without load
∆T/R
)
5%
∆T/R
= Total Resistance Change
Mechanical
Mechanical Travel
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360
Shaft Torque
. . . . . . . . . . . . . . . 15 gf
•
cm (0.208 oz
•
in) max.
Stop Strength
. . . . . . . . . . . . . . . . . . . . Continuous, no stop
Shaft Strength (push)
. . . . . . . . . . . . . . . 29.4 N (3 kgf ) min.
Shaft Strength (tensile)
. . . . . . . . . . . . . 29.4 N (3 kgf ) min.
Shaft End Play
. . . . . . . . .
0.3
(shaft length/15) mm max.
Mounting Nut Torque
. . . . . . 3.5 kgf
•
cm (48.52 oz
•
in) min.
Marking
. . . . . Model type, taper, resistance code, date code
Note: A long life panel control should only be used in a circuit
as a potentiometer (3-terminal voltage divider ).
86
1177 East Tower Road, Schaumburg, IL 60173
TOCOS
AMERICA, INC.
Tel: 847-884-6664
Fax: 847-884-6665
E-mail: sales@tocos.com
www.tocos.com
RVQ103YN Series
RVQ103YN

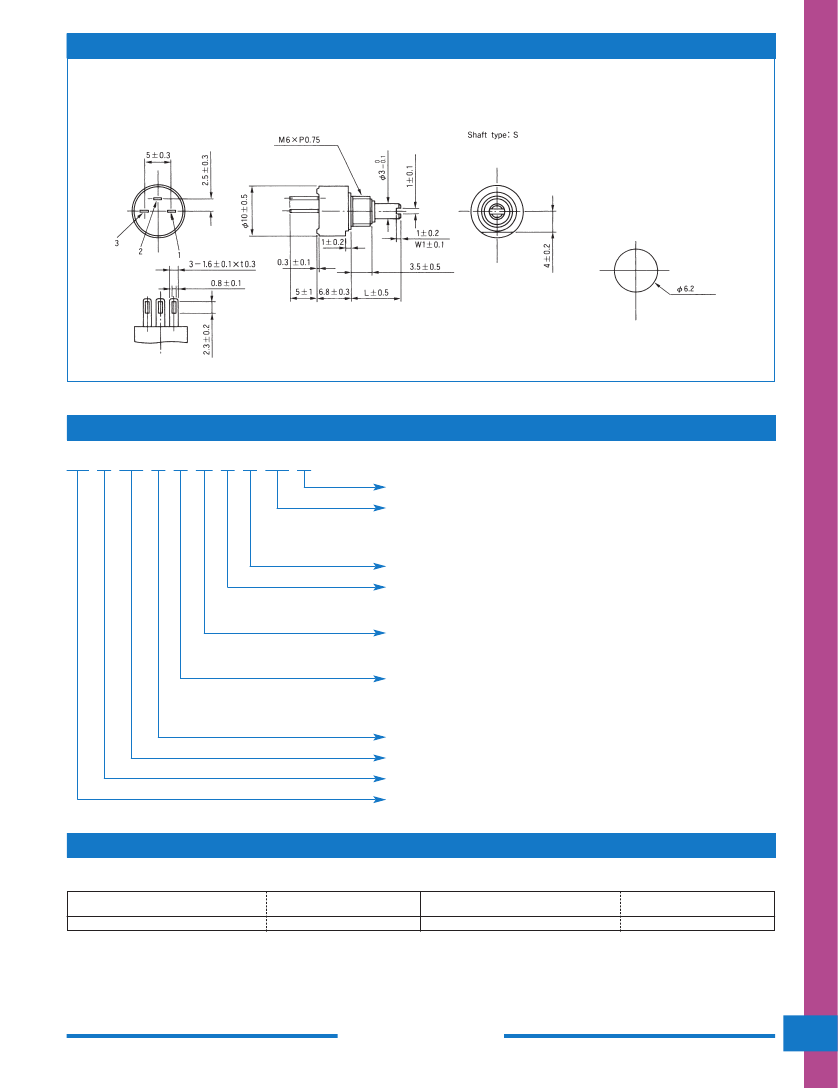

Dimensions
Unit: mm
Panel Mount, Single Unit, Single Shaft
Rear Exit Vertical Lug Terminals, 3-Lug Triangular Pattern
Recommended
Panel Mounting Hole
Part Numbering System
RV Q 103 Y N 15 S B 103 M
NOTE: FMS = From Mounting Surface
Resistance Tolerance: M
=
20% (standard).
Resistance Code:
Expressed in ohms. A three digit code where the first
two digits are significant figures, and the third digit indicates the number
of zeros that follow these figures (i.e., 100 = 10Ω; 101 = 100Ω; 102 = 1,000Ω;
103 = 10,000Ω ).
See table for standard resistance values.
Resistance Taper: B
= Linear.
Shaft End Style: S
= Slotted.
F
= Flatted.
R
= Round.
Standard Shaft Length: 10
= 10mm FMS.
15
= 15mm FMS.
Up to 30mm shaft length available (special order ).
Style: N
= Panel Mount, Single Unit, Single Shaft, Rear Exit Vertical Lug
Terminals, 3-Lug Triangular Pattern (standard).
P
= PCB Mount, Single Unit, Single Shaft, Rear Exit Vertical Mount
Pin Terminals, 3-Pin Triangular Pattern (special order ).
Operating Temperature Range: Y
=
10 C to
85 C.
Size and Style: 10
= 10mm Diameter;
3
= Style of 10mm Size.
Rotational Life: Q
= Long Life, 200,000 cycles.
TOCOS Series Name: RV
= Carbon Film Element.
Standard Resistance Values and Part Numbering Codes
Standard Nominal Total Resistance Values and Part Numbering Codes
Resistance (
Ω
)
5,000
Code
502
Resistance (
Ω
)
10,000
Code
103
Refer to Shaft End Styles Specifications and Hardware Specifications for details and availability.
For additional information, refer to Guidelines and Precautions for Using Panel Controls.
