BI10-GT30-ADZ30X2-B1131/S34

Description
Inductive Sensor,
CategoryThe sensor
File Size332KB,3 Pages
ManufacturerTURCK Inc.
Websitehttps://www.turck.us/
Download Datasheet Parametric View All

BI10-GT30-ADZ30X2-B1131/S34 Overview

Inductive Sensor,

BI10-GT30-ADZ30X2-B1131/S34 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Other featuresIP67; REVERSE POLARITY PROTECTION; SHORT-CIRCUIT PROTECTION
body height80 mm
Body length or diameter30 mm
shellMETAL
Installation featuresFLUSH MOUNT
Maximum working current300 mA
Maximum operating temperature70 °C
Minimum operating temperature-25 °C
Output interface type2-WIRE INTERFACE
Package Shape/FormBARREL
Sensor/temperature sensor typePROXIMITY SENSOR,INDUCTIVE
Maximum supply voltage300 V
Minimum supply voltage10 V
surface mountNO
Termination typeCONNECTOR
Inductive sensor
Resistant to magnetic fields

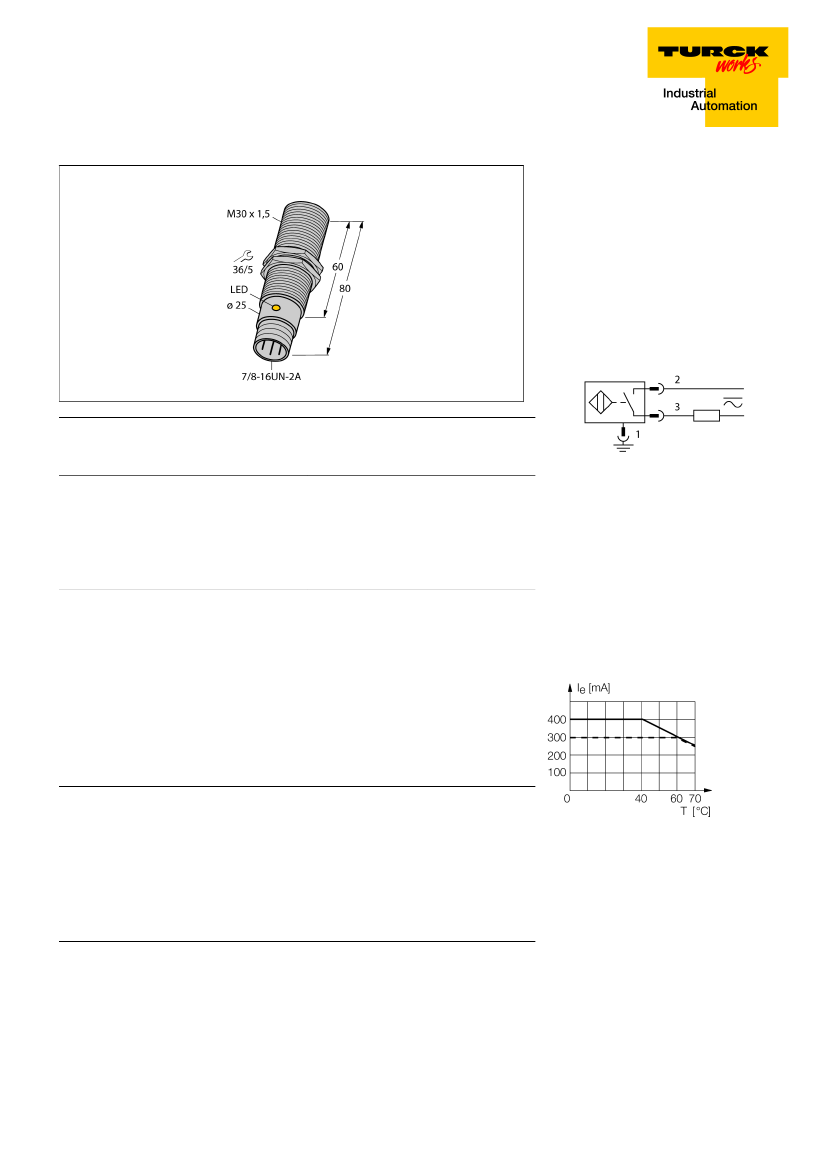

BI10-GT30-ADZ30X2-B1131/S34
Threaded barrel, M30 x 1.5
Brass, PTFE-coated
Resistant to magnetic fields (weld resis-
tant), for DC and AC fields
AC 2-wire, 20…250 VDC
DC 2-wire, 10…300 VDC
NO contact
7/8" male connector
Wiring Diagram
Type designation
Ident-No.
Ident-No (TUSA)

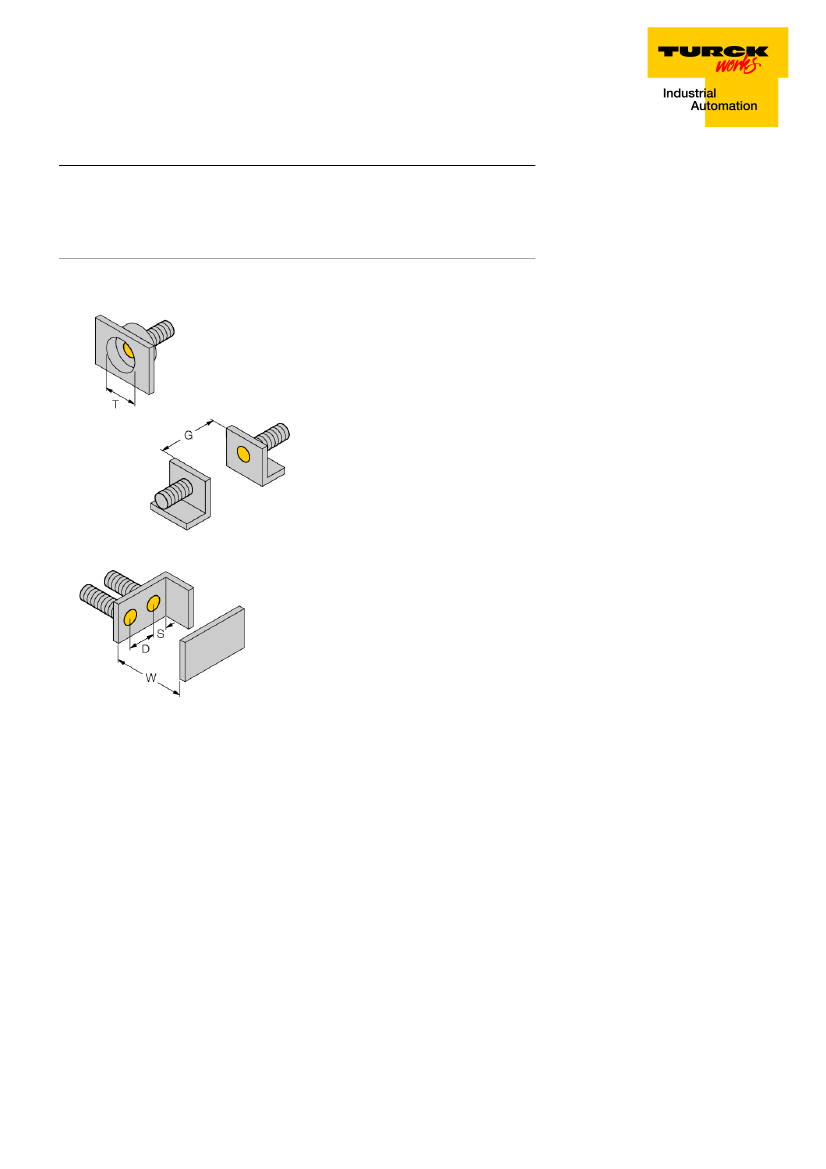

Mounting conditions
Secured operating distance
Correction factors
Repeat accuracy
Temperature drift
Hysteresis
Ambient temperature
Operating voltage
Operating voltage
AC rated operational current
DC rated operational current
Frequency
Residual current
Isolation test voltage
Surge current
Short-circuit protection
Voltage drop at I
e
Wire breakage/Reverse polarity protection
Output function
Smallest operating current I
m
Design
Dimensions
Housing material
Active area material
Max. tightening torque housing nut
Electrical connection
Vibration resistance
Shock resistance
Protection class
MTTF
Switching state
Edition • Rev. F • 2017-09-15T06:12:55+02:00
BI10-GT30-ADZ30X2-B1131/S34
4256200
T4256200
Flush
ð
(0,81 x Sn) mm
St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4
ð
2 % of full scale
ð
± 10 %
3…15 %
-25…+70 °C
20…250VAC
10…300 VDC
ð
400 mA
ð
300 mA
ï
50…ð 60 Hz
ð
1.7 mA
ð
1.5 kV
ð
3 A (ð 20 ms max. 5 Hz)
yes/ Latching
ð
6V
yes/ Complete
2-wire, NO contact
ï
3 mA
Threaded barrel, M30 × 1.5
80 mm
Metal, CuZn, PTFE-coated
Plastic, PA12-GF30, PTFE-coated
75 Nm
Connector, 7/8"
55 Hz (1 mm)
30 g (11 ms)
IP67
2283 years acc. to SN 29500 (Ed. 99) 40 °C
LED red
Functional principle
Inductive sensors detect metal objects con-
tactless and wear-free. For this purpose they
use a high-frequency electromagnetic AC
field that interacts with the target. The sen-
sors hosting a ferrite core coil generate the
AC field through an LC resonant circuit. Mag-
netic field sensors incorporate a special fer-
rite core making them immune to magnetic AC
and DC fields. Hence, they can be applied in
welding systems.

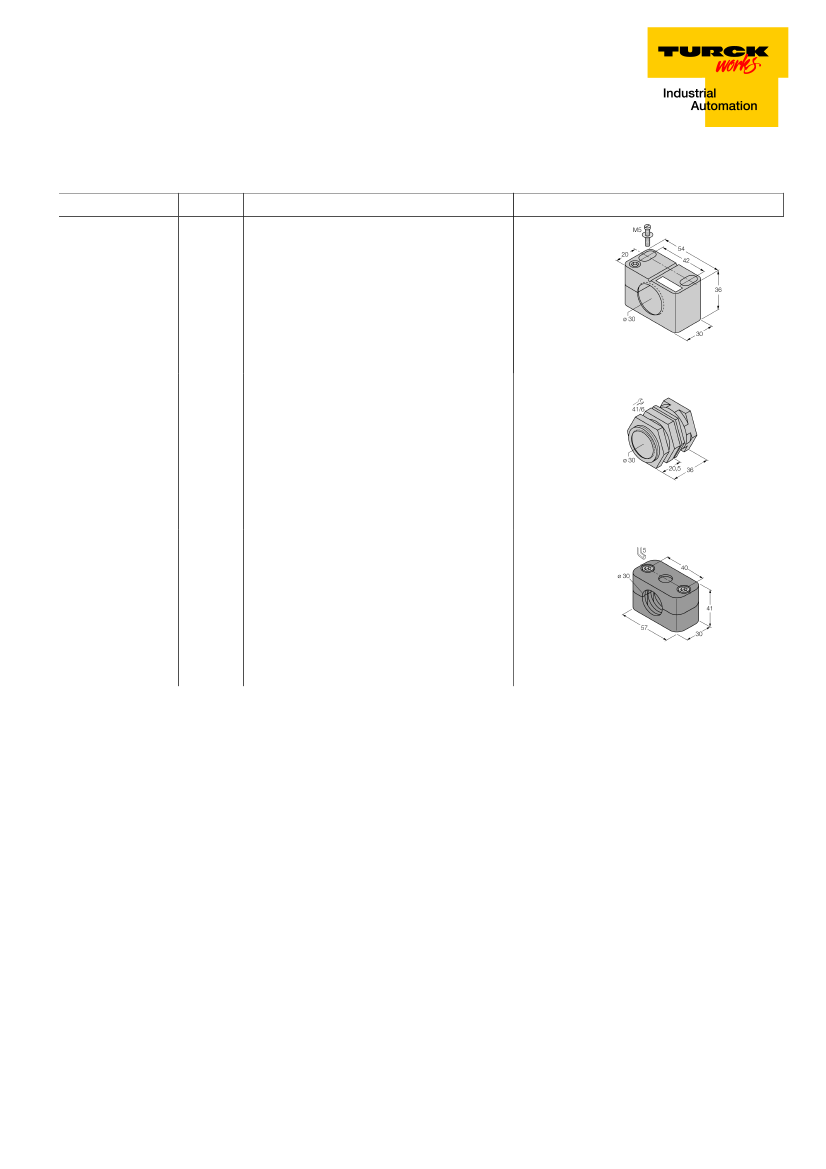

1/3
