BI2-CRS317-ADZ30X2-B1131/S34 datasheet, PDF

Datasheet> All Categories > The sensor> BI2-CRS317-ADZ30X2-B1131/S34

BI2-CRS317-ADZ30X2-B1131/S34: DescriptionInductive Sensor,; CategoryThe sensor; File Size200KB，2 Pages; ManufacturerTURCK Inc.; Websitehttps://www.turck.us/

Download Datasheet Parametric View All

BI2-CRS317-ADZ30X2-B1131/S34 Overview

Inductive Sensor,

BI2-CRS317-ADZ30X2-B1131/S34 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	IP67; SHORT CIRCUIT PROTECTION; REVERSE POLARITY PROTECTION
shell	METAL
Installation features	FLUSH MOUNT
Maximum working current	300 mA
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Output interface type	2-WIRE INTERFACE
Package Shape/Form	BARREL
Sensor/temperature sensor type	PROXIMITY SENSOR,INDUCTIVE
Maximum supply voltage	300 V
Minimum supply voltage	10 V
surface mount	NO
Termination type	CONNECTOR

Preview

Download Datasheet

View All

Inductive sensor

For high pressures

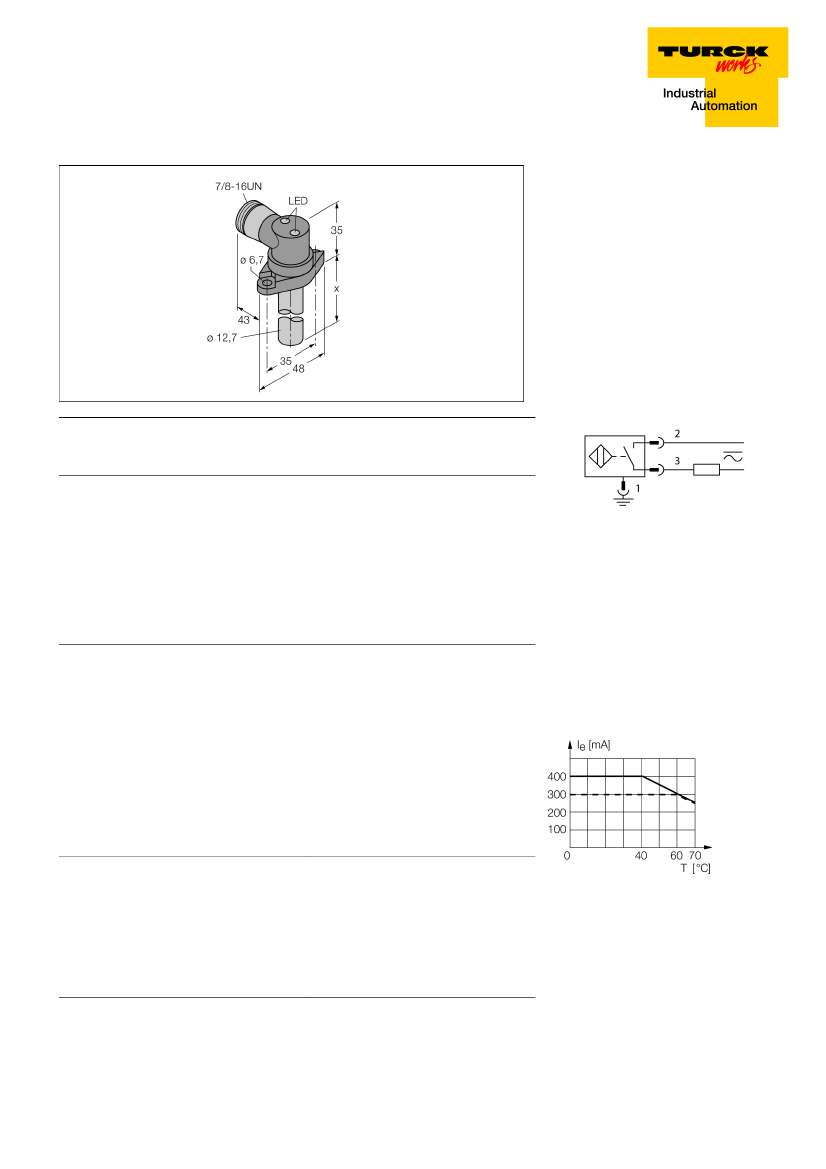

BI2-CRS317-ADZ30X2-B1131/S34

■

Smooth barrel, stainless steel, 1.4305

■

Ø 12.7 mm

■

Housing, GD-Zn, chromated

■

Admissible pressure static/dynamic

200/100 bar

■

Magnetic field immune (insensitive to

magnetic DC and AC fields)

■

AC 2-wire, 20…250 VDC

■

DC 2-wire, 10…300 VDC

■

NO contact

■

7/8" male connector

Wiring Diagram

Type designation

Ident-No.

Ident-No (TUSA)

Rated switching distance Sn

Mounting conditions

Secured operating distance

Correction factors

Repeat accuracy

Static pressure

Dynamic pressure

Admissible contact medium

Temperature drift

Hysteresis

Ambient temperature

Operating voltage

AC rated operational current

DC rated operational current

Frequency

Residual current

Isolation test voltage

Surge current

Short-circuit protection

Voltage drop at I

Wire breakage/Reverse polarity protection

Output function

Smallest operating current I

Switching frequency

Design

Probe length

Housing material

Active area material

Connector housing

Electrical connection

Vibration resistance

Shock resistance

Protection class

Edition • 2017-09-15T06:13:37+02:00

BI2-CRS317-ADZ30X2-B1131/S34

42712

T4271293

2 mm

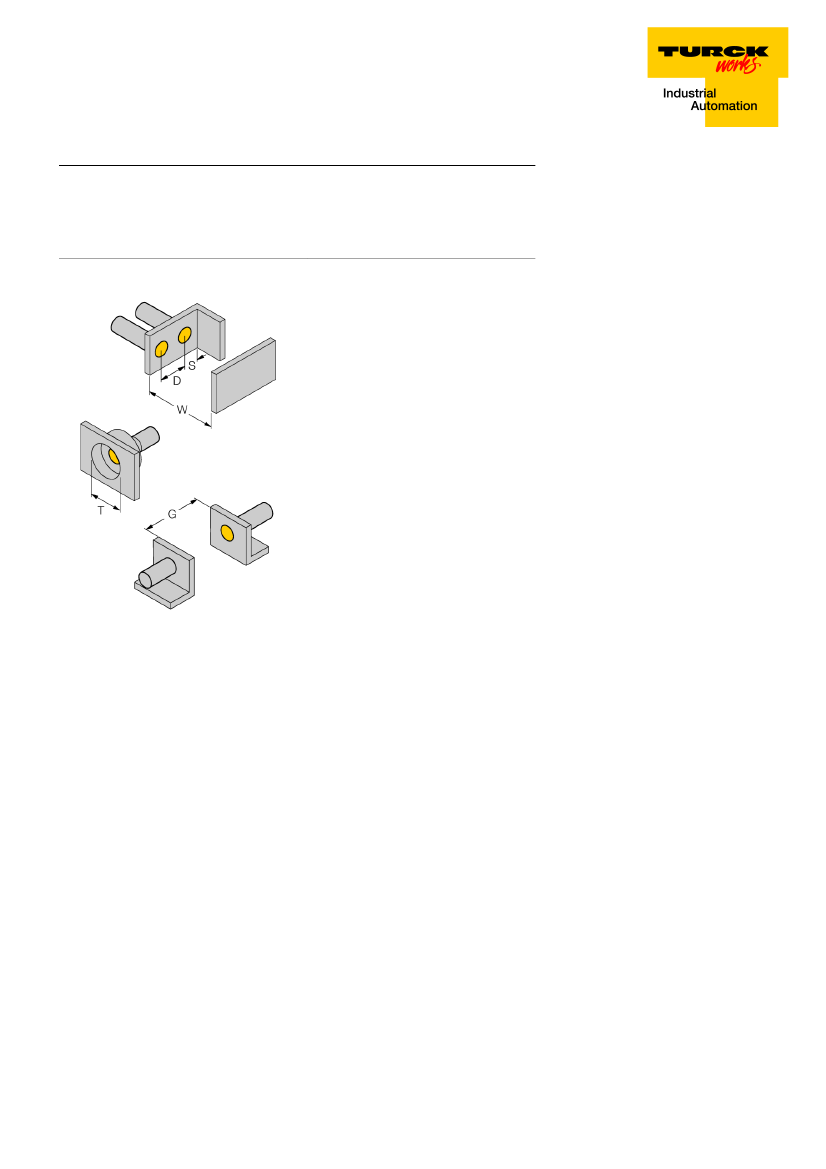

Flush

(0,81 x Sn) mm

St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4

2 % of full scale

200 bar

100 bar

electrically conductive

± 10 %

3…15 %

-25…+70 °C

20…250VAC

10…300 VDC

400 mA

300 mA

50…ð 60 Hz

1.7 mA

1.5 kV

3 A (ð 20 ms max. 5 Hz)

yes/ Latching

yes/ Complete

2-wire, NO contact

3 mA

0.02 kHz

Smooth barrel, 12.7 mm

31.7 mm, probe length x

Metal, 1.4305 (AISI303)

Plastic, PA12-GF30

metal, GdZn, chromated

Connector, 7/8"

55 Hz (1 mm)

30 g (11 ms)

IP67

LED green

LED red

Functional principle

Inductive sensors detect metal objects con-

tactless and wear-free. For this purpose they

use a high-frequency electromagnetic AC

field that interacts with the target. The sensors

hosting a ferrite core coil generate the AC field

through an LC resonant circuit.

Pressure-resistant inductive sensors with-

stand high pressures which makes them per-

fectly suited for position control in hydraulic

cylinders.

Power-on indication

Switching state

1/2

TURCK Inc.

3000 Campus Drive Minneapolis, MN 55441-2656

Phone: 763-553-7300

Application Support: 1-800-544-7769

Fax 763-553-0708

www.turck.com
