BI2-CRS959-ADZ30X2-B1131/S34
Inductive sensor – for high pressures
Features
■
Smooth barrel, chrome-plated brass
■
Ø 12.7 mm
■
Housing, GD-Zn chromated
■
Admissible pressure static/dynamic 200/100 bar
■
Magnetic field immune (insensitive to magnetic
DC and AC fields)
■
AC 2-wire, 20…250 VDC
■
DC 2-wire, 10…300 VDC
■
NO contact
■
7/8" male connector

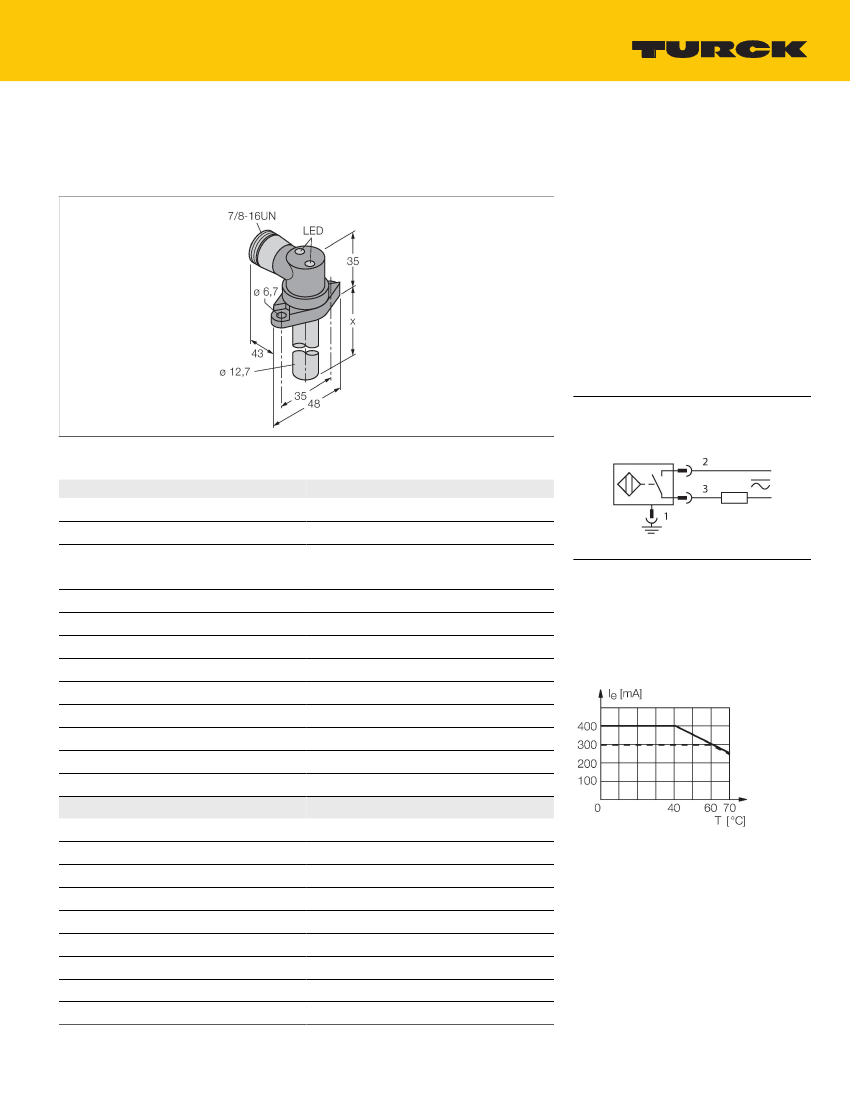

Wiring diagram
Technical data
Type
Ident. no.
Special version
Rated switching distance
Mounting conditions
Secured operating distance
Correction factors
Repeat accuracy
Static pressure
Dynamic pressure
Admissible contact medium
Temperature drift
Hysteresis
Ambient temperature
Operating voltage
Operating voltage
AC rated operational current
DC rated operational current
Frequency
Residual current
Isolation test voltage
Surge current
Short-circuit protection
Voltage drop at
BI2-CRS959-ADZ30X2-B1131/S34
4274093
S34 = Weld-field immune proximity sensors
2 mm
Flush
≤ (0,81 x Sn) mm
St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4
≤ 2 % of full scale
≤ 200 bar
≤ 100 bar
electrically conductive
≤ ± 10 %
3…15 %
-25…+70 °C
20…250 VAC
10…300 VDC
≤ 400 mA
≤ 300 mA
≥ 50…≤ 60 Hz
≤ 1.7 mA
≤ 1.5 kV
≤ 3 A (≤ 20 ms max. 5 Hz)
yes / Latching
≤ 6 V
Functional principle
Inductive sensors detect metal objects contactless
and wear-free. For this, they use a high-frequency
electromagnetic AC field that interacts with the
target. Inductive sensors generate this field via an
RLC circuit with a ferrite coil.
TURCK Inc. | 3000 Campus Drive Minneapolis, MN 55441-2656 | Phone: 763-553-7300 | Application Support: 1-800-544-7769 | Fax 763-553-0708 | www.turck.com
1|2
BI2-CRS959-ADZ30X2-B1131/S34| 09/15/2019 16-49 | technical changes reserved
Technical data
Wire breakage/Reverse polarity protection
Output function
Smallest operating current
Switching frequency
Design
Probe length
Housing material
Active area material
Connector housing
Tightening torque fixing screw
Electrical connection
Vibration resistance
Shock resistance
Protection class
Power-on indication
Switching state
Included in delivery
yes / Complete
2-wire, NO contact
≥ 3 mA
0.02 kHz
Smooth barrel,12.7 mm
95.9 mm, probe length x
Metal, 1.4305 (AISI303)
Plastic, PA12-GF30
metal, GdZn, chromated
7.3 Nm
Connector, 7/8''
55 Hz (1 mm)
30 g (11 ms)
IP67
LED,Green
LED, Red
2 x socket head screw 1/4"-20 NPT, 5/8" long

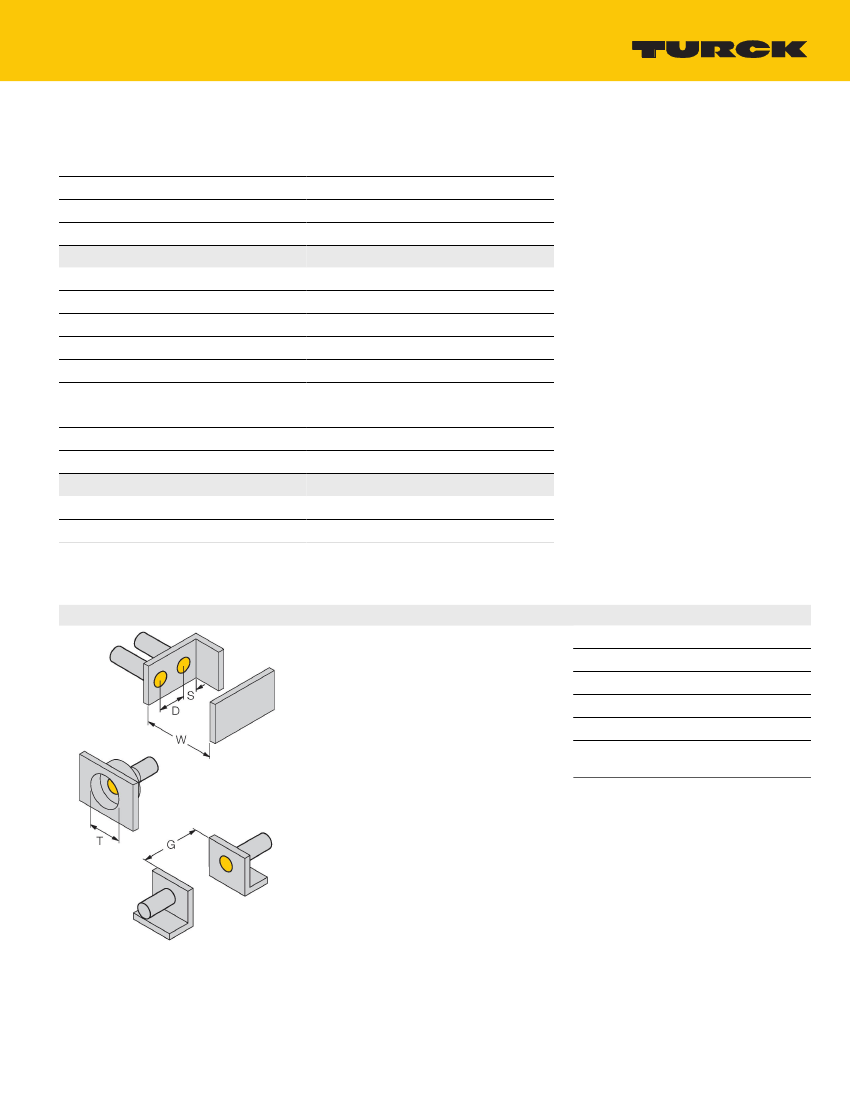

Mounting instructions
Mounting instructions/Description
Distance D
Distance W
Distance T
Distance S
Distance G
2xB
3xB
1.5 x B
6 x Sn
BI2-CRS959-ADZ30X2-B1131/S34| 09/15/2019 16-49 | technical changes reserved
3 x Sn
Diameter active area Ø 12.7 mm
B
The mounting receptacle and the O-ring supplied
with the sensor are approved for high static and
dynamic pressure. To ensure that the application is
pressure-resistant, the mounting surface must also
be designed accordingly.
Ensure that the mounting surface is dry and free
of dust during installation. Please also consider
that oil can be displaced from the hydraulic system
when the sensor probe is introduced, in which case
the mounting surface will be moistened. Should
this occur, a proper seal will not be established.
Recommended clearances:
0.64…1.19 mm to the hydraulic cylinder end
position buffers being detected to allow for
tolerances and wear.
>2.8 mm to the hydraulic cylinder piston rod to
ensure that the sensor output switches off.
TURCK Inc. | 3000 Campus Drive Minneapolis, MN 55441-2656 | Phone: 763-553-7300 | Application Support: 1-800-544-7769 | Fax 763-553-0708 | www.turck.com
2|2
