BI2.5-EG16CA-FDZ32X2-B1151 datasheet, PDF

Datasheet> All Categories > The sensor> BI2.5-EG16CA-FDZ32X2-B1151

BI2.5-EG16CA-FDZ32X2-B1151: DescriptionInductive Sensor,; CategoryThe sensor; File Size170KB，2 Pages; ManufacturerTURCK Inc.; Websitehttps://www.turck.us/

Download Datasheet Parametric View All

BI2.5-EG16CA-FDZ32X2-B1151 Overview

Inductive Sensor,

BI2.5-EG16CA-FDZ32X2-B1151 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Sensor/temperature sensor type	PROXIMITY SENSOR,INDUCTIVE

Preview

Download Datasheet

View All

Inductive sensor

BI2.5-EG16CA-FDZ32X2-B1151

■

Threaded barrel, 5/8"

■

Stainless steel, 1.4401

■

AC 2-wire, 20…250 VDC

■

DC 2-wire, 10…300 VDC

■

Programmable via connection

■

Cable connection

Wiring Diagram

Type designation

Ident-No.

Ident-No (TUSA)

Rated switching distance Sn

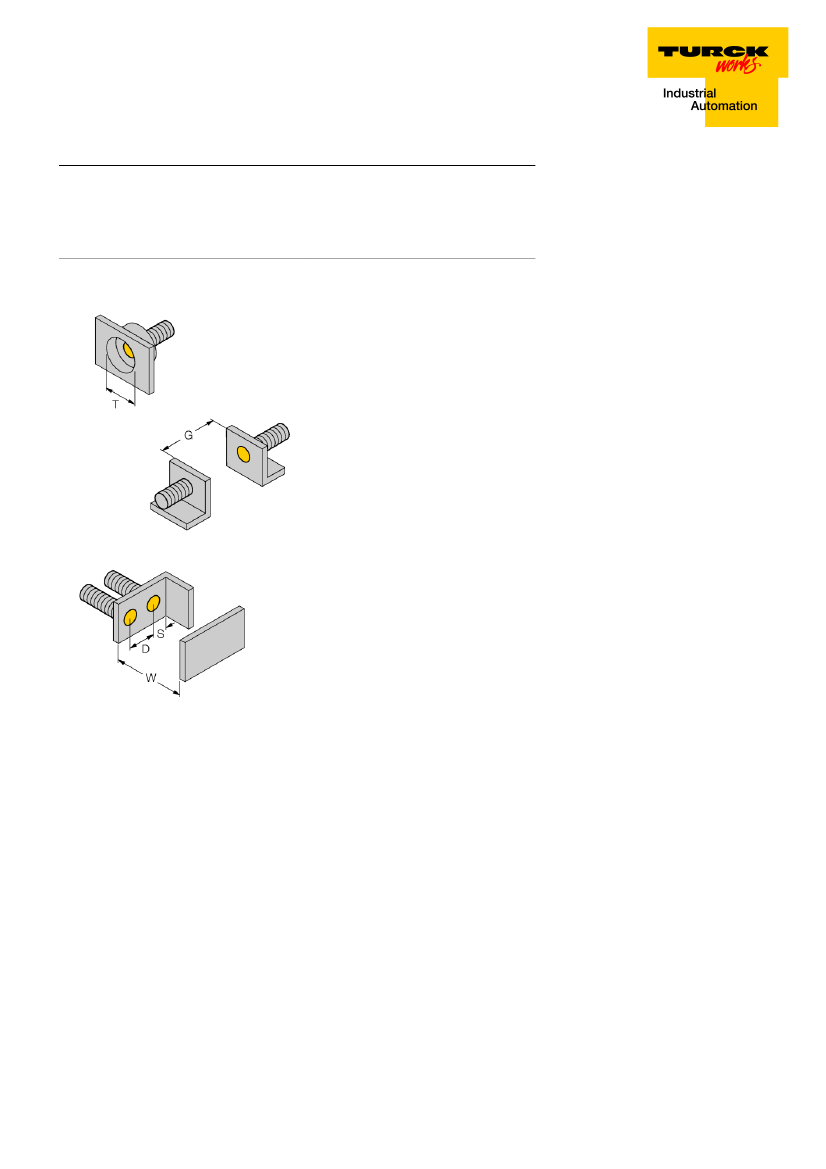

Mounting conditions

Secured operating distance

Correction factors

Repeat accuracy

Temperature drift

Hysteresis

Ambient temperature

Operating voltage

AC rated operational current

DC rated operational current

Frequency

Residual current

Isolation test voltage

Surge current

Short-circuit protection

Voltage drop at I

Wire breakage/Reverse polarity protection

Output function

Smallest operating current I

Switching frequency

Design

Dimensions

Housing material

Active area material

Max. tightening torque housing nut

Electrical connection

Vibration resistance

Shock resistance

Protection class

MTTF

Power-on indication

Switching state

BI2.5-EG16CA-FDZ32X2-B1151

4205190

M4205190

2.5 mm

Flush

(0,81 x Sn) mm

St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4

2 % of full scale

± 10 %

3…15 %

-25…+70 °C

20…250VAC

10…300 VDC

100 mA

50…ð 60 Hz

1.7 mA

1.5 kV

1 A (ð 10 ms max. 5 Hz)

yes/ Latching

yes/ Complete

2-wire, Connection programmable

3 mA

0.02 kHz

Threaded barrel, 5/8" SAE

105 mm

Metal, V4A 1.4401 (AISI 316)

Plastic, PA12-GF30

90 Nm

Cable, 7/8"

55 Hz (1 mm)

30 g (11 ms)

IP67

2283 years acc. to SN 29500 (Ed. 99) 40 °C

LED green

LED red

Functional principle

Inductive sensors detect metal objects con-

tactless and wear-free. For this, they use a

high-frequency electromagnetic AC field that

interacts with the target. Inductive sensors

generate this field via an RLC circuit with a

ferrite coil.

Edition • 2017-09-15T06:10:53+02:00

1/2

TURCK Inc.

3000 Campus Drive Minneapolis, MN 55441-2656

Phone: 763-553-7300

Application Support: 1-800-544-7769

Fax 763-553-0708

www.turck.com
