BI20-CA40130-ADZ30X2-B1131: DescriptionInductive Sensor,; CategoryThe sensor; File Size205KB，2 Pages; ManufacturerTURCK Inc.; Websitehttps://www.turck.us/

Download Datasheet Parametric View All

BI20-CA40130-ADZ30X2-B1131 Overview

Inductive Sensor,

BI20-CA40130-ADZ30X2-B1131 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	IP67; SHORT CIRCUIT PROTECTION; REVERSE POLARITY PROTECTION
body width	40 mm
body height	40 mm
Body length or diameter	130 mm
shell	METAL
Installation features	FLUSH MOUNT
Maximum working current	300 mA
Maximum operating temperature	70 °C
Minimum operating temperature
Output interface type	2-WIRE INTERFACE
Package Shape/Form	RECTANGULAR
Sensor/temperature sensor type	PROXIMITY SENSOR,INDUCTIVE
Maximum supply voltage	300 V
Minimum supply voltage	10 V
surface mount	NO
Termination type	CONNECTOR

Preview

Download Datasheet

View All

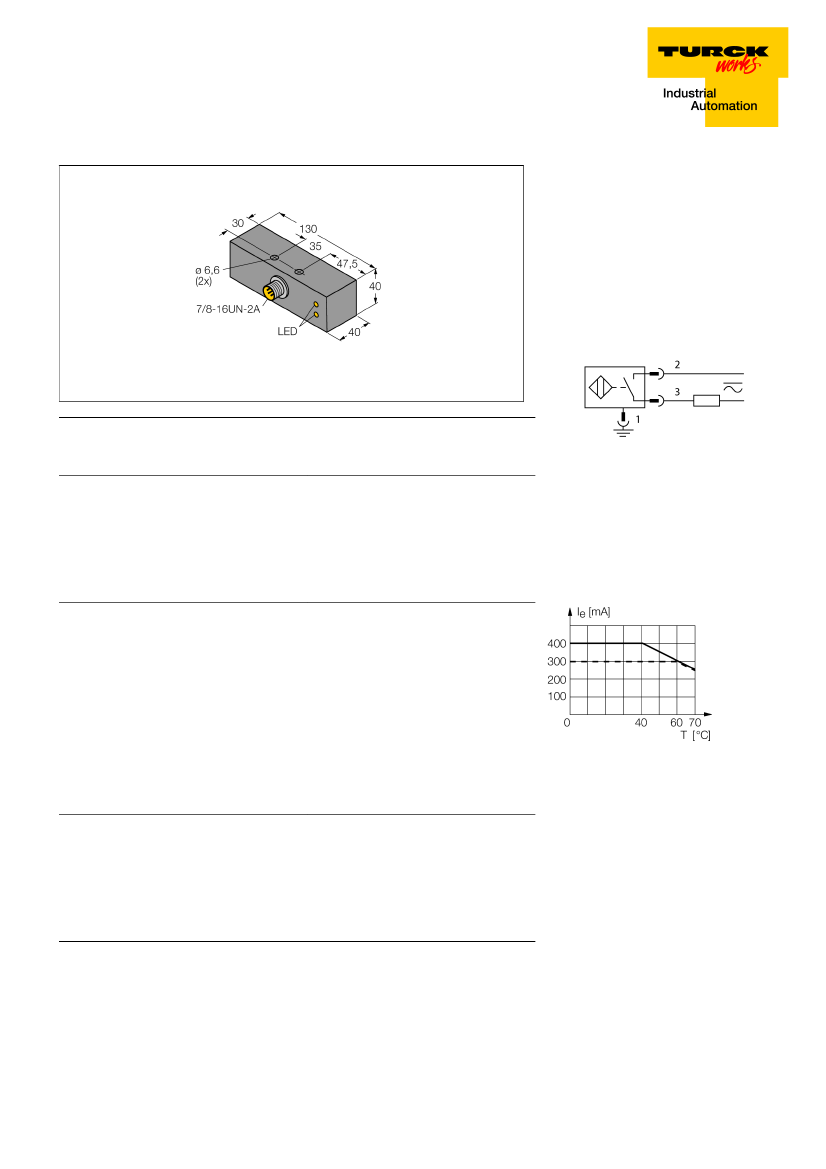

Inductive sensor

BI20-CA40130-ADZ30X2-B1131

■

Rectangular, height 40 mm

■

Sensor housing GD-ALSI 12

■

Plastic, Duroplast

■

AC 2-wire, 20…250 VDC

■

DC 2-wire, 10…300 VDC

■

NO contact

■

7/8" male connector

Wiring Diagram

Type designation

Ident-No.

Ident-No (TUSA)

Rated switching distance Sn

Mounting conditions

Secured operating distance

Correction factors

Repeat accuracy

Temperature drift

Hysteresis

Ambient temperature

Operating voltage

AC rated operational current

DC rated operational current

Frequency

Residual current

Isolation test voltage

Surge current

Short-circuit protection

Voltage drop at I

e

Wire breakage/Reverse polarity protection

Output function

Smallest operating current I

m

Switching frequency

Design

Dimensions

Housing material

Electrical connection

Vibration resistance

Shock resistance

Protection class

MTTF

Power-on indication

Switching state

Edition • 2017-09-15T06:18:44+02:00

BI20-CA40130-ADZ30X2-B1131

4283503

T4283503

20 mm

Flush

ð

(0,81 x Sn) mm

St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4

ð

2 % of full scale

ð

± 10 %

3…15 %

0…+70 °C

20…250VAC

10…300 VDC

ð

400 mA

ð

300 mA

ï

50…ð 60 Hz

ð

1.7 mA

ð

1.5 kV

ð

3 A (ð 20 ms max. 5 Hz)

yes/ Latching

ð

6V

yes/ Complete

2-wire, NO contact

ï

3 mA

0.02 kHz

Rectangular, CA40130

130 x 40 x 40 mm

Metal, GD-AlSi 12

Connector, 7/8"

55 Hz (1 mm)

30 g (11 ms)

IP67

2283 years acc. to SN 29500 (Ed. 99) 40 °C

LED green

LED red

Functional principle

Inductive sensors detect metal objects con-

tactless and wear-free. For this, they use a

high-frequency electromagnetic AC field that

interacts with the target. Inductive sensors

generate this field via an RLC circuit with a

ferrite coil.

1/2

TURCK Inc.

ñ

3000 Campus Drive Minneapolis, MN 55441-2656

ñ

Phone: 763-553-7300

ñ

Application Support: 1-800-544-7769

ñ

Fax 763-553-0708

ñ

www.turck.com
