A07336K81000T9L Overview

Fixed Resistor, Metal Foil, 3W, 6810ohm, 350V, 0.01% +/-Tol, 2ppm/Cel, Through Hole Mount, RADIAL LEADED

A07336K81000T9L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	RADIAL LEADED
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FREE AIR POWER: 3W
structure	Heat Sink
Lead diameter	0.633 mm
Lead length	25.4 mm
lead spacing	15.24 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package height	19.99 mm
Package length	40.01 mm
Package form	Radial
Package width	7.01 mm
method of packing	Bulk
Rated power dissipation(P)	10 W
Rated temperature	25 °C
resistance	6810 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL FOIL
Temperature Coefficient	2 ppm/°C
Terminal shape	WIRE
Tolerance	0.01%
Operating Voltage	350 V

A07336K81000T9L Preview

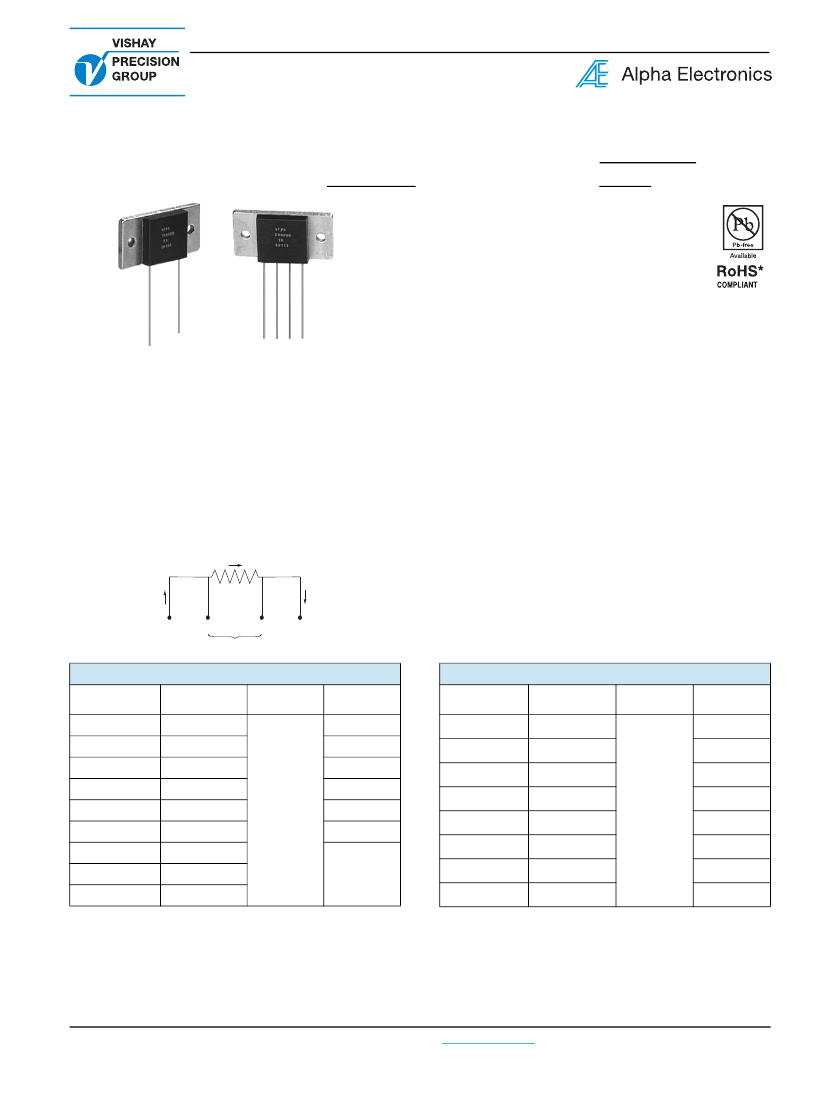

VFP-3, VFP-4

Bulk Metal

Foil Technology Power

and Current Sensing Resistors with TCR of 2 ppm/°C,

Tolerance to ± 0.01 % and power up to 10 W

FEATURES



Temperature Coefficient of Resistance (TCR):

± 2 ppm/°C typical (- 55 °C to + 125 °C,

+ 25 °C Ref.) (see Tables 1 and 2)



Tolerance: to ± 0.01 % (see Tables 1 and 2)



Power Rating (heat-sinked): 10 W



Load Life Stability: ± 0.005 % at 25 °C,

2000 hours at Rated Power



Resistance Range: 0.05



to 80 k



Electrostatic Discharge (ESD) above 25 000 V



Non Inductive, Non Capacitive Design



Rise Time: 1 ns without Ringing



Current Noise: < - 40 dB



Thermal EMF: 0.05 µV/°C typical



Voltage Coefficient: < 0.1 ppm/V



Non Inductive: < 0.08 µH



Non Hot Spot Design



Terminal Finishes Available: Lead (Pb)-free

Tin/Lead Alloy



Any Value available within Resistance Range (e.g.

1K2345)



Prototype Samples available from 48 hours. For more

Information, please contact Alpha



For better Performances, please see VFP-3Z and VFP-4Z

Datasheets

Any value available within resistance range

The basic features of Bulk Metal

Foil resistors; tight

resistance tolerance, fast response time, low TCR, and

exceptional long-term stability, are available for power-circuit

applications. Typical applications are non-inductive design,

current sensing applications, deflection amplifiers, constant

current power supplies, forced balance electronic scales,

graphic display computers, character generation on CRTs,

and electron beam controls.

Our Application Engineering Department is available to

advise and to make recommendations. For non-standard

technical requirements and special applications, please

TABLE 1 - VFP-3

SPECIFICATIONS

RESISTANCE

RANGE ()

50 to 80K

25 to < 50

10 to < 25

5 to < 10

2 to < 5

1 to < 2

0.5 to < 1

0.25 to < 0.5

0.1 to < 0.25

Notes

Tighter tolerance available upon request

See page 3 in this data sheet for numbered footnotes.

1. Weight = 15 g Max

2. VFP-4 available up to 500

.

3. - 55 °C to + 125 °C, + 25 °C Ref.

* Pb containing terminations are not RoHS compliant, exemptions may apply

Document Number: 67047

Revision: 10-Mar-14

STANDARD

TOLERANCE

± 0.01 %

± 0.02 %

± 0.05 %

± 0.1 %

± 0.25 %

± 0.5 %

± 1.0 %

± 2.0 %

± 5.0 %

± 50 ppm/°C

± 2 ppm/°C

TYPICAL

TCR

MAXIMUM

TCR

± 5 ppm/°C

± 7 ppm/°C

± 10 ppm/°C

± 13 ppm/°C

± 20 ppm/°C

± 25 ppm/°C

TABLE 2 - VFP-4

1), 2)

SPECIFICATIONS

RESISTANCE

RANGE ()

10 to 500

5 to < 10

2 to < 5

1 to < 2

0.5 to < 1

0.25 to < 0.5

0.1 to < 0.25

0.05 to < 0.1

STANDARD

TOLERANCE

± 0.01 %

± 0.02 %

± 0.05 %

± 0.1 %

± 0.25 %

± 0.5 %

± 1.0 %

± 2.0 %

± 2 ppm/°C

TYPICAL

TCR

MAXIMUM

TCR

± 5 ppm/°C

± 6 ppm/°C

± 8 ppm/°C

± 10 ppm/°C

± 15 ppm/°C

± 20 ppm/°C

± 25 ppm/°C

± 30 ppm/°C

For any questions, contact:

foil@vishaypg.com

www.vishayfoilresistors.com

VFP-3, VFP-4

FIGURE 1 - STANDARD IMPRINTING AND DIMENSIONS

in inches (millimeters)

VFP-3

1.575 ± 0.016 (40.01 ± 0.41)

1.181 ± 0.016 (30 ± 0.41)

0.197 (5.00)

0.276

- 0.008

(7.01

- 0.2

)

1.575 ± 0.016 (40.01 ± 0.41)

0.118 (3.00)

1.181 ± 0.016 (30 ± 0.41)

+ 0.004

+ 0.1

VFP-4

0.276

- 0.008

(7.01

- 0.2

)

0.197 (5.00)

0.118 (3.00)

+ 0.004

+ 0.1

VFR

VFP-3

(Value)

(Tol.)

(Date Code)

0.150 ± 0.004

(3.81 ± 0.1)

0.394 ± 0.008

(10.01 ± 0.2)

0.787 ± 0.016

(19.99 ± 0.41)

VFR

VFP-4

(Value)

(Tol.)

(Date Code)

0.150 ± 0.004

(3.81 ± 0.1)

0.394 ± 0.008

(10.01 ± 0.2)

Lead Dia.

0.025 (0.64)

Solder Coated

Copper

0.787 ± 0.016

(19.99 ± 0.41)

Lead Dia.

0.025 (0.633)

Solder Coated

Copper

1.00 Min.

(25.4 Min.)

I1 E1 E2

1.00 Min.

(25.4 Min.)

0.600 (15.24)

0.200 [x3] (5.08)

TABLE 3 - SPECIFICATIONS

Stability

Load Life at 2000 hours

Power Rating

At + 25 °C

10 W or 3 A

on heat sink

3 W or 3 A

in free air

Power rating based on

R.

Further derating not necessary.

Current Noise

High Frequency Operation

Rise Time

Inductance (L)

Capacitance (C)

Voltage Coefficient

Operating Temp. Range

Maximum Working

Thermal

EMF

Voltage

1.0 ns at 1 k

0.1 µH maximum; 0.08 µH typical

1.0 pF maximum; 0.5 pF typical

< 0.1 ppm/V

- 55 °C to + 150 °C

350 V

0.5 µV/°C typical (lead effect)

< 0.010 µV (RMS)/V of applied voltage (- 40 dB)

± 0.05 % maximum

R

under full rated power (3 W at + 25 °C)

FIGURE 2 - POWER DERATING CURVE

FIGURE 3 - TRIMMING TO VALUES

(Conceptual Illustration)

Percent of Rated Power

+ 100

+ 75

+ 50

+ 25

- 55 °C

Rated Power

Interloop Capacitance

Reduction in Series

Current Path

Before Trimming

Current Path

After Trimming

Trimming Process

Removes this Material

from Shorting Strip Area

Changing Current Path

and Increasing

Resistance

Mutual Inductance

Reduction due

to Change in

Current Direction

- 75 - 50 - 25

0 + 25 + 50 + 75 + 100 + 125 + 150 + 175

Ambient Temperature (°C)

Note:

Foil shown in black, etched spaces in white



www.vishayfoilresistors.com

For any questions, contact:

foil@vishaypg.com

Document Number: 67047

Revision: 10-Mar-14

VFP-3, VFP-4

TABLE 4 - POWER RESISTOR ENVIRONMENTAL PERFORMANCE COMPARISON

METHOD

PARAGRAPH

TEST GROUP I

Conditioning

TEST GROUP II

Resistance Temperature Characteristic

(- 55 °C to + 125 °C)

4.8.4

< 1

:

± 100 ppm/°C;



to 19.6

:

± 50 ppm/°C;



:

± 30 ppm/°C

Low Temp Storage

DWV

(750 V at atmosphere pressure)

Insulation Resistance

Low Temp Operation

Short time Overload

Moisture Resistance

Terminal Strength

TEST GROUP III

Shock - Specified Pulse

Vibration - High Frequency

TEST GROUP IV

Life Test

10 W at + 25 °C for 2000 hours

60 % power at + 70 °C

for 2000 hours

TEST GROUP V

High Temp Exposure

(2000 hours at + 150 °C)

Notes

1. Whichever is lower.

2. Heat sink chassis

MIL-PRF-39009:

dimensions

and

requirements

per

4.8.14

± 1.0 % + 0.01



± 0.03 %

± 0.05 %

4.8.13

± 1.0 % + 0.01



± 0.05 %

4.8.11

4.8.12

± 0.2 % + 0.01



± 0.2 % + 0.01



± 0.01 %

± 0.005 %

4.8.5

4.8.6

4.8.7

4.8.8

4.8.9

4.8.10

± 0.2 % + 0.01



M

± 0.3 % + 0.01



± 0.3 % + 0.01



± 0.5 % + 0.01



± 0.2 % + 0.01



± 0.005 %

> 10

M

± 0.01 %

± 0.05 %

± 0.005 %

4.8.16

± 0.3 % + 0.01



± 0.01 %

See

tables 1 and 2

4.8.2

± 0.2 % + 0.01



± 0.03 %

MIL-PRF-39009

R

LIMITS

VFP-3, VFP-4

MAXIMUM

TEST DATA

10)

5. Not to exceed power rating of resistor.

6. µV/°C relates to EMF due to lead temperature difference and

µV/watt due to power applied to the resistor.

7. VFR test data as compared to MIL-PRF-39009 is shown for

illustration purposes, VFR test conditions that deviate from the

MIL test method are noted within parentheses.

8. Maximum ambient temperature rating is + 150 °C.

9. Maximum overload rating is 15 W (5 x rated power in free air;

1.5 x rated power on heat sink), with applied voltage not to

exceed 750 V.

10.

R’s

are as shown plus 0.001



to allow for measurement errors

at low resistance values.

INCHES

6.00

4.00

2.00

0.04

MILLIMETERS

152.4

101.6

50.8

1.0

3. Inductance (L) due mainly to the leads.

4. The resolution limit of existing test equipment (within the

measurement capability of the equipment, or "essentially zero").

Document Number: 67047

Revision: 10-Mar-14

For any questions, contact:

foil@vishaypg.com

www.vishayfoilresistors.com

VFP-3, VFP-4

TABLE 5 - GLOBAL PART NUMBER INFORMATION

NEW GLOBAL PART NUMBER: Y073321K5000T9L (preferred part number format)

DENOTES PRECISION

VALUE



= k

AER*

= Standard

= Lead (Pb)-free

1 - 999

= Custom

PRODUCT CODE

0733

= VFP-3

0734

= VFP-4

RESISTANCE TOLERANCE

= ± 0.01 %

= ± 0.02 %

= ± 0.05 %

= ± 0.1 %

= ± 0.25 %

= ± 0.5 %

= ± 1.0 %

= ± 2.0 %

= ± 5.0 %

PACKAGING

= Bulk Pack

FOR EXAMPLE: ABOVE GLOBAL ORDER A0733 21K5000 T 9 L:

TYPE: VFP-3

VALUE: 21.5 k

ABSOLUTE TOLERANCE: ± 0.01 %

TERMINATION: Lead (Pb)-free

PACKAGING: Bulk Pack

HISTORICAL PART NUMBER: VFP-3T 21K500 T B (will continue to be used)

VFP-3

MODEL

VFP-3

VFP-4

TERMINATION

= Lead (Pb)-free

None = Tin/Lead alloy

21K500

OHMIC VALUE

21.5 k

RESISTANCE

TOLERANCE

= ± 0.01 %

= ± 0.02 %

= ± 0.05 %

= ± 0.1 %

= ± 0.25 %

= ± 0.5 %

= ± 1.0 %

= ± 2.0 %

= ± 5.0 %

PACKAGING

= Bulk Pack

Note

* For non-standard requests, please contact Application Engineering.

www.vishayfoilresistors.com

For any questions, contact:

foil@vishaypg.com

Document Number: 67047

Revision: 10-Mar-14

Legal Disclaimer Notice

Vishay Precision Group

Disclaimer

ALL PRODUCTS, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Vishay Precision Group, Inc., its affiliates, agents, and employees, and all persons acting on its or their

behalf (collectively, “Vishay Precision Group”), disclaim any and all liability for any errors, inaccuracies or

incompleteness contained herein or in any other disclosure relating to any product.

The product specifications do not expand or otherwise modify Vishay Precision Group’s terms and

conditions of purchase, including but not limited to, the warranty expressed therein.

Vishay Precision Group makes no warranty, representation or guarantee other than as set forth in the terms

and conditions of purchase.

To the maximum extent permitted by applicable law, Vishay Precision

Group disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and

all liability, including without limitation special, consequential or incidental damages, and (iii) any and

all implied warranties, including warranties of fitness for particular purpose, non-infringement and

merchantability.

Information provided in datasheets and/or specifications may vary from actual results in different

applications and performance may vary over time. Statements regarding the suitability of products for

certain types of applications are based on Vishay Precision Group’s knowledge of typical requirements that

are often placed on Vishay Precision Group products. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular

application.

No license, express, implied, or otherwise, to any intellectual property rights is granted by this document, or

by any conduct of Vishay Precision Group.

The products shown herein are not designed for use in life-saving or life-sustaining applications unless

otherwise expressly indicated. Customers using or selling Vishay Precision Group products not expressly

indicated for use in such applications do so entirely at their own risk and agree to fully indemnify Vishay

Precision Group for any damages arising or resulting from such use or sale. Please contact authorized

Vishay Precision Group personnel to obtain written terms and conditions regarding products designed for

such applications.

Product names and markings noted herein may be trademarks of their respective owners.

Document No.: 63999

Revision: 27-Apr-2011

www.vishaypg.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

water saving circuit

Automatic light control lighting circuit 4

data transmission circuit

pulse width regulator circuit

Computer motherboard circuit diagram 815 1_03

A-share market hit by internal and external troubles: 在预期明朗之前，可能继续保持弱势震荡格局　　沪深股市昨日再度呈现普跌格局，其中沪综指跌幅达到5.14％，创近半年来的最大单日跌幅。分析人士认为，“内忧外患”共同主导了A股市场近期的疲弱走势。具体而言，“外患”指的是美国经济出现衰退的预期，如果预期成真，将对中国经济及A股走势构成显著压制；“内忧”指的是宏观调控预期陡然增强，上市公司2008年业绩增长可能低于此前预期。现在来看，突袭A股市场的这股“寒...; jiaju3721 Talking

Help, about the adc10 reference voltage problem of the eZ430rf2500 kit: In the demo code that comes with the kit, after measuring the input voltage selection channel, there is a reference voltage selection, and 2.5v is selected. According to the manual, the detection rang...; wacsy Microcontroller MCU

Please help me find out whether the design of this switching power supply is reasonable.: [table=98%] [tr][td][color=#000]According to the flyback switching power supply design information I read, the connection method of the optocoupler seems to be wrong. Please give me some advice. [/col...; mx2海贼 Analog electronics

Ask for expert analysis, single-phase bridge active inverter: Single-phase bridge active inverter experimental circuit, you need to connect the wires yourself, trigger circuit...; 国土安全局 Power technology

About the counter of PIC microcontroller: Dear experts, I would like to ask about the counter problem of PIC30F6024A. I use TMR1 for timing and TMR2 for counting. The timing is usable, but when the software is debugged and connected to the fr...; blackx1234 Microchip MCU

ce system partition: Windows CE Firmware Init INFO: Initializing system interrupts... INFO: Initializing system clock(s)... INFO: Initializing driver globals area... SDMMC config set rGPGCON: fd96f5b6 OEMInit Done... Sp=f...; lijie7905 Embedded System

Shortcut: 00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components
