RVQ20N
Series
TOCOS
PA N E L C O N T R O L S
®

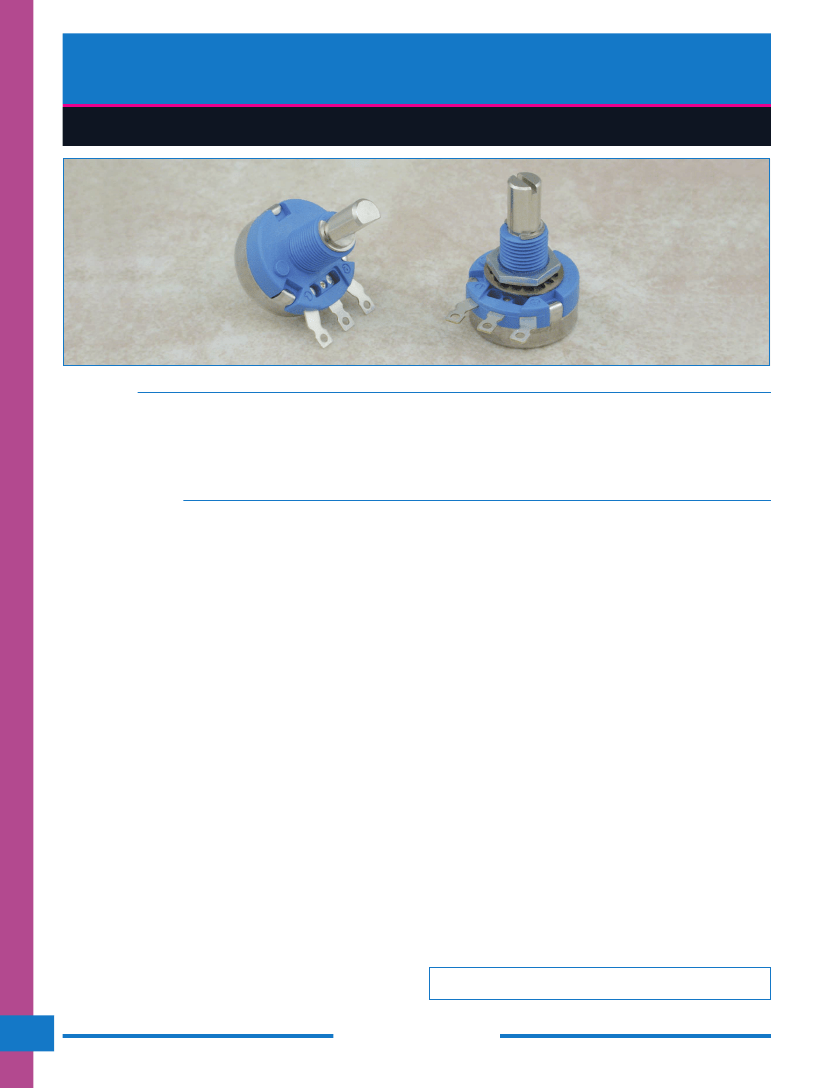

Long Life 20mm Diameter, Single-Turn, Carbon Panel Controls
RVQ20N
Features
Long life 20mm diameter, single-turn industrial panel controls
Carbon film element
Single unit, single shaft
1,000,000 cycle rotational life
Linear taper
Independent linearity, 5% max.
Plastic bushing, metal shaft
Panel mount style
6mm diameter shafts in slot or flat end styles
Standard 15mm or 20mm shaft length
Right angle ear-lug terminals
Higher rotational torque (50 to 200 gf
•
cm) available as special order
Specifications
Electrical
Standard Resistance Range
. . . . . . . . . . . 2.5kΩ to 200kΩ
Resistance Tolerance
. . . . . . . . . . . . . . . . .
20% standard
End Resistance
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3Ω max.
Resistance Taper
. . . . . . . . . . . . . . . . . . . . . . . . . . B = linear
Independent Linearity
. . . . . . . . . . . . . . . . . . . .
Power Rating
. . . . . . . . . 0.5 watt at
5% max.
80 C
Peak Noise (C.R.V.)
. . . . . . . . . . . . . . . . . . . . . . . . 2% max.
40 C, 0 watt at
Maximum Input Voltage
. . . . . . . . 250VDC or power rating,
whichever is smaller
Insulation Resistance
. . . . . . . 100MΩ minimum at 500VDC
Dielectric Strength
. . . . . . . . . . . . . . . . . . 500VAC, 1 minute
Adjustment Travel
. . . . . . . . . . . . . . . . . . . . . . . . . 220
10
Environmental
Temperature Range
. . . . . . . . . . . . . . . . . .
Temperature Characteristics
. . . . . . . . . . .
10 C to
80 C
80 C, 5 hours
∆T/R
)
10%
Temperature Cycle
. . . . . . . . . . . . . . . . . . . . 10 C , 80 C,
30 minutes each, 5 cycles
∆T/R
)
10%
Load Life
. . . . . . . . . . . . . . . . . .
40 C, 0.5 watt, 1,000 hours
∆T/R
)
10%
40 C, 90-95%RH,
0.5 watt, 500 hours
∆T/R
)
10%
Moisture and Load Life
. . . . . . . . . . . .
Vibration
. . . . . . . . . . . . . . . . . . .10-55Hz, 1.5mm amplitude,
3 directions, 2 hours each
∆T/R
)
2.5%
Soldering Heat Resistance
. . . . . . . 350 C 5 C, 3 seconds
∆T/R
)
2%
Mechanical
Mechanical Travel
. . . . . . . . . . . . . . . . . . . . . . . . . 240
10
Shaft Torque
. . . . . . . . . . . . . . 50 gf
•
cm (0.693 oz
•
in) max.
Stop Strength
. . . . . . . . . . . . . 9 kgf
•
cm (124.76 oz
•
in) min.
Shaft Strength (push)
. . . . . . . . . . . . . . . 29.4 N (3 kgf ) min.
Shaft Strength (tensile)
. . . . . . . . . . . . . 29.4 N (3 kgf ) min.
Shaft End Play
. . . . . . . .
0.4
(shaft length/30) mm max.
Mounting Nut Torque
. . . . . . . . 5 kgf
•
cm (69.31 oz
•
in) min.
Solderability
. . . . . . . . . . . . . . . . . . . . . . . 235 C, 5 seconds
Marking
. . . . . . . . . . . . . Model type, taper, resistance code,
shaft type, terminal identification, date code
Rotational Life
. . . . . . . . . . . . 1,000,000 cycles without load
∆T/R
)
10%
∆T/R
= Total Resistance Change
Note: A long life panel control should only be used in a circuit
as a potentiometer (3-terminal voltage divider ).
94
1177 East Tower Road, Schaumburg, IL 60173
TOCOS
AMERICA, INC.
Tel: 847-884-6664
Fax: 847-884-6665
E-mail: sales@tocos.com
www.tocos.com
RVQ20N Series
RVQ20N
Panel Mount, Single Unit, Single Shaft
Right Angle Ear-Lug Terminals

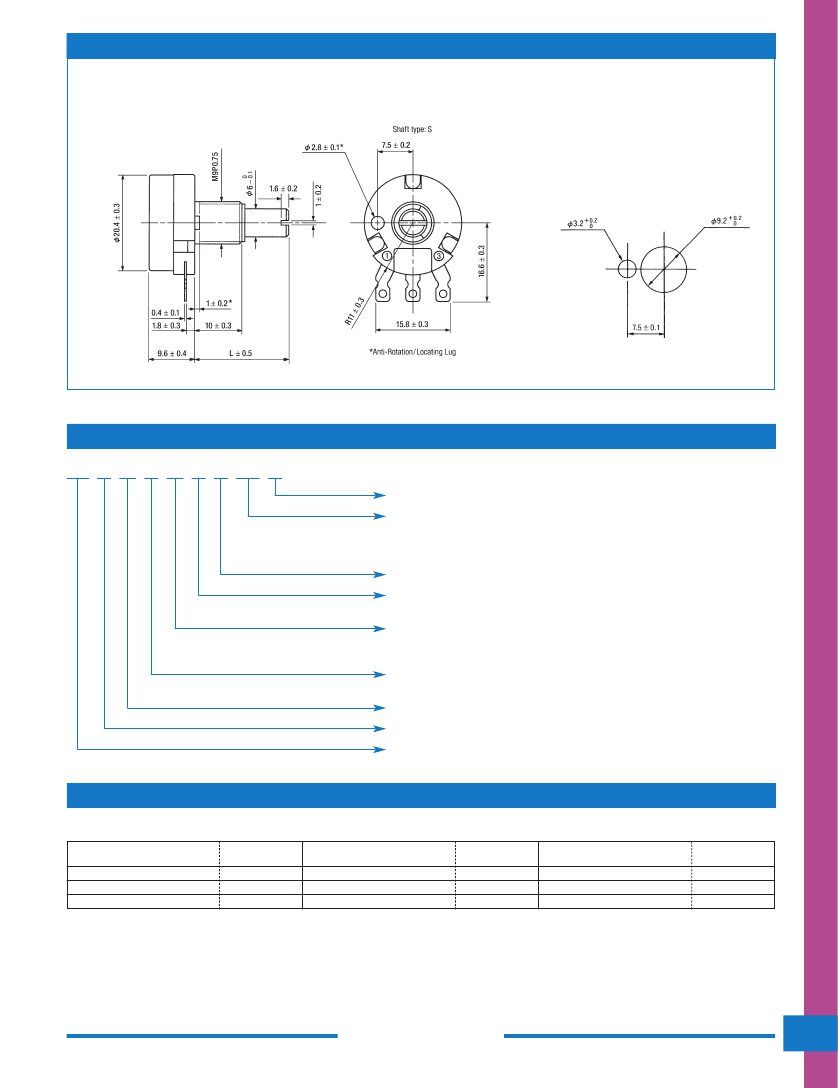

Dimensions
Unit: mm
Recommended
Panel Mounting Holes
Part Numbering System
RV Q 20 N 15 S B 103 M
NOTE: FMS = From Mounting Surface
Resistance Tolerance: M
=
20% (standard).
Resistance Code:
Expressed in ohms. A three digit code where the first
two digits are significant figures, and the third digit indicates the number
of zeros that follow these figures (i.e., 100 = 10Ω; 101 = 100Ω; 102 = 1,000Ω;
103 = 10,000Ω; 104 = 100,000Ω ).
See table for standard resistance values.
Resistance Taper: B
= Linear.
Shaft End Style: S
= Slotted (standard for 15mm or 20mm shaft length).
F
= Flatted (special order for 20mm shaft length only).
Standard Shaft Length: 15
= 15 mm FMS.
20
= 20mm FMS.
Up to 30mm shaft length available (special order ).
Style: N
= Panel Mount, Single Unit, Single Shaft, Right Angle Ear-Lug
Terminals.
Size: 20
= 20mm Diameter.
Rotational Life: Q
= Long Life, 1,000,000 cycles.
TOCOS Series Name: RV
= Carbon Film Element.
Standard Resistance Values and Part Numbering Codes
Standard Nominal Total Resistance Values and Part Numbering Codes
Resistance (
Ω
)
2,500
5,000
Code
252
502
Resistance (
Ω
)
10,000
20,000
50,000
Code
103
203
503
Resistance (
Ω
)
100,000
200,000
Code
104
204
Refer to Shaft End Styles Specifications and Hardware Specifications for details and availability.
For additional information, refer to Guidelines and Precautions for Using Panel Controls.
TOCOS
AMERICA, INC.
1177 East Tower Road, Schaumburg, IL 60173
Tel: 847-884-6664
Fax: 847-884-6665
E-mail: sales@tocos.com
www.tocos.com
95
