RVQ24YN03
Series
TOCOS
PA N E L C O N T R O L S
®

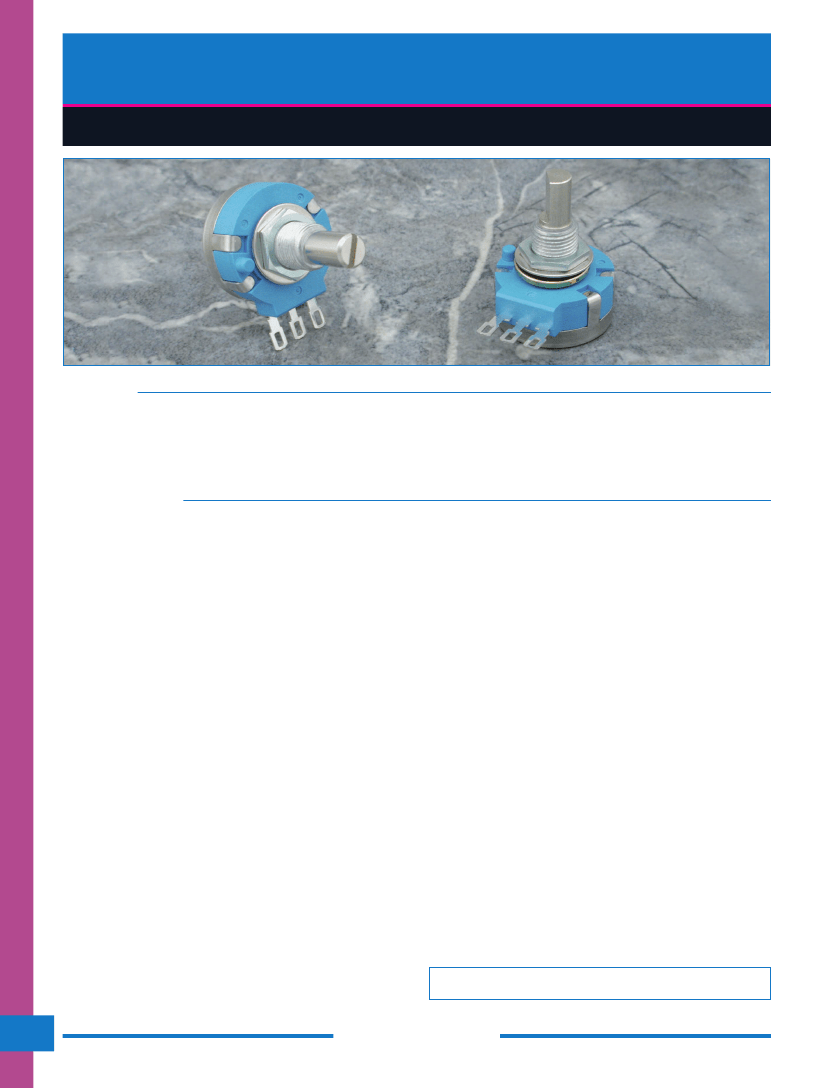

Long Life 24mm Diameter, Single-Turn, Carbon Panel Controls
RVQ24YN03
Features
Long life 24mm diameter, single-turn industrial panel controls
Carbon film element
Single unit, single shaft
High quality, 2,000,000 cycle rotational life
Low cost
Independent linearity, 3% max.
Metal shaft and bushing
Linear taper
6mm diameter shafts in slot, flat or round end styles
Standard 15mm or 20mm shaft length
Panel mount style
Right angle ear-lug terminals
Continuous rotation units available as special order
Specifications
Electrical
Standard Resistance Range
. . . . . . . . . . . . . 1kΩ to 100kΩ
Resistance Tolerance
. . . . . . . . . . . . . . . . .
10% standard
End Resistance
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3Ω max.
Resistance Taper
. . . . . . . . . . . . . . . . . . . . . . . . . . B = linear
Independent Linearity
. . . . . . . . . . . . . . . . . . . .
Power Rating
. . . . . . . . 0.5 watt at
3% max.
85 C
Peak Noise (C.R.V.)
. . . . . . . . . . . . . . . . . . . . . . . . 3% max.
40 C, 0 watt at
Maximum Input Voltage
. . . . . . . . 200VDC or power rating,
whichever is smaller
Insulation Resistance
. . . . . 100MΩ minimum at 1,000VDC
Dielectric Strength
. . . . . . . . . . . . . . . . 1,000VAC, 1 minute
Adjustment Travel
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280
Environmental
Temperature Range
. . . . . . . . . . . . . . . . . .
Temperature Characteristics
. . . . . . . . . . .
10 C to
85 C
80 C, 5 hours
∆T/R
)
5%
Temperature Cycle
. . . . . . . . . . . . . . . . . . . . 10 C , 80 C,
30 minutes each, 5 cycles
∆T/R
)
10%
Load Life
. . . . . . . . . . . . . . . . . .
40 C, 0.5 watt, 1,000 hours
∆T/R
)
10%
40 C, 90-95%RH,
0.5 watt, 500 hours
∆T/R
)
20%
Moisture and Load Life
. . . . . . . . . . . .
Vibration
. . . . . . . . .10-55Hz, 1.5mm amplitude, 3 directions
∆T/R
)
5%
Soldering Heat Resistance
. . . . . . . 350 C 5 C, 3 seconds
∆T/R
)
2%
Rotational Life
. . . . . . . . . . . . 2,000,000 cycles without load
∆T/R
)
15%
∆T/R
= Total Resistance Change
Mechanical
Mechanical Travel
. . . . . . . . . . . . . . . . . . . . . . . . . . 300
5
Shaft Torque
. . . . . . . . . . . . . . 100 gf
•
cm (1.386 oz
•
in) max.
Stop Strength
. . . . . . . . . . . . . 9 kgf
•
cm (124.76 oz
•
in) min.
Shaft Strength (push)
. . . . . . . . . . . . 125 N (12.75 kgf ) min.
Shaft Strength (tensile)
. . . . . . . . . . 125 N (12.75 kgf ) min.
Shaft End Play
. . . . . . . .
0.4
(shaft length/30) mm max.
Mounting Nut Torque
. . . . . . 15 kgf
•
cm (207.94 oz
•
in) min.
Marking
. . . . . . . . . . . . . Model type, taper, resistance code,
shaft type, terminal identification, date code
Note: A long life panel control should only be used in a circuit
as a potentiometer (3-terminal voltage divider ).
98
1177 East Tower Road, Schaumburg, IL 60173
TOCOS
AMERICA, INC.
Tel: 847-884-6664
Fax: 847-884-6665
E-mail: sales@tocos.com
www.tocos.com
RVQ24YN03 Series
RVQ24YN03
Panel Mount, Single Unit, Single Shaft
Right Angle Ear-Lug Terminals

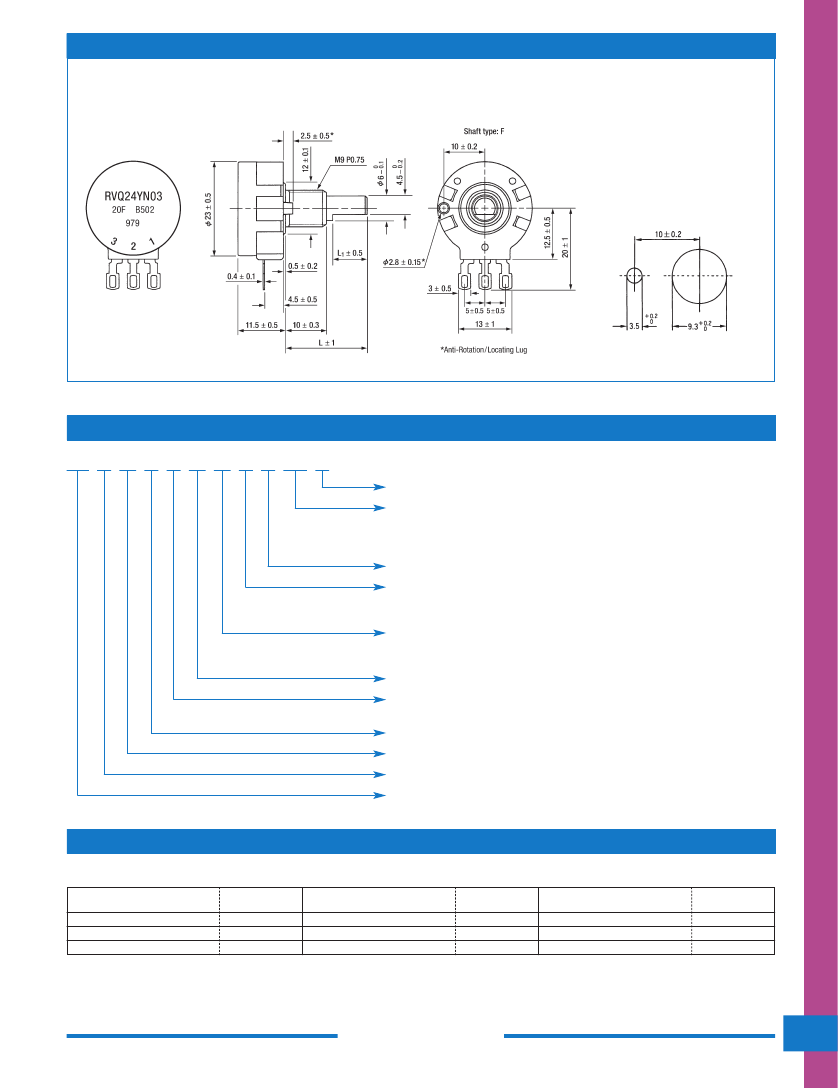

Dimensions
Unit: mm
Recommended
Panel Mounting Holes
Part Numbering System
RV Q 24 Y N 03 15 S B 104 K
NOTE: FMS = From Mounting Surface
Resistance Tolerance: K
=
10% (standard).
Resistance Code:
Expressed in ohms. A three digit code where the first
two digits are significant figures, and the third digit indicates the number
of zeros that follow these figures (i.e., 100 = 10Ω; 101 = 100Ω; 102 = 1,000Ω;
103 = 10,000Ω; 104 = 100,000Ω ).
See table for standard resistance values.
Resistance Taper: B
= Linear.
Shaft End Style: S
= Slotted.
F
= Flatted.
R
= Round.
Standard Shaft Length: 15
= 15 mm FMS.
20
= 20mm FMS.
Up to 50mm shaft length available (special order ).
Design Type: 03
= Design Variation of 24mm Size.
Style: N
= Panel Mount, Single Unit, Single Shaft, Right Angle Ear-Lug
Terminals.
Operating Temperature Range: Y
=
Size: 24
= 24mm Diameter.
Rotational Life: Q
= Long Life, 2,000,000 cycles.
TOCOS Series Name: RV
= Carbon Film Element.
10 C to
85 C.
Standard Resistance Values and Part Numbering Codes
Standard Nominal Total Resistance Values and Part Numbering Codes
Resistance (
Ω
)
1,000
2,000
5,000
Code
102
202
502
Resistance (
Ω
)
10,000
20,000
50,000
Code
103
203
503
Resistance (
Ω
)
100,000
Code
104
Refer to Shaft End Styles Specifications and Hardware Specifications for details and availability.
For additional information, refer to Guidelines and Precautions for Using Panel Controls.
