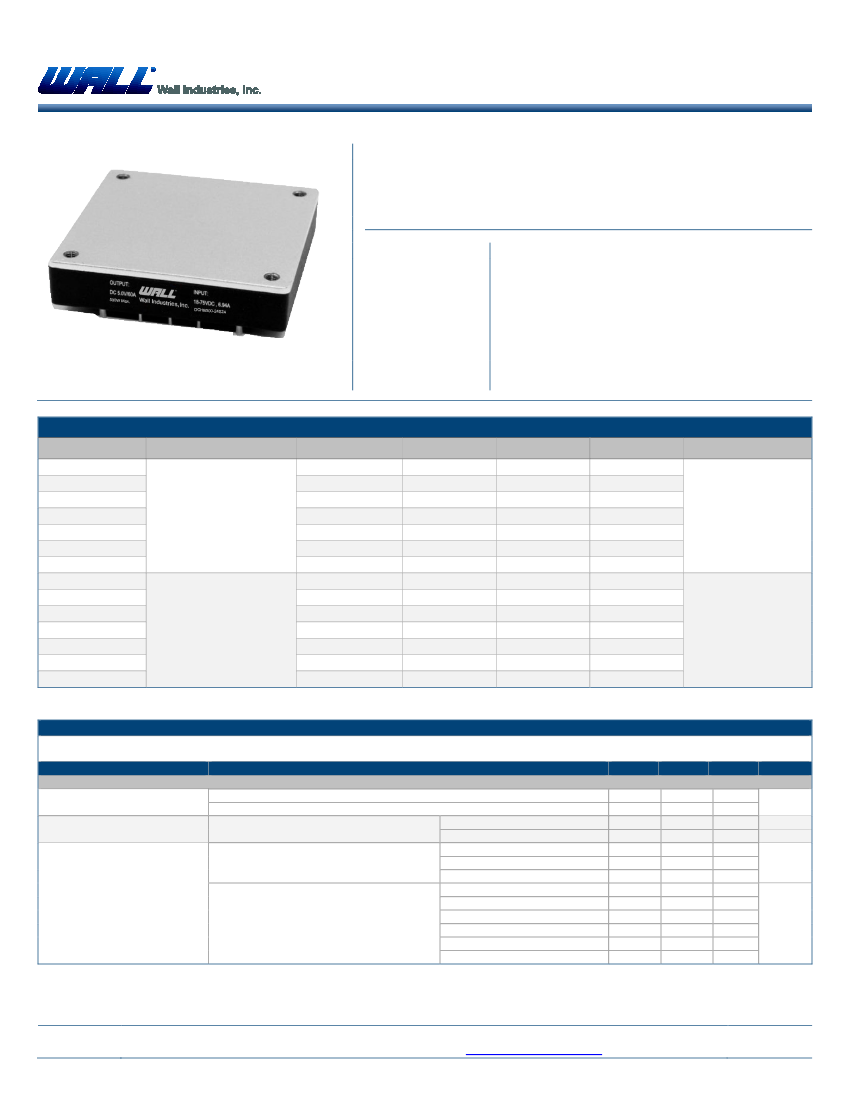

DCHB500 SERIES
Up to 500W
DC/DC Power Module
Single Output
FEATURES
•
•
•
•
Wide Input Voltage Range
Industry Standard Half-Brick Package
High Reliability & High Efficiency
Low Ripple & Noise
•
Advanced Potting Technology
•
Input Under Voltage, Over Voltage, Over
Temperature, Short Circuit, and Over
Current Protection
APPLICATIONS
•
•
•
•
•
Radar
Electronic Warfare
Industrial Control
Railway
Defense
DESCRIPTION
Size: 2.28in x 2.4in x 0.5in (57.9mm x 61mm x 12.7mm)
The DCHB500 series of DC/DC power modules offers up
to 500 watts of output power in a compact 2.28” x 2.4” x
0.5” industry standard half-brick package. This series
consists of single output models with a wide input voltage
range and advanced potting technology. Each model in
this series features high reliability, high efficient, low ripple
& noise, as well as protection against input under voltage,
over voltage, over temperature, over current, and short
circuit conditions. Please contact factory for order details.
MODEL SELECTION TABLE
Model Number
(1)
Input Voltage Range
Output Voltage
5VDC
6.5VDC
12VDC
24VDC
28VDC
36VDC
48VDC
5VDC
12VDC
15VDC
24VDC
28VDC
36VDC
48VDC
Output Current
60A
50A
42A
21A
18A
14A
10.5A
60A
30A
24A
21A
18A
10.5A
10.5A
Ripple & Noise
50mV
50mV
50mV
100mV
100mV
150mV
200mV
75mV
180mV
200mV
400mV
400mV
500mV
500mV
Efficiency
93%
94%
94%
93%
92.8%
91%
91%
89.5%
92.5%
92.5%
92.5%
93.5%
92%
92%
Output Power
DCHB500-24S5
DCHB500-24S6.5
DCHB500-24S12
24VDC
DCHB500-24S24
(18~36VDC)
DCHB500-24S28
DCHB500-24S36
DCHB500-24S48
DCHB500-280S5
DCHB500-280S12
DCHB500-280S15
280VDC
DCHB500-280S24
(200~400VDC)
DCHB500-280S28
DCHB500-280S36*
DCHB500-280S48
*Consult factory, not released to production yet
Up to 500W
Up to 500W
SPECIFICATIONS
SPECIFICATION
All specifications are based on 25°C baseplate temperature, Rated Input Voltage, and Rated Output unless otherwise noted.
We reserve the right to change specifications based on technological advances.
INPUT SPECIFICATIONS
Input Voltage Range
No Load Input Current
TEST CONDITIONS
Min
Typ
Max
36
400
600
100
16.0
17.5
195
200
435
418
Unit
VDC
mA
mA
VDC
24VDC Nominal Input Models
280VDC Nominal Input Models
Typical Input, Output No Load, TC=25ºC
24VDC Nominal Input Models, 50% Load
Input Under Voltage Lockout
280VDC Nominal Input Models, 50% Load
24VDC Nominal Input Models
280VDC Nominal Input Models
Turn On
Turn Off
Hysteresis Voltage
Turn On
Turn Off
Hysteresis Voltage
Turn On
Turn Off
Hysteresis Voltage
18
200
15.0
16.5
175
180
415
402
24
280
15.5
17.0
1.5
185
190
5
425
410
15
VDC
4/6/2020
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website: www.wallindustries.com • e-mail:
sales@wallindustries.com
Page 1 of 6
Rev D
DCHB500 SERIES
Up to 500W
DC/DC Power Module
Single Output
SPECIFICATIONS
SPECIFICATION
All specifications are based on 25°C baseplate temperature, Rated Input Voltage, and Rated Output unless otherwise noted.
We reserve the right to change specifications based on technological advances.
OUTPUT SPECIFICATIONS
Output Voltage
Output Voltage Set Point
Line Regulation
Load Regulation
Output Voltage Trim Range
Output Power
Output Current
Ripple & Noise (p-p)
(2)
Transient Response
(3)
Temperature Coefficient
REMOTE ON/OFF CONTROL
Positive Logic
PROTECTION
Short Circuit Protection
Output Current Limit
Over Voltage Protection
Over Temperature Protection
Over Temperature Recover
TEST CONDITIONS
Min
Typ
Max
Unit
%VDC
%
%
%
W
%Vout
µs
%Vout
µs
%/ºC
Typical Input, 50% Load
Full Range, 100% Load
Typical Input, 0-100% Load
Output power
≤ Max Output Power, Output Current ≤ Max Output Current
-10
Overshoot Amplitude
Recovery Time
Overshoot Amplitude
280VDC Nominal Models
Recovery Time
T grade: Tc=-40~+100ºC; M grade: Tc=55~+100ºC
24VDC Nominal Models
24VDC Nominal Input Models
280VDC Nominal Input Models
NC or logic high, nominal output
Logic low, control current
≤1mA,
no output
NC or logic high, nominal output
Logic low, control current
≤1mA,
no output
24VDC Nominal Input Models
280VDC Nominal Input Models
24VDC Nominal Input Models
280VDC Nominal Input Models
24VDC Nominal Input Models
280VDC Nominal Input Models
24VDC Nominal Input Models
280VDC Nominal Input Models
3.5
-0.3
3.5
-0.3
110
110
115
114
110
100
100
90
-40
-55
-55
5
5
See Table
±1
±0.2
±0.5
+10
500
See Table
See Table
±5
500
±5
1000
±0.02
25.0
1.2
10
1.2
VDC
Can be a long short circuit
Typical Input, Constant current hiccup mode
protection, self-recovery
Typical Input, 50% load output, constant-
current hiccup mode protection, self-recovery
Shutdown, Thermistor PCB nearby temp
Recover Turn On, Thermistor PCB Nearby
Temp
ENVIRONMENTAL SPECIFICATIONS
T grade baseplate temperature (Standard)
Operating Temperature
M grade baseplate temperature (M Option)
Storage Temperature
Ambient Temperature
Relative Humidity
Non-Condensing
Storage Humidity
Non-Condensing
MTBF
Typical Input, Typical Output, Tc=25ºC
GENERAL SPECIFICATIONS
Efficiency
Typical Input, Typical Output, Tc=25ºC
Switching Frequency
Full Range
Automatic Recovery
150
%IoMax
155
140
%Vout
135
120
130
ºC
110
120
110
120
ºC
100
110
+100
+100
+125
95
95
ºC
ºC
%
%
H
KHz
2 x 10
6
Isolation Voltage
Isolation Resistance
Dielectric Strength
PHYSICAL SPECIFICATIONS
Weight
Dimensions (L x W x H)
Input to Output
24VDC Nominal Input
Input to Case
Test Conditions: 1mA/60S, Models
Output to Case
rate of rise 500VDC/s; no
Input to Output
breakdown, no arc
280VDC Nominal
Input to Case
Input Models
Output to Case
Relative humidity 90%, under standard atmospheric pressure, 500VDC
I/O
24VDC Nominal Input Models
280VDC Nominal Input Models
1500
1500
500
4250
3535
1500
100
See Table
300
VDC
1500VDC and 4250VDC
MΩ
4.23oz (120g)
3.88oz (110g)
2.28in x 2.4in x 0.5in
(57.9mm x 61mm x 12.7mm)
NOTES
1. Add “M” to end of product model number to indicate M grade temperature range. Add –P to model number to indicate positive logic.
2. Typical input, typical output, BW=20MHz, output parallel a 0.1µF ceramic cap and 10µF tantalum cap.
3. 25%-50%-25%, 50%-75%-50% load step change, di/dt=2.5A/µs. Output add min capacitance load.
4. This series is not recommended for parallel operation.
*Due
to advances in technology, specifications subject to change without notice.
4/6/2020
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website: www.wallindustries.com • e-mail:
sales@wallindustries.com
Page 2 of 6
Rev D
DCHB500 SERIES
Up to 500W
DC/DC Power Module
Single Output

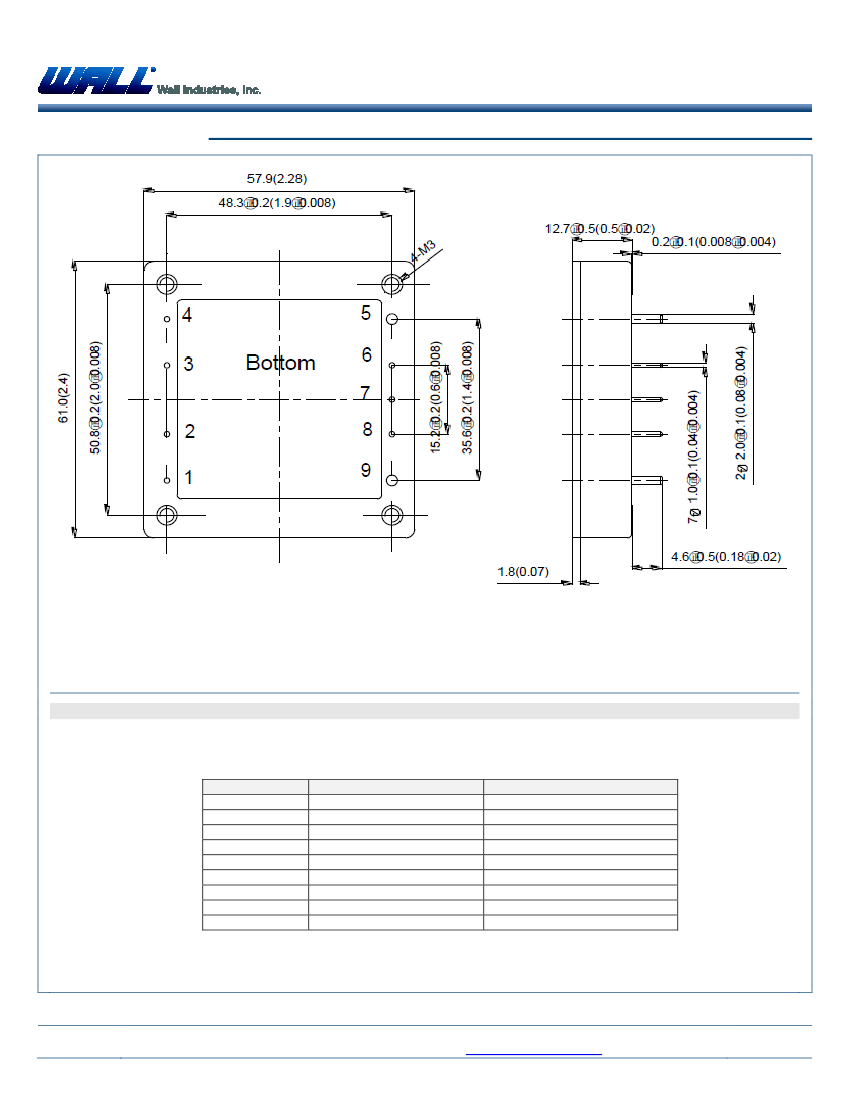

MECHANICAL DRAWINGS
Notes:
1. Unit in mm (in)
2. Baseplate: Aluminum + Plastic Case
3. Pins 5, 9Ø2.0mm (0.08in)
4. Other pins Ø1.0mm (0.04)
5. No individual tolerance: x.x±0.5mm (±0.02in), x.xx±0.25mm (±0.01in)
PIN ASSIGNMENT
Pin No.
1
2
3
4
5
6
7
8
9
Label
Vin (+)
ON/OFF
NC
Vin (-)
Vout (-)
Sense (-)
Trim
Sense (+)
Vout (+)
Function
Input Voltage (+)
ON/OFF Remote Control
No Pin
Input Voltage (-)
Output Voltage (-)
Remote Sense (-)
Output Voltage Trim Pin
Remote Sense (+)
Output Voltage (+)
4/6/2020
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website: www.wallindustries.com • e-mail:
sales@wallindustries.com
Page 3 of 6
Rev D
DCHB500 SERIES
Up to 500W
DC/DC Power Module
Single Output

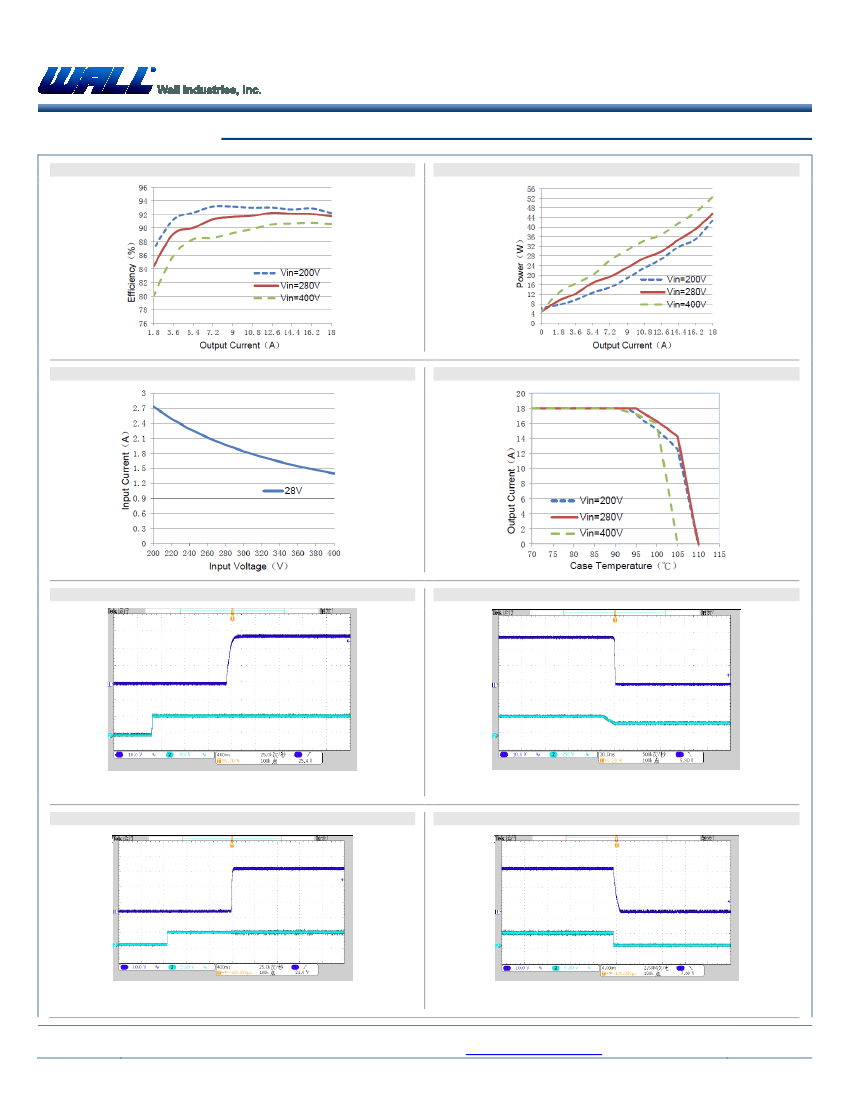

CHARACTERISTIC CURVES
DCHB500-280S28 Efficiency (Tc=25ºC
DCHB500-280S28 Power Dissipation (Tc=25ºC)
DCHB500-280S28 Input Current vs. Input Voltage (Tc=25ºC)
DCHB500-280S28 Derating
DCHB500-280S28 Startup
DCHB500-280S28 Shutdown
CH1: Output Voltage (10V/div)
CH2: Input Voltage (250V/div)
DCHB500-280S28 Turn On By ON/OFF
CH1: Output Voltage (10V/div)
CH2: Input Voltage (250V/div)
DCHB500-280S28 Turn Off by ON/OFF
CH1: Output Voltage (10V/div)
CH2: ON/OFF Voltage (5V/div)
CH1: Output Voltage (10V/div)
CH2: ON/OFF Voltage (5V/div)
Page 4 of 6
4/6/2020
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website: www.wallindustries.com • e-mail:
sales@wallindustries.com
Rev D
DCHB500 SERIES
Up to 500W
DC/DC Power Module
Single Output

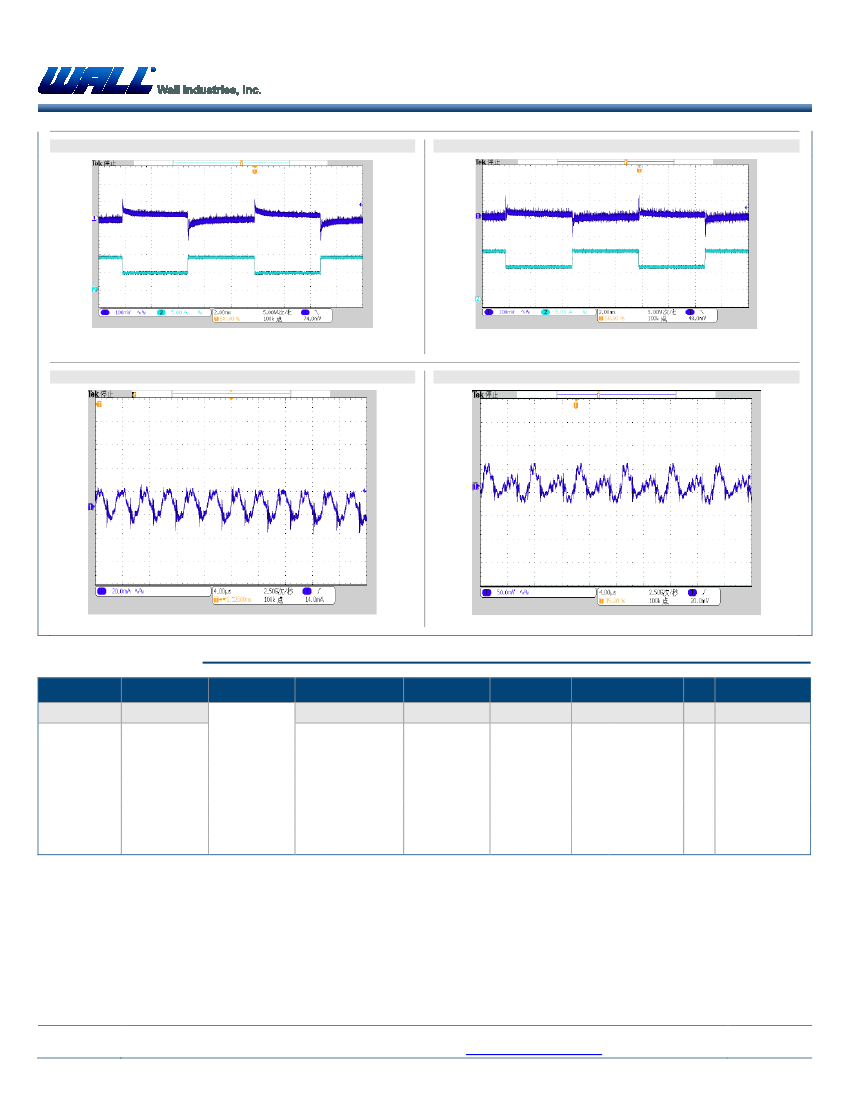

DCHB500-280S28 25%-50%-25% (2.5/µs) Dynamic
DCHB500-280S28 50%-75%-50% (2.5A/µs) Dynamic
CH1: Output Voltage (100mV/div)
CH2: Output Current (5A/div)
DCHB500-280S28 Input Terminal Ripple Current
CH1: Output Voltage (100mV/div)
CH2: Output Current (5A/div)
DCHB500-280S28 Output Voltage Ripple
100mA/div
50mV/div
MODEL NUMBER SETUP
DCHB
Series Name
500
Output Power
-
24
Input Voltage
24:
18~36VDC
280:
200~400VDC
S
S:
Single
24
5:
5VDC
6.5:
6.5VDC
12:
12VDC
24:
24VDC
28:
28VDC
36:
36VDC
48:
48VDC
M
Temperature
None:
-40 to 110ºC
M:
-55 to 110ºC
-
P
Logic
None:
Negative
P:
Positive
Output Quantity Ouptut Voltage
4/6/2020
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website: www.wallindustries.com • e-mail:
sales@wallindustries.com
Page 5 of 6
