DCMOPW10 SERIES
Up to 10 Watts
Medical DC/DC Power Converters
FEATURES
•
2µA Patient Leakage Current
•
Single & Dual Outputs
•
Under Voltage Protection
•
High Efficiency up to 89%
•
Built-in EMI Class A Filter
Size:
1.25 x 0.80 x 0.40 inches
(31.8 x 20.3 x 10.2 mm)
Applications:
•
Medical Equipment
•
Telecom/Datacom
•
Industry Control Systems
•
Measurement Equipment
•
Semiconductor Equipment
•
PV Power Systems
•
IGBT Gate Drivers
•
Low Stand-by Power
Consumption
•
Up to 10 Watts Output Power
•
Reinforced Insulation for 300VAC Working Voltage
•
Clearance and Creepage Distance: 6.6mm/2MOOP
•
3000VAC Input to Output 2MOOP Isolation
•
Short Circuit, Over Voltage, and Over Load Protection
•
Compliant to RoHS II & REACH
•
ANSI/AAMI ES60601-1, EN60601-1, IEC60601-1 3
rd
Edition,
UL60950-1, EN60950-1 & IEC60950-1 Safety Approvals
•
Optional Remote ON/OFF Control and Trim Pin
•
4:1 Wide Input Voltage Ranges
•
CE Marked
DESCRIPTION
The DCMOPW10 series of medical DC/DC power converters provides up to 10 Watts of output power
in a 1.25” x 0.80” x 0.40” DIP package. This series consists of single and dual output models with 4:1
wide input voltage ranges of 9-36VDC and 18-75VDC. Some features include high efficiency up to
89%, 3000VDC I/O (2 MOOP) isolation, and low stand-by power consumption. These converters are
also protected against under voltage, short circuit, over voltage, and over load conditions. All models
are RoHS compliant and have ANSI/AAMI ES60601-1, EN60601-1, IEC60601-1 3
rd
Edition, UL60950-
1, EN60950-1 & IEC60950-1 safety approvals. Remote ON/OFF and Trim functions are also available
for this series.
MODEL SELECTION TABLE
Model Number
(1)
DCMOPW10-24S33x
DCMOPW10-24S05x
DCMOPW10-24S12x
DCMOPW10-24S15x
DCMOPW10-24S24x
DCMOPW10-48S33x
DCMOPW10-48S05x
DCMOPW10-48S12x
DCMOPW10-48S15x
DCMOPW10-48S24x
Model Number
(1)
DCMOPW10-24D05x
DCMOPW10-24D12x
DCMOPW10-24D15x
DCMOPW10-48D05x
DCMOPW10-48D12x
DCMOPW10-48D15x
Input Voltage
24 VDC
(9 - 36 VDC)
48 VDC
(18 - 75 VDC)
24VDC
(9 - 36 VDC)
Input Voltage
Output
Voltage
3.3 VDC
5 VDC
12 VDC
15 VDC
24 VDC
3.3 VDC
5 VDC
12 VDC
15 VDC
24 VDC
Output
Voltage
±5 VDC
±12 VDC
±15 VDC
±5 VDC
±12 VDC
±15 VDC
SINGLE OUTPUT MODELS
Output
Current
2500mA
830mA
670mA
416mA
2500mA
2000mA
830mA
670mA
416mA
Output
Current
Output
Ripple & Noise
30mVp-p
30mVp-p
40mVp-p
40mVp-p
50mVp-p
30mVp-p
30mVp-p
40mVp-p
40mVp-p
50mVp-p
Output
Ripple & Noise
30mVp-p
40mVp-p
40mVp-p
30mVp-p
40mVp-p
40mVp-p
No Load
Input Current
6mA
6mA
6mA
6mA
6mA
4mA
4mA
4mA
4mA
4mA
No Load
Input Current
6mA
6mA
6mA
4mA
4mA
4mA
Output
Power
8.25W
10W
10W
10W
10W
8.25W
10W
10W
10W
10W
Output
Power
10W
10W
10W
10W
10W
10W
Efficiency
83%
86.5%
89%
89%
89%
82.5%
86.5%
89%
89%
88.5%
Efficiency
85%
89%
88%
85%
88%
88%
Maximum
Capacitive Load
3000µF
2500µF
430µF
350µF
125µF
3000µF
2500µF
430µF
350µF
125µF
Maximum
Capacitive Load
±1440µF
±250µF
±180µF
±1440µF
±250µF
±180µF
2000mA
DUAL OUTPUT MODELS
±1000mA
±416mA
±333mA
±1000mA
±416mA
±333mA
48 VDC
(18 - 75 VDC)
5/21/2019
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website:
www.wallindustries.com
• e-mail:
sales@wallindustries.com
Page 1 of 5
Rev C
DCMOPW10 SERIES
Up to 10 Watts
Medical DC/DC Power Converters
SPECIFICATIONS: DCMOPW10 SERIES
All specifications are based on 25°C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.
We reserve the right to change specifications based on technological advances.
SPECIFICATION
INPUT SPECIFICATIONS
Input Voltage Range
Start-Up Voltage
Shutdown Voltage
Input Surge Voltage
(3sec, max.)
Input Current
Input Filter
Remote ON/OFF Control
(Only for “B” type pin
connection models)
TEST CONDITIONS
24VDC nominal input models
48VDC nominal input models
24VDC nominal input models
48VDC nominal input models
24VDC nominal input models
48VDC nominal input models
24VDC nominal input models
48VDC nominal input models
No Load
Referenced to –INPUT pin
Nominal Vin
Nominal Vin
DC/DC ON
DC/DC OFF
Min
9
18
Typ
24
48
8
16
Max
36
75
9
18
Unit
VDC
VDC
VDC
VDC
50
100
See Table
Pi type
Open or 0 ~ 1.2VDC
2.2 ~ 12 VDC
-0.5
2.5
1
Input Current of CTRL Pin
Remote OFF Input Current
Output Voltage
Voltage Accuracy
Line Regulation
Load Regulation
Cross Regulation
Voltage Adjustability
(Only for “B” type pin
connection models)
OUTPUT SPECIFICATIONS
mA
mA
%
%
%
%
%
%
Low line to high line at full load
No load to full load
Asymmetrical load 25%/100% FL
Single Output Models
Dual Output Models
Output Power
Output Current
Maximum Capacitive Load
Ripple & Noise (20MHz BW)
Transient Response
Recovery Time
Start-Up Time
Temperature Coefficient
Single Output Models
Dual Output Models
Single Output Models
Dual Output Models
Dual Output Models
3.3V, 5V, 12V Output Models
15V, 24V Output Models
±5V, ±12V, ±15V Output Models
-1.0
-0.2
-0.5
-0.2
-1.0
-5.0
-10
-10
-10
Minimum input and constant resistive load
Measured with a 10µF/25V X7R MLCC 3.3V, 5V Output Models
Measured with a 10µF/25V X7R MLCC 12V, 15V Output Models
Measured with a 4.7µF/50V X7R MLCC 24V Output Models
25% load step change
Constant resistive load
Power Up
Remote On/Off
See Table
+1.0
+0.2
+0.5
+0.2
+1.0
+5.0
+10
+20
+10
See Table
See Table
See Table
30
40
50
250
30
30
mVp-p
µs
ms
PROTECTION
-0.02
+0.02
%/°C
Short Circuit Protection
Over Load Protection
% of rated Iout; hiccup mode
Single Output
Models
Dual Output
Models
Over Voltage Protection
Continuous clamp
GENERAL SPECIFICATIONS
Efficiency
Switching Frequency
Isolation Voltage
Isolation Capacitance
Leakage Current
Clearance/Creepage
5/21/2019
3.3V Output Models
5V Output Models
12V Output Models
15V Outputs Models
24V Output Models
5V Output Models
12V Output Models
15V Outputs Models
Continuous, automatic recovery
150
%
3.7
5
5.6
7.0
13.5
16
18.3
22.0
VDC
29.1
34.5
5.6
7.0
13.5
18.2
17.0
22.0
See Table
300
330
12
17
2
Nominal input voltage and full load
1 minute
240VAC, 60Hz
6.6
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website:
www.wallindustries.com
• e-mail:
sales@wallindustries.com
Input to Output
270
3000
kHz
VAC
pF
µA
mm
Page 2 of 5
Rev C
DCMOPW10 SERIES
Up to 10 Watts
Medical DC/DC Power Converters
SPECIFICATIONS: DCMOPW10 SERIES
All specifications are based on 25°C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.
We reserve the right to change specifications based on technological advances.
SPECIFICATION
ENVIRONMENTAL SPECIFICATIONS
Operating Ambient Temperature
Storage Temperature Range
Thermal Impedance
Relative Humidity
Thermal Shock
Vibration
MTBF
Without derating
With derating
TEST CONDITIONS
Min
-40
+77
-55
Typ
Max
+77
+105
+125
Unit
°C
°C
°C/W
% RH
Natural convection (20LFM)
5
18
95
MIL-STD-810F
MIL-STD-810F
3,849,000 hours
MIL-HDBK-217F Full load
PHYSICAL SPECIFICATIONS
Weight
Dimensions (L x W x H)
Case Material
Base Material
Potting Material
0.48oz (14g)
1.25x0.80x0.40 inches
(31.8x20.3x10.2mm)
Non-conductive black plastic
Non-conductive black plastic
Silicon (UL94-V0)
ANSI/AAMI ES60601-1, IEC60601-1, EN60601-1, UL60950-1
(6)
, EN60950-1, IEC60950-1
EN55011, EN55022, and FCC Part 18
Air ±8kV
EN61000-4-2
Contact ±6kV
EN61000-4-3
10 V/m
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
±2kV
±2kV
10 Vrms
100A/m continuous; 1000A/m 1 second
Class A, Class B
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
SAFETY & EMC CHARACTERISTICS
Safety Approvals (pending)
EMI (See Note 2)
ESD
Radiated Immunity
Fast Transient (See Note 3)
Surge (See Note 3)
Conducted Immunity
Power Frequency Magnetic Field
NOTES
1. The “x” in the model number represents the Pin Connection type. It can be “A” for pin connection type A or “B” for pin connection type B.
See mechanical drawings on page 4 for more information.
2. The DCMOPW10 series meets EMI Class A without an external filter added. This series can only meet EMI Class B with external
components added. Please contact factory for more information.
3. An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5.
• For 24VDC nominal input models we recommend connecting an aluminum electrolytic capacitor (Nippon Chemi-con KY series,
470µF/50V) in parallel.
• For 48VDC nominal input models we recommend connecting an aluminum electrolytic capacitor (Nippon Chemi-con KY series,
330µF/100V) in parallel.
4. Remote ON/OFF control is optional and is only available for “B” type pin connection models. To order the converter with remote
ON/OFF add the suffix “-P” to the model number (Ex: DCMOPW10-48S12B-P).
5. Trim function is optional and is only available for “B” type pin connection models. To order the converter with Trim pin add the suffix “-T”
to the model number (Ex: DCMOPW10-48S12B-T).
6.
T
his product is Listed to applicable standards and requirements by UL.
CAUTION:
This power module is not internally fused. An input line fuse must always be used.
*Due to advances in technology, specifications subject to change without notice.
5/21/2019
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website:
www.wallindustries.com
• e-mail:
sales@wallindustries.com
Page 3 of 5
Rev C
DCMOPW10 SERIES
Up to 10 Watts
Medical DC/DC Power Converters

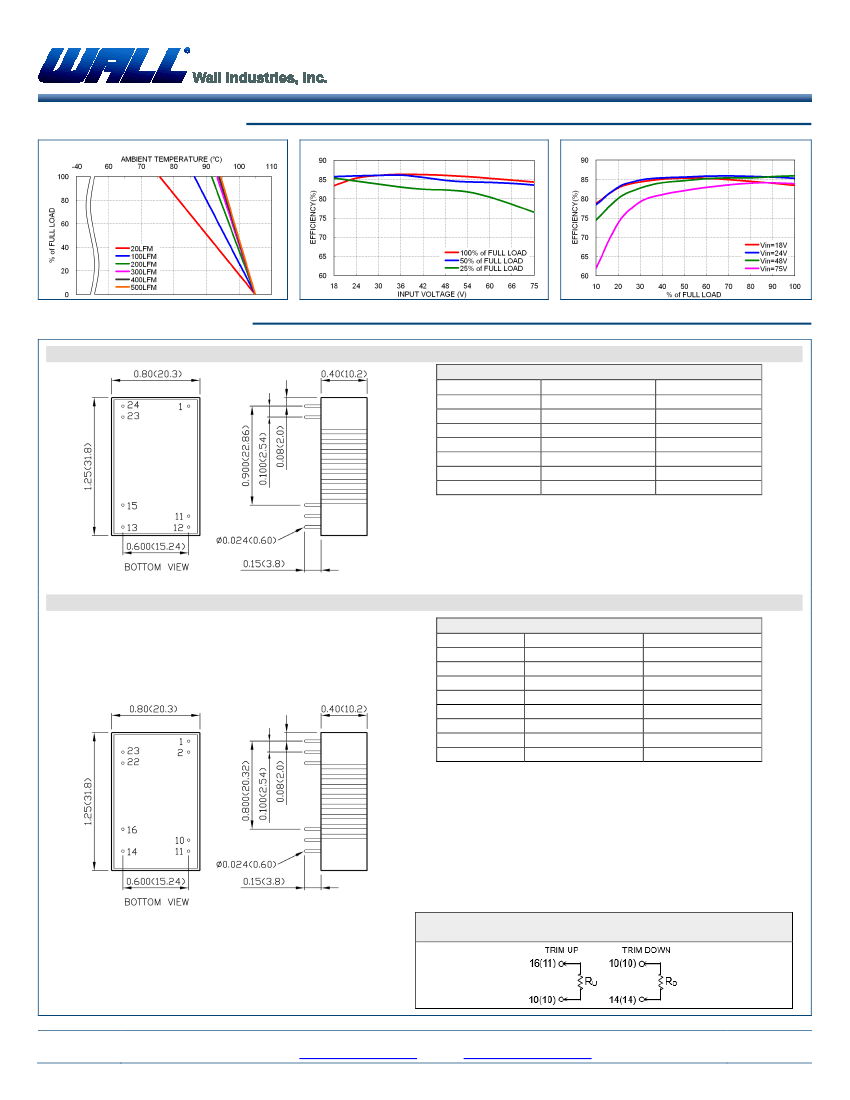

CHARACTERISTIC CURVES
DCMOPW10-48S05A Derating Curve
DCMOPW10-48S05A Efficiency vs Input Voltage
DCMOPW10-48S05A Efficiency vs Output Load
MECHANICAL DRAWINGS
A Type Pin Connection (Suffix “A”)
PIN
1
11
12
13
15
23
24
PIN CONNECTIONS
SINGLE
+INPUT
NO PIN
-OUTPUT
+OUTPUT
NO PIN
-INPUT
-INPUT
+INPUT
COMMON
NO PIN
-OUTPUT
+OUTPUT
-INPUT
-INPUT
DUAL
1. Dimensions in inch (mm)
2. Tolerance: x.xx±0.02 (x.x±0.5)
x.xxx±0.01 (x.xx±0.25)
3. Pin Pitch Tolerance: ±0.01 (0.25)
Pin Dimension Tolerance: ±0.004 (0.1)
B Type Pin Connection (Suffix “B”)
PIN
1
2
10
11
14
16
22
23
SINGLE
CTRL (Optional)
-INPUT
TRIM (Optional)
**NO PIN/NC
+OUTPUT
-OUTPUT
+INPUT
+INPUT
PIN CONNECTIONS
DUAL
CTRL (Optional)
-INPUT
TRIM (Optional)
-OUTPUT
+OUTPUT
COMMON
+INPUT
+INPUT
**For single output models, Pin 11 is “NO PIN” with the trim pin
option (Suffix “-T”) and “NC” without the trim pin option.
1. Dimensions in inch (mm)
2. Tolerance: x.xx±0.02 (x.x±0.5)
x.xxx±0.01 (x.xx±0.25)
3. Pin Pitch Tolerance: ±0.01 (0.25)
4. Pin Dimension Tolerance: ±0.004 (0.1)
Output can be externally trimmed by using the method shown
below. ( ) for dual output trim
EXTERNAL OUTPUT TRIMMING
5/21/2019
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website:
www.wallindustries.com
• e-mail:
sales@wallindustries.com
Page 4 of 5
Rev C
DCMOPW10 SERIES
Up to 10 Watts
Medical DC/DC Power Converters
MODEL NUMBER SET
DCMOPW
Series Name
10
Output Power
10:
10 Watts
-
48
Input Voltage
S
Output Quantity
05
Output Voltage
33:
3.3 VDC
05:
5 VDC
12:
12 VDC
15:
15 VDC
24:
24 VDC
Pin
Connection
A:
A Type
B:
B Type
B
-
None:
P
(1)
Remote ON/OFF Option
No Remote
ON/OFF
P:
Remote ON/OFF
T
(1)
Trim Option
None
No Trim
:
T:
Trim
24:
24 VDC
S:
Single Output
48:
48 VDC
D:
Dual Output
05:
±5 VDC
12:
±12 VDC
15:
±15 VDC
(1) Remote ON/OFF Control and Trim options are only available for “B” type pin connection models.
COMPANY INFORMATION
Wall Industries, Inc. has created custom and modified units for over 50 years. Our in-house research and development
engineers will provide a solution that exceeds your performance requirements on-time and on budget. Our ISO9001
certification is just one example of our commitment to producing a high quality, well-documented product for our customers.
Our past projects demonstrate our commitment to you, our customer. Wall Industries, Inc. has a reputation for working closely
with its customers to ensure each solution meets or exceeds form, fit and function requirements. We will continue to provide
ongoing support for your project above and beyond the design and production phases. Give us a call today to discuss your
future projects.
Contact
Wall Industries
for further information:
Phone:
Toll Free:
Fax:
E-mail:
Web:
Address:
(603)778-2300
(888)597-9255
(603)778-9797
sales@wallindustries.com
www.wallindustries.com
37 Industrial Drive
Exeter, NH 03833
©2019 Wall Industries, Inc. Specifications subject to change without notice. Wall Industries is not responsible for typographical errors. The information contained herein is for
informational purposes only. This information is provided by Wall Industries and we make no representations or warranties of any kind, express or implied, about the completeness,
accuracy, reliability, suitability or availability with respect to the information contained in this document for any purpose. All product and manufacturer names are trademarks or
registered trademarks of their respective companies.
5/21/2019
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website:
www.wallindustries.com
• e-mail:
sales@wallindustries.com
Page 5 of 5
京公网安备 11010802033920号
EEWORLD
