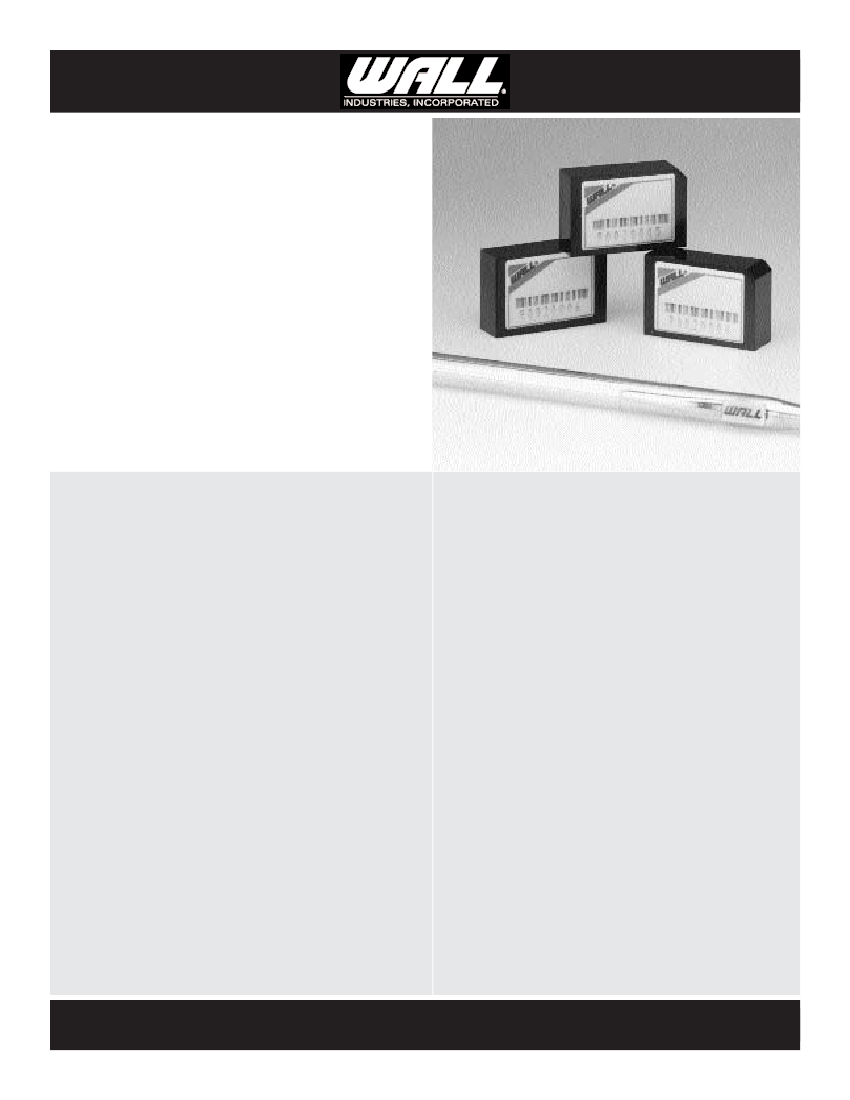

LA N C SERIES
TO 3 WATTS - LAN C SERIES
Single and Dual Output DIP Package
T O 3 WATTS
FEATURES
•
•
•
•
•
Miniature Dual In-Line Package
Two Levels of Isolation Available
Low Reflected Ripple Current
Regulated and Non-Regulated Versions
Ripple/Noise: 50mV p-p typical
THE LAN C SERIES FROM WALL INDUSTRIES
Offering alternate combinations from four different input voltage
ranges; eight different output voltages; regulated and non-regu-
lated versions; two levels of isolation and three tiers of power, the
LAN C Series of DC/DC converters can be tailor-made to fit
most any low power conversion requirement.
SPECIFICATIONS: LAN C SERIES
All specifications apply @ +25 C ambient unless otherwise
noted.
INPUT SPECIFICATIONS
Input Voltage Range ......5, 12, 15, 24,48VDC ±10%
Input Filtering ............................................Pi Network
GENERAL SPECIFICATIONS
Efficiency (typical)......................................55 to 65%
Isolation Voltage (input to output)500VDC or 3000VDC
Switching Frequency..............................40kHz (min.)
OUTPUT SPECIFICATIONS
Output Current............................................see table
Voltage Tolerance ..............±5 (nom. line, 100% load)
Line Regulation: Non-Regulated ......±1.2%/% of Vin%
Line Regulation: Regulated..............................±1.0%
Load Regulation: Regulated(H option L & L = .5%)±1.0%
Load Regulation: Non-Regulated±8% (20% to 100% load)
Ripple/Noise (20MHz BW) ........................50mV p-p
Short Circuit Protection ............................Continuous
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature..........................-25° to 71°C
Storage Temperature ........................-40° to +125°C
Cooling ........................................Free air convection
PHYSICAL SPECIFICATIONS
Dimensions: 500VDC I/O Isolation ..1.25 x 0.8 x 0.4”
Dimensions: 3000VDC I/O Isolation1.25 x 0.8 x 0.40”
Case Material................Non-conductive black plastic
(3 watt models - painted metal)
Due to advances in technology, specifications subject to change without
notice.
1
603 778 2300
W W W
.
WALLINDUSTRIES
.
C O M
LA N C SERIES
NOTES:
T O 3 WATTS
1. All parts are available in non-regulated versions, substitute “N” for “R” in part num-
ber to indicate non-regulated version.
2. Also available with 48VDC in. To specify, insert “48” in part number in place of
input voltage .
3. All models available with 3000VDC I/O isolation. Add”H” onto end of part num-
ber for 3000VDC Input/Output isolation.
4. All DC/DC Converters should be properly fused on front end for protection.
all case and pin-to-case dimensions for reference only unless otherwise noted.
