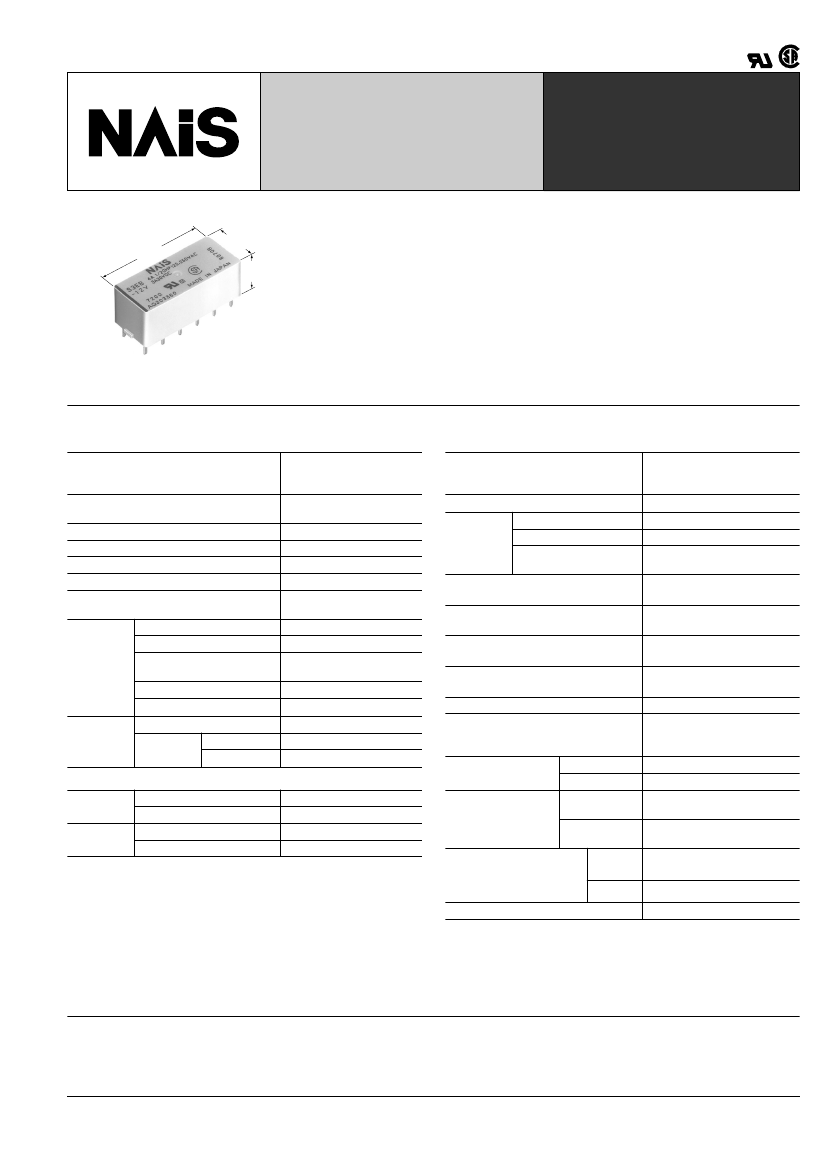

4 AMP POLARIZED HIGH
DENSITY RELAY WITH HIGH
SENSITIVITY
FEATURES
28.0
1.102
12.0
.472
10.4
.409
S-RELAYS
• Wide switching range From 100µA
100 mV DC to 4 A 250 V AC
• Low thermal electromotive force Ap-
prox. 3
µV
• Dual-In-Line packaging arrangement
mm
inch
• A variety of contact arrangements 2
Form A 2 Form B, 3 Form A 1 Form B,
4 Form A
• Latching types available
• High sensitivity in small size 100 mW
pick-up and 200 mW nominal operat-
ing power
• High shock and vibration resistance
Shock: 50 G Vibration: 10 to 55 Hz at
double amplitude of 3 mm
SPECIFICATIONS
Contacts
Arrangement
Initial contact resistance, max.
(By voltage drop 6 V DC 1 A)
Initial contact pressure
Initial contact bounce, max.
Contact material
Electrostatic capacitance
Thermal electromotive force
(at nominal coil voltage)
Nominal switching capacity
Maximum switching power
Rating
(resistive)
2 Form A 2 Form B,
3 Form A 1 Form B,
4 Form A
50 m
Ω
Approx. 12 g
.42 oz
1 ms
Gold clad silver alloy
Approx. 3pF
Approx. 3
µ
V
4 A 250 V AC, 3 A 30 V DC
Characteristics (at 25°C
77°F
50% Relative humidity)
Max. operating speed
Initial insulation resistance*
1
Between open contacts
Between contact sets
Between contacts and
coil
Operate time*
3
(at nominal voltage)(at 20
°
C)
Release time (without diode)*
3
(at nominal voltage)(at 20
°
C)
Set time*
3
(latching)
(at nominal voltage)(at 20
°
C)
Reset time*
3
(latching)
(at nominal voltage)(at 20
°
C)
Initial contact bounce, max.
Temperature rise
(at nominal voltage)(at 20
°
C)
Shock resistance
Approx. 100 mW
Approx. 200 mW
Approx. 100 mW
Approx. 200 mW
Functional*
4
Destructive*
5
Functional*
6
Vibration resistance
Destructive
Conditions for operation,
Ambient
transport and storage*
7
temp.
(Not freezing and condens-
Humidity
ing at low temperature)
Unit weight
Initial
breakdown
voltage*
2
20 cpm for maximum load,
50 cps for low-level load
(1 mA 1 V DC)
10,000 M
Ω
at 500 V DC
750 Vrms
1,000 Vrms
1,500 Vrms
Max. 15 ms (Approx. 8 ms)
Max. 10 ms (Approx. 5 ms)
Max. 15 ms (Approx. 8 ms)
Max. 15 ms (Approx. 8 ms)
1 ms
Max. 35
°
C with nominal coil
voltage and at maximum
switching current
Min. 490 m/s
2
{50 G}
Min. 980 m/s
2
{100 G}
176.4 m/s
2
{18 G}, 10 to 55 Hz
at double amplitude of 3 mm
235.2 m/s
2
{24 G}, 10 to 55 Hz
at double amplitude of 4 mm
–40
°
C to +65
°
C
–40
°
F to +149
°
F
5 to 85% R.H.
Approx. 8 g
.28 oz
1,000 VA, 90 W
250 V AC, 30 V DC
Maximum switching voltage
(48 VDC at less than 0.5 A)
Max. switching current
4 A (AC), 3 A (DC)
Min. switching capacity**
1
100
µ
A 100 m V DC
10
8
10
5
2
×
10
5
Mechanical (at 50 cps)
4 A 250 V AC
Electrical
(at 20 cpm) 3 A 30 V DC
Expected
life (min.
operations)
Coil (polarized) (at 20°C
68°F)
Single side
stable
Latching
Notes:
**
1
This value can change due to the switching frequency, environmental conditions,
and desired reliability level, therefore it is recommended to check this with the
actual load.
Minimum operating power
Nominal operating power
Minimum set and reset
Nominal set and reset
Remarks
* Specifications will vary with foreign standards certification ratings.
*
1
Measurement at same location as "Initial breakdown voltage "section
*
2
Detection current: 10mA
*
3
Excluding contact bounce time
*
4
Half-wave pulse of sine wave: 11ms; detection time: 10
µ
s
*
5
Half-wave pulse of sine wave: 6ms
*
6
Detection time: 10
µ
s
*
7
Refer to 5. Conditions for operation, transport and storage mentioned in AMBIENT ENVIRONMENT (Page 61).
TYPICAL APPLICATIONS
Telecommunications equipment, data processing equipment,
facsimiles, alarm equipment, measuring equipment.
219
S
ORDERING INFORMATION
Ex.
S
2
L2
48 V
Product name
S
Contact arrangement
2: 2 Form A 2 Form B
3: 3 Form A 1 Form B
4: 4 Form A
Operating function
Nil: Single side stable
L: 1 coil latching
L2: 2 coil latching
Coil voltage, V DC
3, 5, 6,12, 24, 48
Notes: 1) Standard packing; Carton 50 pcs. Case 500 pcs.
2) UL/CSA approved type is standard.
TYPES AND COIL DATA at 20°C
68°F
Single side stable
Type
S❑-3V
S❑-5V
S❑-6V
S❑-12V
S❑-24V
S❑-48V
Nominal
voltage,
V DC
3
5
6
12
24
48
Pick-up
voltage,
V DC (max.)
2.1
3.5
4.2
8.4
16.8
33.6
Drop-out
voltage,
V DC (min.)
0.3
0.5
0.6
1.2
2.4
4.8
Nominal
operating
current,
mA
66.7
38.5
33.3
16.7
8.4
5.6
Coil resistance,
Ω
(
±
10%)
45
130
180
720
2,850
8,500
Inductance,
mH
23
65
93
370
1,427
3,410
Nominal
operating
power,
mW
200
192
200
200
202
271
Maximum
allowable
voltage,
V DC (40
°
C)
5.5
9.0
11.0
22.0
44.0
75.0
1 coil latching
Type
S❑-L1-3V
S❑-L1-5V
S❑-L1-6V
S❑-L1-12V
S❑-L1-24V
S❑-L1-48V
Nominal
voltage,
V DC
3
5
6
12
24
48
Pick-up
voltage,
V DC (max.)
2.1
3.5
4.2
8.4
16.8
33.6
Drop-out
voltage
V DC (min.)
0.3
0.5
0.6
1.2
2.4
4.8
Nominal oper-
ating current,
mA
33
16
16
8
4
3
Coil resis-
tance,
Ω
(
±
10%)
90
300
360
1450
5700
16,000
Inductance,
mH
0.04
0.14
0.14
0.6
2.05
8.9
Nominal
operating
power,
mW
99
80
96
96
96
144
Nominal
operating
power,
mW
200
192
200
200
202
355
Maximum
allowable
voltage,
V DC (40
°
C)
8.4
15.3
16.8
33.7
66.7
111
Maximum
allowable
voltage,
V DC (40
°
C)
5.5
9.0
11.0
22.0
44.0
65.0
2 coil latching
Type
S❑-L2-3V
S❑-L2-5V
S❑-L2-6V
S❑-L2-12V
S❑-L2-24V
S❑-L2-48V
Nominal voltage,
V DC
3
5
6
12
24
48
Set and reset
voltage,
V DC (max.)
2.1
3.5
4.2
8.4
16.8
33.6
Nominal operating
current,
mA
66.7
38.5
33.7
16.7
8.4
7.4
Coil resistance,
Ω
(
±
10%)
Coil I
45
130
180
720
2,850
6,500
Coil II
45
130
180
720
2,850
6,500
Inductance,
mH
Coil I
10
31
40
170
680
1,250
Coil II
10
31
40
170
680
1,250
Note: Insert 2, 3 or 4 in
❑
for contact form required.
DIMENSIONS
28±0.5
1.102±0.02
1
.039
4
.157
1.4
.055
3
.118
0.5
.020
1
12
2
11
3
10
4
9
5
8
12
.472
10±0.5
.394±0.02
0.4
1.0
.016
.039
0.5
.020
7.62
.300
PC board pattern (Copper-side view)
2.54
.100
12-1.3 DIA.
.047-.051 DIA.
6
7.62 12
.472
7
.300
5.08
.200
2.54
.100
General tolerance:
1
0.3
±
.012
±
Tolerance:
±
0.1
±
.003
220
S

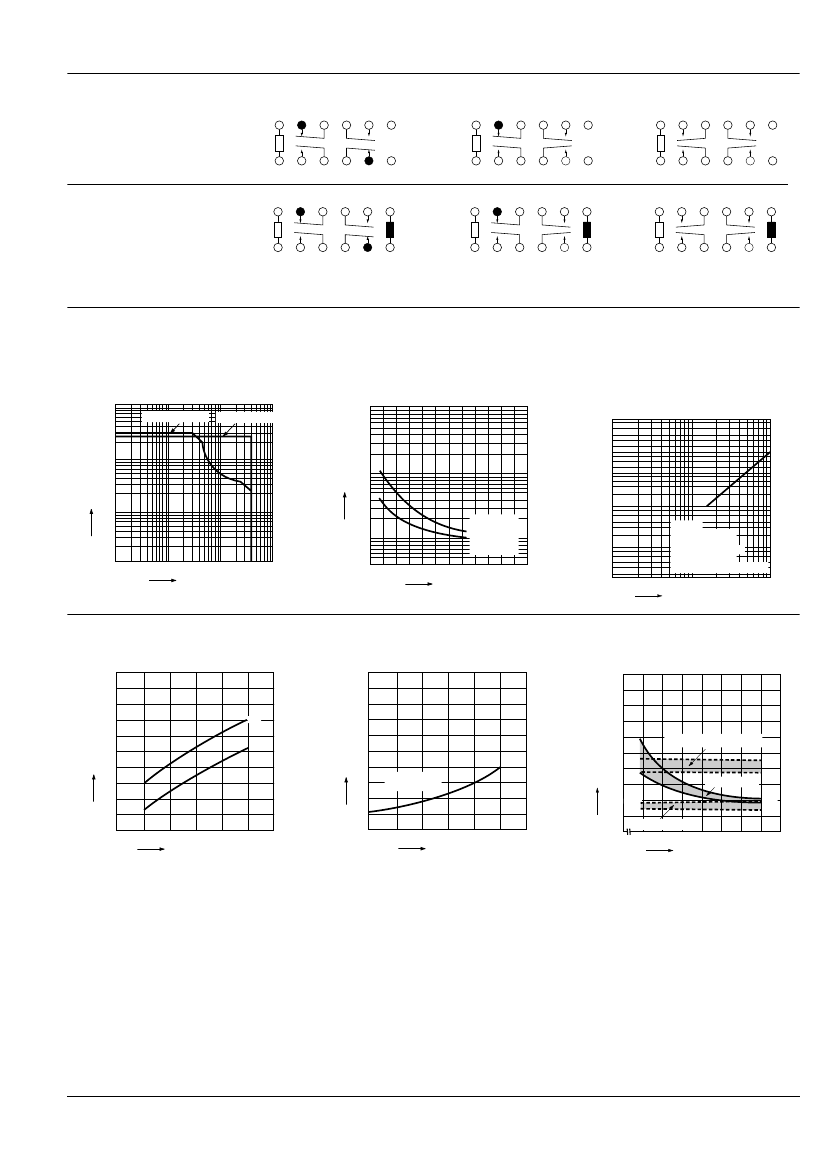

Schematic
(Bottom view)
Single side stable
Deenergized position
2a2b
1
2
3
4
5
6
3a1b
1
2
3
4
5
6
4a
1
2
3
4
5
6
+
-
12
11
10
9
8
7
12
+
-
11
10
9
8
7
12
+
-
11
10
9
8
7
2 coil latching
iagram shows the "reset"
osition when terminals 6
nd 7 are energized.
nergize terminals 1 and
2 to transfer contacts.
2a2b
Set
1
2
3
4
5
6
3a1b
+
Reset
1
2
3
4
5
6
4a
+
Reset
1
2
3
4
5
6
+
-
12
11
10
9
8
7
+
Set
12
+
Set
12
+
Reset
-
-
11
10
9
8
7
-
-
11
10
9
8
7
-
REFERENCE DATA
1. Maximum switching power
2. Life curve
3. Contact reliability
Condition: 1V DC, 1mA
Detection level 10
Ω
Tasted Sample: S4-24V, 10pcs
1,000
DC resistive load
Contact voltage, V
AC resistive load
500
1,000
99.9
99.0
95.0
70.0
50.0
30.0
10.0
5.0
125 V AC
(cosϕ = 1.0)
250 V AC
(cosϕ = 1.0)
1
2
3
4
5
2.0
1.0
0.5
0.2
0.1
m = 1.6
µ:
79 million time
σ:
51 million time
95% reliability limit:
14.6 million times
(weibul probability paper)
1.0
No. of operations,
×10
7
100
Life,
×10
4
0.1
1
Contact current, A
10
100
50
10
30
10
0
Contact current, A
10.0
4.-(1) Coil temperature rise
Tested Sample: S4-24V, 4 Form A
100
90
Temperature rise,
°C
4.-(2) Coil temperature rise
Tested Sample: S4-24V, 4 Form A
100
5.-(1) Operate and release time
(Single side stable type)
Tested Sample: S4-24V, 10pcs
20
Operate/release time, ms
18
16
14
12
10
8
6
4 Max.
Min.
2
Release time
0
80
100
Operate time
Max.
Min.
Release time (with diode)
Max.
Min.
90
Temperature rise,
°C
80
70
60
50
40
30
20
10
0
0.2
0.4
0.6
0.8
1.0
Coil operating power, W
1.2
1
2
3
4
5
6
Coil operating
power, 0.2 W
80
70
60
50
40
30
20
10
0
0A
4A
120
140
Contact current, A
Coil applied voltage, %V
221
S
5.-(2) Operate time (2 coil latching type)
Tested Sample: S2-L2-12V
20
Operate/release time, ms
18
16
14
Rate of change, %
Single side stable
Drop-out voltage
0
Pick-up voltage
–30
Rate of change, %
12
10
8
6 Max.
4 Min.
2
(without diode)
80
100
120
140
Coil applied voltage, %V
5
Inter-relay distance, mm
10
–30
5
Inter-relay distance, mm
10
(with diode)
2 coil latching
(1)
(2)
(3)
(1) & (3) relays
are energized

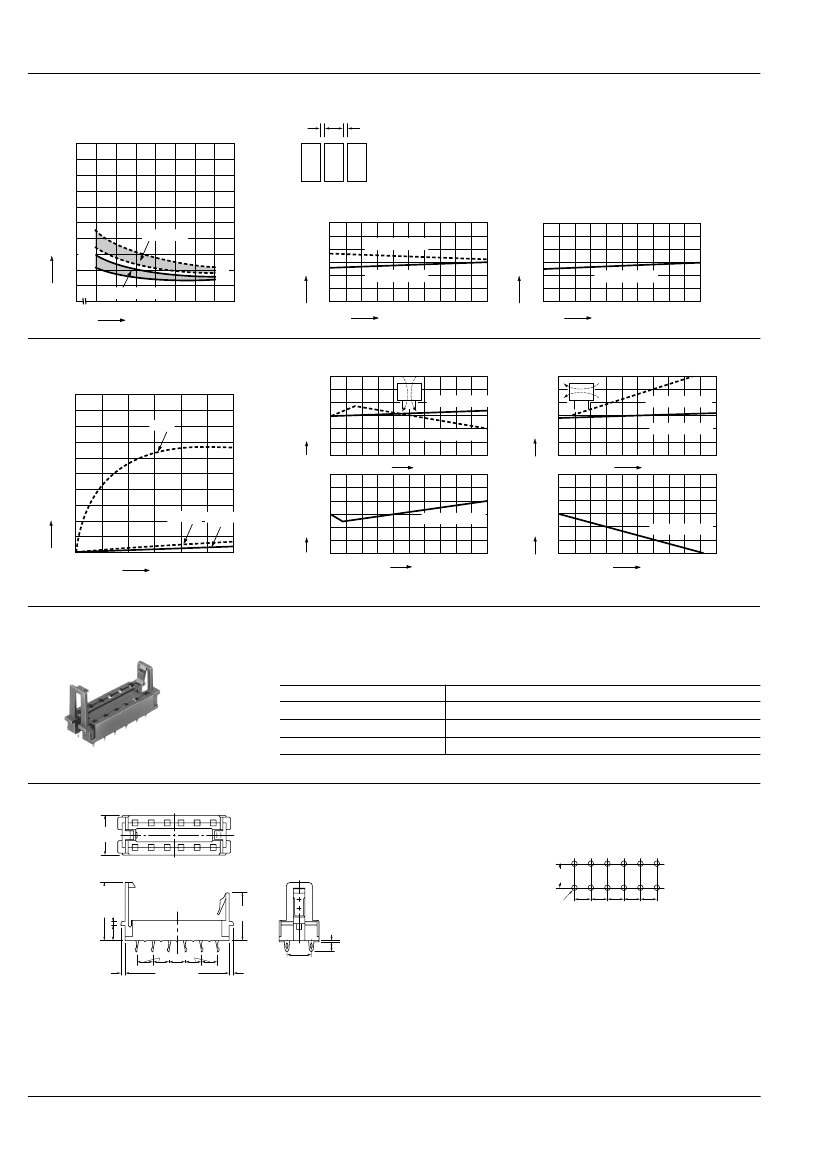

6. Influence of adjacent mounting
+30
+30
Max.
Min.
0
Pick-up voltage
7. Thermal electromotive force
8. Effect from an external magnetic field
Rate of change, %
Rate of change, %
+30
Single side stable
φ
Pick-up voltage
+30
Single side stable
φ
Drop-out voltage
200
Thermal electromotive force,
µV
0
Drop-out voltage
–30
50
2 coil latching
G
100
0
Pick-up voltage
–30
NR-H
50
2 coil latching
G
100
100
Rate of change, %
Rate of change, %
+30
+30
NF relay S relay
0
Pick-up voltage
0
Pick-up voltage
–30
2
4
6
8
Minute
10
12
–30
50
G
100
50
G
100
ACCESSORIES
Specifications
Breakdown voltage
Insulation resistance
S Relay Socket,
S-PS
Heat resistance
Maximum continuous current
(Note: Don't insert or remove relays while in the energized condition.)
1,500 Vrms between terminals
More than 100 M
Ω
between terminals at 500 V DC Mega
150
±
3
°
C (302
±
5.4
°
F)
for 1 hour.
4A
Dimensions
12.4±0.6
.488±.024
PC board pattern (Copper-side view)
7.6
.299
18.3±0.6
.720±.024
1.2±0.3
.047±.012
5.08 5.08 5.08 5.08 5.08
12-1.6 DIA. HOLE
.200 .200 .200 .200 .200
12-.063 DIA. HOLE
0.4±0.1
.016±.004
3.4±0.3
.134±.012
7.62±0.3
.300±.012
Terminal width: 1.3
.051
Terminal thickness: 1.2
.047
15.5±0.6
.610±.024
4.85±0.3
.191±.012
1.5±0.3
.059±.012
5.08±0.3
.200±.012
32.4±0.6
1.276±.024
1.5±0.3
.059±.012
222
S
Inserting and removing method
Inserting method: Insert the relay as shown in
Fig. 1 unit the rib of the relay snaps into the
clip of the socket.
Rib
Fig. 1
Removing method:
(1) Remove the relay straight from the
socket holding the shaded portion of the
relay as shown in Fig. 2.
Fig. 2
(2) When sockets are mounted in close
proximity, use a slotted screw driver as
shown in Fig. 3.
Fig. 3
NOTES
1. Special use of 2 coil latching types: 2
ways can be considered if 2 coil latching
types are used as 1 coil latching types.
(A) Reverse polarity is applied to the set
coil of 2 coil latching type.
(B) By shorting terminals 12 and 7, apply
plus to 1, minus to 6 at set and plus to 6,
minus to 1 at reset. Applied coil voltage
should be the same as the nominal. Ope-
rating power will be reduced to one-half.
Reset position of 2a2b type
2. Soldering operations should be accom-
plished as quick as possible; within 10
seconds at 250°C
482°F
solder tempera-
ture or 3 seconds at 350°C
662°F.
The
header portion being sealed with epoxy
resin, undue subjection to heat may
cause loss of seal. Solder should not be
permitted to remain on the header.
-
1
2
3
4
5
6
+
12
11
10
9
8
7
CAUTIONS FOR USE
Based on regulations regarding insulation distance, there is a re-
striction on same-channel load connections between terminals
No. 2, 3 and 4, 5, as well as between No. 8, 9 and 10, 11. See the
figure below for an example.
2 3
4 5
11
10
9
8
11
2 3
4 5
9 8
10
• Between 2, 3 and 4, 5: different channels, therefore not possible
• Between 10, 11 and 8, 9: different channels, therefore not possible
• Between 2, 3 and 4, 5: same channels, therefore possible
• Between 10, 11 and 8, 9: same channels, therefore possible
No good
Good
For Cautions for Use, see Relay Technical Information (Page 48 to 76).
223
京公网安备 11010802033920号
EEWORLD
