SPECIFICATIONS
Current Rating:
Contact Material:
Contact Resistance:
Insulation Material:
Insulation Resistance:
Withstanding:
Operating Temp:
1 Amp
Brass
20mΩ Max.
Polyester, UL94V-0
1000MΩ Min.
300V AC
-40C to +105C
B
C
C
D
D
E
Series
CPH
Pin header,
DIP type,
.40mm
square pins
No. of Rows
X
2=Dual rows
1=Single row
Height H (mm)
X
Type
XX
No. of Pins
XX
Mating Length
XX
Plating
XX
TN=Tin
SG=Selective Gold
GD=Gold
Options
XX
[blank]=None
TR=Tape & reel
CP=Centering pin TB=Tube
PPL=Pick cap
E
F
RoHS compliant
Rev.
Description
Date
[blank]=1.50,
[blank]=Straight
B=1.00, C=1.70*, SM=Surface mount
D=2.00, E=2.54* RA=Right angle
F=2.70*
G=3.00*
*Dual row only
2-33 (single row) SA=1.9mm mating length
4-66 (double row) SB=3.00mm mating length
SC=3.50mm mating length
CS=Cust. Specified length
F
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
Date
08/10/99
08/10/99
08/10/99 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
CPH-2-X-SM-XX-XX-XX-XX
G
7
8
9
G
0.00 ± 0.20 Angles ± 3°
UNIT: mm
5
6

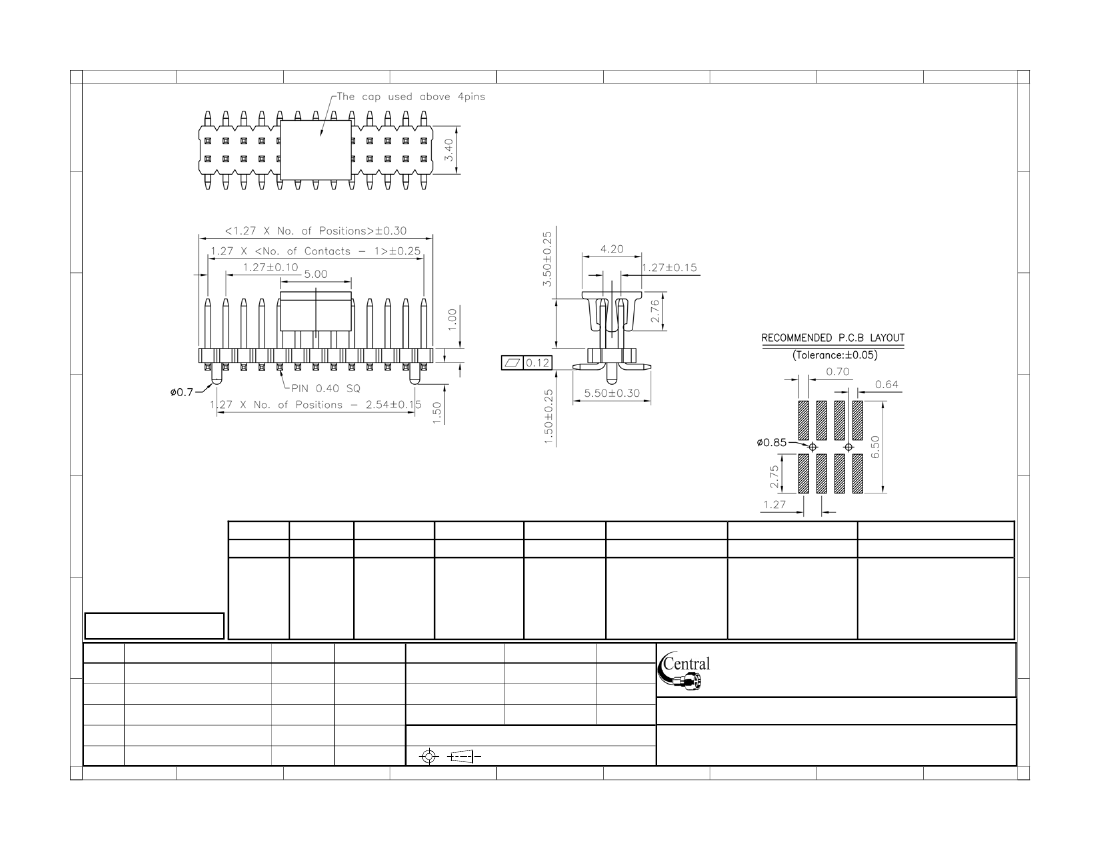

Description: 1.27 Pin Header Dual Rows SMT Type
