CPJ-J357-MT-G-T-R datasheet, PDF

Datasheet> All Categories > The connector> The connector> CPJ-J357-MT-G-T-R

CPJ-J357-MT-G-T-R: DescriptionAudio/RCA Connector, 3 Pole(s), Female, Solder Kinked Leads Terminal, Locking, Jack; CategoryThe connector The connector; File Size166KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

CPJ-J357-MT-G-T-R Overview

Audio/RCA Connector, 3 Pole(s), Female, Solder Kinked Leads Terminal, Locking, Jack

CPJ-J357-MT-G-T-R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
audio type	PHONO
body width	0.315 inch
subject depth	0.669 inch
body length	0.276 inch
Body/casing type	JACK
Connector type	AUDIO/RCA CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	5000 Cycles
maximum insertion force	19.5712 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
Manufacturer's serial number	CPJ
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of poles	3
Number of ports	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal length	0.142 inch
Termination type	SOLDER KINKED LEADS

Preview

Download Datasheet

View All

SPECIFICATIONS

Contact resistance:

Insulation resistance:

Withstanding:

Insertion/extraction force:

Durability:

30 milliohms max.

100 megohms min. @ 500VDC

500VAC for 1 min.

0.4 to 2.0kg initial

0.3 to 2.0kg after life test

5,000 cycles

RoHS compliant

Rev.

Description

Date

Approved

Series

CPJ

Phone

jack

Item

Name

Material

Finish

1 Earth terminal

Brass, 0.3T

Silver

2 Tip spring

Phosphor bronze, 0.2T Silver

3 Break terminal

Brass, 0.3T

Silver

4 Barrel (w/ thread) Brass

Nickel

5 Housing

PBT

Black

6 Cover

PoM

Black

Style

Bushing

Bushing Plating Terminal Plating

Options

J357

ø3.5mm right- M=Metal

N=Nickel (std) S=Silver (std)

[blank]=None

angle, PCB

MT=Metal w/ M6 thread

G=Gold

T=Tin

R=Round nut

mount

MP=Metal w/ plastic cover

G=Gold

H=Hex nut

Date

12/08/05

12/08/05 Part No.:

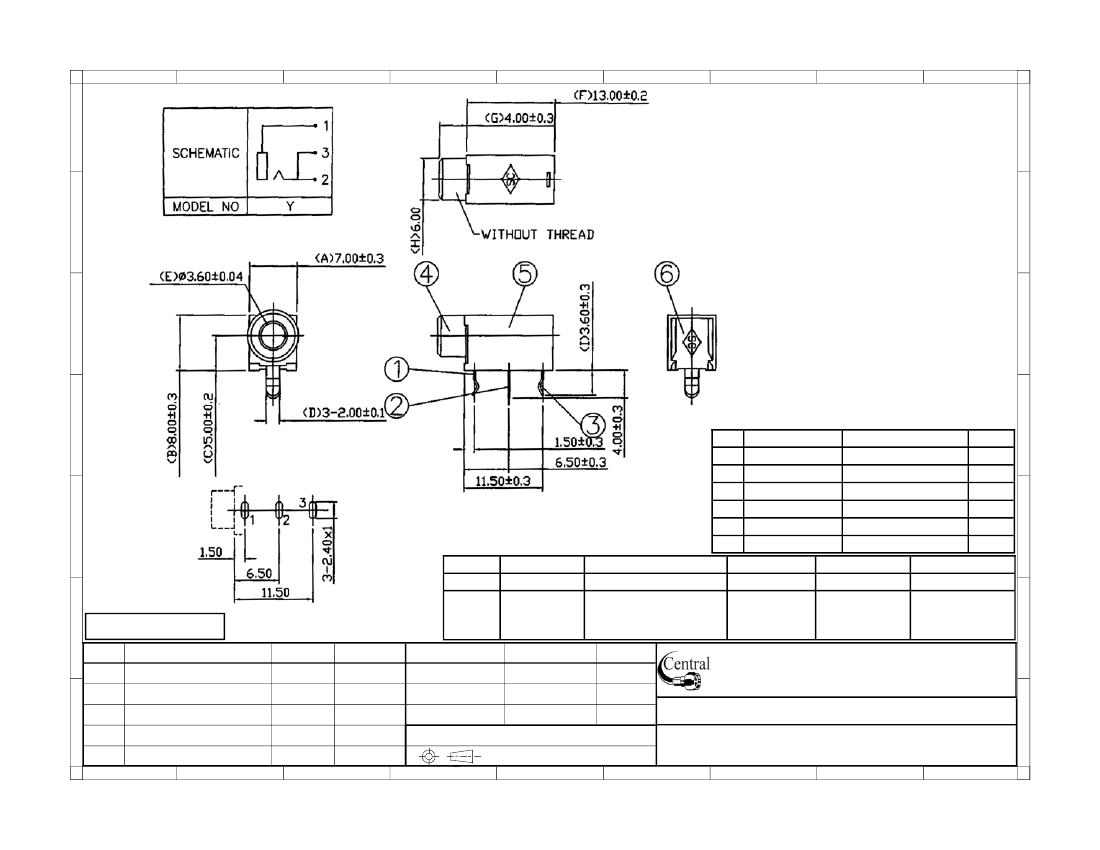

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

CPJ-J357-X-X-X-X

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: Phone jack, ø3.5mm
