BRP1-S-11-R-8-G2 datasheet, PDF

BRP1-S-11-R-8-G2: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,11 CONTACTS,PIN,0.1 PITCH,R ANGLE PC TAIL TERMINAL,BLACK; CategoryThe connector The connector; File Size157KB，2 Pages; ManufacturerCooper Industries

Download Datasheet Parametric View All

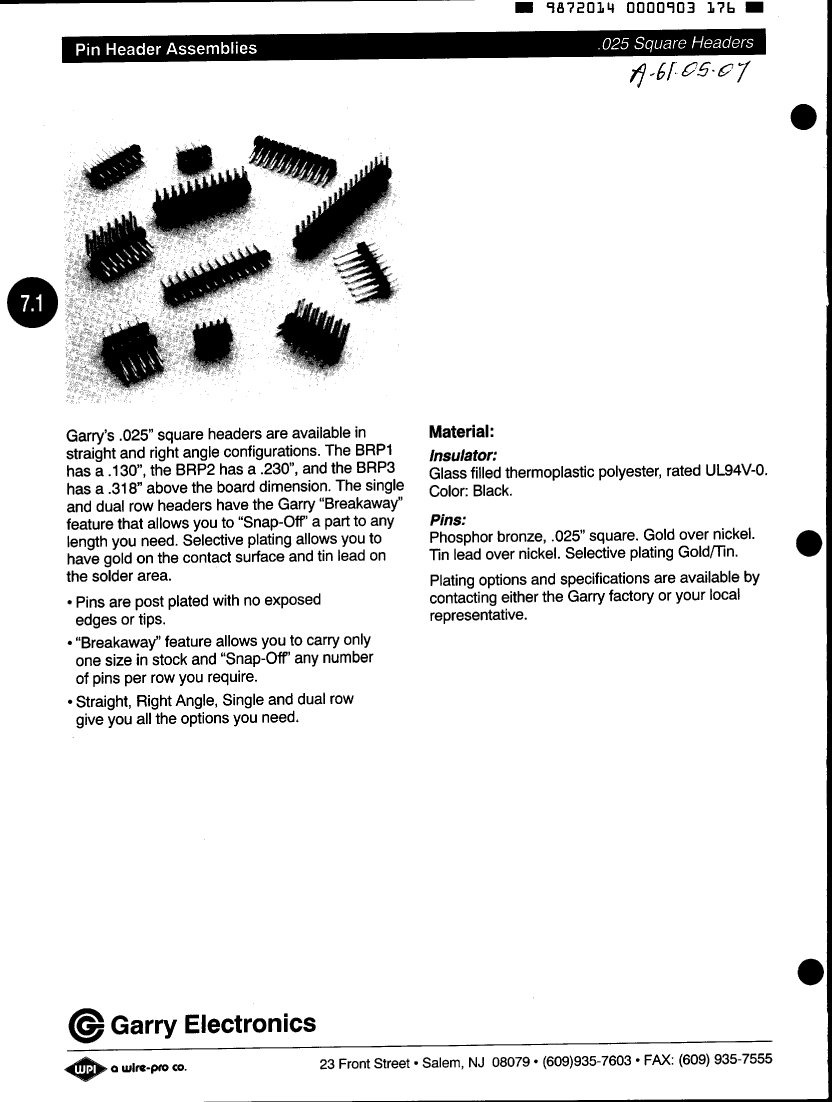

BRP1-S-11-R-8-G2 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,11 CONTACTS,PIN,0.1 PITCH,R ANGLE PC TAIL TERMINAL,BLACK

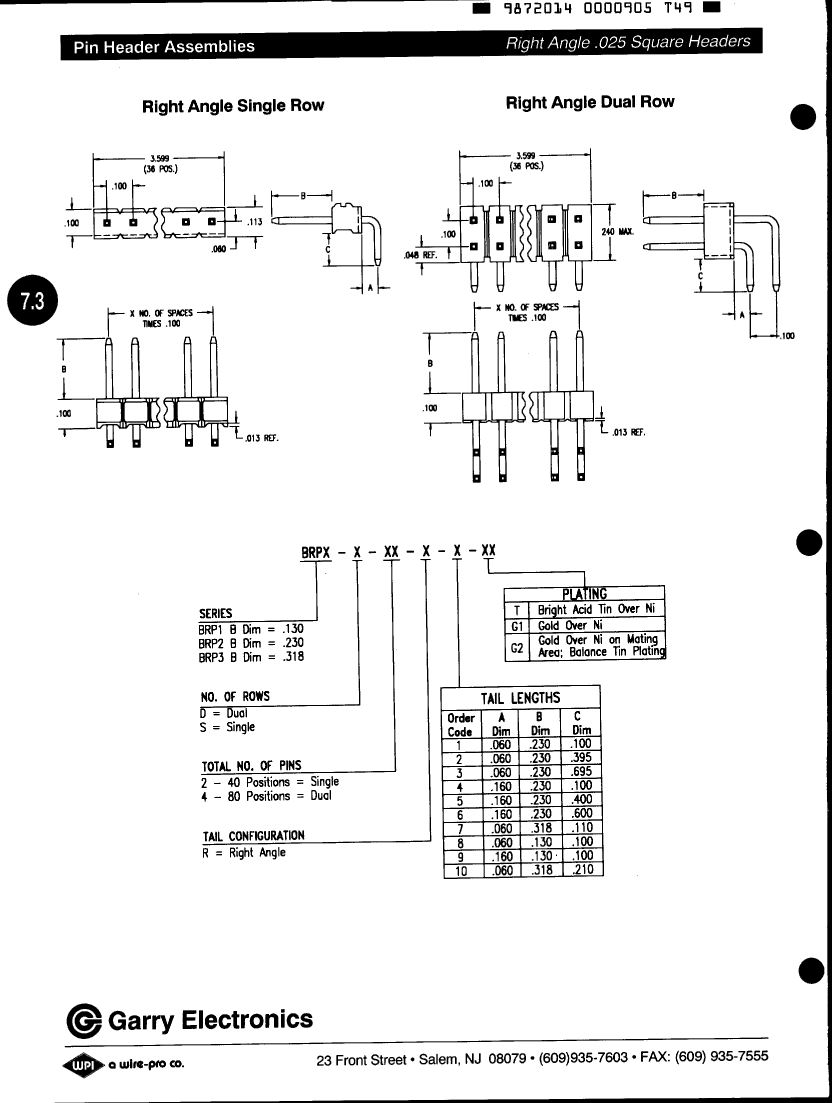

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.113 inch
subject depth	0.16 inch
body length	1.099 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	BRP1
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.1 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	11
