S1V30080
Outline
♪Melody Synthesizer♪ function included Voice Guidance LSI

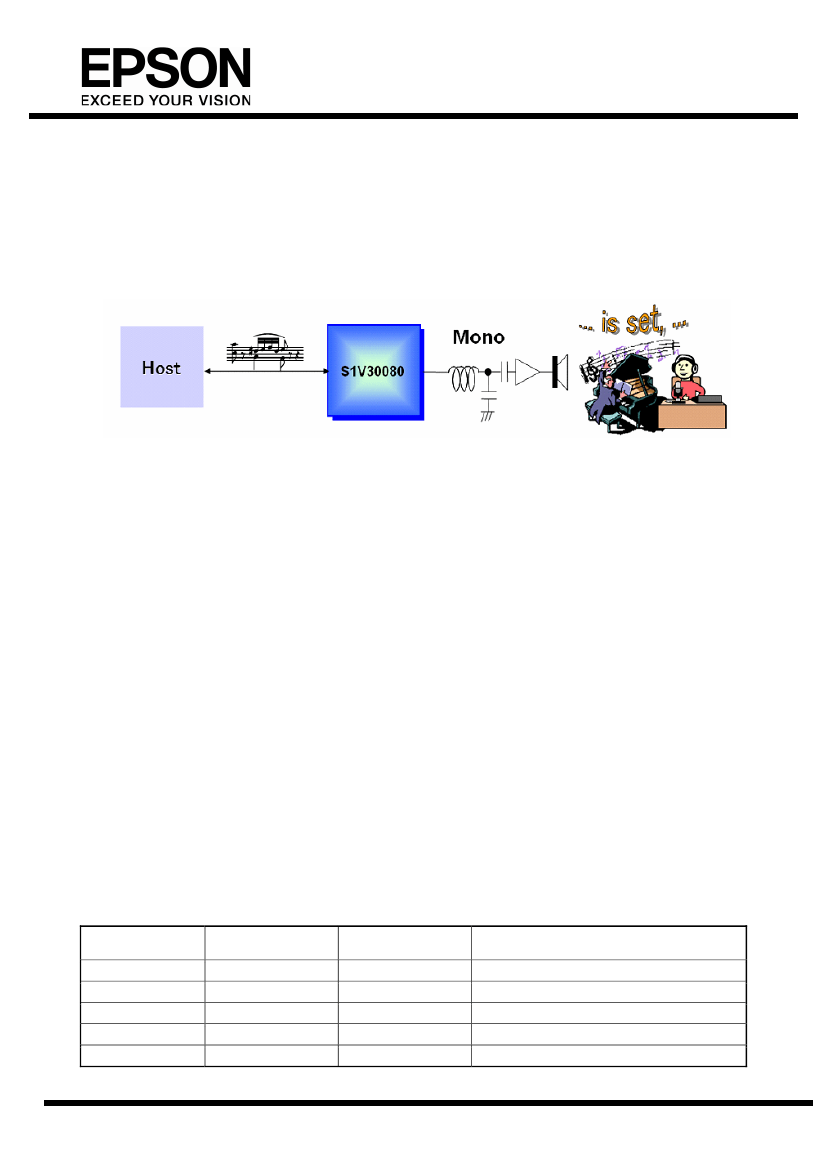

S1V30080 supports multi-channel Speech/Sound playback from integrated ROM, Moreover Melody Synthesizer function is
supported which is suitable for music effect and buzzer sound by tiny data with Speech/Sound playback. Speech/Sound playback and
melody synthesizer function works individually and can be mixed, of course the volume can be set individually.
The voice data creation tool for EPSON voice guidance LSI allows easy creation of high-quality voice data from text data without
studio recording.
S1V30080 is controlled over the serial interface allowing control from a wide range of hosts easily from the host and also S1V30080
supports standalone mode which enable to control without CPU or without host S/W on CPU.
S1V30080 makes it possible to realize time-to-market for the products featuring Voice Guidance.
Features
Melody/Buzzer/Tone sound synthesizer function
-
-
-
-
-
-
-
-
-
-
5-ch Melody Sound can be created just by music note information(5 octave supported)
Buzzer/Tone Sound can be generated just by specifying the frequency(5ch supported)
Speech/Sound Playback
Individual 2ch Voice ROM data can be played.(EPSON original format)
Sampling Frequency : 4, 8, 12 and 16 kHz
Sequencer function (to set delay between phrases)
A maximum of 127 files can be sequenced with one configuration message (no constraints on phrase combinations)
Delay setting can be set between phrases: 0-1000ms (10ms step)
Mixing Function
Synthesizer Sound and Speech/Sound Playback from ROM can be mixed(individual volume setting possible)
Speech/Sound ROM
fs:8kHz approx 30 sec, fs:16kHz approx 15sec
Host Interface
Synchronous serial interface (SPI, I2C) … [Command Control base]
Standalone mode
By just specifying the ruled number, the sound can be played from ROM and Melody Synthesizer.
DA Converter integrated
Clock(Crystal oscillation, Ceramic oscillation, Clock input
-
fs:8kHz 8.192MHz,
fs:16kHz 16.384MHz
Power Supply voltage
- 2.2-5.5V Single Power Supply
Product Configuration
Product code
S1V30080M00**00
S1V30080M01**00
S1V30080F00**00
S1V30080F10**00
S1V30080F11**00
System clock source
External clock
crystal unit
External clock
External clock
crystal unit
External Serial Flash
Memory
-
-
support
support
-
Package
SSOP2-16(4.4mm x 6.6mm, 0.8mm pin pitch）
SSOP2-16
(4.4mm x 6.6mm, 0.8mm pin pitch）
QFP12-48
(7mm x 7mm, 0.5mm pin pitch)
QFP13-52
(10mm x 10mm, 0.65mm pin pitch)
QFP13-52
(10mm x 10mm, 0.65mm pin pitch)
SEIKO EPSON CORPORATION
S1V30080
Standard Application System

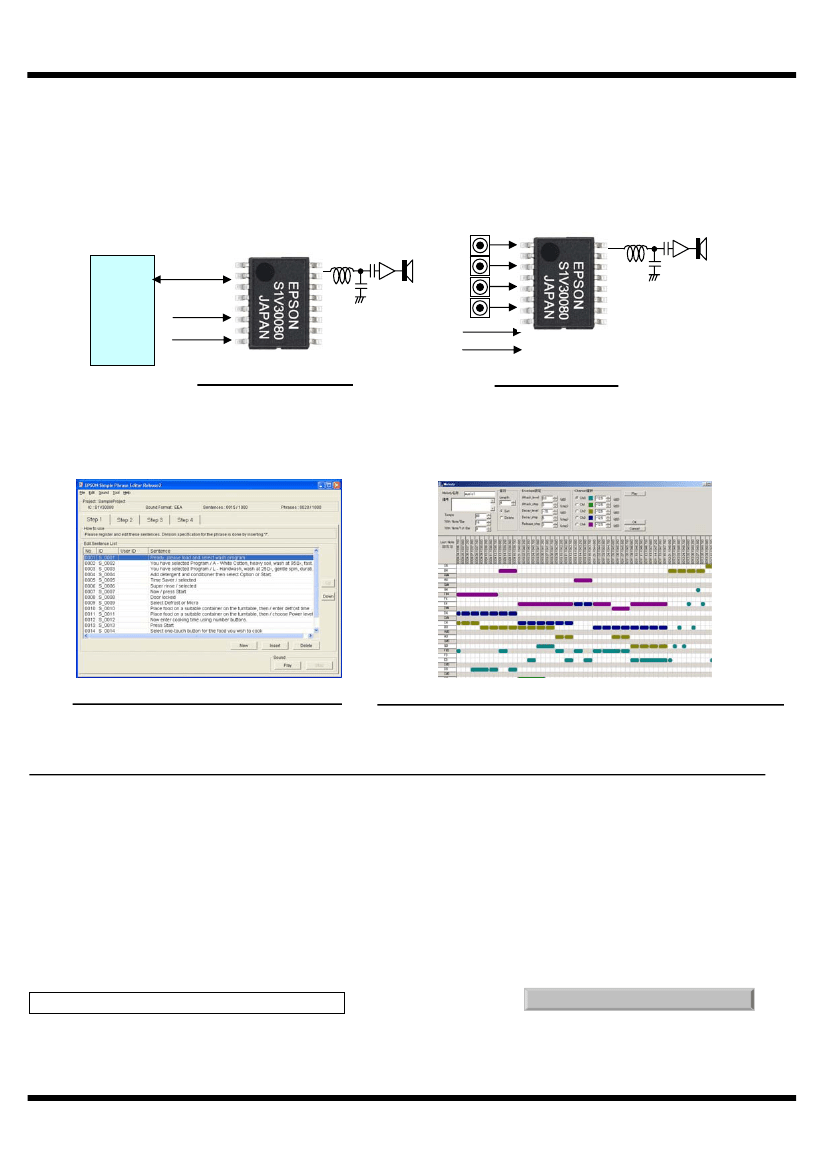

The S1V30080 standard application system will have the following configuration. The host processor will control the S1V30080 device by
commands sent via the serial interface (the message protocol).
In addition, S1V30080 supports standalone mode which enable to control without CPU or without host S/W on CPU.
HOST
Serial I/F
(SPI / I2C)
CLock
Clock
2.2-5.5V
Single power supply
2.2-5.5v
Single power supply
Serial Interface Mode
Standalone Mode
Development Tools
–
–
–
–
Evaluation Board
Voice Data Creation Tool
*
(Supported languages: English, Japanese, Korean (all female voices), under development: Spanish, Chinese)
Melody/Buzzer/Tone Synthesizer Creation Tool
Sample Program
Voice Data Creation Tool(PC software tool)
Melody/Buzzer/Tone Synthesizer Creation Tool(PC software tool)
* The voice synthesis technology “VoiceText” of PENTAX is used for audio data creation tool. “VoiceText” is a registered trademark of Voiceware Co., Ltd.
Other company name and brand name that has been described are the registered trademarks or trademarks.
