SN54/74LS259
8-BIT ADDRESSABLE LATCH
The SN54/ 74LS259 is a high-speed 8-Bit Addressable Latch designed for
general purpose storage applications in digital systems. It is a multifunctional
device capable of storing single line data in eight addressable latches, and
also a 1-of-8 decoder and demultiplexer with active HIGH outputs. The device
also incorporates an active LOW common Clear for resetting all latches, as
well as, an active LOW Enable.
8-BIT ADDRESSABLE LATCH
LOW POWER SCHOTTKY
•
•
•
•
•
•
Serial-to-Parallel Conversion
Eight Bits of Storage With Output of Each Bit Available
Random (Addressable) Data Entry
Active High Demultiplexing or Decoding Capability
Easily Expandable
Common Clear
CONNECTION DIAGRAM DIP
(TOP VIEW)
16
J SUFFIX
CERAMIC
CASE 620-09
1
VCC
16
C
15
E
14
D
13
Q7
12
Q6
11
Q5
10
Q4
9
16
1
N SUFFIX
PLASTIC
CASE 648-08
1
Ao
2
A1
3
A2
4
Q0
5
Q1
6
Q2
7
Q3
8
GND
16
1
D SUFFIX
SOIC
CASE 751B-03
PIN NAMES
LOADING
(Note a)
HIGH
LOW
0.25 U.L.
0.25 U.L.
0.5 U.L.
0.25 U.L.
5 (2.5) U.L.
A0, A1, A2
D
E
C
Q0 to Q7
Address lnputs
Data Input
Enable (Active LOW) Input
Clear (Active LOW) input
Parallel Latch Outputs (Note b)
0.5 U.L.
0.5 U.L.
1.0 U.L.
0.5 U.L.
10 U.L.
ORDERING INFORMATION
SN54LSXXXJ
SN74LSXXXN
SN74LSXXXD
Ceramic
Plastic
SOIC
NOTES:
a) 1 TTL Unit Load (U.L.) = 40
µA
HIGH/1.6 mA LOW.
b) The Output LOW drive factor is 2.5 U.L. for Military (54) and 5 U.L. for Commercial
(74) Temperature Ranges.
GUARANTEED OPERATING RANGES
Symbol
VCC
TA
IOH
IOL
Supply Voltage
Operating Ambient Temperature Range
Output Current — High
Output Current — Low
Parameter
54
74
54
74
54, 74
54
74
Min
4.5
4.75
– 55
0
Typ
5.0
5.0
25
25
Max
5.5
5.25
125
70
– 0.4
4.0
8.0
Unit
V
°C
mA
mA
FAST AND LS TTL DATA
5-433
SN54/74LS259

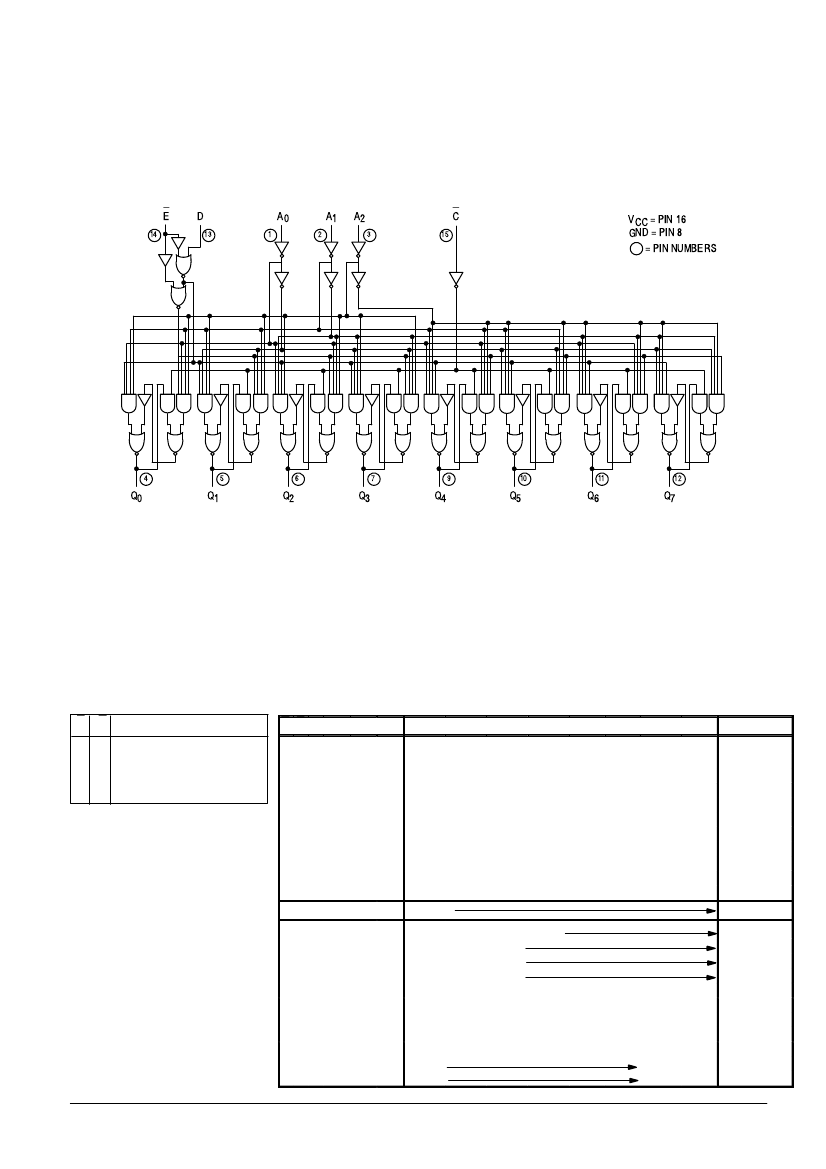

LOGIC DIAGRAM
E
14
D
13
1
A0
2
A1
A2
3
15
C
VCC = PIN 16
GND = PIN 8
= PIN NUMBERS
4
5
6
7
9
10
11
12
Q0
Q1
Q2
Q3
Q4
Q5
Q6
Q7
FUNCTIONAL DESCRIPTION
The SN54 / 74LS259 has four modes of operation as shown
in the mode selection table. In the addressable latch mode,
data on the Data line (D) is written into the addressed
latch.The addressed latch will follow the data input with all
non-addressed latches remaining in their previous states. In
the memory mode, all latches remain in their previous state
and are unaffected by the Data or Address inputs.
In the one-of-eight decoding or demultiplexing mode, the
MODE SELECTION
E
L
H
L
H
C
H
H
L
L
MODE
Addressable Latch
Memory
Active HIGH Eight-Channel
Demultiplexer
Clear
C E D A0
L H X X
L L L L
L L H L
L L L H
L L H H
• • •
• • •
• • •
• • •
• • •
L L H H
H H X
H
H
H
H
•
•
•
•
•
H
H
I
L
L
L
•
•
•
•
•
L
L
I
H
L
H
•
•
•
•
•
L
H
X
L
L
H
H
A1
X
L
L
L
L
•
•
•
•
•
H
X
L
L
L
L
•
•
•
•
•
H
H
A2
X
L
L
L
L
Q0
L
L
H
L
L
addressed output will follow the state of the D input with all
other inputs in the LOW state. In the clear mode all outputs are
LOW and unaffected by the address and data inputs.
When operating the SN54 / 74LS259 as an addressable
latch, changing more then one bit of the address could impose
a transient wrong address. Therefore, this should only be
done while in the memory mode.
The truth table below summarizes the operations.
TRUTH TABLE
PRESENT OUTPUT STATES
Q1
L
L
L
L
H
Q2
L
L
L
L
L
Q3
L
L
L
L
L
•
•
•
•
•
L
Q4
L
L
L
L
L
Q5
L
L
L
L
L
Q6
L
L
L
L
L
Q7
L
L
L
L
L
MODE
Clear
Demultiplex
H
X
L
L
L
L
L
QN–1
L
H
QN–1
QN–1
L
L
L
L
L
H
Memory
QN–1
QN–1
L
H
QN–1
QN–1
QN–1
QN–1
QN–1
Addressable
Latch
X = Don’t Care Condition
L = LOW Voltage Level
H = HIGH Voltage Level
QN–1 = Previous Output State
•
•
•
•
•
QN–1
QN–1
L
H
H
H
H
H
QN–1
QN–1
FAST AND LS TTL DATA
5-434
SN54/74LS259
DC CHARACTERISTICS OVER OPERATING TEMPERATURE RANGE
(unless otherwise specified)
Limits
Symbol
VIH
VIL
VIK
VOH
Parameter
Input HIGH Voltage
54
Input LOW Voltage
74
Input Clamp Diode Voltage
54
Output HIGH Voltage
74
54, 74
VOL
Output LOW Voltage
74
Input HIGH Current
0.1
Input LOW Current
Short Circuit Current (Note 1)
Power Supply Current
–20
– 0.4
– 100
36
0.35
0.5
20
IIH
IIL
IOS
ICC
V
µA
mA
mA
mA
mA
2.7
3.5
0.25
0.4
V
V
2.5
– 0.65
3.5
0.8
– 1.5
V
V
Min
2.0
0.7
V
Typ
Max
Unit
V
Test Conditions
Guaranteed Input HIGH Voltage for
All Inputs
Guaranteed Input LOW Voltage for
All Inputs
VCC = MIN, IIN = – 18 mA
VCC = MIN, IOH = MAX, VIN = VIH
or VIL per Truth Table
IOL = 4.0 mA
IOL = 8.0 mA
VCC = VCC MIN,
VIN = VIL or VIH
per Truth Table
VCC = MAX, VIN = 2.7 V
VCC = MAX, VIN = 7.0 V
VCC = MAX, VIN = 0.4 V
VCC = MAX
VCC = MAX
Note 1: Not more than one output should be shorted at a time, nor for more than 1 second.
AC CHARACTERISTICS
(TA = 25°C, VCC = 5.0 V)
Limits
Symbol
tPLH
tPHL
tPLH
tPHL
tPLH
tPHL
tPHL
Parameter
Turn-Off Delay, Enable to Output
Turn-On Delay, Enable to Output
Turn-Off Delay, Data to Output
Turn-On Delay, Data to Output
Turn-Off Delay, Address to Output
Turn-On Delay, Address to Output
Turn-On Delay, Clear to Output
Min
Typ
22
15
20
13
24
18
17
Max
35
24
32
21
38
29
27
Unit
ns
ns
ns
ns
ns
ns
ns
Test Conditions
CL = 15 pF
AC SET-UP REQUIREMENTS
(TA = 25°C, VCC = 5.0 V)
Limits
Symbol
ts
tW
th
th
Input Setup Time
Pulse Width, Clear or Enable
Hold Time, Data
Hold Time, Address
Parameter
Min
20
15
5.0
20
Typ
Max
Unit
ns
ns
ns
ns
FAST AND LS TTL DATA
5-435
SN54/74LS259

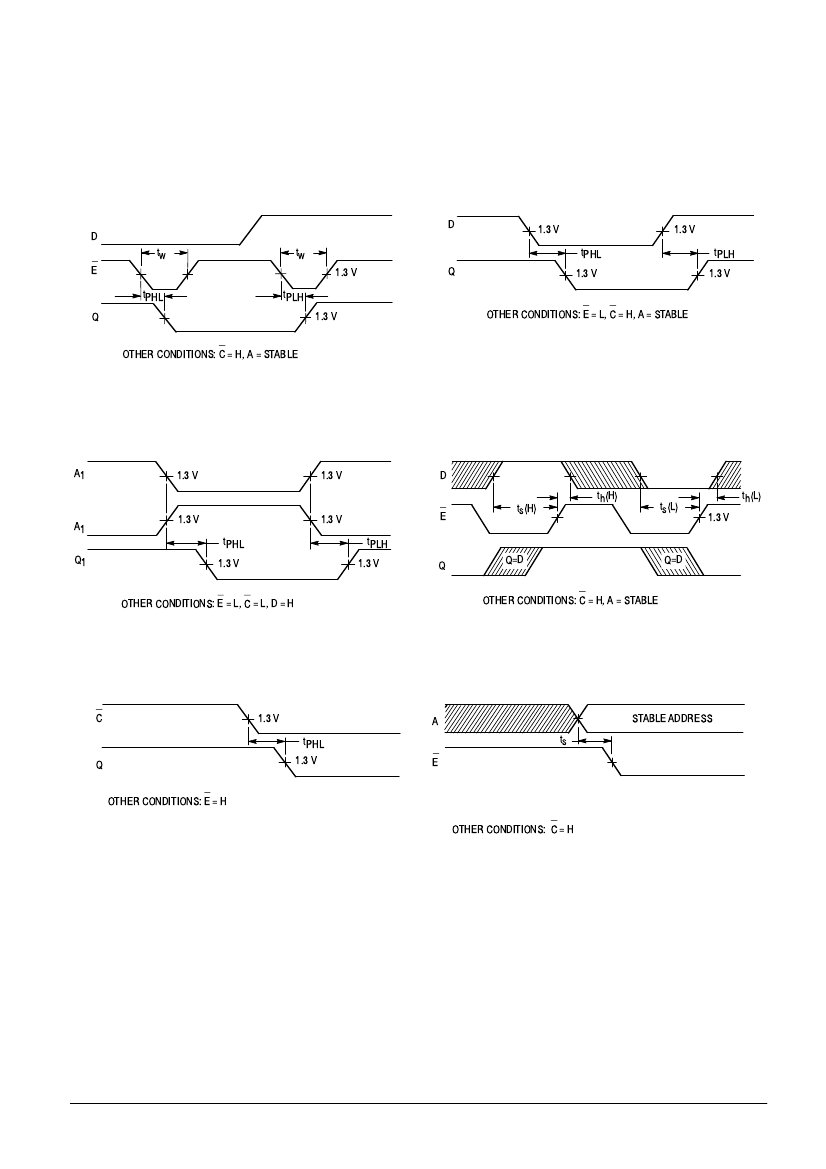

AC WAVEFORMS
D
D
tw
E
tw
1.3 V
Q
1.3 V
1.3 V
tPHL
1.3 V
tPLH
1.3 V
tPHL
Q
tPLH
1.3 V
OTHER CONDITIONS: E = L, C = H, A = STABLE
OTHER CONDITIONS: C = H, A = STABLE
Figure 2. Turn-on and Turn-off Delays,
Data to Output
Figure 1. Turn-on and Turn-off Delays, Enable To
Output and Enable Pulse Width
A1
1.3 V
1.3 V
D
th(H)
th(L)
ts(L)
1.3 V
A1
1.3 V
1.3 V
E
ts(H)
tPHL
Q1
1.3 V
tPLH
1.3 V
Q
Q=D
Q=D
OTHER CONDITIONS: E = L, C = L, D = H
OTHER CONDITIONS: C = H, A = STABLE
Figure 3. Turn-on and Turn-off Delays,
Address to Output
Figure 4. Setup and Hold Time, Data to Enable
C
1.3 V
A
tPHL
ts
E
STABLE ADDRESS
Q
1.3 V
OTHER CONDITIONS: E = H
Figure 5. Turn-on Delay, Clear to Output
OTHER CONDITIONS: C = H
Figure 6. Setup Time, Address to Enable
(See Notes 1 and 2)
NOTES:
1. The Address to Enable Setup Time is the time before the HIGH-to-LOW Enable transition that the Address must be stable so that the correct latch is
addressed and the other latches are not affected.
2. The shaded areas indicate when the inputs are permitted to change for predictable output performance.
FAST AND LS TTL DATA
5-436

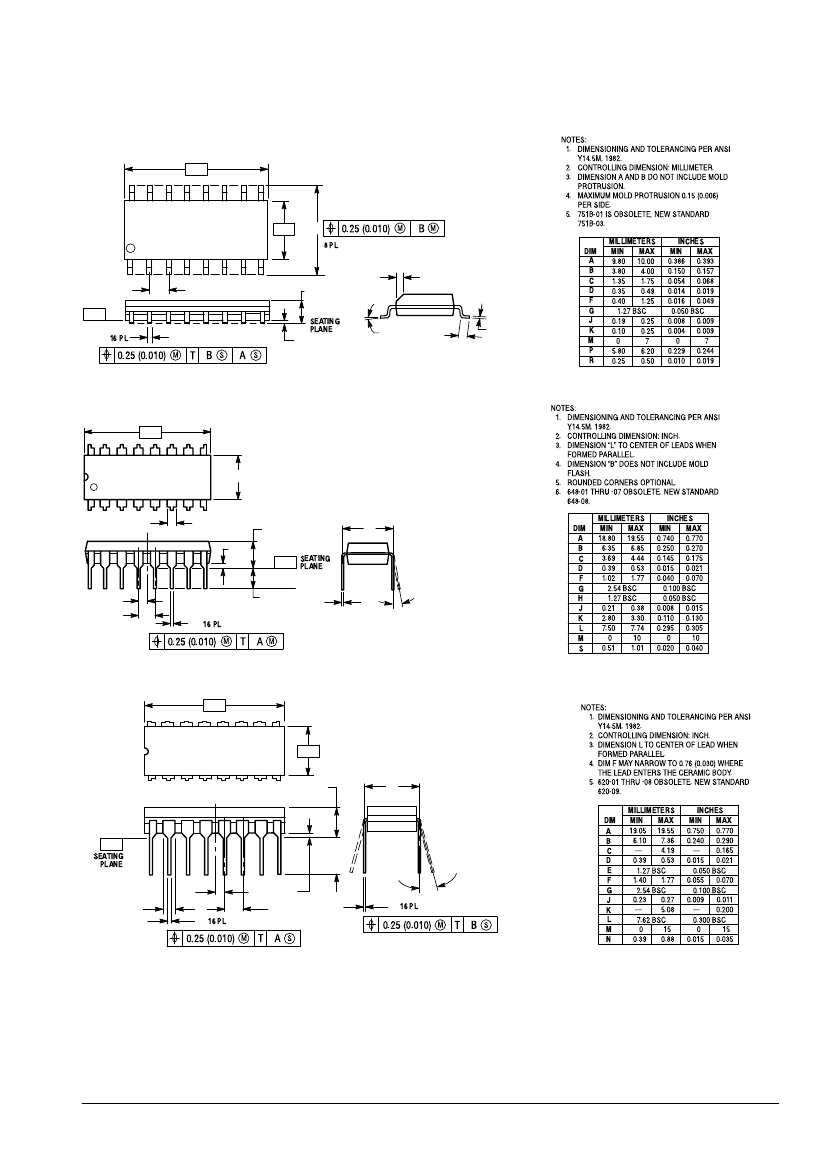

-A-
Case 751B-03 D Suffix
16-Pin Plastic
SO-16
NOTES:
1.
DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2.
3.
CONTROLLING DIMENSION: MILLIMETER.
DIMENSION A AND B DO NOT INCLUDE MOLD
PROTRUSION.
4.
MAXIMUM MOLD PROTRUSION 0.15 (0.006)
PER SIDE.
5.
751B 01 IS OBSOLETE, NEW STANDARD
751B 03.
16
9
-B-
1
8
P
8 PL
0.25 (0.010)
M
B
M
R X 45°
G
-T-
D
16 PL
0.25 (0.010)
M
C
SEATING
PLANE
K
T
B
S
M
F
J
A
S
DIM
A
B
C
D
F
G
J
K
M
P
R
MILLIMETERS
MIN
MAX
9.80
3.80
1.35
0.35
0.40
10.00
4.00
1.75
0.49
1.25
INCHES
MIN
MAX
0.386
0.150
0.054
0.014
0.016
0.393
0.157
0.068
0.019
0.049
1.27 BSC
0.19
0.10
0
0.25
0.25
7
0.050 BSC
0.008
0.004
0
0.009
0.009
7
°
°
°
°
5.80
0.25
6.20
0.50
0.229
0.010
0.244
0.019
Case 648-08 N Suffix
16-Pin Plastic
-A-
16
9
NOTES:
1.
DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2.
3.
CONTROLLING DIMENSION: INCH.
DIMENSION L" TO CENTER OF LEADS WHEN
FORMED PARALLEL.
4.
DIMENSION B" DOES NOT INCLUDE MOLD
FLASH.
5.
6.
ROUNDED CORNERS OPTIONAL.
648 01 THRU 07 OBSOLETE, NEW STANDARD
648 08.
B
1
8
F
S
C
-T-
K
SEATING
PLANE
L
H
G
D
16 PL
0.25 (0.010)
M
J
M
T
A
M
DIM
A
B
C
D
F
G
H
J
K
L
M
S
MILLIMETERS
MIN
MAX
18.80
6.35
3.69
0.39
1.02
19.55
6.85
4.44
0.53
1.77
INCHES
MIN
MAX
0.740
0.250
0.145
0.015
0.040
0.770
0.270
0.175
0.021
0.070
2.54 BSC
1.27 BSC
0.21
2.80
7.50
0
0.38
3.30
7.74
10
0.100 BSC
0.050 BSC
0.008
0.110
0.295
0
0.015
0.130
0.305
10
°
°
°
°
0.51
1.01
0.020
0.040
-A-
16
9
Case 620-09 J Suffix
16-Pin Ceramic Dual In-Line
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
-B-
1
8
3. DIMENSION L TO CENTER OF LEAD WHEN
FORMED PARALLEL.
4. DIM F MAY NARROW TO 0.76 (0.030) WHERE
THE LEAD ENTERS THE CERAMIC BODY.
C
L
5. 620 01 THRU 08 OBSOLETE, NEW STANDARD
620 09.
-T-
SEATING
PLANE
K
E
F
D
16 PL
0.25 (0.010)
M
N
G
T
A
S
M
J
16 PL
0.25 (0.010)
M
T
B
S
DIM
A
B
C
D
E
F
G
J
K
L
M
N
MILLIMETERS
MIN
MAX
19.05
6.10
19.55
7.36
4.19
0.39
0.53
INCHES
MIN
MAX
0.750
0.240
0.770
0.290
0.165
0.015
0.021
1.27 BSC
1.40
1.77
0.050 BSC
0.055
0.070
2.54 BSC
0.23
0.27
5.08
7.62 BSC
0
0.100 BSC
0.009
0.011
0.200
0.300 BSC
0
°
15
°
°
15
°
0.39
0.88
0.015
0.035
FAST AND LS TTL DATA
5-437
