S2GBL20-C ~ S2GBL80-C
Elektronische Bauelemente
Voltage 200V ~ 800V
2.0 Amp Glass Passivited Bridge Rectifiers
RoHS Compliant Product
FEATURES
Ideal for printed circuit board
Low forward voltage drop, high current capability
Reliable low cost construction utilizing molded plastic
technique results in inexpensive product
These are Halogen & Pb Free components
This series is UL recognized under Component Index,
file number E255340
GBL
REF.
A
B
C
D
E
Millimeter
Min.
Max.
19.6
20.6
10.7
11.3
2.3
2.7
12.7
14.2
1.3
1.7
REF.
F
G
H
I
J
Millimeter
Min.
Max.
0.9
1.15
3.3
3.7
4.8
5.3
0.8
1.2
0.3
0.6
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Rating 25°C ambient temperature unless otherwise specified. Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, de-rate current by 20%.)
Part Number
Parameter
Maximum Recurrent Peak Reverse Voltage
Average Rectified Output Current @50H
Z
sine
wave, R-load, T
A
=25°C
Peak Forward Surge Current @
50H
Z
sine wave, 1 cycle, T
A
=25°C
Maximum Peak Forward Voltage
2
Peak Reverse Current
1
I
2
t Rating for Fusing @1ms≤t＜8.3ms,
T
J
=25°C,Rating of per diode
Typical Thermal Resistance(without heat sink)
Typical Thermal Resistance(without heat sink)
Operating and Storage temperature range
Notes：
1. V
RM
=V
RRM
, Pulse measurement, Rating of per diode.
2. I
FM
=1A, Pulse measurement, Rating of per diode
Symbol
S2GBL20-C
S2GBL40-C
S2GBL60-C
S2GBL80-C
Unit
200
400
2
80
0.95
10
34
47
10
150, -40~150
600
800
V
A
A
V
μA
A
2
s
°C/W
°C/W
°C
V
RRM
I
O
I
FSM
V
FM
I
RRM
I
2
t
R
θJA
R
θJL
T
J
,T
STG
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
25-Apr-2013 Rev. B
Page 1 of 2
S2GBL20-C ~ S2GBL80-C
Elektronische Bauelemente
Voltage 200V ~ 800V
2.0 Amp Glass Passivited Bridge Rectifiers

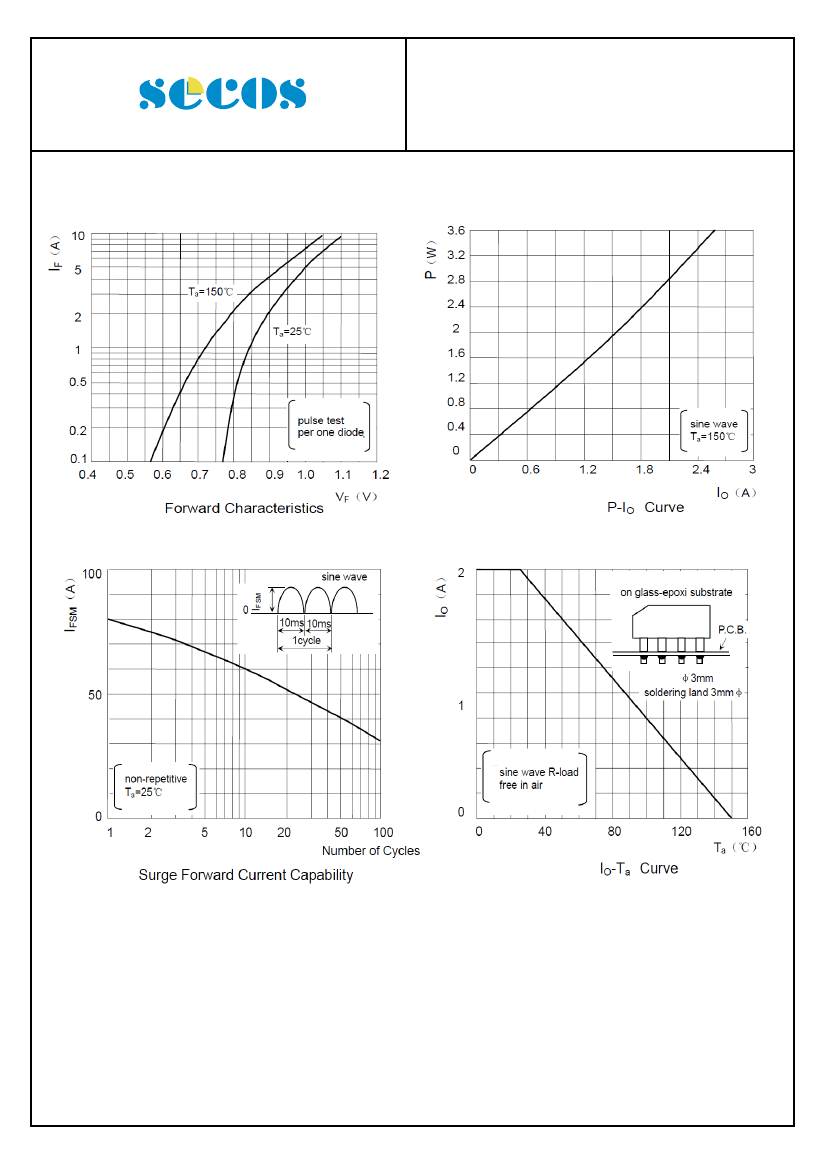

RATINGS AND CHARACTERISTIC CURVES
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
25-Apr-2013 Rev. B
Page 2 of 2
