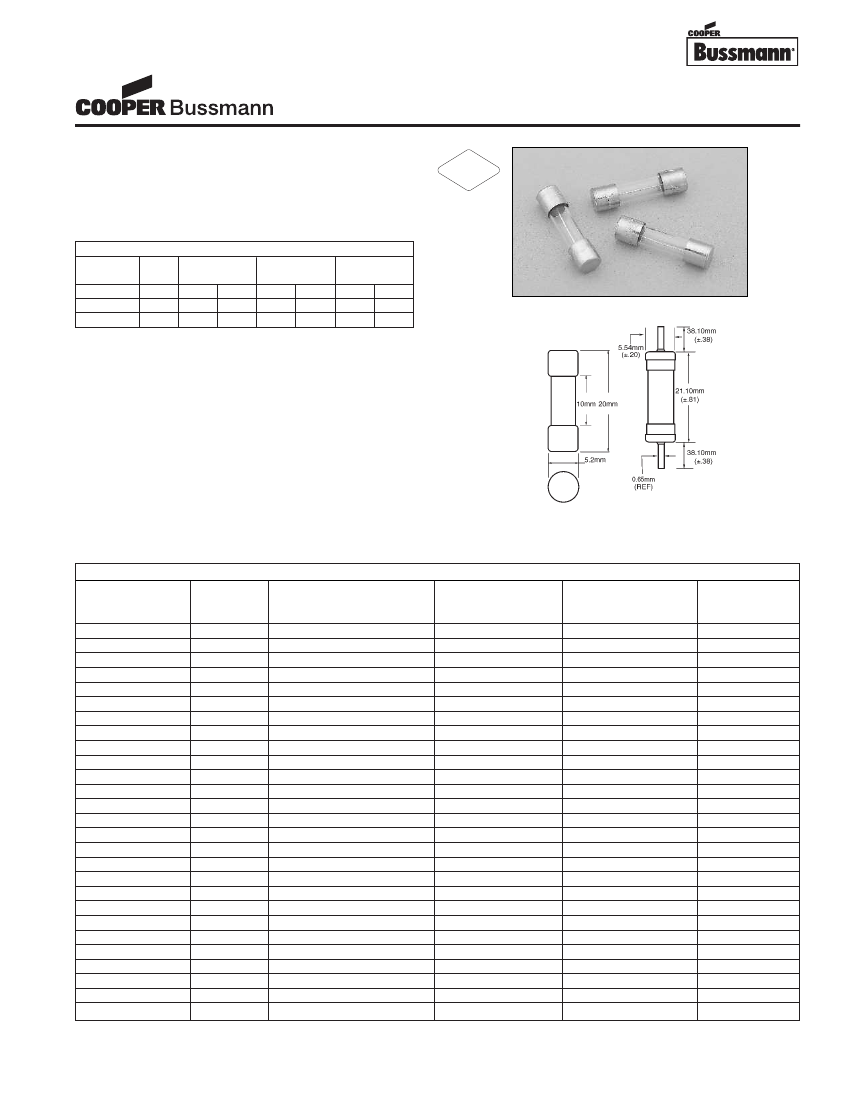

5mm x 20mm Fuses

S506 Series, Time Delay, Glass Tube

Description

• Time delay, low breaking capacity

• Optional axial leads available

• 5mm x 20mm physical size

• Glass tube, nickel-plated brass endcap construction

• Designed to IEC 60127-2 (32mA-10A)

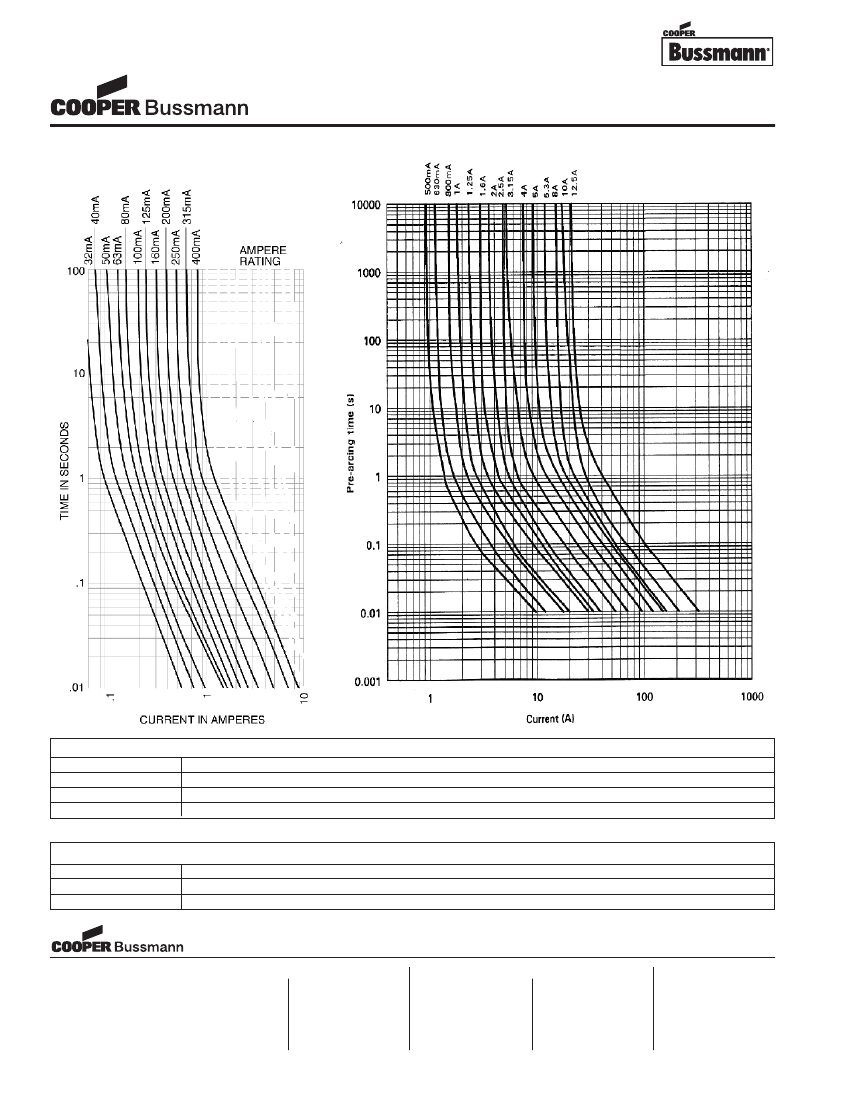

S506 ELECTRICAL CHARACTERISTICS

2.1 In

2.75 In

4 In

10 In

max

min

max

min

max

min

max

32mA-100mA 2 min 200 ms 10 sec 40 ms 3 sec 10 ms 300 ms

125mA-6.3A 2 min 600 ms 10 sec 150 ms 3 sec 20 ms 300 ms

8A-12.5A

2 min 600 ms 10 sec 150 ms 3 sec 20 ms 300 ms

RoHS

2002/95/EC

Dimensions

Drawing Not to Scale

Agency Information

• UL Recognized Card: (32mA-10A) Guide JDYX2,

File E19180

• CSA Component Acceptance: File 53787

• cURus Recognition: Guide JDYX8, File E19180

• Semko Approval, 32mA-10A

• VDE Approval, 32mA-10A

• BSI Approval, 32mA-10A

• IMQ Approval, 32mA-10A

• MITI Approval, 32mA-10A

Ordering

• Specify packaging, product, and option code

• For -R option, drop mA or A from product code

(i.e. S506-2-R)

• Ratings above 6.3A have a 0.8mm diameter lead

• With TR2 packaging code, lead wire length is 19.05mm

SPECIFICATIONS

Product Code

S506-32mA

S506-40mA

S506-50mA

S506-63mA

S506-80mA

S506-100mA

S506-125mA

S506-160mA

S506-200mA

S506-250mA

S506-315mA

S506-400mA

S506-500mA

S506-630mA

S506-800mA

S506-1A

S506-1.25A

S506-1.6A

S506-2A

S506-2.5A

S506-3.15A

S506-4A

S506-5A

S506-6.3A

S506-8A

S506-10A

S506-12.5A

Voltage

Rating

250V

Interrupting Rating

at Rated Voltage (50Hz)

35A

40A

50A

63A

80A

100A

125A

Typical DC

Cold Resistance

(ohms)*

21.7

14.2

9.5

7.1

4.5

2.8

2.0

1.3

1.0

0.66

0.46

0.37

0.268

0.191

0.131

0.064

0.046

0.039

0.029

0.024

0.018

0.013

0.010

0.009

0.007

0.005

0.004

Minimum

Pre-Arching I

Sec) AC†

0.0014

0.0034

0.006

0.012

0.015

0.022

0.034

0.052

0.078

0.17

0.41

0.61

0.67

1.0

2.2

2.7

6.7

9.7

150

214

192

420

812

Maximum

Voltage

Drop (mV)‡

1050

920

800

760

580

490

390

320

340

270

250

210

190

170

150

* DC Cold Resistance (Measured at <10% of rated current)

† Minimum Pre-Arching I

t (Measured at 10 In and rated voltage)

‡ Maximum Voltage Drop (Voltage drop was measured at 20°C ambient temperature at rated current)
