CWR-282-25-0022 datasheet, PDF

Datasheet> All Categories > The connector> The connector> CWR-282-25-0022

CWR-282-25-0022: DescriptionD Type Connector, 25 Contact(s), Male, 0.108 inch Pitch, Hole .112-.124, Receptacle,; CategoryThe connector The connector; File Size335KB，2 Pages; ManufacturerCW Industries; Websitehttp://www.cwind.com; Environmental Compliance

Download Datasheet Parametric Compare View All

CWR-282-25-0022 Overview

D Type Connector, 25 Contact(s), Male, 0.108 inch Pitch, Hole .112-.124, Receptacle,

CWR-282-25-0022 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.53 inch
subject depth	0.8 inch
body length	2.092 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
contact mode	STAGGERED
Contact style	RND PIN-SKT
MIL compliance	YES
Manufacturer's serial number	CWR
Plug contact pitch	0.108 inch
Match contact row spacing	0.11 inch
Installation option 1	HOLE .112-.124
Installation option 2	NON-THREADED
Number of rows loaded	2
Plating thickness	50u inch
Guideline	UL, CSA
reliability	MIL-C-24308
Shell surface	TIN
Shell material	STEEL
Total number of contacts	25
Maximum wire diameter	28 AWG
Minimum wire diameter	30 AWG

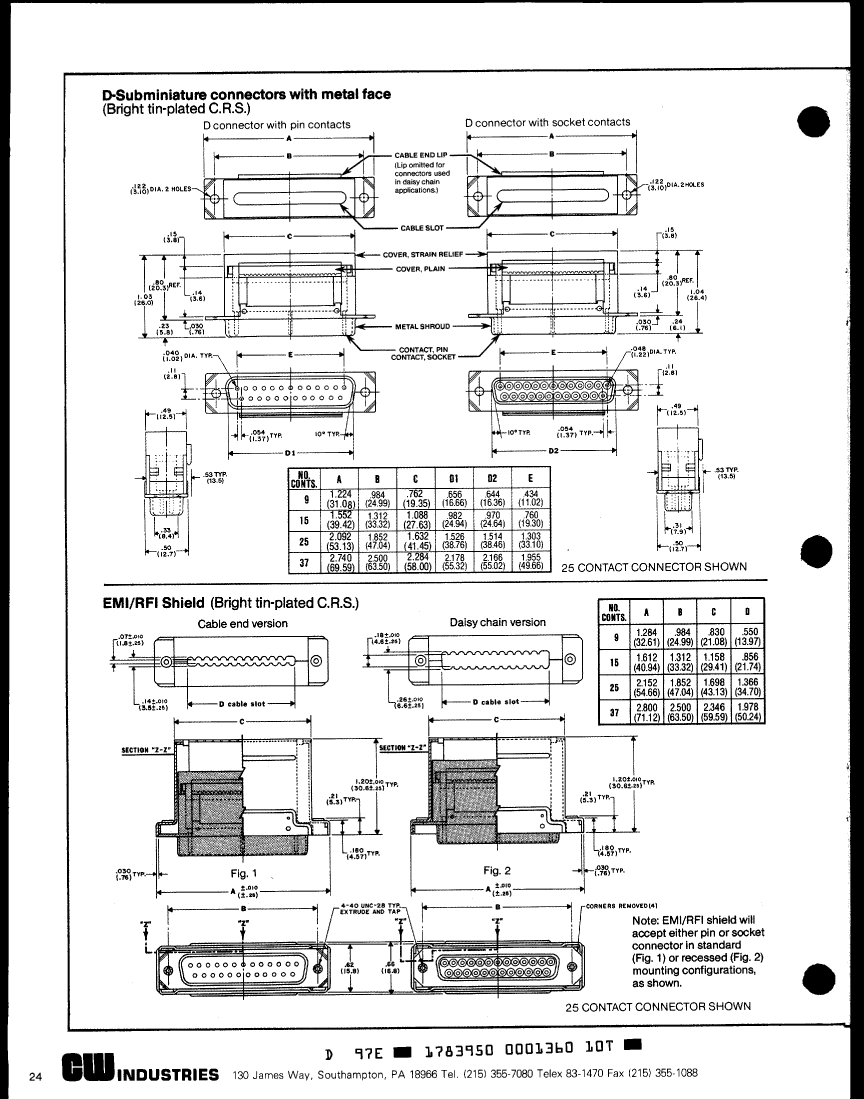

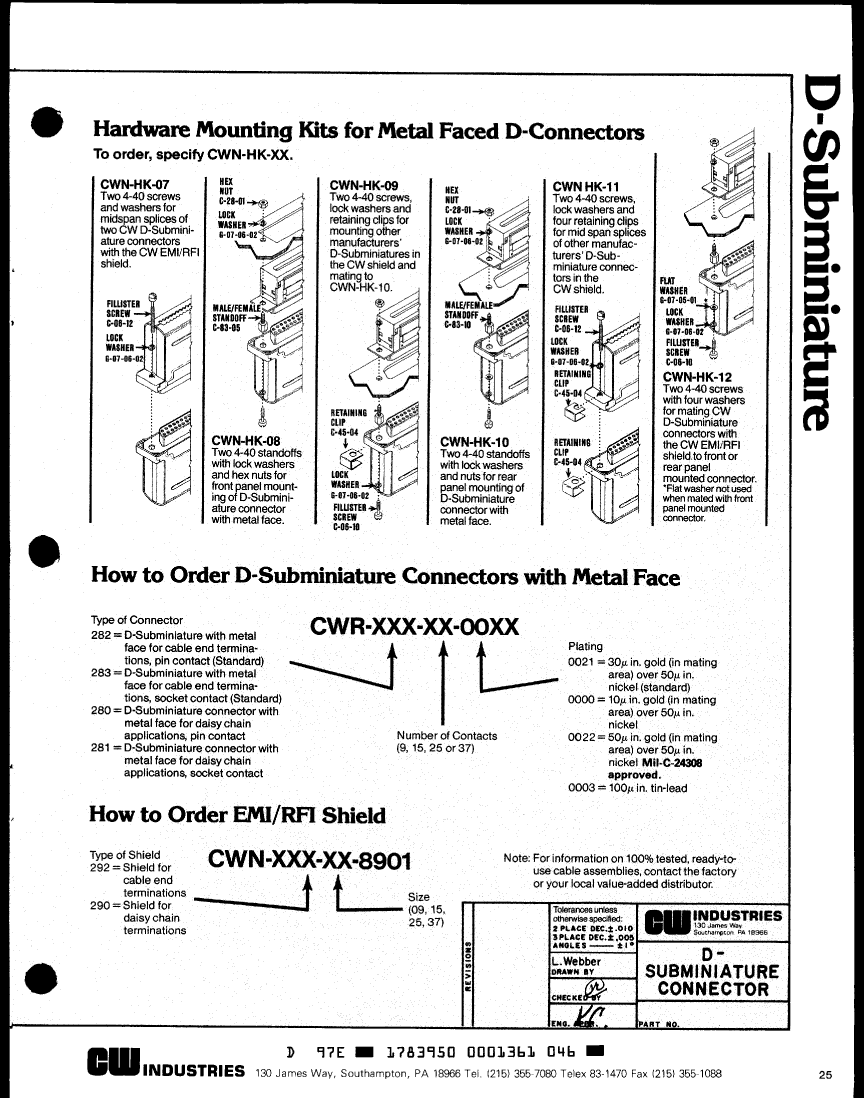

Preview

Download Datasheet

View All

CWR-282-25-0022 Related Products

	CWR-282-25-0022	CWR-281-09-0022	CWR-283-25-0003	CWR-283-25-0022	CWR-281-15-0021	CWR-283-15-0022	CWR-283-09-0022	CWR-282-09-0022	CWR-280-25-0022	CWR-282-25-0003
Description	D Type Connector, 25 Contact(s), Male, 0.108 inch Pitch, Hole .112-.124, Receptacle,	D Type Connector, 9 Contact(s), Female, 0.108 inch Pitch, Hole .112-.124, Plug,	D Type Connector, 25 Contact(s), Female, 0.108 inch Pitch, Hole .112-.124, Plug,	D Type Connector, 25 Contact(s), Female, 0.108 inch Pitch, Hole .112-.124, Plug,	D Type Connector, 15 Contact(s), Female, 0.108 inch Pitch, Hole .112-.124, Plug,	D Type Connector, 15 Contact(s), Female, 0.108 inch Pitch, Hole .112-.124, Plug,	D Type Connector, 9 Contact(s), Female, 0.108 inch Pitch, Hole .112-.124, Plug,	D Type Connector, 9 Contact(s), Male, 0.108 inch Pitch, Hole .112-.124, Receptacle,	D Type Connector, 25 Contact(s), Male, 0.108 inch Pitch, Hole .112-.124, Receptacle,	D Type Connector, 25 Contact(s), Male, 0.108 inch Pitch, Hole .112-.124, Receptacle,
Is it Rohs certified?	conform to	conform to	incompatible	conform to	conform to	conform to	conform to	conform to	conform to	incompatible
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant	compli	compli	compliant	compliant
body width	0.53 inch	0.53 inch	0.53 inch	0.53 inch	0.53 inch	0.53 inch	0.53 inch	0.53 inch	0.53 inch	0.53 inch
subject depth	0.8 inch	0.8 inch	0.8 inch	0.8 inch	0.8 inch	0.8 inch	0.8 inch	0.8 inch	0.8 inch	0.8 inch
body length	2.092 inch	1.224 inch	2.092 inch	2.092 inch	1.552 inch	1.552 inch	1.224 inch	1.224 inch	2.092 inch	2.092 inch
Body/casing type	RECEPTACLE	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON NI	AU ON NI	SN-PB	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	SN-PB
Contact point gender	MALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	MALE	MALE	MALE
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
MIL compliance	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Manufacturer's serial number	CWR	CWR	CWR	CWR	CWR	CWR	CWR	CWR	CWR	CWR
Plug contact pitch	0.108 inch	0.108 inch	0.108 inch	0.108 inch	0.108 inch	0.108 inch	0.108 inch	0.108 inch	0.108 inch	0.108 inch
Match contact row spacing	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch
Installation option 1	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124
Installation option 2	NON-THREADED	NON-THREADED	NON-THREADED	NON-THREADED	NON-THREADED	NON-THREADED	NON-THREADED	NON-THREADED	NON-THREADED	NON-THREADED
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Plating thickness	50u inch	50u inch	100u inch	50u inch	30u inch	50u inch	50u inch	50u inch	50u inch	100u inch
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	MIL-C-24308	MIL-C-24308	MIL-C-83503	MIL-C-24308	MIL-C-83503	MIL-C-24308	MIL-C-24308	MIL-C-24308	MIL-C-24308	MIL-C-83503
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Total number of contacts	25	9	25	25	15	15	9	9	25	25
Maximum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG
Minimum wire diameter	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG
Maker	-	-	CW Industries	CW Industries	CW Industries	CW Industries	CW Industries	CW Industries	-	-
