DBCIDCC5A22AGB1

Description
HEADER CONNECTOR,PCB MNT,RECEPT,22 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,LOCKING,BLACK
CategoryThe connector    The connector
File Size78KB,1 Pages
ManufacturerAlpha 3 Manufacturing
Environmental Compliance
Download Datasheet Parametric View All

DBCIDCC5A22AGB1 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,22 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,LOCKING,BLACK

DBCIDCC5A22AGB1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.236 inch
body length1.484 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedGOLD
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Insulation resistance3000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED NYLON
Manufacturer's serial numberC5A
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation option 1LOCKING
Installation option 2SHORT LATCH
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Plating thicknessFLASH inch
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts22
T•P
Industry compatible
Competitively priced
Various Plating contacts available
2.00mm pitch
Long or Short Latch
SPECIFICATION
Material & Finish
Contact Material:
Insulator Material:
Current Rating:
Brass
Nylon 6T, glass reinforced, rated UL 94V-0
1 Amp
30M Ω Max.
3000M Ω Min.
Position
10
12
14
16
20
22
24
26
30
34
40
44
50
68
A
25.7
27.7
29.7
31.7
35.7
37.7
39.7
41.7
45.7
49.7
55.7
59.7
65.7
83.7
B
8.0
10.0
12.0
14.0
18.0
20.0
22.0
24.0
28.0
32.0
38.0
42.0
48.0
66.0
C
15.8
17.8
19.8
21.8
25.8
27.8
29.8
31.8
35.8
39.8
45.8
49.8
55.8
73.8
Contact Resistance:
Insulator Resistance:
Dielectric Withstanding
Voltage:
500V AC for One Minute
-40°C to + 105°C
Operating Temperature:

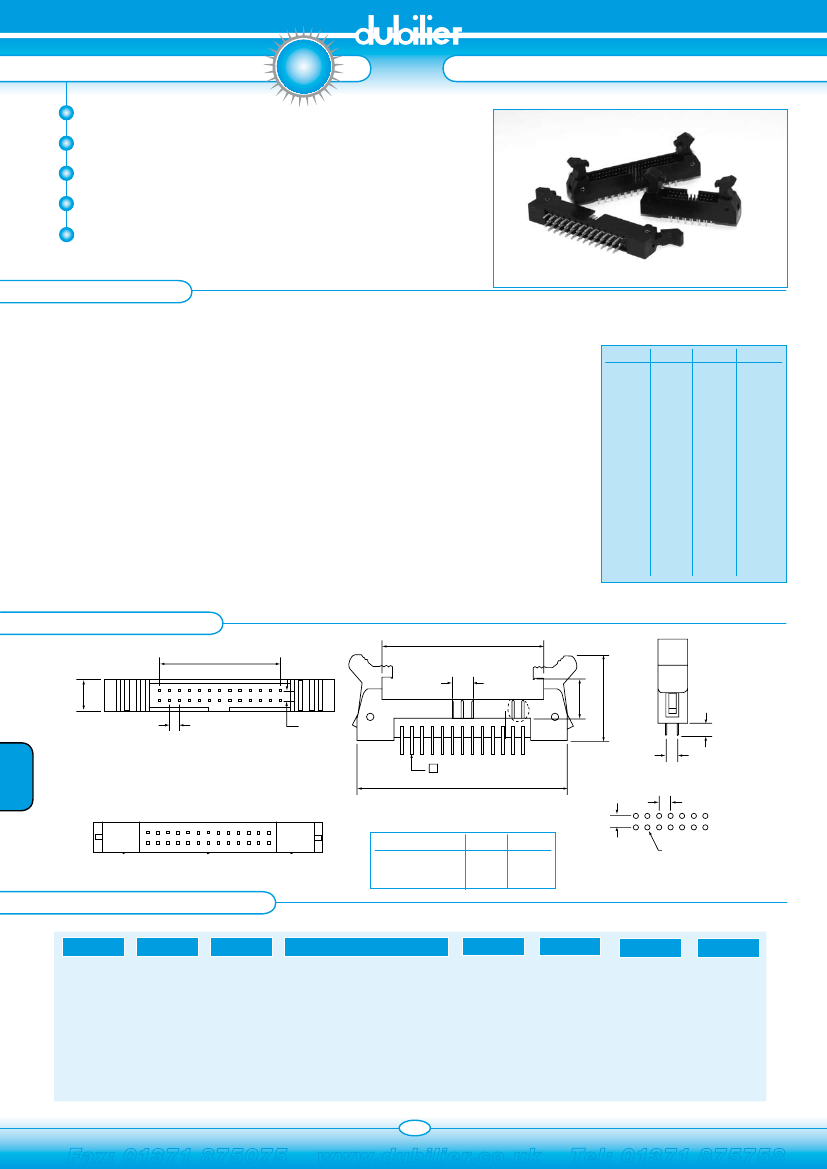

OUTLINE DRAWING
C
6.0
2.0
2.0
ORDERING INFORMATION
DBC
Dubilier
Connectors
IDC
IDC
Connector
C5A
Series
10=10way
12=12way
14=14way
16=16way
20=20way
22=22way
Fax: 01371 875075
DU
RO
C
IDC
NEW
DU
RO
C
T
•P
C
4.0
SHROUDED LATCHED HEADER 2.00mm
Y
X
3.0
SECTION 15
0.5*0.5
A
2.0
2.0
2.0
ACCESSORIES
L
ong Latch
S
hort Latch
X
19.7
16.9
Y
11.5
8.7
Ø0.81±0.05
RECOMMENDED P.C.B LAYOUT
26
Nº of Ways
26=26way
30=30way
34=34way
40=40way
44=44way
50=50way
68=68way
A
Contact Material
A=Brass
G
Contact Plating
G= Gold Flash
S=Selective
*=Other Plating
available
A
A = Lomg Latch
B = Short Latch
1
Colour
1=Black
330
www.dubilier.co.uk
Tel: 01371 875758
