SB520 thru SB5200

SCHOTTKY BARRIER RECTIFIERS

REVERSE VOLTAGE -

20

to

200

Volts

FORWARD CURRENT -

5.0

Amperes

FEATURES

Metal-Semiconductor junction with guard ring

Epitaxial construction

Low forward voltage drop

High current capability

The plastic material carries UL recognition 94V-0

For use in low voltage,high frequency inverters,free

wheeling,and polarity protection applications

A

DO-201AD

B

A

C

D

MECHANICAL DATA

Case : JEDEC DO-201AD molded plastic

Polarity : Color band denotes cathode

Weight : 1.071 grams

Mounting position : Any

Dim.

A

B

C

DO-201AD

Min.

Max.

25.4

8.50

1.20

-

9.50

1.30

5.00

5.60

D

All Dimensions in millimeter

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 ambient temperature unless otherwise specified.

Single phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%

CTC0081 Ver. 5.0

1

of 2

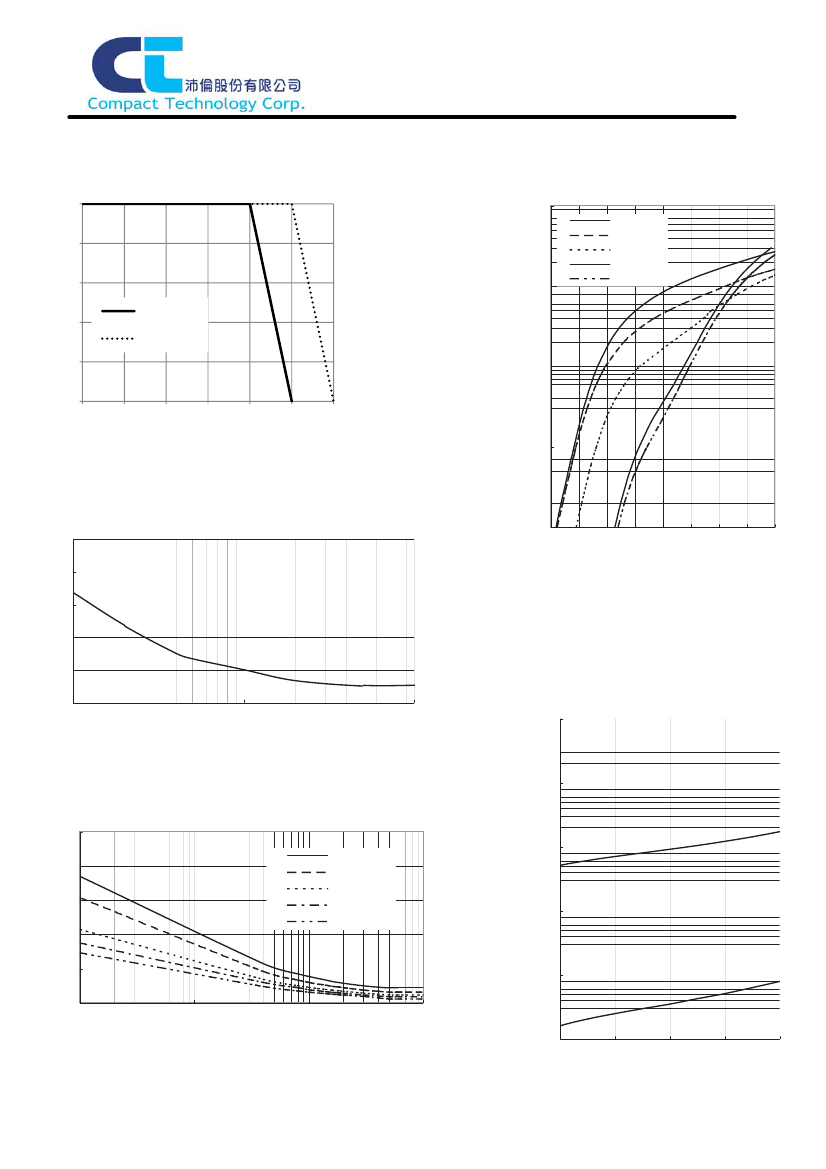

SB520 thru SB5200

SB5150 Related Products

	SB5150	SB520_15	SB5200	SB550	SB5100	SB530	SB540	SB560	SB580
Description	5 A, 150 V, SILICON, RECTIFIER DIODE, DO-201AD	5 A, 150 V, SILICON, RECTIFIER DIODE, DO-201AD	5 A, 150 V, SILICON, RECTIFIER DIODE, DO-201AD	5 A, 50 V, SILICON, RECTIFIER DIODE, DO-201AD	5 A, 100 V, SILICON, RECTIFIER DIODE, DO-201	5 A, 30 V, SILICON, RECTIFIER DIODE, DO-201AD	5 A, 40 V, SILICON, RECTIFIER DIODE, DO-201AD	RECTIFIER DIODE	5 A, 80 V, SILICON, RECTIFIER DIODE, DO-201AD
state	-	-	-	TRANSFERRED	ACTIVE	DISCONTINUED	ACTIVE	ACTIVE	-
Diode type	-	-	-	rectifier diode	rectifier diode	rectifier diode	rectifier diode	RECTIFIER DIODE	-
