Product Description
Sirenza Microdevices’ SBB-2089 is a high performance InGaP HBT MMIC
amplifier utilizing a Darlington configuration with an active bias network.
The active bias network provides stable current over temperature and
process Beta variations. Designed to run directly from a 5V supply, the
SBB-2089 does not require a dropping resistor as compared to typical
Darlington amplifiers. The SBB-2089 product is designed for high linearity
5V gain block applications that require small size and minimal external
components. It is internally matched to 50 ohms.
The matte tin finish on Sirenza’s lead-free package utilizes a post annealing
process to mitigate tin whisker formation and is RoHS compliant per EU
Directive 2002/95. This package is also manufactured with green molding
compounds that contain no antimony trioxide nor halogenated fire retardants.
SBB-2089
SBB-2089Z
Pb
RoHS Compliant
&
Green
Package
50 - 850 MHz, Cascadable
Active Bias InGaP/GaAs HBT MMIC Amplifier
Product Features
•
•
•
•
•
•
•
Available in Lead Free, RoHS compliant, & Green packaging
IP3 = 42.8 dBm @ 240MHz
P1dB = 20.8 dBm @ 500MHz
Single Fixed 5V Supply
Robust 1000V ESD, Class 1C
Patented Thermal Design & Patent Pending Bias Circuit
Low Thermal Resistance

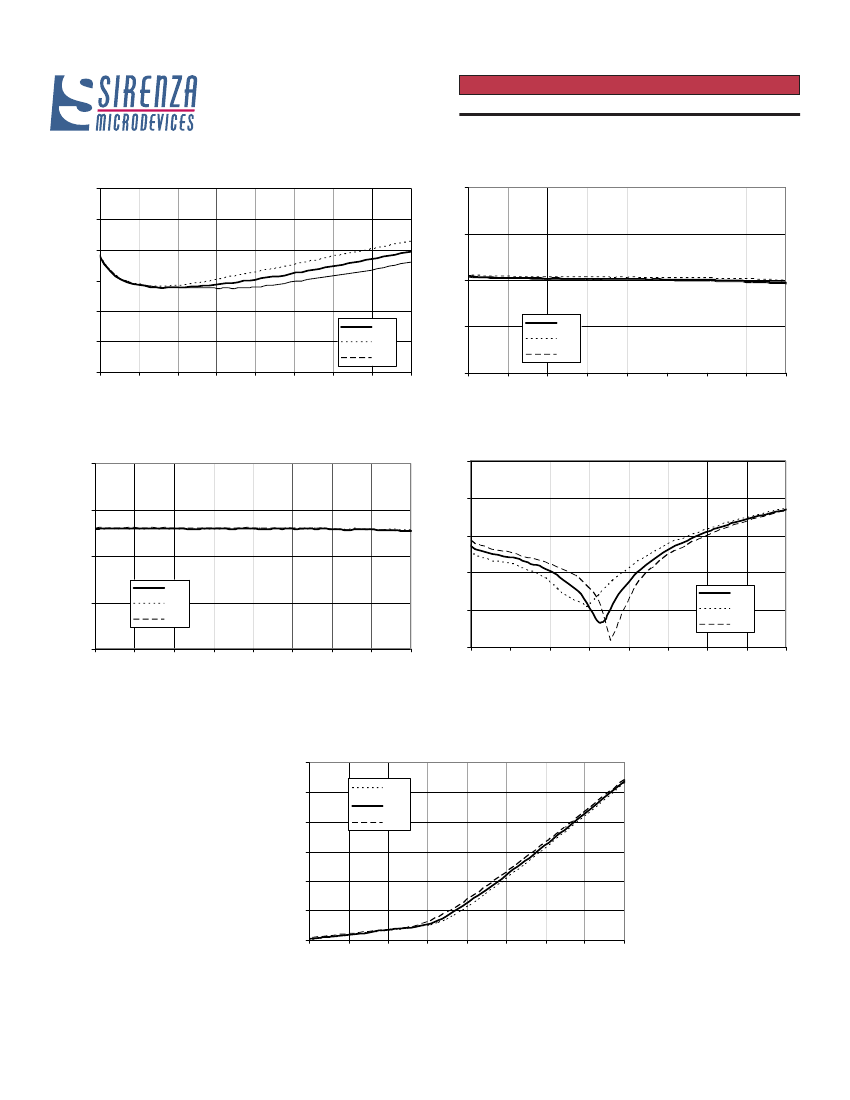

Gain & Return Loss vs. Frequency (w/ App. Ckt.)
30
20
10
0
dB
-10
-20
-30
-40
-50
50
Symbol
S21
S11
•
MSL 1 moisture rating
Applications
S22
150
250
350
450
550
Frequency (MHz)
Parameters
650
750
850
Units
•
Receiver IF Amplifier
•
Cellular, PCS, GSM, UMTS
•
Wireless Data, Satellite Terminals
Frequency
Min.
Typ.
Max.
S
21
Small Signal Gain
dB
70 MHz
240 MHz
400 MHz
70 MHz
240 MHz
400 MHz
70 MHz
240 MHz
400 MHz
18.5
18.5
20
20
20
20
20
21
41
43
41
50 - 850
21.5
21.5
P
1dB
Output Power at 1dB Compression
dBm
18.5
IP
3
Bandwidth
IRL
ORL
S
12
NF
V
D
I
D
R
TH
, j-l
Test Conditions:
Third Order Intercept Point
S
11
, S
22
: Minimum 10dB Return Loss (typ.)
Input Return Loss
Output Return Loss
Reverse Isolation
Noise Figure
Device Operating Voltage
Device Operating Current
Thermal Resistance (junction - lead)
V
D
= 5V
T
L
= 25°C
I
D
= 90mA Typ.
Z
S
= Z
L
= 50 Ohms
dBm
MHz
dB
dB
dB
dB
V
mA
°C/W
39
70 -500MHz
70 -500MHz
70 -500MHz
500 MHz
15
11
20
14
22
2.7
5
3.7
5.3
98
82
90
48.8
OIP
3
Tone Spacing = 1MHz, Pout per tone = 0 dBm
Tested with Bias Tees
The information provided herein is believed to be reliable at press time. Sirenza Microdevices assumes no responsibility for inaccuracies or omissions. Sirenza Microdevices assumes no responsibility for the use of this
information, and all such information shall be entirely at the user’s own risk. Prices and specifications are subject to change without notice. No patent rights or licenses to any of the circuits described herein are implied or
granted to any third party. Sirenza Microdevices does not authorize or warrant any Sirenza Microdevices product for use in life-support devices and/or systems. Copyright 2001 Sirenza Microdevices, Inc.. All worldwide rights
reserved.
303 S. Technology Ct.
Broomfield, CO 80021
Phone: (800) SMI-MMIC
1
http://www.sirenza.com
EDS-104005 Rev C
SBB-2089 50-850 MHz Cascadable MMIC Amplifier

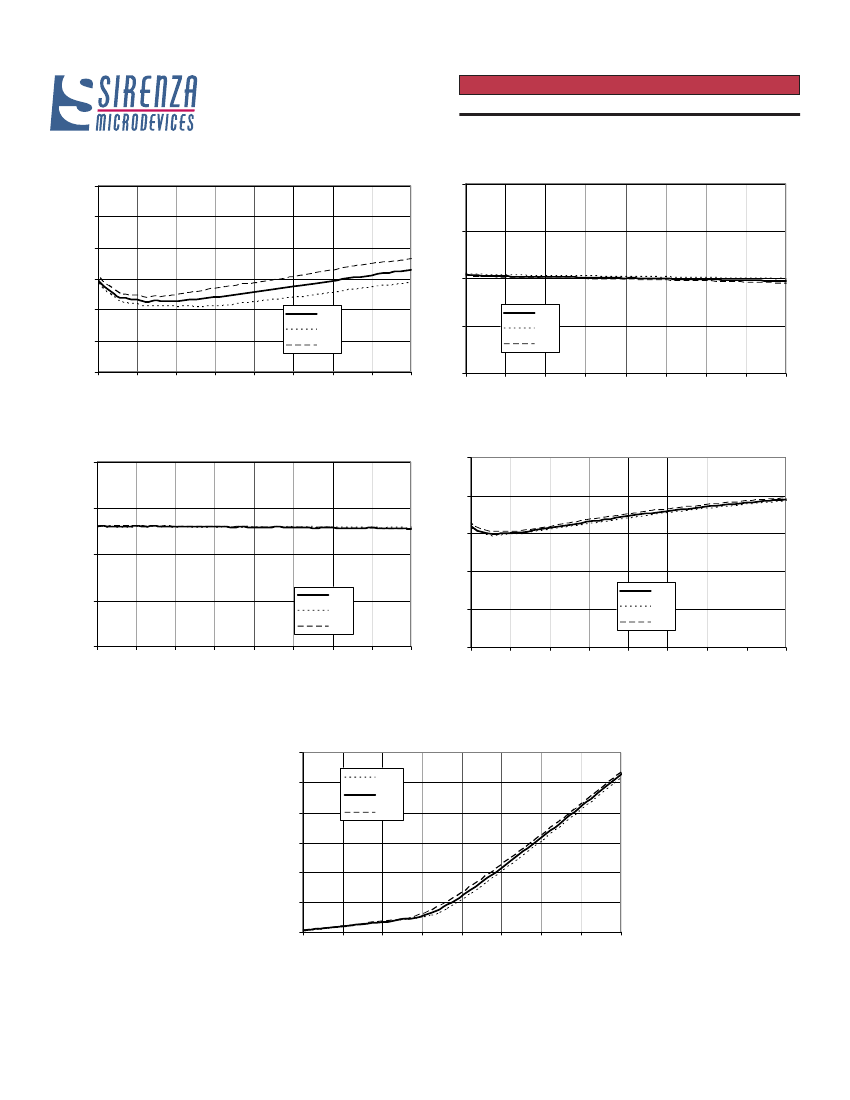

Typical RF Performance at Key Operating Frequencies (With Application Circuit)
Frequency (MHz)
Symbol
Parameter
Unit
50
70
100
240
400
500
850
S
21
OIP
3
P
1dB
IRL
ORL
S
12
NF
Small Signal Gain
Output Third Order Intercept Point
Output Power at 1dB Compression
Input Return Loss
Output Return Loss
Reverse Isolation
Noise Figure
VCC = 5V
T
L
= 25°C
I
D
= 90mA Typ.
Z
S
= Z
L
= 50 Ohms
dB
dBm
dBm
dB
dB
dB
dB
20
40
20
15
21
22
3.1
20
40
20
18
23
22
2.9
20
41
20
19
24
22
2.7
20
42
20
20
27
22
2.6
20
41
20
20
34
22
2.7
20
40
20
19
30
22
2.8
20
35
19
16
14
22
2.9
Test Conditions:
OIP
3
Tone Spacing = 1MHz, Pout per tone = 0 dBm
6
5
4
dB
3
2
Noise Figure vs. Frequency
Data on Charts taken with App. Ckt.
25C
1
0
50
150
250
350
450
550
Frequency (MHz)
650
-40C
85C
25
P1dB vs. Frequency
750
850
20
dBm
15
25C
50
45
OIP
3
vs. Frequency
10
-40C
85C
5
dBm
40
35
25C
50
150
250
350
450
550
Frequency (MHz)
650
750
850
30
25
50
150
250
-40C
85C
350
450
550
Frequency (MHz)
650
750
850
303 S. Technology Ct.
Broomfield, CO 80021
Phone: (800) SMI-MMIC
2
http://www.sirenza.com
EDS-104005 Rev C
SBB-2089 50-850 MHz Cascadable MMIC Amplifier

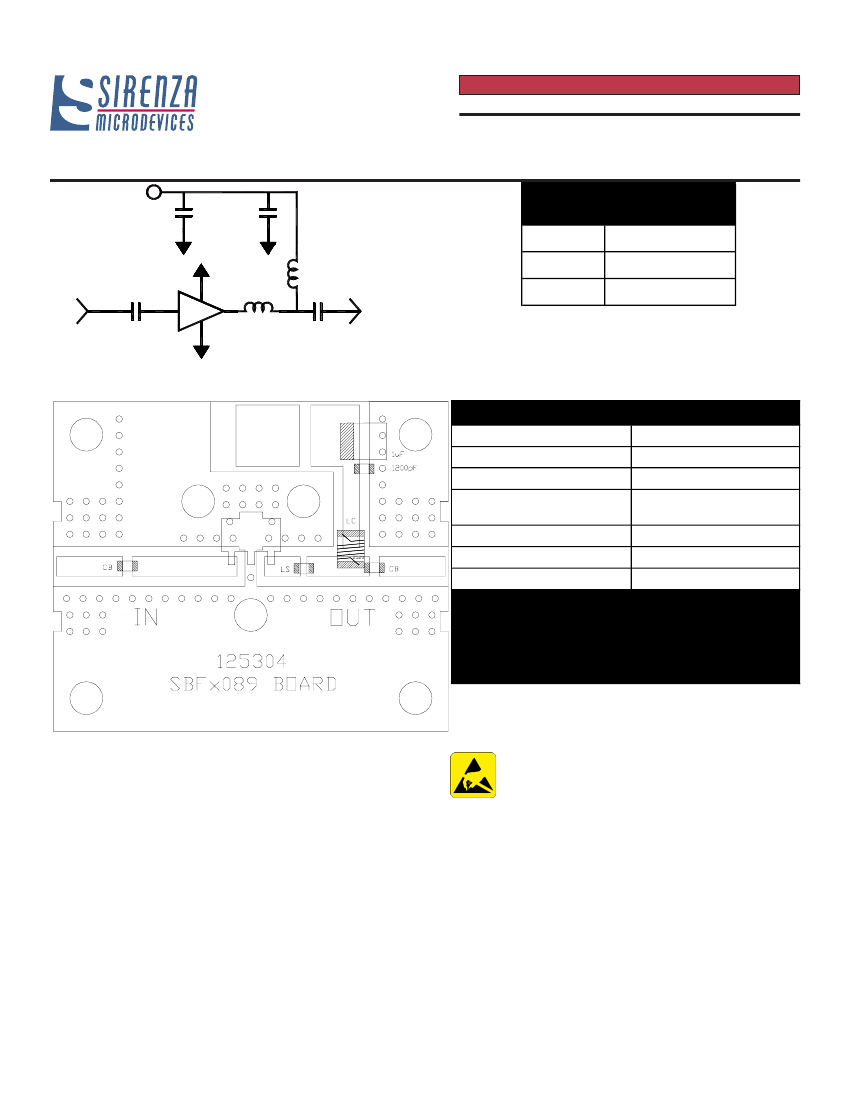

Application Schematic
Vs
1uF
1200pF
Application Circuit Element Values
Reference
Designator
Frequency (MHz)
50 to 850
C
B
4
RF in
Cb
1
SBB-2089
8200pF
1200nH LS Coilcraft
2.7nH Toko
Lc
3
Ls
Cb
RF out
L
C
L
S
2
Evaluation Board Layout
Absolute Maximum Ratings
Parameter
Ma. Dvice Current (I
D
)
Max Device Voltage (V
D
)
Max. RF Input Power
Max. Operating Dissipated
Power
Max. Junction Temp. (T
J
)
Operating Temp. Range (T
L
)
Max. Storage Temp.
+
Absolute Limit
110 mA
5.5 V
+12 dBm
0.61 W
+150°C
-40°C to +85°C
+150°C
Operation of this device beyond any one of these limits may cause
permanent damage. For reliable continuous operation, the device
voltage and current must not exceed the maximum operating
values specified in the table on page one.
Bias Conditions should also satisfy the following expression:
I
D
V
D
< (T
J
- T
L
) / R
TH
, j-l
T
L
=T
LEAD
Mounting Instructions
1. Solder the copper pad on the backside of the device package to
the ground plane.
2. Use a large ground pad area with many plated through-holes as
shown.
3. We recommend 1 or 2 ounce copper. Measurement for this
datasheet were made on a 31 mil thick FR-4 board with 1
ounce copper on both sides.
ESD Class 1C
Appropriate precautions in handling, packaging and testing
devices must be observed.
MSL
(Moisture Sensitivity Level)
Rating: Level 1
303 S. Technology Ct.
Broomfield, CO 80021
Phone: (800) SMI-MMIC
5
http://www.sirenza.com
EDS-104005 Rev C
