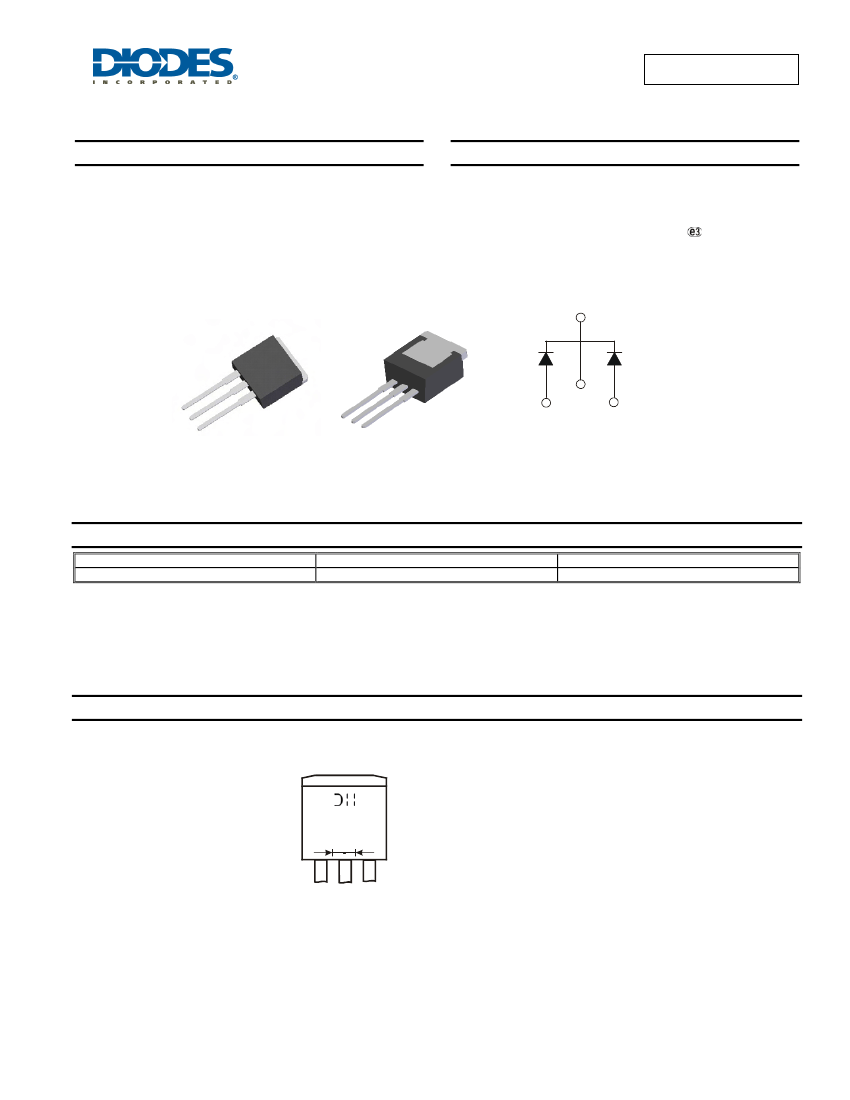

SBR10150CTE
10A SBR
®
SUPER BARRIER RECTIFIER
Features
•
•
•
•
•
•
Low Forward Voltage Drop
Excellent High Temperature Stability
Patented Super Barrier Rectifier Technology
Soft, Fast Switching Capability
150ºC Operating Junction Temperature
Lead Free, RoHS Compliant (Note 1)
Mechanical Data
•
•
•
•
Case: TO262
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 1.355 grams (approximate)
TO262
Top View
Bottom View
Common
1
Cathode
3
Anode
Anode
Package Pin Out
Configuration
2
Ordering Information
(Note 2)
Part Number
SBR10150CTE
Notes:
Case
TO262
Packaging
50 pieces/tube
1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes.
2. For packaging details, go to our website at http://www.diodes.com.
Marking Information
SBR10150CTE
YYWW AB
SBR10150CTE = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 08 = 2008)
WW = Week (01 - 53)
SBR is a registered trademark of Diodes Incorporated.
SBR10150CTE
Document number: DS31497 Rev. 4 - 2
1 of 3
www.diodes.com
November 2011
© Diodes Incorporated

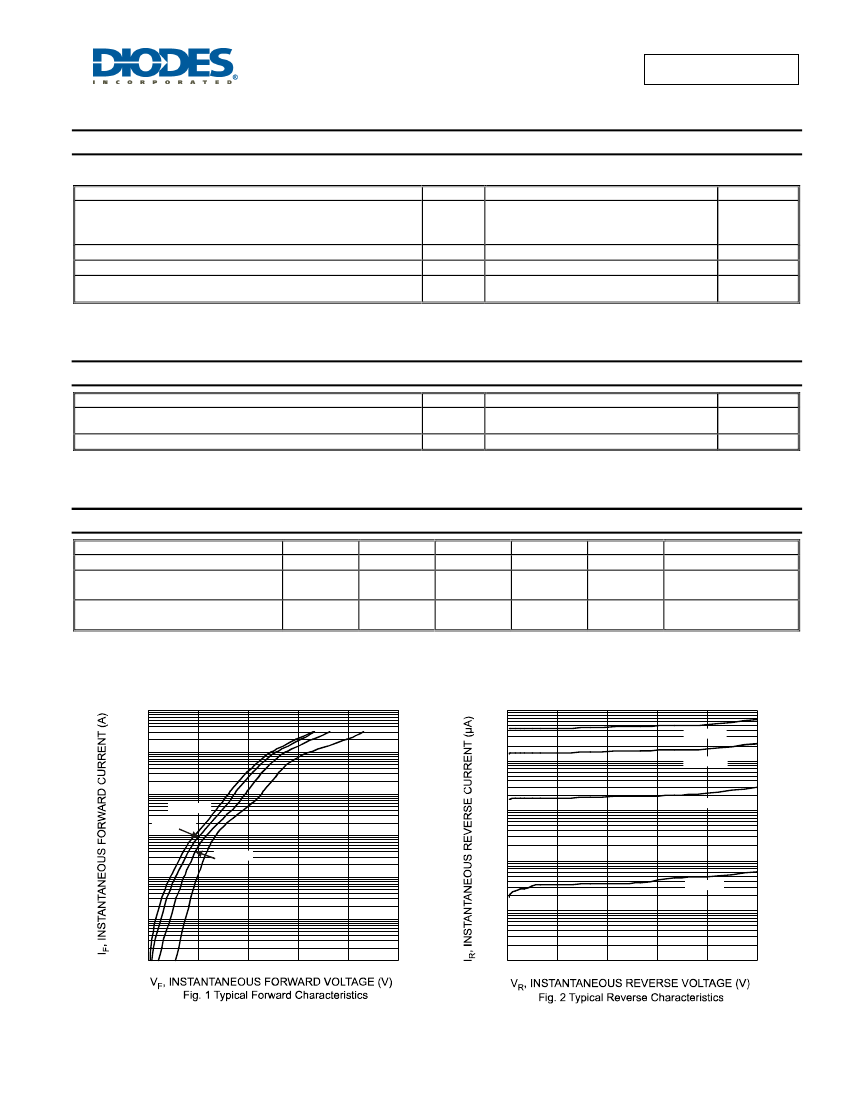

SBR10150CTE
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Symbol
V
RRM
V
RWM
V
RM
V
R(RMS)
I
O
I
FSM
Value
150
106
10
100
Unit
V
V
A
A
Thermal Characteristics
@T
A
= 25°C unless otherwise specified
Characteristic
Maximum Thermal Resistance (per leg)
Thermal Resistance Junction to case (Note 3)
Operating and Storage Temperature Range
Symbol
R
θ
JC
T
J
, T
STG
Value
2.2
-55 to +150
Unit
ºC/W
ºC
Electrical Characteristics
@T
A
= 25°C unless otherwise specified
Characteristic
Reverse Breakdown Voltage (Note 4)
Forward Voltage Drop (per leg)
Leakage Current (Note 4)
Notes:
Symbol
V
(BR)R
V
F
I
R
Min
150
-
-
-
Typ
-
-
0.69
-
-
Max
-
0.92
0.79
0.25
25
Unit
V
V
mA
mA
Test Condition
I
R
= 0.25mA
I
F
= 5A, T
J
= 25ºC
I
F
= 5A, T
J
= 125ºC
V
R
= 150V, T
J
= 25ºC
V
R
= 150V, T
J
= 125ºC
3. Using heatsink (by Black Aluminum, 45mm x 20mm x 12mm)
4. Short duration pulse test used to minimize self-heating effect.
100
1,000
T
A
= 150°C
10
100
T
A
= 125°C
1
T
A
= 150°C
T
A
= 125°C
10
T
A
= 85°C
0.1
T
A
= 85°C
1
T
A
= 25°C
0.01
T
A
= 25°C
0.001
0.1
0.0001
0.01
0
0.3
0.6
0.9
1.2
1.5
0
30
60
90
120
150
SBR is a registered trademark of Diodes Incorporated.
SBR10150CTE
Document number: DS31497 Rev. 4 - 2
2 of 3
www.diodes.com
November 2011
© Diodes Incorporated
SBR10150CTE
Package Outline Dimensions
E
L1
A
c2
D
L2
b2
L
A2
e
b
c
TO262
Dim Min
Max
Typ
A
4.06
4.83
4.57
A2
2.03
2.79
2.67
b
0.64
0.99
-
b2
1.14
1.40
1.24
c
0.35
0.74
-
c2
1.14
1.40
1.27
D
8.64
9.65
8.70
E
9.65 10.29 10.11
e
2.54 Typ
L
12.70 14.73 13.60
L1
-
1.67
-
L2
4.00
-
−
All Dimensions in mm
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2011, Diodes Incorporated
www.diodes.com
SBR is a registered trademark of Diodes Incorporated.
SBR10150CTE
Document number: DS31497 Rev. 4 - 2
3 of 3
www.diodes.com
November 2011
© Diodes Incorporated
