SN74LS151

Description
LS SERIES, 8 LINE TO 1 LINE MULTIPLEXER, COMPLEMENTARY OUTPUT, PDIP16
Categorysemiconductor    logic
File Size67KB,8 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric Compare View All

SN74LS151 Overview

LS SERIES, 8 LINE TO 1 LINE MULTIPLEXER, COMPLEMENTARY OUTPUT, PDIP16

SN74LS151 Parametric

Parameter NameAttribute value
Number of functions1
Number of terminals16
Maximum operating temperature70 Cel
Minimum operating temperature0.0 Cel
Maximum supply/operating voltage5.25 V
Minimum supply/operating voltage4.75 V
Rated supply voltage5 V
Processing package descriptionPlastic, DIP-16
stateDISCONTINUED
CraftsmanshipTTL
packaging shapeRectangle
Package SizeIN-line
Terminal formTHROUGH-hole
Terminal spacing2.54 mm
terminal coatingtin lead
Terminal locationpair
Packaging MaterialsPlastic/Epoxy
Temperature levelCOMMERCIAL
seriesLS
Logic IC typemultiplexer
Number of inputs8
Number of outputs1
Output polarityCOMPLEMENTARY
propagation delay TPD32 ns

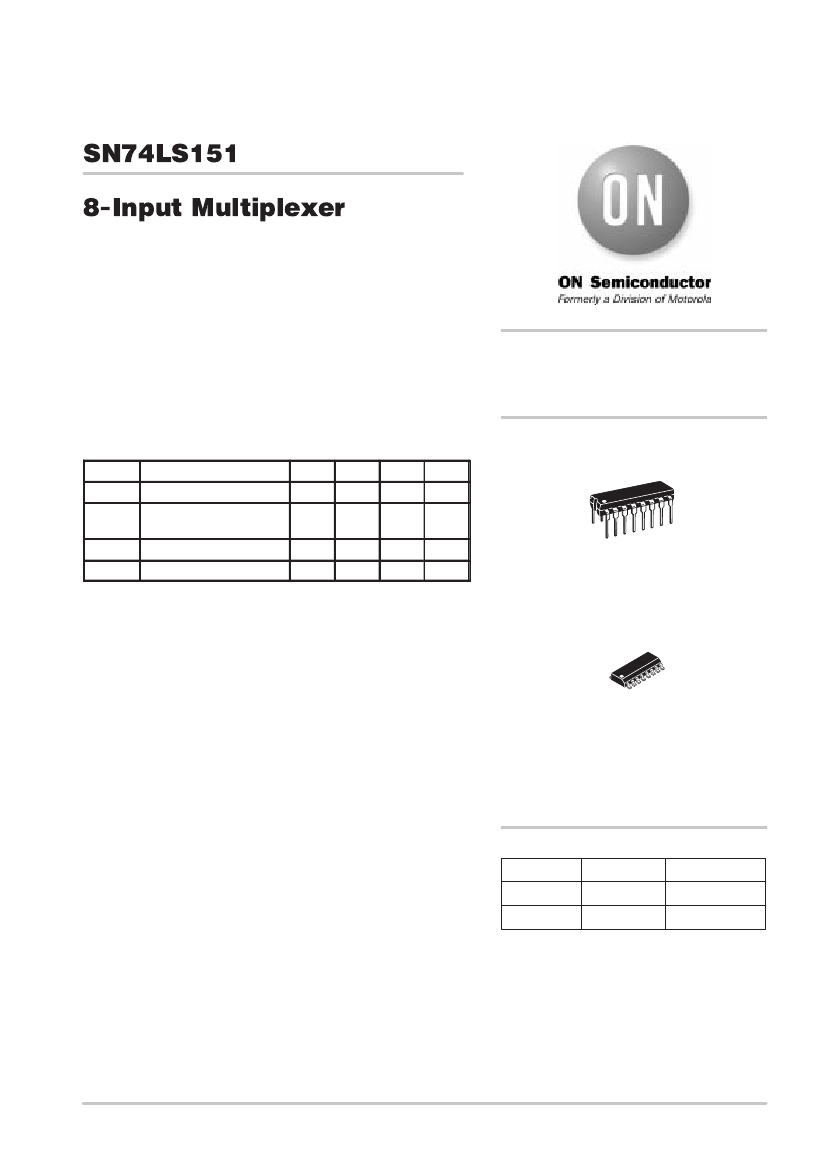

SN74LS151
8-Input Multiplexer
The TTL / MSI SN74LS151 is a high speed 8-input Digital
Multiplexer. It provides, in one package, the ability to select one bit of
data from up to eight sources. The LS151 can be used as a universal
function generator to generate any logic function of four variables.
Both assertion and negation outputs are provided.
http://onsemi.com
Schottky Process for High Speed
Multifunction Capability
On-Chip Select Logic Decoding
Fully Buffered Complementary Outputs
Input Clamp Diodes Limit High Speed Termination Effects
LOW
POWER
SCHOTTKY
GUARANTEED OPERATING RANGES
Symbol
V
CC
T
A
I
OH
I
OL
Parameter
Supply Voltage
Operating Ambient
Temperature Range
Output Current – High
Output Current – Low
Min
4.75
0
Typ
5.0
25
Max
5.25
70
– 0.4
8.0
Unit
V
°C
mA
mA
16
1
PLASTIC
N SUFFIX
CASE 648
16
1
SOIC
D SUFFIX
CASE 751B
ORDERING INFORMATION
Device
SN74LS151N
SN74LS151D
Package
16 Pin DIP
16 Pin
Shipping
2000 Units/Box
2500/Tape & Reel
©
Semiconductor Components Industries, LLC, 1999
1
December, 1999 – Rev. 6
Publication Order Number:
SN74LS151/D
