G16B41103 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> G16B41103

G16B41103: DescriptionBoard Connector, Female, Straight, Surface Mount Terminal, Locking, White Insulator, Receptacle; CategoryThe connector The connector; File Size113KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

G16B41103 Overview

Board Connector, Female, Straight, Surface Mount Terminal, Locking, White Insulator, Receptacle

G16B41103 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Dielectric withstand voltage	500VAC V
Durability	500 Cycles
Insulator color	WHITE
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	G16
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Plating thickness	15u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Termination type	SURFACE MOUNT

Preview

Download Datasheet

View All

Amphenol

Data Interconnects

Serial ATA

High Speed Serialized AT Attachment

Amphenol offers a complete range of SATA solutions. Signal, Power or a combination of the

two.

Materials

Housing

- UL94V-0 Thermoplastic

Contact Plug

- Brass

Contact Receptacle - Phosphor Bronze

Plating

- Selective Gold

BoardLocks

- Phosphor Bronze

Electrical

Current

- 1.5 A/Contact /Minute

DWV

- 500 VAC for 1 Minute

Contact Resistance - 30 mΩ

Mechanical

Durability

- 500 Cycles

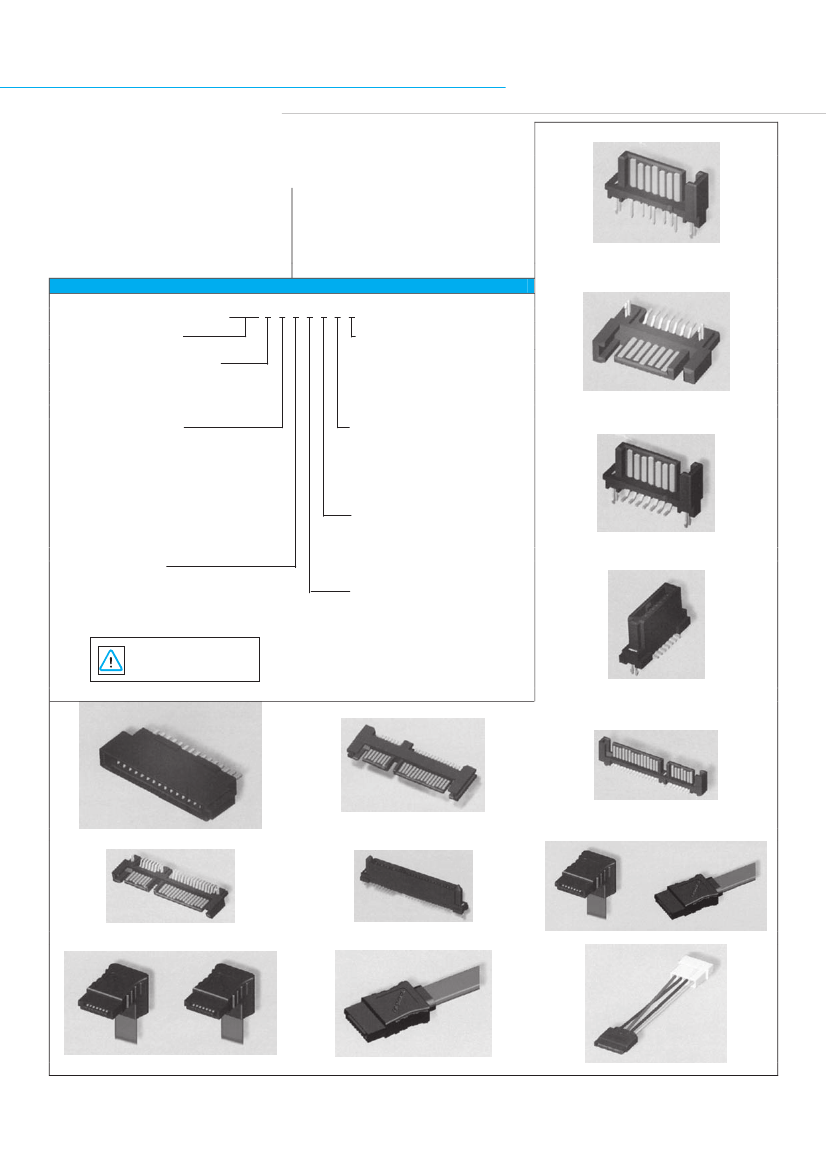

Straight Plug Signal DIP Type

Part Number System:

G16 x x x x x x x

SERIAL ATA SYSTEM

SIGNAL INTERFACE OPTION

A: Signal

B: Power

C: Signal & Power

CONNECTOR STYLE

1: Right Angle Board Mount Plug

2: Straight Board Mount Plug

3: Straight Cable Mount Receptacle

4: Straight Board Mount Receptacle

5: Right Angle Borad Mount Receptacle

6: Right Angle Cable Mount Receptacle

A: Latch Type Straight Cable Mount Rec.

B: Latch Type Right Angle Cable Mount Rec.

C: Latch Type Reverse R/A Cable Mount Rec.

CONTACT FINISH

0: Gold Flash

1: 15µ” Gold

2: 30µ” Gold

FACTORY CODE

Mainly for Internal Use

Blank: Tray Packaging

A: With Pick Tape & Tube Packing

B: Without Support

C: With Support

INSULATION MATERIAL

Blank: LCP+30% GF/Black

1: PBT+30% GF/Black

2: LCP+30% GF/Natural White

3: PBT+30% GF/Natural White

4: LCP+30% GF/Blue

BOARD MOUNT OPTION

0: None

1: ArrowHead BoardLocks

2: Intel FootPrint

3: Plastic Posts

TERMINAL STYLE

0: None (Cable Mount only)

1: SMT

2: DIP Type

3: Press-Fit

4: IDC Type

5: Crimp Type

(housing and Contact)

Straight Receptacle Signal SMT Type

Right Angle Plug Signal SMT Type

Cable Mount Receptacle

Suffix may be added to Part Number.

This Suffix is for Internal use mainly.

Additional Suffix ‘EU’ or ‘LF’ may be

added for RoHS compliant product.

Power Cable Mount Receptacle

Straight Plug Signal Straddle Mount Type

Straight Plug Signal SMT Type

Right Angle Plug Signal SMT Type

Straight Receptacle Back Plane SMT Type

Right Angle to Straight Cable Assembly*

Right Angle to Right Angle Cable Assembly*

AMTA/ATS

Straight to Straight Cable Assembly*

Power to Straight Cable Assembly*

* Cable Assemblies Call-out prefix are GCA77xx xxx. Solutions available upon request.

H-17
