SFH213-PPPN-D30-ID-GY: Description13 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; Categorysemiconductor Other integrated circuit (IC); File Size430KB，1 Pages; ManufacturerSILABS; Websitehttp://www.silabs.com

Download Datasheet View All

SFH213-PPPN-D30-ID-GY Overview

13 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

Preview

Download Datasheet

View All

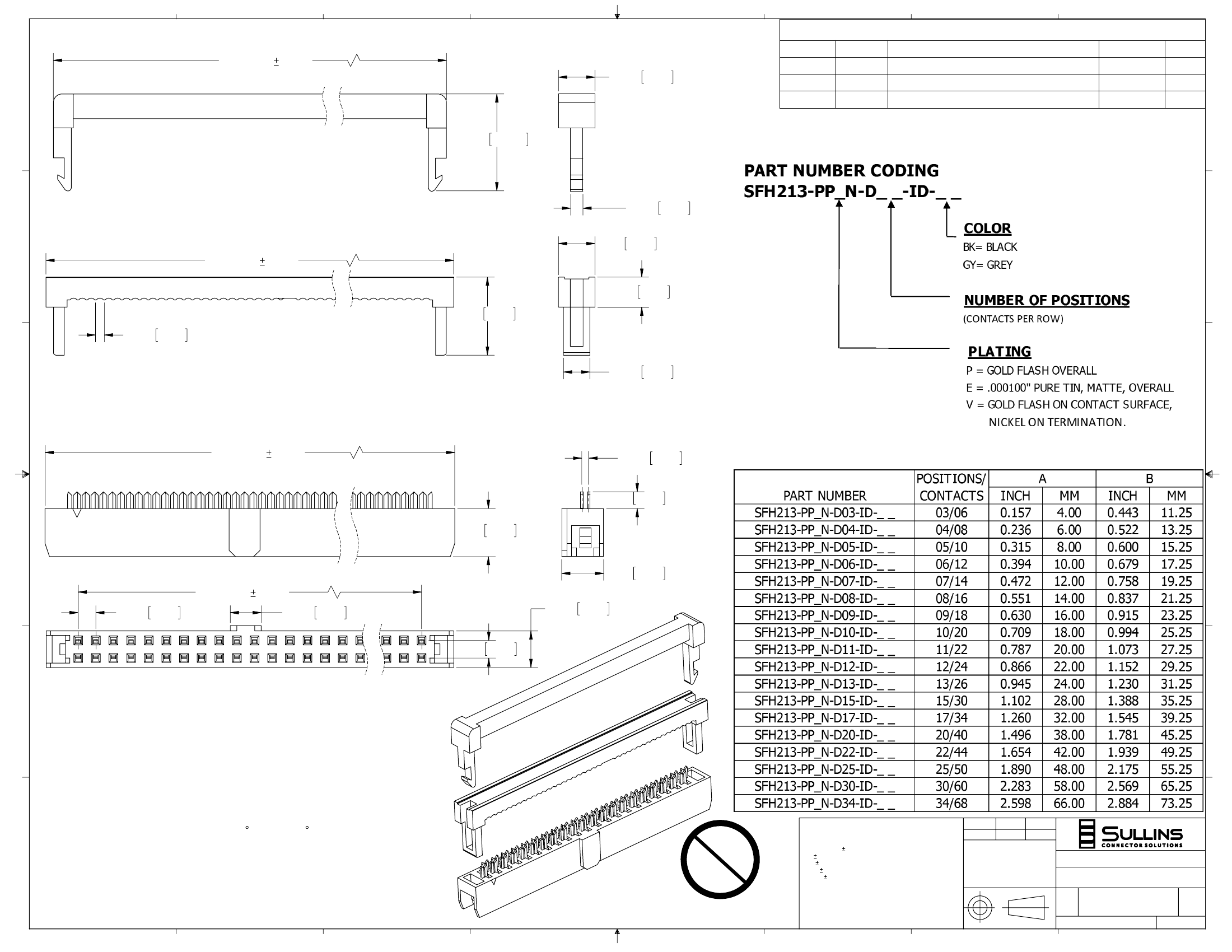

REVISIONS

B±.008 [ 0.20]

.163 4.15

REV.

ECO. NO

1832

1845

1909

DESCRIPTION

INITIAL RELEASE

UPDATE TOLERANCE BLOCK, ADD DIM .163[4.15]

ADD 'V' PLATING, UPDATE NOTES.

DATE

10/30/2008

11/6/2008

2/4/2009

.432 10.98

.055 1.40

.163 4.15

B±.008 [ 0.20]

.134 3.40

.348 8.85

.039 1.00

.118 3.00

B±.008 [ 0.20]

.031 0.80

.075 1.90

.215 5.45

.187 4.75

A±.004 [ 0.10]

.079 2.00

.138 3.50

.079 2.00

.163 4.15

NOTES:

1. INSULATOR MATERIAL: PBT 30% GLASS FIBER.

2. CONTACT MATERIAL: PHOSPHOR BRONZE.

3. PLATING: SEE PART NUMBER CODING.

4. OPERATING TEMPERATURE: -45 C TO +85 C.

5. UL FLAMMABILITY RATING: 94V-0.

6. CURRENT RATING: 1 AMP PER CONTACT..

7. INSULATION RESISTANCE: 1,000M OHMS MIN.

8. DIELECTRIC WITHSTANDING: 500 VAC

9. MATES WITH SBH21 SERIES

10. FOR FLAT CABLE CONNECTOR.

oHS COMPLIANT

DIMENSIONS ARE IN INCHES[MM]

TOLERANCES:

ANGULAR: 30'

X= .008 [.20]

.X= .008 [.20]

.XX= .008 [.20]

.XXX= .008 [.20]

SURFACE FINISH: 63 Ra

UNLESS OTHERWISE SPECIFIED:

DRAWN

DATE

NAME

10/28/08

REMOVE ALL BURRS AND SHARP EDGES .010 MAX

THE INFORMATION HEREIN CONTAINS

PROPIETARY INFORMATION OF

SULLINS ELECTRONICS AND IS NOT

DESCRIPTION

TO BE REPRODUCED, USED OR

DISCLOSED TO OTHERS FOR ANY

PURPOSE EXCEPT AS SPECIFICALLY

PART NUMBER

AUTHORIZED IN WRITING BY AN

OFFICER OF SULLINS ELECTRONICS.

HEADER FEMALE, .079[2.00] CC, SR

SIZE DWG. NO.

SFH213-PP_N-D_ _-ID-_ _

INTERPRET DIMENSIONS AND GEOMETRIC

TOLERANCING

PER: ANSI Y14.5M-1994

SCALE: NTS

REV

11156

SHEET 1 OF 1

FILE NAME: Z:\COMPONENTS\Taiwan\11156, SFH213-PP_N-D_ _-ID-_ _ PRINT: 2/11/2009
