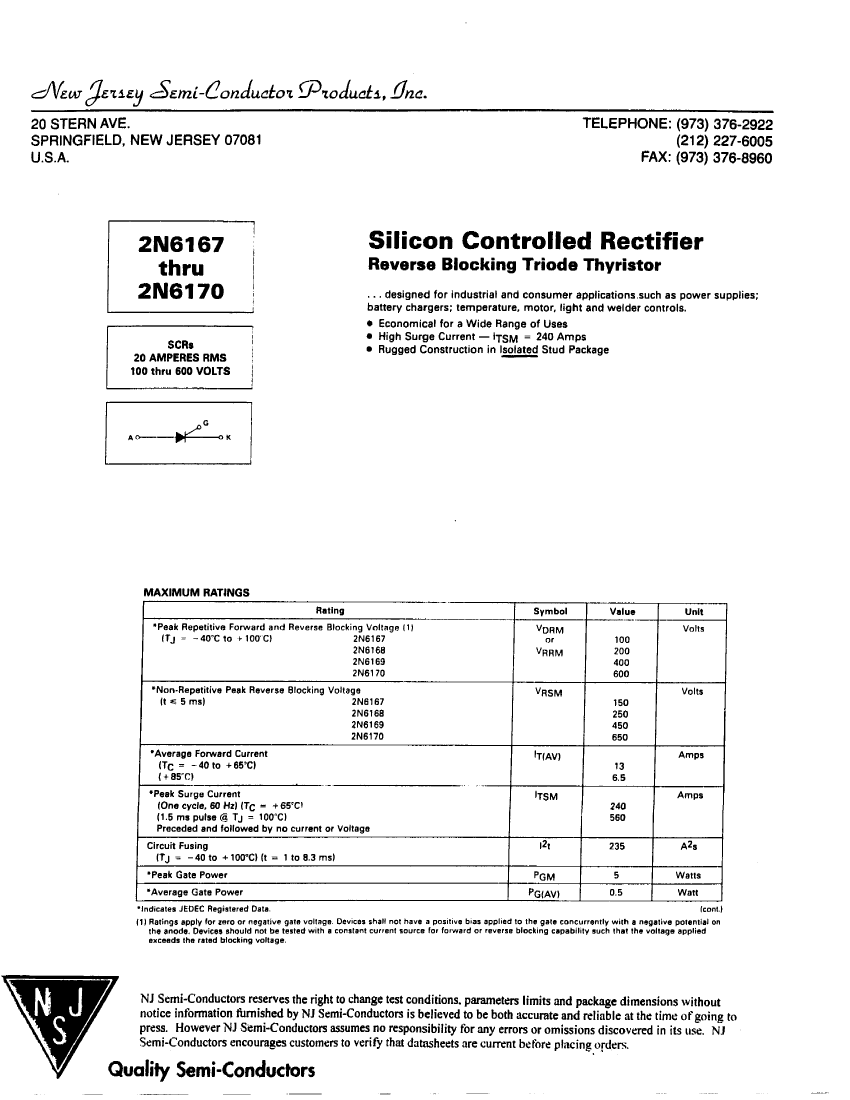

2N6167
thru
2N6170
SCRs
20 AMPERES RMS
100 thru 600 VOLTS
Silicon Controlled Rectifier
Reverse Blocking Triode Thyristor
... designed for industrial and consumer applications .such as power supplies;
battery chargers; temperature, motor, light and welder controls.
• Economical for a Wide Range of Uses
• High Surge Current — IJSM
=
240 Amps
• Rugged Construction in Isolated Stud Package
MAXIMUM RATINGS
Rating
•Peak Repetitive Forward and Reverse Blocking Voltage (1)
(Tj = -4<TClo +100 C)
2N6167
2N6168
2N6169
2N6170
•Non-Repetitive Peak Reverse Blocking Voltage
It s 5 ms|
2N6167
2N616S
2N6169
2N6170
"Average Forward Current
<T
C
= - 4 0 to +66'C)
( + 85'C)
•Peak Surge Current
(One cycle, 60 Hz) (Tc = + 65'CI
(1.5ms pulse <S Tj = 100°CI
Preceded and followed by no current or Voltage
Circuit Fusing
(Tj = -40 to + 100°C) (t = 1 to 8.3 ms)
"Peak Gate Power
•Average Gate Power
Symbol
Value
Unit
Volts
VDRM
or
VRRM
100
200
400
600
V
RSM
Volts
150
250
450
650
ITIAVJ
13
6.5
Amps
ITSM
240
560
|2t
235
5
0.5
Amps
A^s
PGM
P
G(AV)
Watts
Watt
•Indicates JEDEC Registered Data.
Icon!.)
II) Ratings apply for zero or negative gate voltage. Devices shall not have a positive bias applied to the gate concurrently with a negative potential on
the anode. Devices should not be tested with a constant current source for forward or reverse blocking capability such that the voltage applied
exceeds the rated blocking voltage.
NJ Semi-Conductors reserves the right to change test conditions, parameters limits and package dimensions without
notice information rumished by NJ Semi-Conductors is believed to be both accurate and reliable at the time of going to
press. However NJ Semi-Conductors assumes no responsibility for any errors or omissions discovered in its use. NJ
Semi-Conductors encourages customers to verify that datasheets are current before placing orders.
Qualify Semi-Conductors

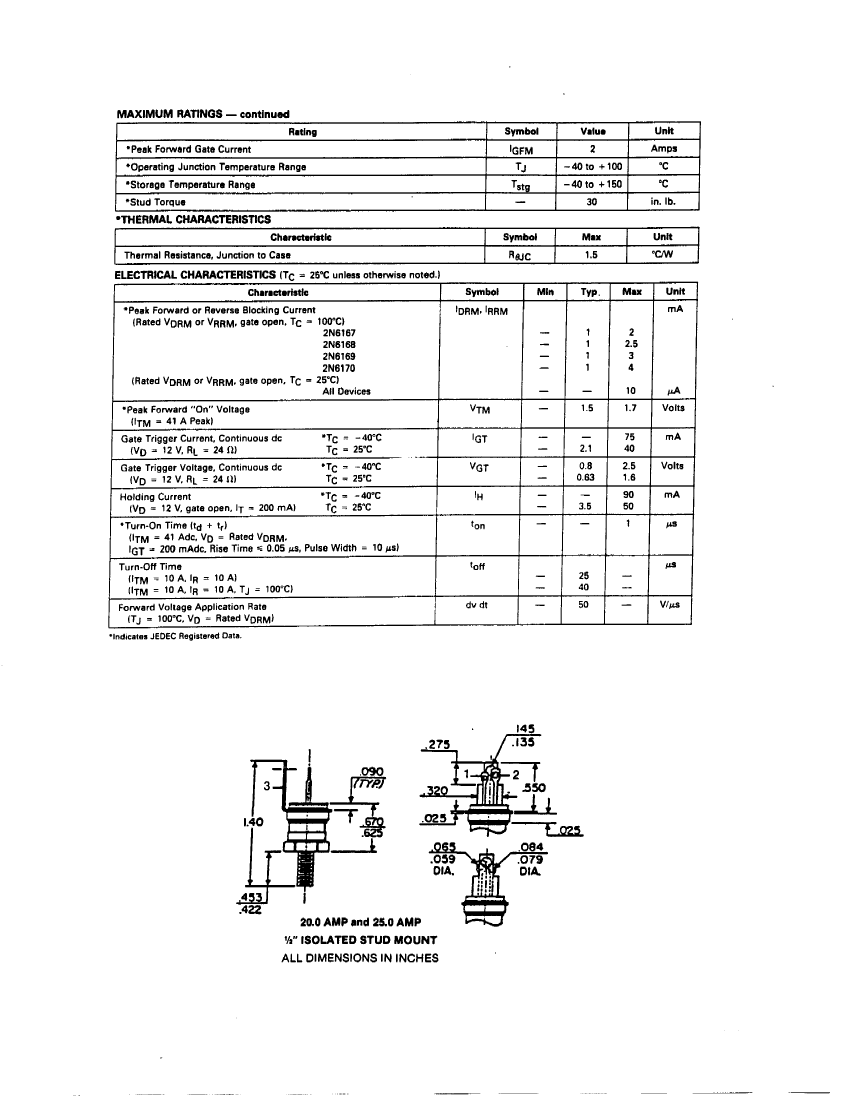

MAXIMUM RATINGS — continued
Rating
"Peak Forward Gate Current
•Operating Junction Temperature Range
•Storage Temperature Range
•Stud Torque
•THERMAL CHARACTERISTICS
Ch*r»cteri«tlc
Thermal Resistance, Junction to Case
ELECTRICAL CHARACTERISTICS
(T
c
=
25°C unless otherwise noted.)
Characteristic
•Peak Forward or Reverse Blocking Current
(Rated VrjRM or VRRM, gate open. TC = 100°C)
2N6167
2N6168
2N6169
2N6170
(Rated VQRM or VRRM. gate open, TC = 25°C)
All Devices
"Peak Forward "On" Voltage
(I
TM
= 41 A Peak)
Gate Trigger Current, Continuous dc
(Vo - 12 V, RL = 240)
Gate Trigger Voltage, Continuous dc
*Tc = -4Q°C
T
C
= 25°C
*TC =• -40"C
Symbol
!
DRM.
Symbol
'GFM
Value
2
-40 to
+100
-40 to
+150
30
Unit
Amps
°C
°C
in. Ib.
Tj
T
stg
—
Symbol
Max
1.5
Unit
°C/W
"we
Mln
Typ.
1
1
i
i
MM
Unit
mA
IRRM
-
2
2.5
3
4
10
MA
VTM
IGT
VGT
IH
—
—
—
1.5
1.7
Volts
mA
2.1
75
40
2.5
1.6
90
50
1
(VD = 12 v. RL = 24 ni
TC = 25°c
0.8
0.63
Volts
mA
MS
Holding Current
(Vo = 12 V, gate open, I
T
= 200 mA)
*TC = -40°C
TC = 25°C
3.5
•Turn-On Time (t(j + t
r
)
(I
TM
= 41 Adc, VQ = Rated VDRM-
IQT = 200 mAdc. Rise Time s 0.05 MS, Pulse Width = 10 MS)
Turn-Off Time
(ITM
=
10A.
I
R
= 10 A)
(I
TM
= 10 A, IR = 10 A, Tj = 100°C)
Forward Voltage Application Rate
(Tj = 100°C, V
D
= Rated V
D
RM>
•Indicates JEDEC Registered Data.
'on
"
—
"
25
40
50
'off
—
—
MS
dvdt
V/MS
14!
^275
.090
20.0 AMP and 25.0 AMP
</>"
ISOLATED STUD MOUNT
ALL DIMENSIONS IN INCHES
