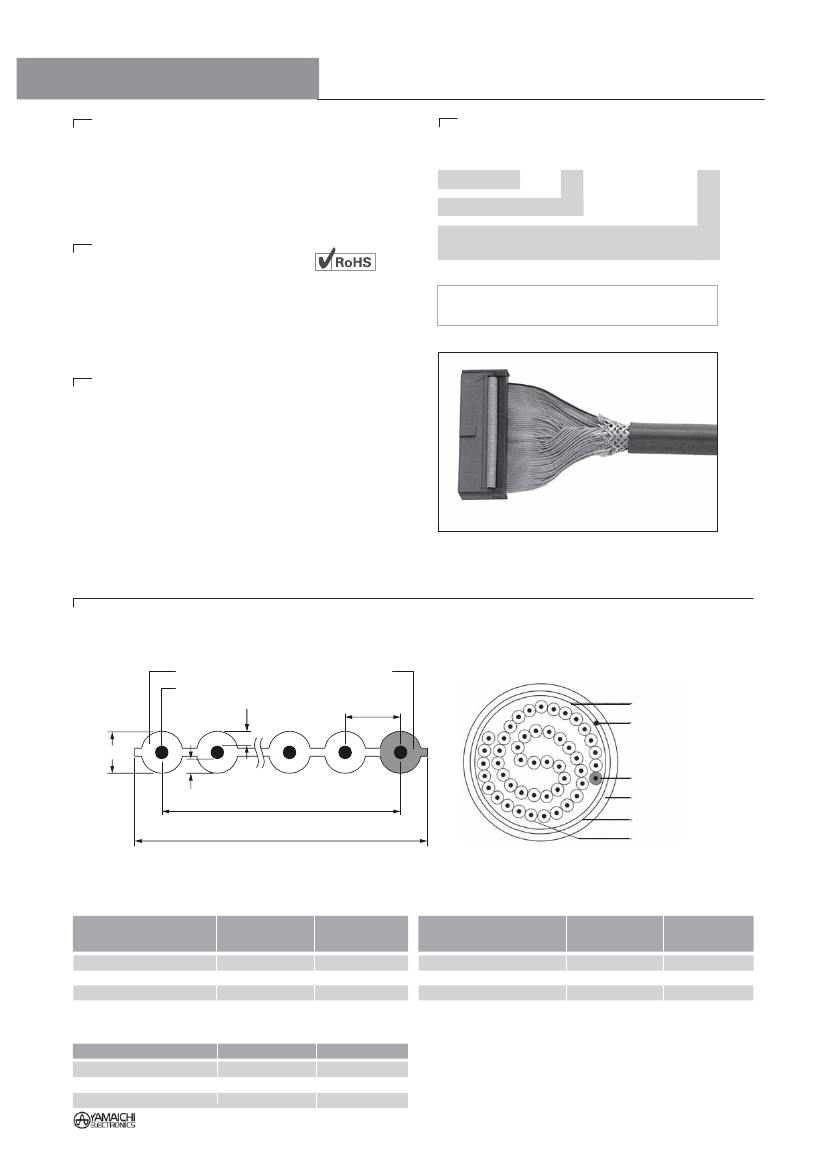

Flat / Round Cables
Specifications
Conductor Resistance:
Insulation Resistance:
Dielectric Strength:
Flame Resistance:
358Ω/km max.
5MΩ min. (km)
1,500V AC / minute
VW-1
25MIL
(0.635mm)
OKIFLEX-SFX Type
(150V, 80°C)
Part Number
SFX - S2
Cable Series
Number of Conductors
Shield Requirements:
SV = With Shield (Standard)
** - 7/0.1 3030 - SV
Materials and Finish
Insulation: PVC
Conductor: 30 AWG (7/0.1mm) stranded copper wire
Shielding: Braided copper together with a 28 AWG
drain wire
Jacket:
PVC, colour warm grey
Standard Cable Length
61 meters per coil
Features
High Density/Half Pitch 25MIL (0.635mm) flat cable formed
in an ‘S’ shape within a PVC jacket for external wiring
Designed to accept High Density IDC connectors
Bonded/unbonded at 30mm regular intervals
Shielded versions for RFI / EMI noise reduction
UL Style No. 20266
Cable Dimensions
Insulation
Conductor
Min 0.16
Red Edge
0.635
Tape
Drain Wire
0.64
Min 0.16
(Number of conductors –1) x 0.635
Number of conductors x 0.635
Red Edge
Jacket (PVC Sheath)
Shield
OKIFLEX-S2 Type
Standard Types
Part Number
SFX-S2 20-7/0.1 3030-SV
SFX-S2 26-7/0.1 3030-SV
SFX-S2 40-7/0.1 3030-SV
No. of
Conductors
20
26
40
PVC Sheath
Outer Dia.
6.3
7.0
7.6
Part Number
SFX-S2 50-7/0.1 3030-SV
SFX-S2 64-7/0.1 3030-SV
SFX-S2 100-7/0.1 3030-SV
No. of
PVC Sheath
Conductors Outer Dia.
50
64
100
8.1
10.1
11.0
For the following versions please contact Yamaichi,
minimum order quantity may be required
SFX-S2 34-7/0.1 3030-SV
SFX-S2 60-7/0.1 3030-SV
SFX-S2 80-7/0.1 3030-SV
Trading Division
34
60
80
7.3
9.6
10.6
Sockets and Connectors
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
