Model the Gate Charge, Transient, and Diode Reverse Recovery
Characteristics
DESCRIPTION
The attached spice model describes the typical electrical
characteristics of the n-channel vertical DMOS. The subcircuit
model is extracted and optimized over the
−55
to 125°C
temperature ranges under the pulsed 0-V to 10-V gate drive. The
saturated output impedance is best fit at the gate bias near the
threshold voltage.
A novel gate-to-drain feedback capacitance network is used to model
the gate charge characteristics while avoiding convergence difficulties
of the switched C
gd
model. All model parameter values are optimized
to provide a best fit to the measured electrical data and are not
intended as an exact physical interpretation of the device.
SUBCIRCUIT MODEL SCHEMATIC
This document is intended as a SPICE modeling guideline and does not constitute a commercial product data sheet. Designers should refer to the appropriate
data sheet of the same number for guaranteed specification limits.
Document Number: 72166
S-51095Rev. B, 13-June-05
www.vishay.com
1
SPICE Device Model Si4462DY
Vishay Siliconix
SPECIFICATIONS (T
J
= 25°C UNLESS OTHERWISE NOTED)
Parameter
Static
Gate Threshold Voltage
On-State Drain Current
a
Drain-Source On-State Resistance
a
Forward Voltage
a
V
GS(th)
I
D(on)
r
DS(on)
V
SD
V
DS
= V
GS
, I
D
= 250
µA
V
DS
≥
5 V, V
GS
= 10 V
V
GS
= 10 V, I
D
= 1.5 A
V
GS
= 6 V, I
D
= 1.45 A
I
S
= 2.1 A, V
GS
= 0 V
2.6
13
0.37
0.40
0.81
0.39
0.42
0.80
V
A
Ω
V
Symbol
Test Condition
Simulated
Data
Measured
Data
Unit
Dynamic
b
Total Gate Charge
Gate-Source Charge
Gate-Drain Charge
Turn-On Delay Time
Rise Time
Turn-Off Delay Time
Fall Time
Source-Drain Reverse Recovery Time
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
t
rr
I
F
= 2.1 A, di/dt = 100 A/µs
V
DD
= 100 V, R
L
= 100
Ω
I
D
≅
1 A, V
GEN
= 10 V, R
G
= 6
Ω
V
DS
= 100 V, V
GS
= 10 V, I
D
= 1.5 A
5.7
0.90
1.9
10
12
10
6
60
6
0.90
1.9
10
12
10
15
55
ns
nC
Notes
a. Pulse test; pulse width
≤
300
µs,
duty cycle
≤
2%.
b. Guaranteed by design, not subject to production testing.
www.vishay.com
2
Document Number: 72166
S-51095Rev. B, 13-June-05
SPICE Device Model Si4462DY
Vishay Siliconix

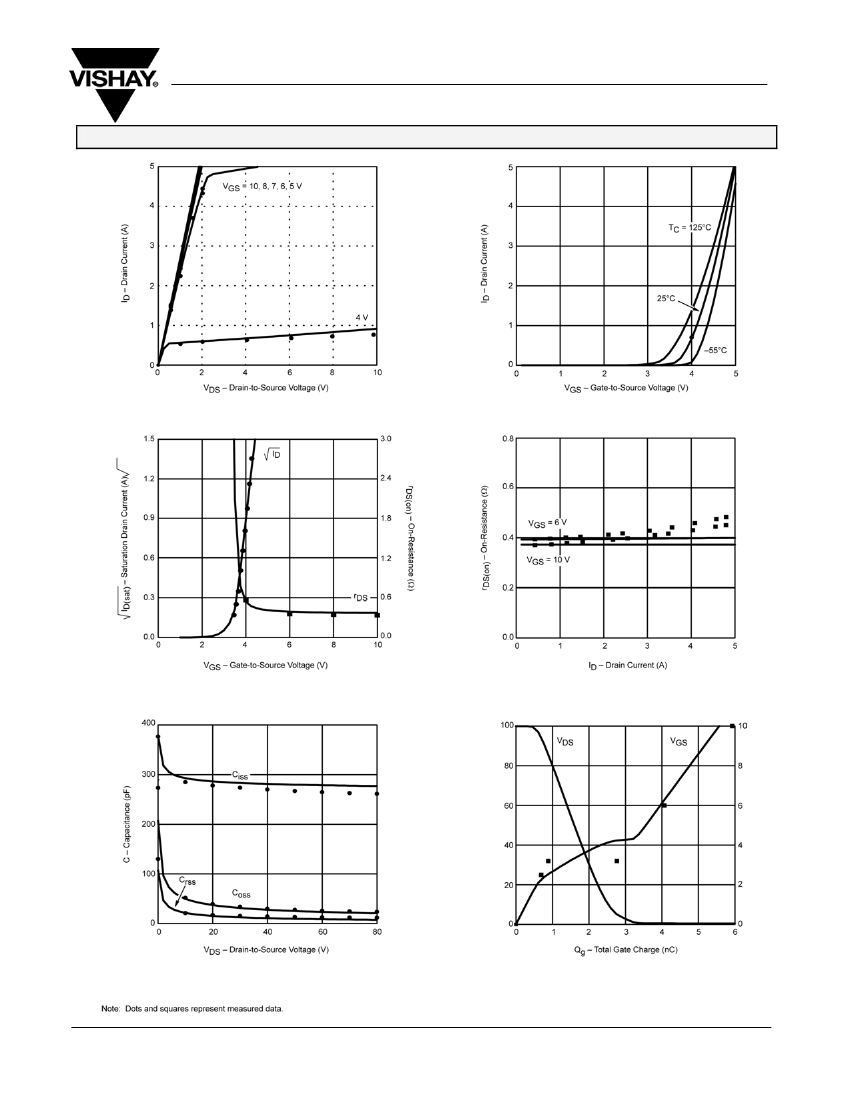

COMPARISON OF MODEL WITH MEASURED DATA (T
J
=25°C UNLESS OTHERWISE NOTED)
Document Number: 72166
S-51095Rev. B, 13-June-05
www.vishay.com
3
