SIHFPC50LC-E3

Description
Power MOSFET
CategoryDiscrete semiconductor    The transistor
File Size611KB,9 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric Compare View All

SIHFPC50LC-E3 Overview

Power MOSFET

SIHFPC50LC-E3 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerVishay
Parts packaging codeTO-247
package instructionFLANGE MOUNT, R-PSFM-T3
Contacts3
Reach Compliance Codeunknow
Other featuresAVALANCHE RATED
Avalanche Energy Efficiency Rating (Eas)920 mJ
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage600 V
Maximum drain current (Abs) (ID)11 A
Maximum drain current (ID)11 A
Maximum drain-source on-resistance0.6 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JEDEC-95 codeTO-247
JESD-30 codeR-PSFM-T3
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals3
Operating modeENHANCEMENT MODE
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeN-CHANNEL
Maximum power dissipation(Abs)190 W
Maximum pulsed drain current (IDM)44 A
Certification statusNot Qualified
surface mountNO
Terminal surfaceMatte Tin (Sn)
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON
IRFPC50LC, SiHFPC50LC
Vishay Siliconix
Power MOSFET
PRODUCT SUMMARY
V
DS
(V)
R
DS(on)
(Ω)
Q
g
(Max.) (nC)
Q
gs
(nC)
Q
gd
(nC)
Configuration
V
GS
= 10 V
84
18
36
Single
D
FEATURES
600
0.60
Ultra Low Gate Charge
Reduced Gate Drive Requirement
Enhanced 30 V V
GS
Rating
Reduced C
iss
, C
oss
, C
rss
Isolated Central Mounting Hole
Dynamic dV/dt Rating
Repetitive Avalanche Rated
Compliant to RoHS Directive 2002/95/EC
Available
RoHS*
COMPLIANT
DESCRIPTION
This new series of low charge Power MOSFETs achieve
significantly lower gate charge over conventional MOSFETs.
Utilizing advanced Power MOSFET technology the device
improvements allow for reduced gate drive requirements,
faster switching speeds and increased total system savings.
These device improvements combined with the proven
ruggedness and reliability of Power MOSFETs offer the
designer a new standard in power transistors for switching
applications.
The
TO-247AC
package
is
preferred
for
commercial-industrial applications where higher power levels
preclude the use of TO-220AB devices. The TO-247AC is
similar but superior to the earlier TO-218 package because its
isolated mounting hole.
TO-247AC
G
S
D
G
S
N-Channel MOSFET
ORDERING INFORMATION
Package
Lead (Pb)-free
SnPb
TO-247AC
IRFPC50LCPbF
SiHFPC50LC-E3
IRFPC50LC
SiHFPC50LC
ABSOLUTE MAXIMUM RATINGS
(T
C
= 25 °C, unless otherwise noted)
PARAMETER
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current
Pulsed Drain
Linear Derating Factor
Single Pulse Avalanche Energy
b
Repetitive Avalanche Current
a
Repetitive Avalanche Energy
a
Maximum Power Dissipation
Peak Diode Recovery dV/dt
c
Operating Junction and Storage Temperature Range
Soldering Recommendations (Peak Temperature)
Mounting Torque
Current
a
V
GS
at 10 V
T
C
= 25 °C
T
C
= 100 °C
SYMBOL
V
DS
V
GS
I
D
I
DM
E
AS
I
AR
E
AR
P
D
dV/dt
T
J
, T
stg
LIMIT
600
± 30
11
7.3
44
1.5
920
11
19
190
3.0
- 55 to + 150
300
d
10
1.1
UNIT
V
A
W/°C
mJ
A
mJ
W
V/ns
°C
lbf · in
N·m
T
C
= 25 °C
for 10 s
6-32 or M3 screw
Notes

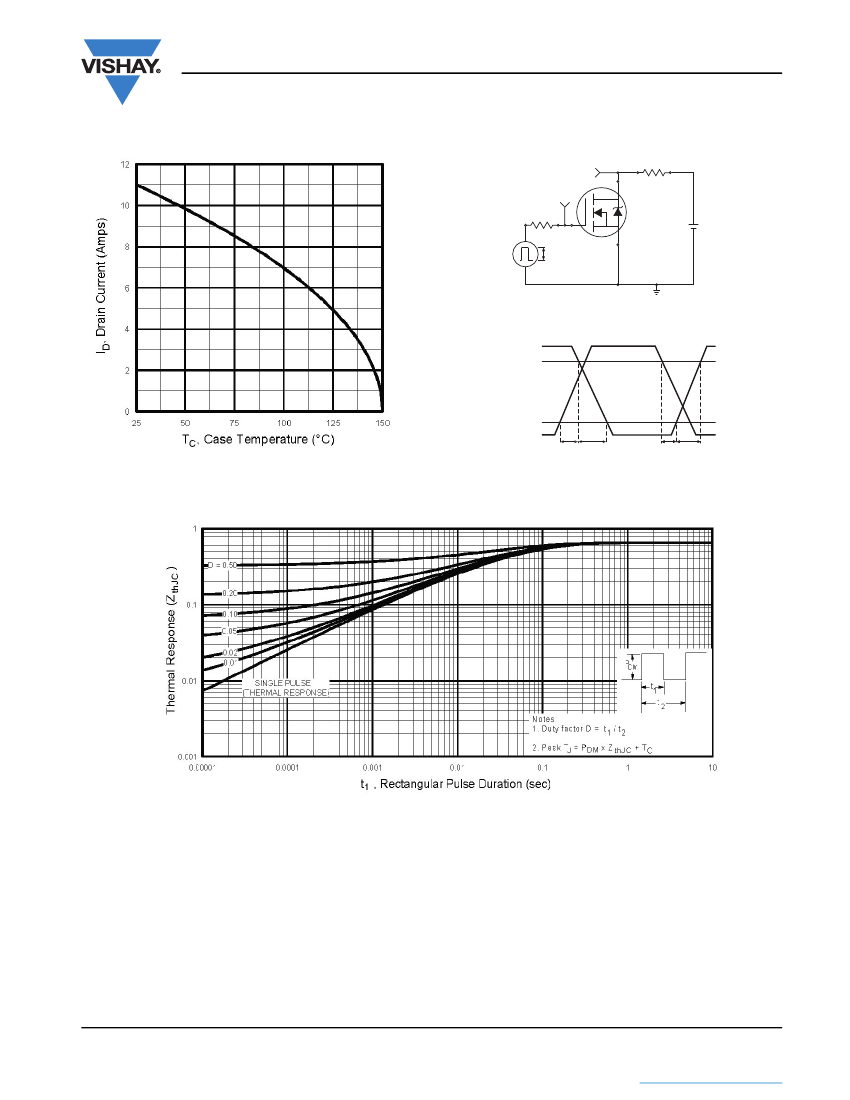

a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11).
b. V
DD
= 25 V, starting T
J
= 25 °C, L = 13 mH, R
g
= 25
Ω,
I
AS
= 11 A (see fig. 12).
c. I
SD
11 A, dI/dt
100 A/μs, V
DD
V
DS
, T
J
150 °C.
d. 1.6 mm from case.
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 91242
S11-0443-Rev. B, 14-Mar-11
www.vishay.com
1
This datasheet is subject to change without notice.
THE PRODUCT DESCRIBED HEREIN AND THIS DATASHEET ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000

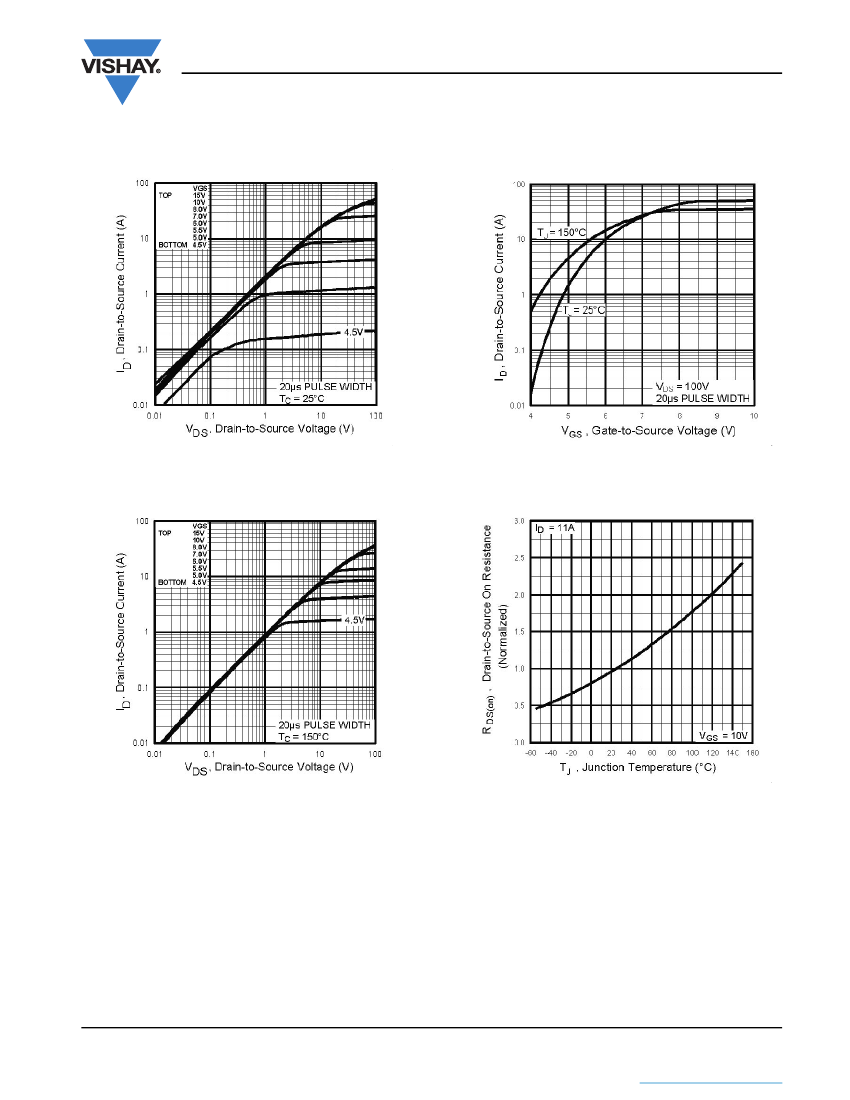

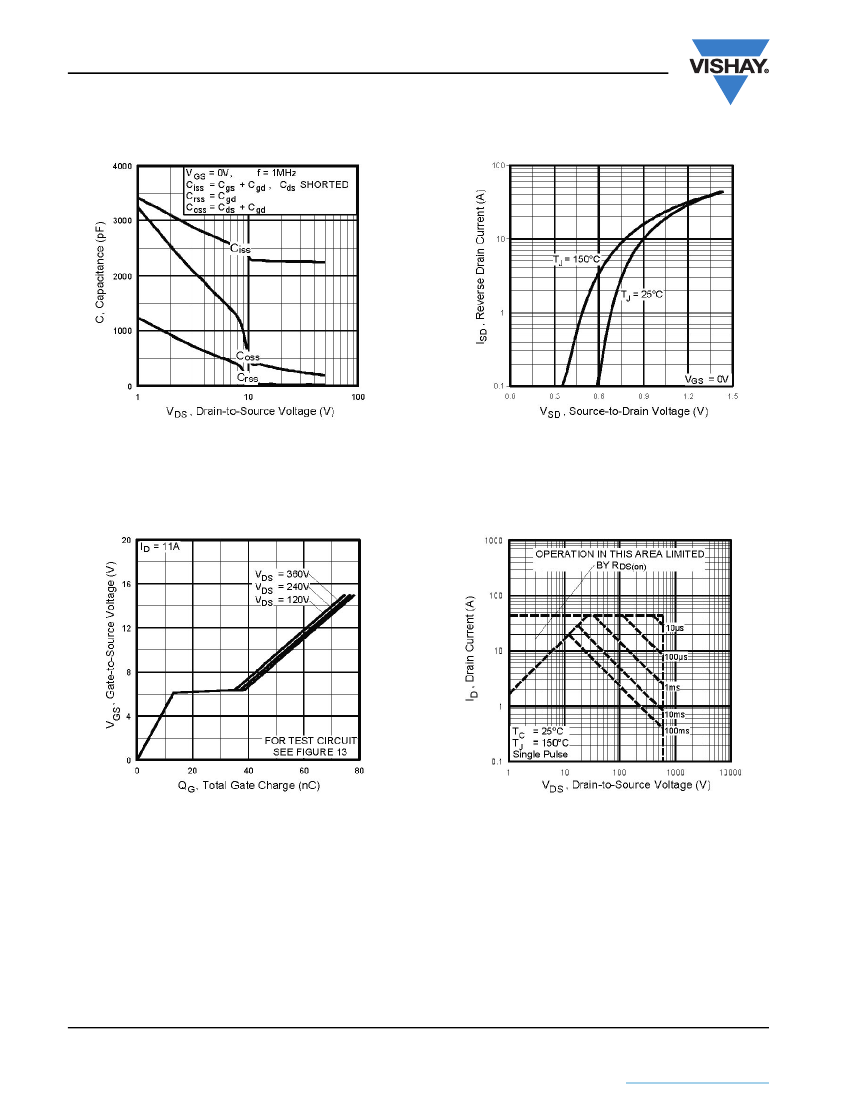

SIHFPC50LC-E3 Related Products

SIHFPC50LC-E3 SIHFPC50LC
Description Power MOSFET Power MOSFET
Is it lead-free? Lead free Contains lead
Is it Rohs certified? conform to incompatible
Maker Vishay Vishay
Parts packaging code TO-247 TO-247
package instruction FLANGE MOUNT, R-PSFM-T3 FLANGE MOUNT, R-PSFM-T3
Contacts 3 3
Reach Compliance Code unknow unknow
Other features AVALANCHE RATED AVALANCHE RATED
Avalanche Energy Efficiency Rating (Eas) 920 mJ 920 mJ
Configuration SINGLE WITH BUILT-IN DIODE SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage 600 V 600 V
Maximum drain current (Abs) (ID) 11 A 11 A
Maximum drain current (ID) 11 A 11 A
Maximum drain-source on-resistance 0.6 Ω 0.6 Ω
FET technology METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code TO-247 TO-247
JESD-30 code R-PSFM-T3 R-PSFM-T3
JESD-609 code e3 e0
Number of components 1 1
Number of terminals 3 3
Operating mode ENHANCEMENT MODE ENHANCEMENT MODE
Maximum operating temperature 150 °C 150 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
Polarity/channel type N-CHANNEL N-CHANNEL
Maximum power dissipation(Abs) 190 W 190 W
Maximum pulsed drain current (IDM) 44 A 44 A
Certification status Not Qualified Not Qualified
surface mount NO NO
Terminal surface Matte Tin (Sn) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE
Terminal location SINGLE SINGLE
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
transistor applications SWITCHING SWITCHING
Transistor component materials SILICON SILICON
