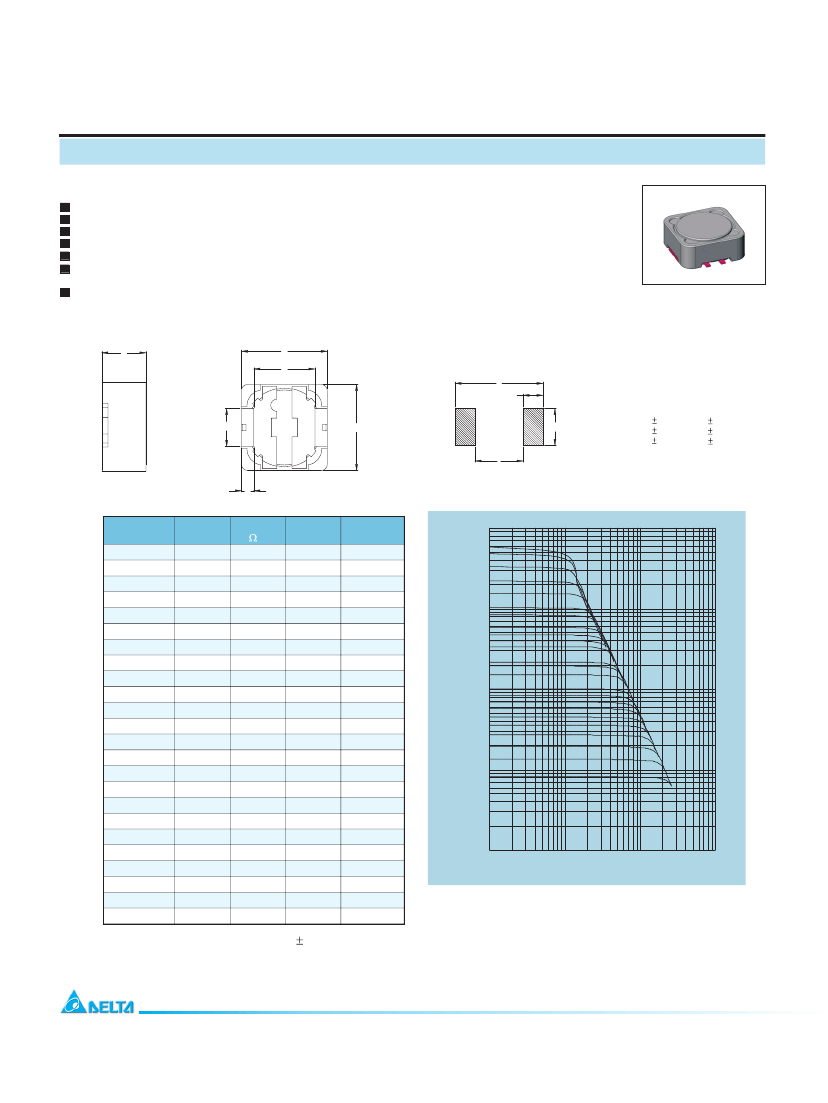

SMT Power Inductor
SIQ126R Type
Features
RoHS compliant.
Low profile (7.0mm max. height ), high current(22A, 0.8uH) SMD type.
Magnetically shielded, suitable for high density mounting.
High energy storage and low DCR.
Provided with embossed carrier tape packing.
Ideal for power source circuits, DC-DC converter, DC-AC inverters
inductor applications.
In addition to the standard versions shown here,
customized inductors are available to meet your exact requirements.
Mechanical Dimension:
B
C
D
J
H
G
UNIT : mm/inch
A = 12.5 / 0.492 MAX.
B = 7.0 / 0.276 MAX.
C = 12.5 / 0.492 MAX.
D = 7.6 0.3 / 0.299 0.012
E = 5.0 0.2 / 0.197 0.008
F = 2.2 0.2 / 0.087 0.008
G = 5.4 / 0.213
H = 2.9 / 0.114
I = 7.0 / 0.276
J = 12.8 / 0.504
RECOMMENDED PAD PA
TTERNS
E
A
I
F
Electrical Characteristics:
25 C, 100KHz, 0.1V
o
PART NO.
SIQ126R - 0R8
SIQ126R - 1R3
SIQ126R - 2R0
SIQ126R - 2R7
SIQ126R - 3R5
SIQ126R - 4R5
SIQ126R - 5R7
SIQ126R - 6R8
SIQ126R - 8R2
SIQ126R - 100
SIQ126R - 150
SIQ126R - 180
SIQ126R - 220
SIQ126R - 330
SIQ126R - 390
SIQ126R - 470
SIQ126R - 560
SIQ126R - 820
SIQ126R - 101
SIQ126R - 151
SIQ126R - 221
SIQ126R - 331
SIQ126R - 471
SIQ126R - 561
L
1
(uH)
0.8
1.3
2.0
2.7
3.5
4.5
5.7
6.8
8.2
10.0
15.0
18.0
22.0
33.0
39.0
47.0
56.0
82.0
100.0
150.0
220.0
330.0
470.0
560.0
DCR
(m ) Max.
5.0
6.0
7.0
8.0
9.0
11.0
13.0
16.0
17.0
21.0
30.0
36.0
41.0
54.0
66.0
80.0
100.0
140.0
180.0
250.0
340.0
500.0
750.0
880.0
Isat
(Adc) Max.
22.00
18.00
15.00
13.00
11.00
10.00
9.00
8.00
7.50
6.50
5.60
5.00
4.50
3.60
3.30
3.20
2.80
2.40
2.00
1.60
1.40
1.15
0.95
0.88
2
Irms
3
(Adc)
22.00
18.00
15.00
13.00
11.00
10.00
1000
561
471
331
221
151
100
101
820
560
470
390
330
INDUCTANCE(uH)
9.00
8.00
7.50
6.50
5.60
5.00
4.50
3.60
3.30
3.20
2.80
2.40
2.00
1.60
1.40
1.15
0.95
0.88
220
180
150
10
100
8R2
6R8
5R7
4R5
3R5
2R7
2R0
1R3
1
0R8
0
0
1
DC BAIS(A)
10
100
1. Tolerance of inductance : 0.8~560uH 20%.
2. Irated is the DC current which cause the inductance drop less than 30% of its nominal inductance without current
and the surface temperature of the part increase less than 45
o
C.
3. Operating temperature: -20
o
C to 105
o
C (including self-temperature rise).
