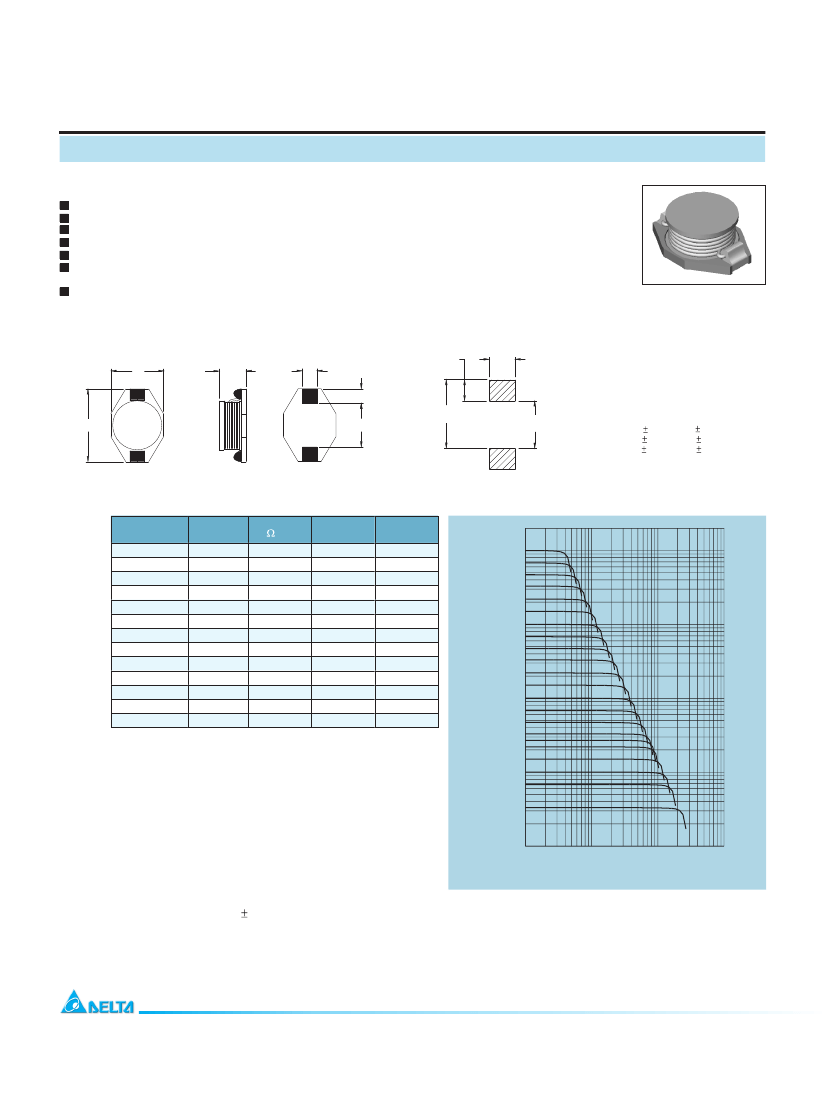

SMT Power Inductor
SISH83 Type
Features
RoHS compliant.
Low profile (3.0mm max. height) SMD type.
Unshielded, suitabel for high density mounting.
High energy storage and low DCR.
Provided with embossed carrier tape packing.
Ideal for power source circuits, DC-DC converter, DC-AC inverters
inductor application.
In addition to the standard versions shown here, customized inductors
are available to meet your exact requirements.
Mechanical Dimension:
B
C
F
E
RECOMMENDED PAD PA
TTERNS
3.5
3.5
14.0
A
D
7.0
UNIT:mm/inch
A = 12.94 / 0.510 Max.
B = 9.4 / 0.370 Max.
C = 3.0 / 0.118 Max.
D = 7.7 0.2 / 0.303 0.008
E = 2.5 0.2 / 0.098 0.008
F = 2.5 0.2 / 0.098 0.008
Electrical Characteristics:
25 C: 100KHz, 0.1V
o
PART NO.
SISH83 - 100
SISH83 - 150
SISH83 - 200
SISH83 - 330
SISH83 - 470
SISH83 - 680
SISH83 - 101
SISH83 - 151
SISH83 - 221
SISH83 - 331
SISH83 - 471
SISH83 - 681
SISH83 - 102
L
1
(uH)
10
15
22
33
47
68
100
150
220
330
470
680
1000
DCR
( )MAX
0.090
0.120
0.190
0.250
0.320
0.550
0.700
1.000
1.600
2.200
3.300
4.400
7.000
Isat
2
(Adc)
2.4
2.0
1.6
1.4
1.0
0.9
0.7
0.6
0.5
0.4
0.3
0.2
0.1
Ir
3
(Adc)
2.00
1.50
1.30
1.10
0.80
0.70
0.60
0.50
0.40
0.30
0.20
0.10
0.05
100.00
1000.00
102
681
471
331
221
151
101
680
470
330
220
150
100
6R8
4R7
3R3
2R7
2R2
1R5
1.00
1R0
R68
R33
INDUCTANCE (uH)
10.00
0.10
0.10
1.00
10.00
100.00
CURRENT (A)
1. Tolerance of inductance: 20%.
2. Isat is the DC current which cause the inductance drop less than 10% of its nominal inductance without current.
3. Ir is the DC current which cause the surface temperature of the part increase less than 45
o
C.
4. Operating temperature : -20
o
C to 105
o
C (including self-temperature rise)
DELTA ELECTRONICS, INC.
(TAOYUAN PLANT CPBG)
252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.
TEL: 886-3-3591968; FAX: 886-3-3591991
http://www.deltaww.com
