DRF-B25SB-HJ-531 datasheet, PDF

DRF-B25SB-HJ-531: DescriptionD Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size309KB，5 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric View All

DRF-B25SB-HJ-531 Overview

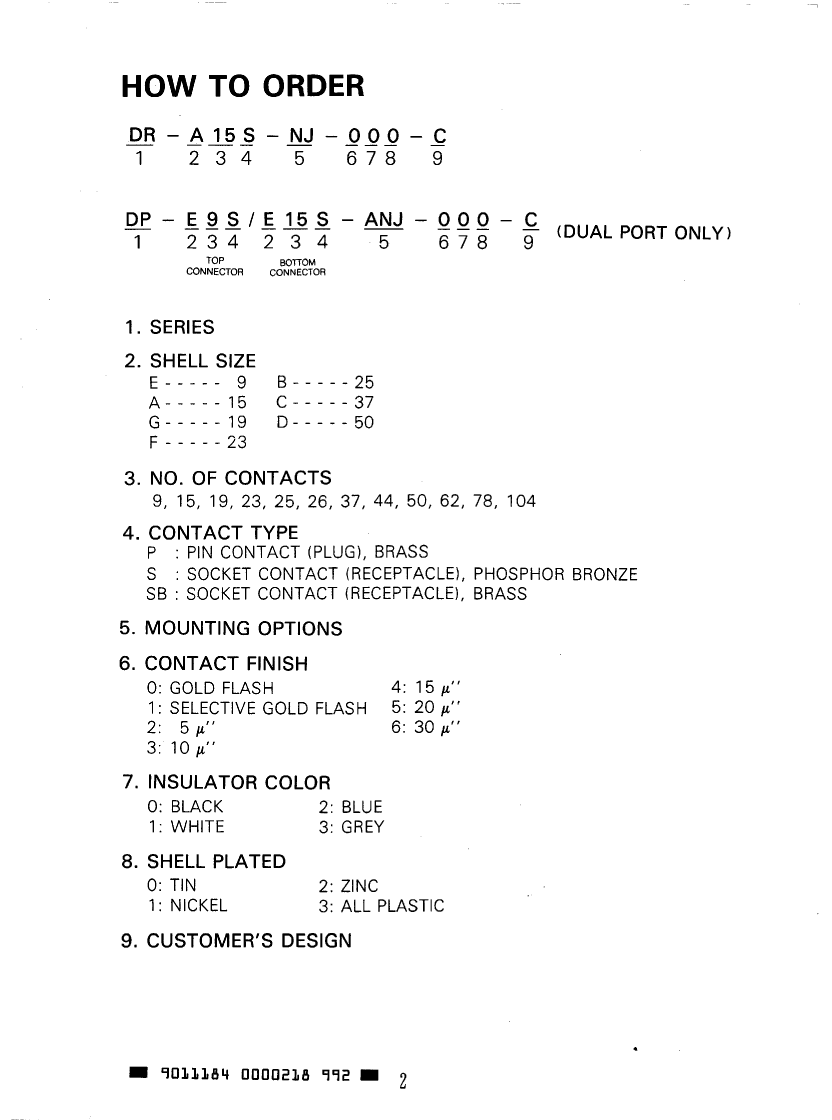

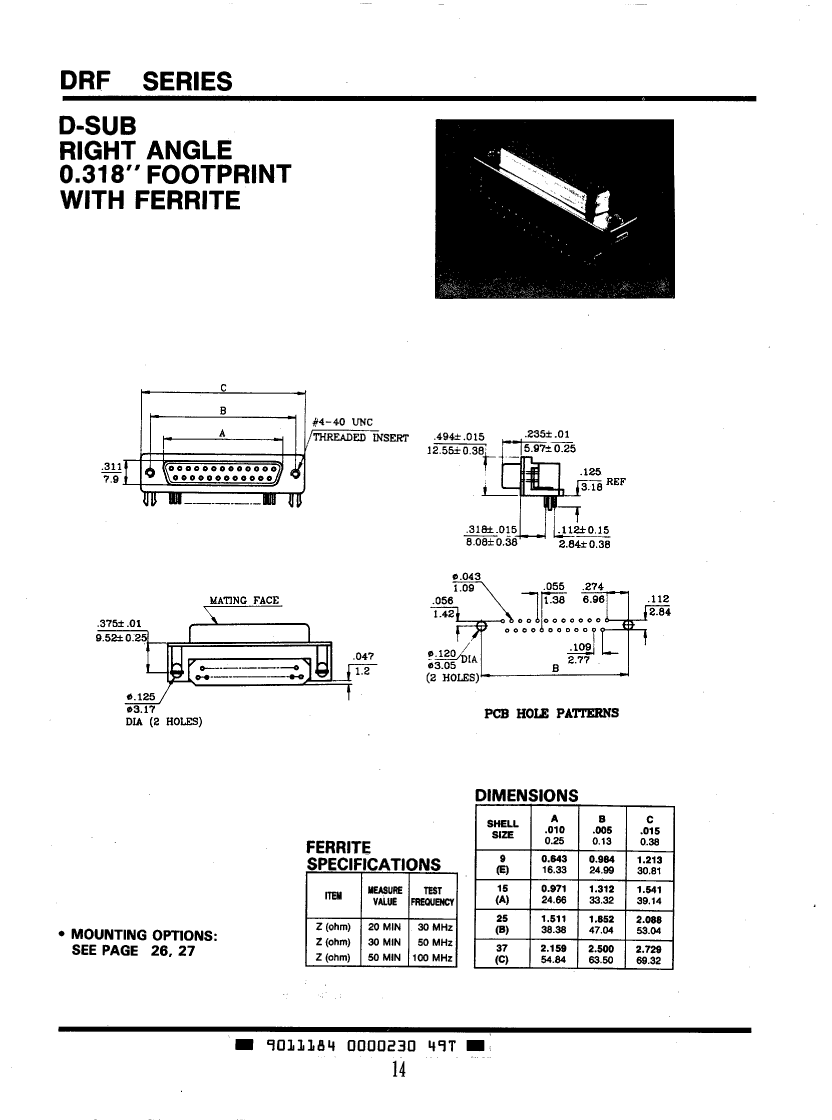

D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

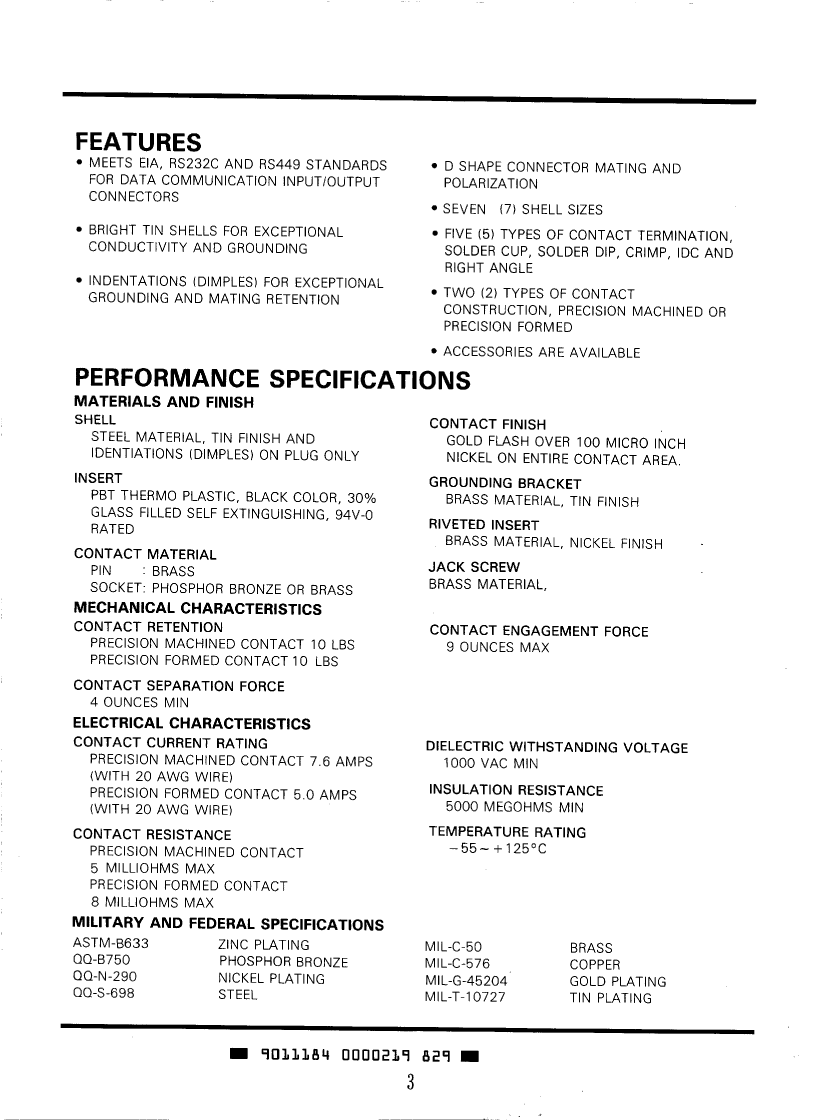

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FERRITE FILTER, 0.318 FTPRINT
body width	0.494 inch
body length	2.088 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Filter function	YES
maximum insertion force	2.502 N
Insulation resistance	5000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DRF
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch

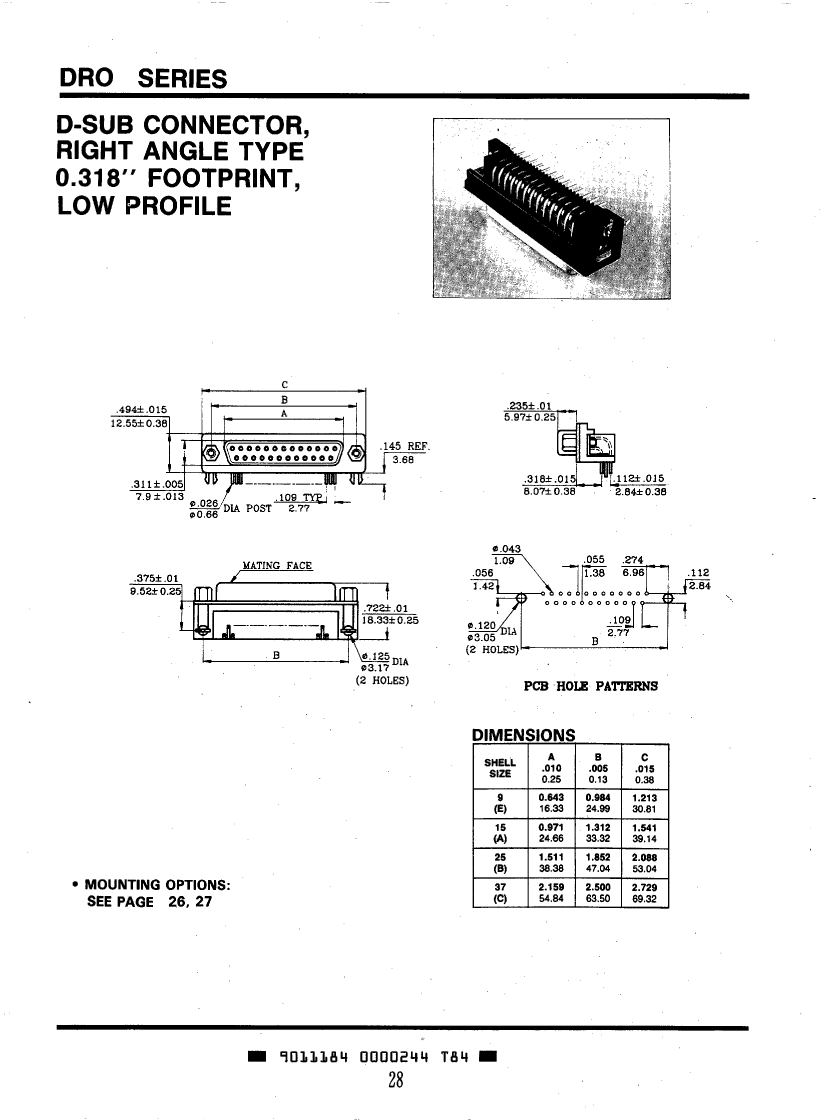

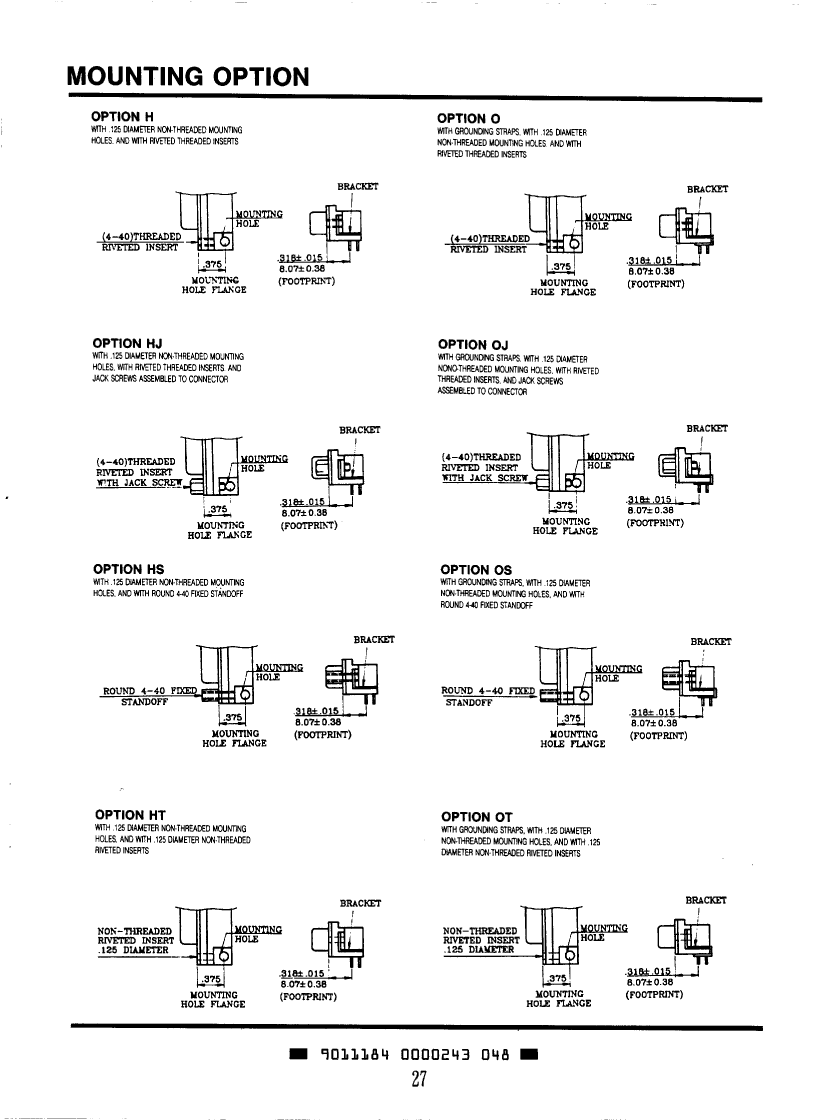

Installation option 1	#4-40
Installation option 2	INSERT,JACKSCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	20u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	25
Evacuation force-minimum value	1.112 N
