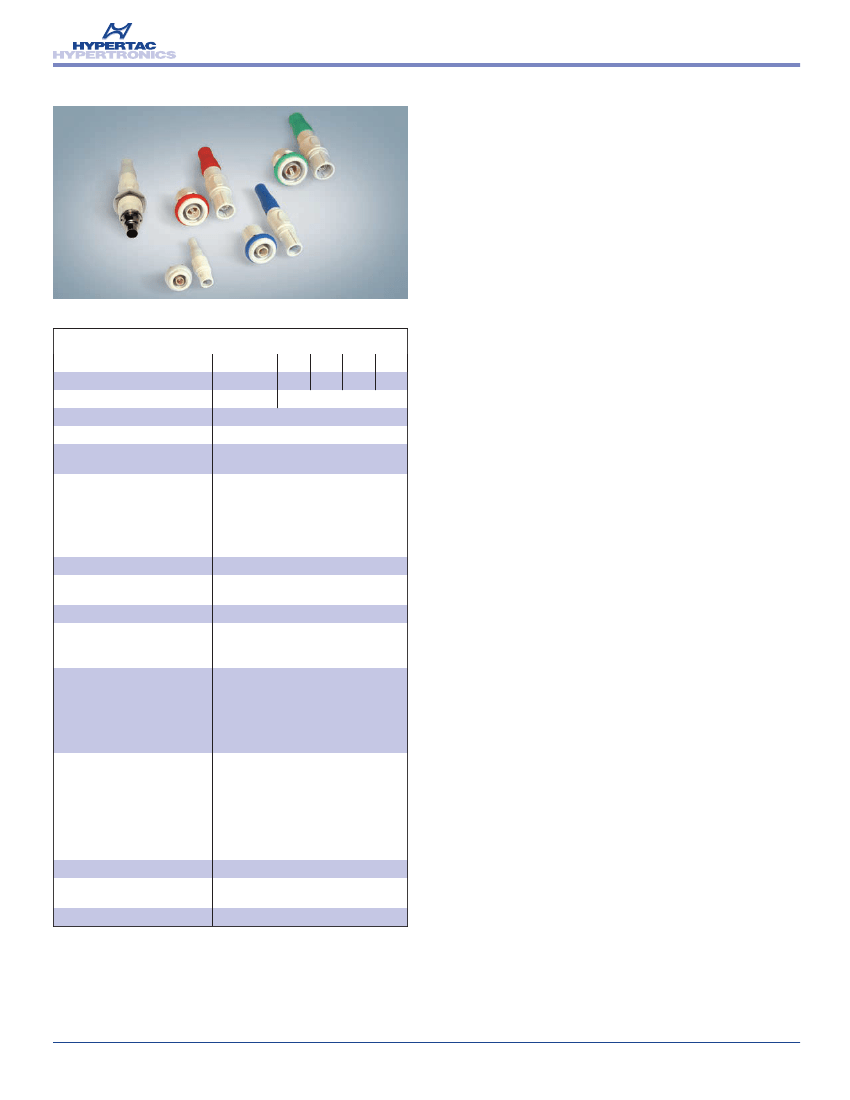

HG Series
HyperGrip
®
- Push/Pull
Plastic Circular Connectors
• For medical and other high reliability applications
• Customer-keyable (6 positions)
• 5 (HG0),12 (HG2), 19 (HG3), 33 (HG4), or 80 (HG6)
contact positions
• Other contact configurations available upon request
• 1 Amp per contact
• Color coding
• Overmoldable plug design
• Front or rear panel mount receptacle design
• High-end engineering plastic components meet medical
sterilizing and cleaning requirements
• Crimp and solder cup contact terminations available
(printed circuit tails available on panel mount receptacle)
• Sealing option: IP67 (temporary immersion) when mated
• Meets fingerproofing requirements per IEC60601-1
US Patent Numbers:
7,326,091 B2
7,661,995 B2
D 596,127 S
7,938,670
D 615,932
D 616,825
General Specifications - HyperGrip
HG0
Number of Contacts
Contact Diameter
Current Rating
(Amps)
Contact Resistance
(milliohms)
Contact Extraction Force
per contact (oz.)
Termination Styles Available
Crimp (Pin and Socket)
Solder Cup (Pin and Socket)
optional
Printed Circuit Terminal (Socket)
optional
Mating Cycle Life
Breakdown Voltage
Between Contacts
(max.)
Dielectric Withstanding Voltage
Shielded Connectors
Shielding Effectiveness
Attenuation
Materials
5
0.012 [0.30]
1.0
< 8.0
0.50 to 1.60
HG2
12
HG3
19
HG4
33
HG6
80
0.016 [0.40]
26 to 28 AWG
up to 26 AWG
N/A
up to 20,000
1000V
750V
up to 3 GHz
50 dB maximum at 3 GHz
Body Components:
Polyetherimide
Insulators:
Liquid crystal polymer
Sealing Components:
Silicone
Sockets:
Beryllium copper wires and brass body
components
Gold over nickel
Pins:
Phosphor Bronze
Gold over nickel on the mating surface
Goldflash over nickel on the termination
> 5 x 10
4
megohms at 500 VDC
-40º C to 125º C
up to 185º C processing
Steam autoclave, Gamma, ETO, Sterrad
®
Contact
(Hypertac
®
)
Material and Plating
Insulation Resistance
Temperature Rating
Polyetherimide, LCP, Silicone
Sterilization
Sterrad is a trademark of Advanced Sterilization Products (ASP)
NOTE:
1) Recommended tightening torque for panel mount receptacle for HG2, HG3 and
HG4 is (0.452 to 0.678 N•m). For HG0 (0.226 to 0.339 N•m).
Dimensions are in inches [mm]
www.hypertronics.com
2 / 21

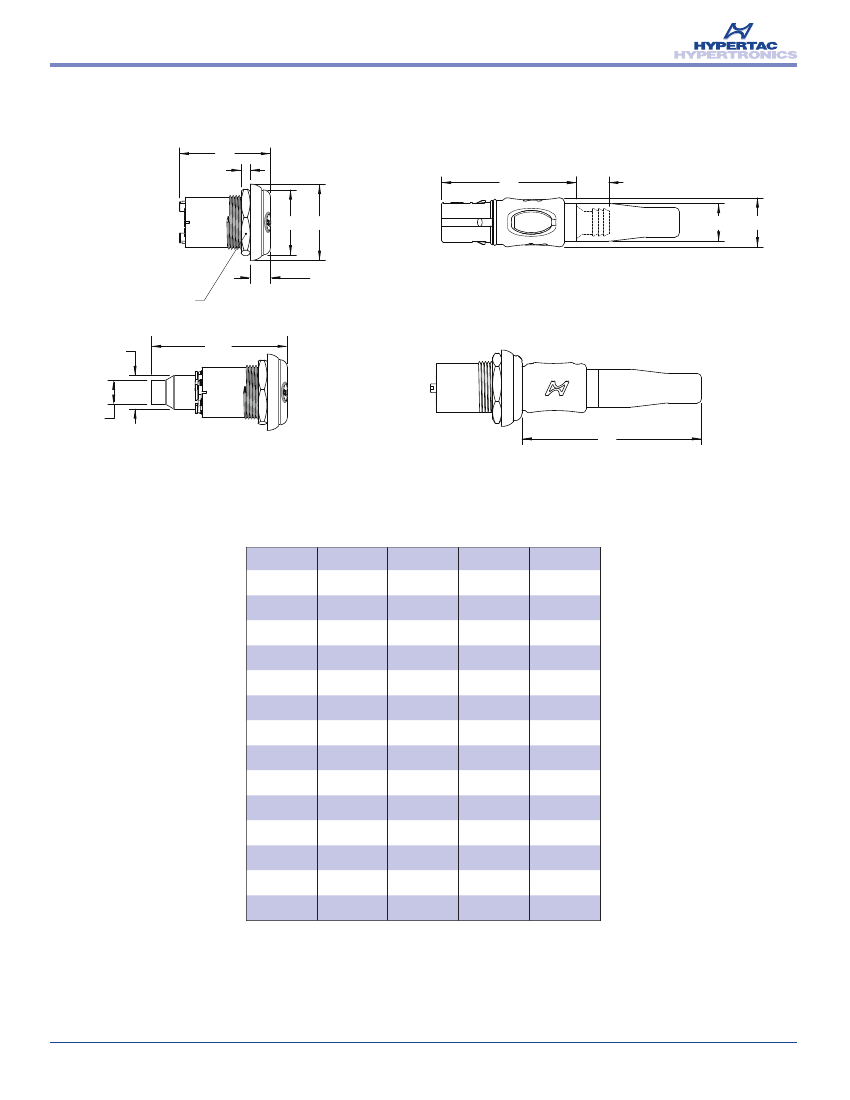

HG Series
B
K
E
C
A
F
G
H
L
ACROSS
FLATS ON NUT
P
D
“E” RECEPTACLE
“P” PLUG
M
N
J
“E” RECEPTACLE
WITH SHIELDING OPTION
PLUG/RECEPTACLE MATED WITH STRAIN RELIEF
HG0
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Ø0.807
[20.50]
0.728
[18.50]
Ø0.630
[16.00]
0.285
[7.25]
1.040
[26.38]
0.343
[8.71]
Ø0.370
[9.40]
Ø0.486
[12.34]
1.415
[35.94]
0.118
[3.00]
0.689
[17.50]
–
–
–
HG2
Ø1.014
[25.76]
1.220
[30.88]
Ø.866
[22.00]
0.272
[6.91]
1.808
[45.92]
0.427
[10.84]
Ø.502
[12.75]
Ø.656
[16.66]
2.390
[60.65]
0.118
[3.00]
0.823
[20.90]
Ø.433
[11.00]
Ø.197
[5.00]
1.704
[43.27]
HG3
Ø1.172
[29.77]
1.220
[30.88]
Ø1.007
[25.59]
0.272
[6.91]
2.170
[55.07]
0.354
[9.00]
Ø.650
[16.50]
Ø.800
[20.36]
2.730
[69.33]
0.118
[3.00]
0.980
[24.90]
Ø.535
[13.60]
Ø.378
[9.60]
1.961
[49.82]
HG4
Ø1.250
[31.77]
1.220
[30.88]
Ø1.090
[27.80]
0.272
[6.91]
2.170
[55.07]
0.354
[9.00]
Ø.710
[18.15]
Ø.880
[22.47]
2.730
[69.33]
0.118
[3.00]
1.060
[76.90]
Ø.610
[15.50]
Ø.378
[9.60]
2.124
[53.95]
Dimensions are in inches [mm]
2 / 22
www.hypertronics.com
HG Series
2.504
63.61
Ø 0.885
22.48
“C” Cable Receptacle
“C” CABLE RECEPTACLE
HG2 Only
HG2 ONLY
5.862
148.89
3.978
101.03
PLUG/CABLE RECEPTACLE MATED
Plug/Cable Receptacle Mated
HG2
HG2 ONLY
Only
HG6 Only
B
E
A
F
HG6
Ø2.026
[51.45]
1.452
[36.87]
Ø1.789
[45.45]
0.669
[17.00]
2.224
[56.50]
4.950
[125.72]
Ø1.693
[43.00]
Ø1.446
[36.73]
4.371
[111.02]
0.197
[5.00]
A
C
G
H
B
C
D
K MAX.
PANEL
THICKNESS
D
“P” PLUG
HG6 ONLY
E
F
G
“E” RECEPTACLE
HG6 ONLY
J
H
J
K
PLUG/RECEPTACLE MATED PAIR
HG6 ONLY
Dimensions are in inches [mm]
www.hypertronics.com
2 / 23
HG Series

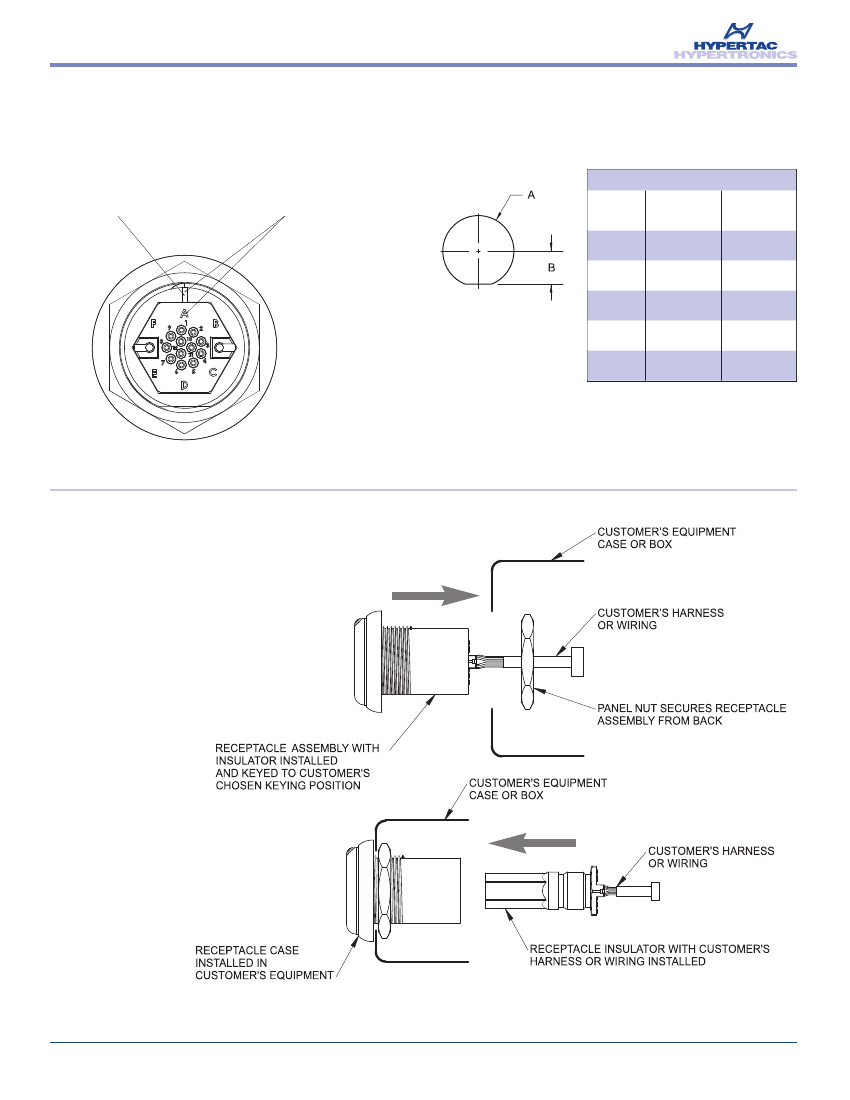

Receptacle Keying
Panel
Fiber Optic Contact Technologies Cutouts
Keying Position A
(Receptacle Wiring End)
HG2 shown. All other sizes
keyed in the same fashion
NOTCH
A KEYED
HG0
HG2
HG3
HG4
HG6
All sizes
Dimension
A
+0.002
-0.001
[+0.050
-0.030]
±0.001
B
[±0.030]
Ø0.555
[14.10]
Ø0.711
[18.06]
Ø0.870
[22.10]
Ø0.949
[24.10]
Ø1.583
[40.21]
0.240
[6.10]
0.329
[8.36]
0.393
[9.98]
0.430
[10.92]
0.714
[18.14]
NOTE:
6 different keying positions possible - A through F.
Receptacle
Mounting Options
Assemble outside panel then install
Install receptacle body then
assemble inside panel
Dimensions are in inches [mm]
2 / 24
www.hypertronics.com
HG Series

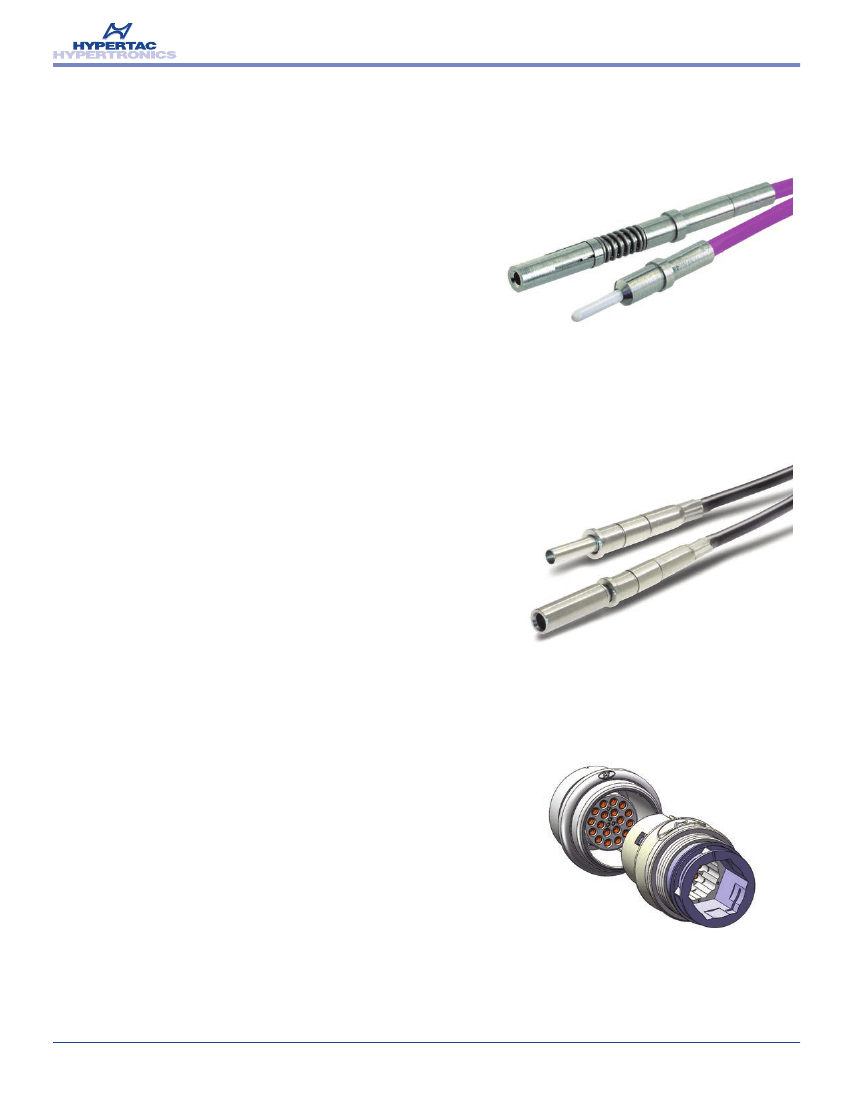

Fiber Optic Contact Technologies
Size 16 Butt-Joint Fiber Optic Termini
– the next
generation of butt-joint interconnect technology allowing for higher
density multichannel connectors.
Features:
•
•
•
•
•
•
•
Low inserion loss .25 dB (typical) mated pair
Optical disconnect style available
PC or APC ferrule end face
Hermaphroditic design (same contact on both sides of the connector)
Compatible with multi-mode and single-mode fiber
Standard 1.25 mm ferrule and sleeve
Easy cleaning access to the contact through removable alignment
sleeve holder
Size 12 Expanded Beam Fiber Optic
contacts provide a
robust fiber optic interconnection with low susceptibility to contamination
and fits a variety of cable types with diameters from 1.6 to 2.2 mm with
additional versions available upon request. The contacts are rear
release/rear removable with standard size 12 removal tools.
Features:
•
•
•
•
•
Multimode applications 50/125 and 62.5/125 µm
Insertion loss: -1.0 dB (typical) mated pair
Increased protection for fiber face
Reduced influence from dirt, debris, and vibration
Simple cleaning
Non-Magnetic High Frequency Coax Contacts
contacts
have low VSWR up to 40 GHz (typ). These contacts are compact in size
to allow multiple high density connections in HyperGrip
®
connectors for
applications where tight space and weight savings are critical.
Features:
•
•
•
•
Magnetic Permeability: ±30x10
-5
µ
r
Max. differential
Low VSWR up to 40 GHz
Mating cycle life: up to 20,000 mating cycles
Overall maximum contact diameter Ø.133"
NMHF (Non-Magnetic High Frequency) Coax
HG6 connector loaded NMHF coax contacts
Dimensions are in inches [mm]
www.hypertronics.com
2 / 25
