BC084-48-C-0390-L-E datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BC084-48-C-0390-L-E

Preview

BC084-48-C-0390-L-E: DescriptionBoard Connector, 48 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size105KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BC084-48-C-0390-L-E Overview

Board Connector, 48 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,

BC084-48-C-0390-L-E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.098 inch
subject depth	0.089 inch
body length	0.965 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	200VAC V
Durability	100 Cycles
maximum insertion force	1.0008 N
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
Manufacturer's serial number	BC084
Plug contact pitch	0.039 inch
Match contact row spacing	0.039 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.429 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	48
Evacuation force-minimum value	.1112 N

Preview

Download Datasheet

View All

5

1

2

3

4

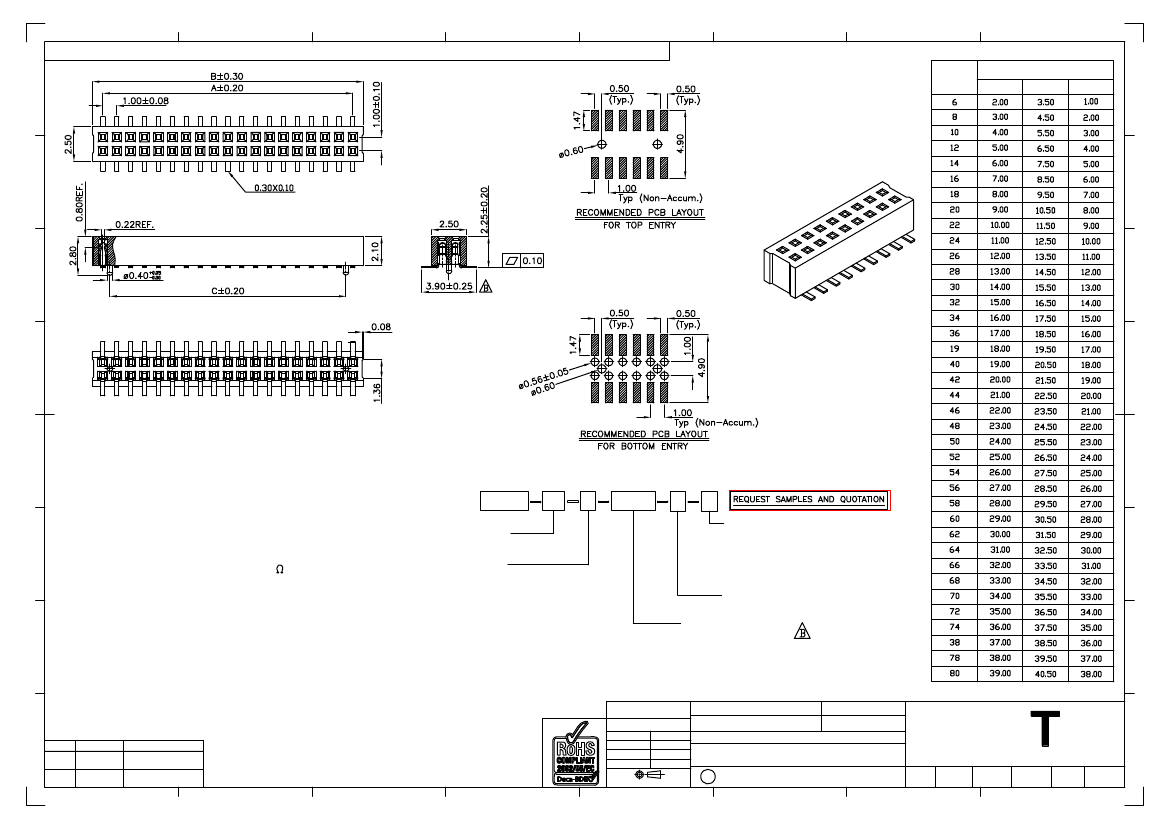

Global Connector Technology Ltd. - BC084: 1.00mm PITCH SOCKET, DUAL ENTRY, DUAL ROW, SURFACE MOUNT, VERTICAL

A

6

7

8

DIMENSIONS

CONTACTS

A

B

C

A

B

C

D

E

Ordering Grid

E

SPECIFICATIONS

规格

:

BC084

XX

X

0390

L

X

Packing Options

C = Tape and Reel with Film (Standard)

B = Tape and Reel with Cap

D = Tube

E = Tube with Cap

F = Tube with Film

Insulator Material

L = LCP (Standard)

Footprint Width (1/100mm)

0390 = 3.90mm

F

G

H

CURRENT RATING

电流额定值：

1 AMP

No. of Contacts

INSULATOR RESISTANCE

绝缘电阻值

: 500 MEGOHMS MIN.

06 to 80

DIELECTRIC WITHSTANDING

耐电压：

AC 200 V

Contact Plating

CONTACT RESISTANCE

接触电阻值：

20m Max.

A = Gold Flash All Over (Standard)

OPERATING TEMPERATURE

工½温度：

-40°C TO +105°C

C = Tin All Over

CONTACT MATERIAL

端子物料：

PHOSPHOR BRONZE

INSULATOR MATERIAL

绝缘½物料

:

STANDARD

标准物料

: POLYESTER

聚酯

, LCP, UL 94-V0

SOLDERING PROCESS

可焊性

:

LCP (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

):

BC035

BC036

BC040

BC045

BC050

BC055

BC057

By

DETAIL

REV

DATE

SA

DRAWING

RELEASE

A

20/05/08

AJO

SELECTABLE WIDTH

REMOVED

B

25/06/12

F

G

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X.°± 5°

.X°± 3°

X.X ± 0.25

.XX°± 2°

X.XX ± 0.15

X.XXX ± 0.10 .XXX°± 1°

X. ± 0.30

Third Angle Projection

BC084

Description:-

20 MAY 08

1.00mm PITCH SOCKET, DUAL ENTRY,

DUAL ROW, SURFACE MOUNT, VERTICAL

www.globalconnectortechnology.com

Scale

NTS

GC

Material

See Note

H

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

B

Drawn by

SA

E & OE

Sheet No.

1/1

1

2

3

4

5

6

7

8
